Evaluation Boards - Audio Amplifiers
Audio Amplifier Evaluation boards are populated boards used to provide a working example of a specific analog amplifier or device. The amplifier types are Class AB, Class D, Class G, Class H, and Class K, with output types of headphone, 1 channel (mono), 2 channel (stereo), 3 channel, 4 channel, 6 channel, and 8 channel.
Product List
Total Components: 6
| Product | Pricing | Datasheet | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Board Type | Utilized IC / Part | Supplied Contents | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 2130 Adafruit | 1 $3.9500 | Datasheet | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2V ~ 5.5V | Fully Populated | PAM8302A | Board(s) | 6,768 Cart + RFQ |
 3006 Adafruit | 1 $5.9500 | Datasheet | Class D | 1-Channel (Mono) | 3.2W x 1 @ 4Ohm | 2.5V ~ 5.5V | Fully Populated | MAX98357A | Board(s) | 9,444 Cart + RFQ |
 1752 Adafruit | 1 $19.9500 | Datasheet | Class D | 2-Channel (Stereo) | 20W x 2 @ 4Ohm | 5V ~ 12V | Fully Populated | MAX9744 | Board(s) | 7,800 Cart + RFQ |

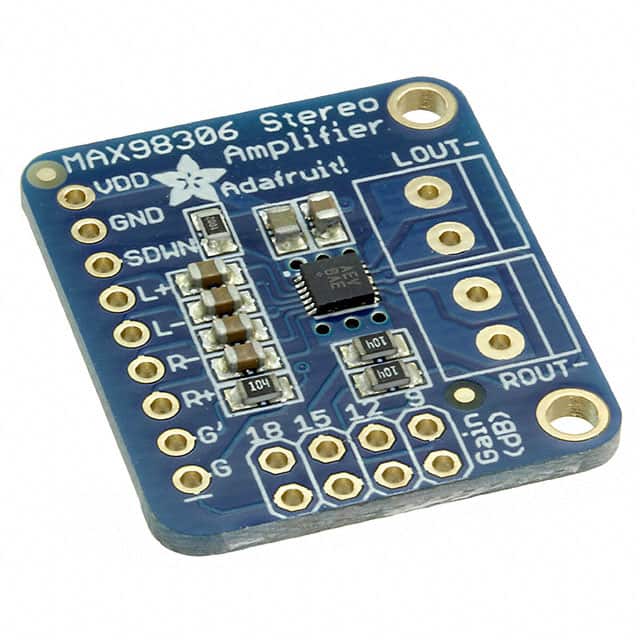

 987 Adafruit | 1 $8.9500 | Datasheet | Class D | 2-Channel (Stereo) | 3.7W x 2 @ 3Ohm | 2.7V ~ 5.5V | Fully Populated | MAX98306 | Board(s) | 6,543 Cart + RFQ |

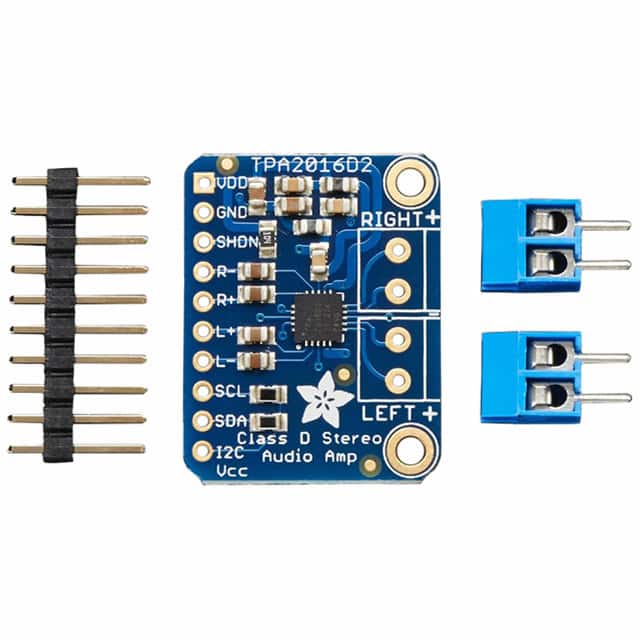

 1712 Adafruit | 1 $9.9500 | Datasheet | Class D | 2-Channel (Stereo) | 2.8W x 2 @ 4Ohm | 2.5V ~ 5.5V | Fully Populated | TPA2016D2 | Board(s) | 1,998 Cart + RFQ |

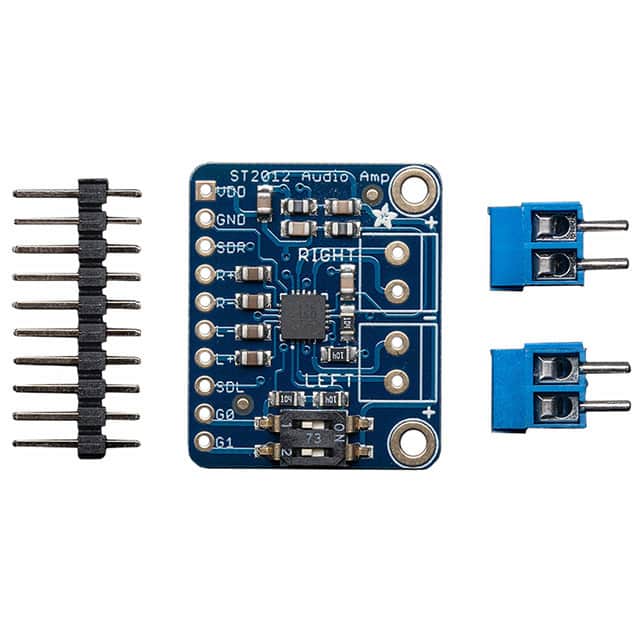

 1552 Adafruit | 1 $9.9500 | Datasheet | Class D | 2-Channel (Stereo) | 2.8W x 2 @ 4Ohm | 2.5V ~ 5.5V | Fully Populated | TS2012 | Board(s) | 7,363 Cart + RFQ |
