Evaluation Boards - Audio Amplifiers
Audio Amplifier Evaluation boards are populated boards used to provide a working example of a specific analog amplifier or device. The amplifier types are Class AB, Class D, Class G, Class H, and Class K, with output types of headphone, 1 channel (mono), 2 channel (stereo), 3 channel, 4 channel, 6 channel, and 8 channel.
Product List
Total Components: 55
| Product | Pricing | Datasheet | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Board Type | Utilized IC / Part | Supplied Contents | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 TPA3255EVM Texas Instruments | 1 $241.2000 | Datasheet | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 605W x 1 @ 2Ohm; 315W x 2 @ 4Ohm | 18V ~ 53.5V | Fully Populated | TPA3255 | Board(s) | 5,749 Cart + RFQ |
 LM48580EVM Texas Instruments | 1 $178.8000 | Datasheet | Class H | 1-Channel (Mono) | - | 2.5V ~ 5.5V | Fully Populated | LM48580 | Board(s) | 1,744 Cart + RFQ |
 TPA3112D1EVM Texas Instruments | 1 $184.8000 | Datasheet | Class D | 1-Channel (Mono) | 25W x 1 @ 8Ohm | 8V ~ 26V | Fully Populated | TPA3112D1 | Board(s) | 4,635 Cart + RFQ |

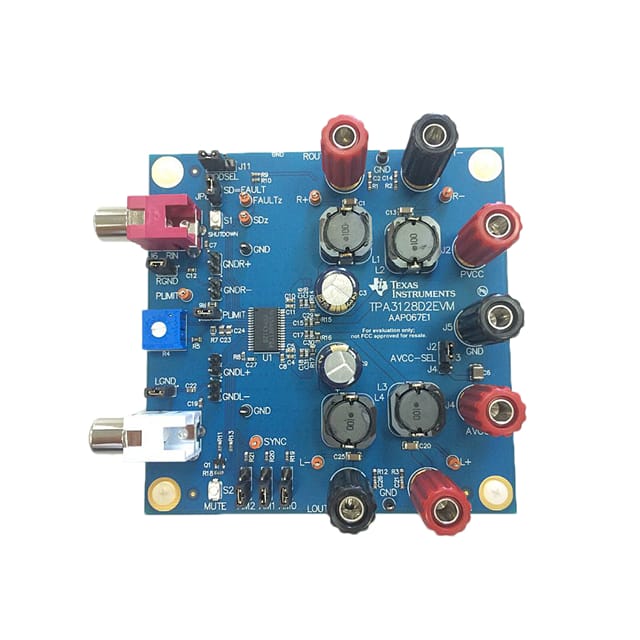

 TPA3128D2EVM Texas Instruments | 1 $201.6000 | Datasheet | Class D | 2-Channel (Stereo) | 30W x 2 @ 8Ohm | 4.5V ~ 26V | Fully Populated | TPA3128D2 | Board(s) | 7,944 Cart + RFQ |

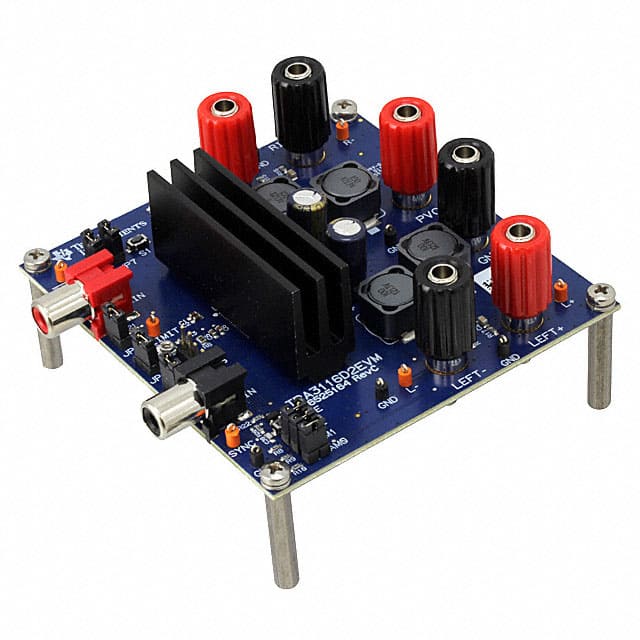

 TPA3116D2EVM Texas Instruments | 1 $210.0000 | Datasheet | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 6V ~ 26V | Fully Populated | TPA3116D2 | Board(s) | 6,814 Cart + RFQ |

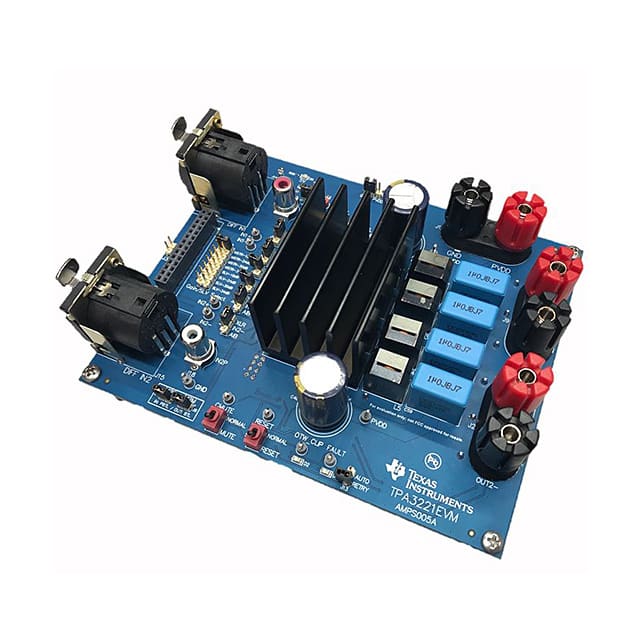

 TPA3221EVM Texas Instruments | 1 $211.2000 | Datasheet | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 208W x 1 @ 2Ohm; 112W x 2 @ 3Ohm | 12V ~ 30V | Fully Populated | TPA3221 | Board(s) | 9,240 Cart + RFQ |

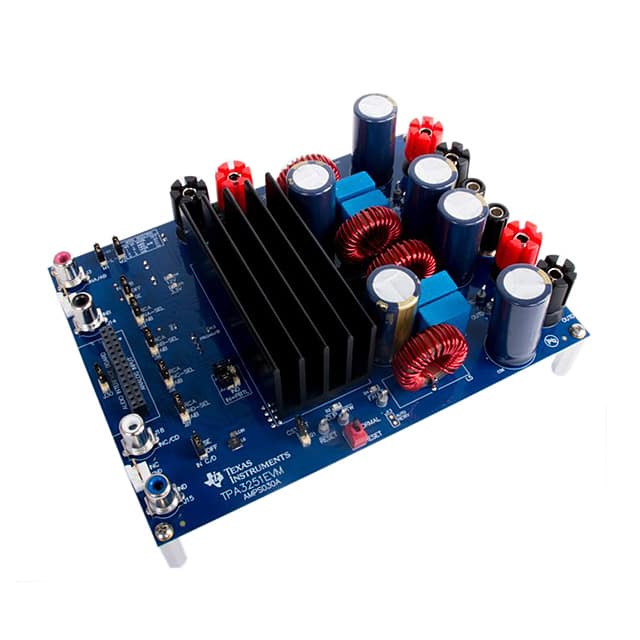

 TPA3251EVM Texas Instruments | 1 $237.6000 | Datasheet | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 350W x 1 @ 2Ohm; 220W x 2 @ 3Ohm | 18V ~ 36V | Fully Populated | TPA3251 | Board(s) | 6,756 Cart + RFQ |

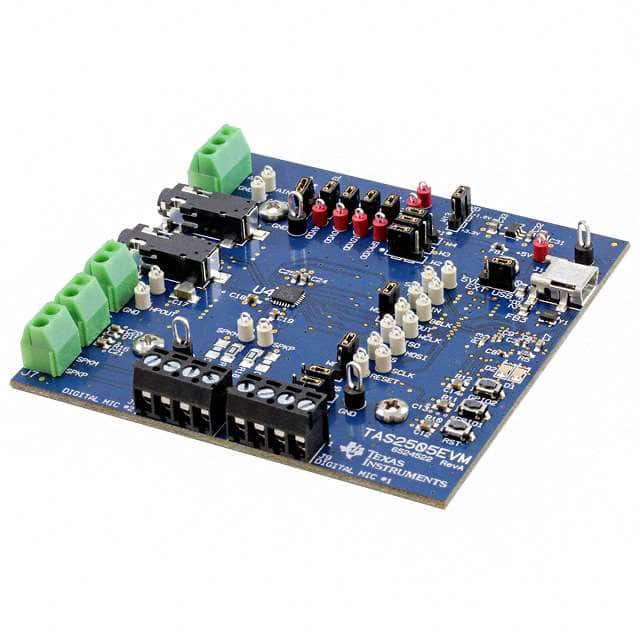

 TAS2505EVM Texas Instruments | 1 $238.8000 | Datasheet | Class D | 1-Channel (Mono) with Mono Headphones | 2W x 1 @ 4Ohm | 1.5V ~ 1.95V | Fully Populated | TAS2505 | Board(s) | 5,062 Cart + RFQ |

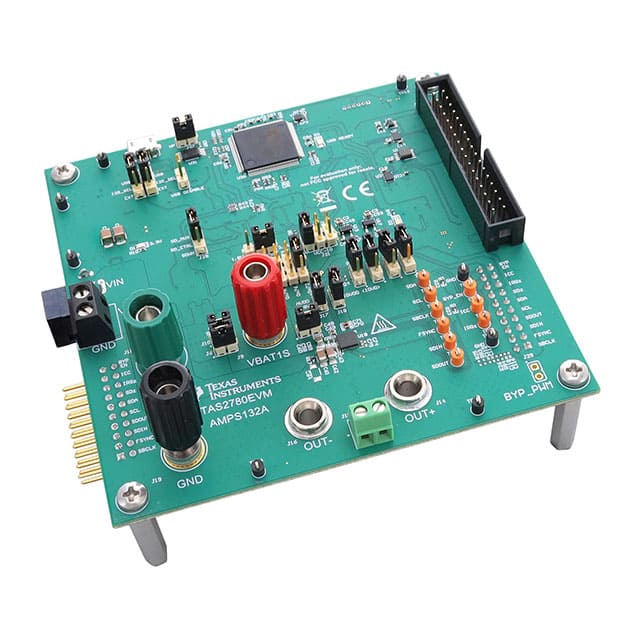

 TAS2780EVM Texas Instruments | 1 $298.8000 | Datasheet | Class D | 1-Channel (Mono) | 25W x 1 @ 4Ohm | 1.65V ~ 1.95V | Fully Populated | TAS2780 | Board(s) | 3,906 Cart + RFQ |

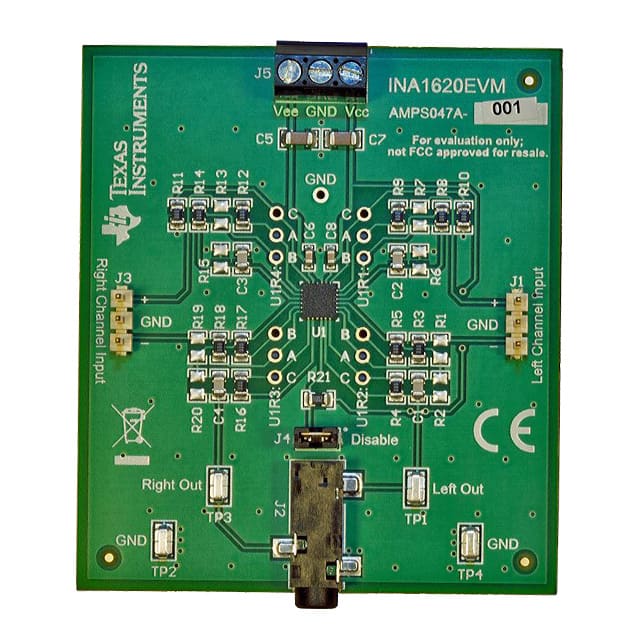

 INA1620EVM Texas Instruments | 1 $30.0000 | Datasheet | Class AB | Headphones, 2-Channel (Stereo) | 142mW x 2 @ 32Ohm | ±15V | Fully Populated | INA1620 | Board(s) | 9,007 Cart + RFQ |

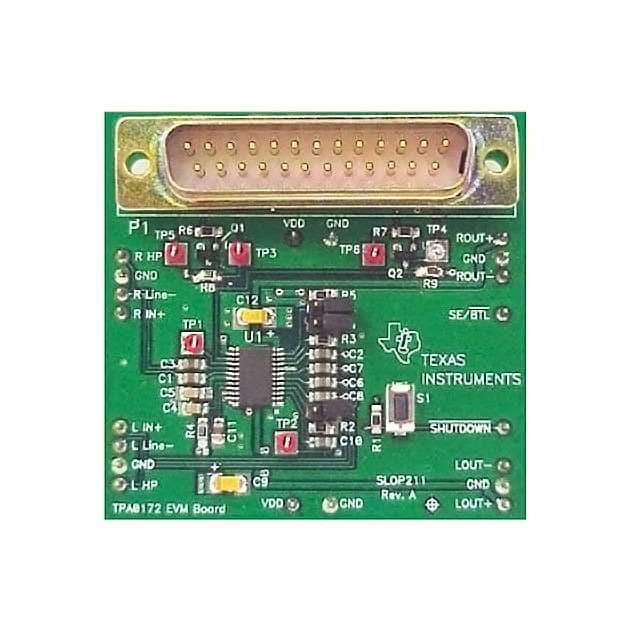

 TPA0172EVM Texas Instruments | 1 $51.7400 | Datasheet | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2W x 2 @ 4Ohm | 4.5V ~ 5.5V | Fully Populated | TPA0172 | Board(s) | 5,877 Cart + RFQ |

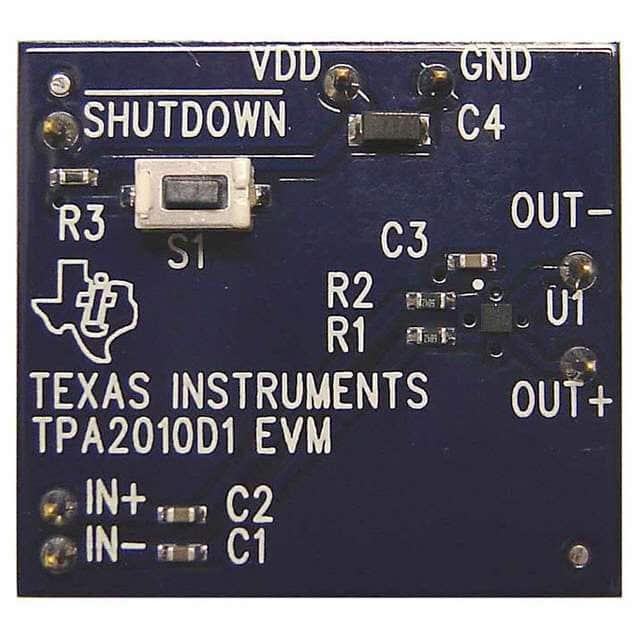

 TPA2010D1EVM Texas Instruments | 1 $118.8000 | Datasheet | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2.5V ~ 5.5V | Fully Populated | TPA2010D1 | Board(s) | 4,775 Cart + RFQ |

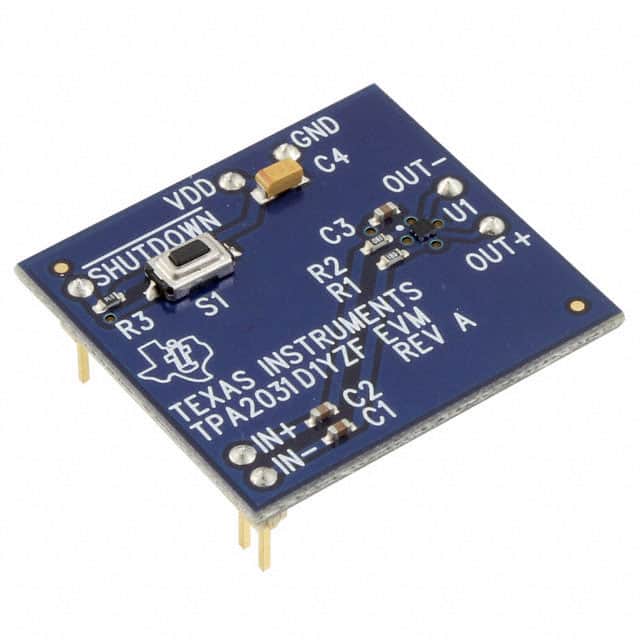

 TPA2031D1EVM Texas Instruments | 1 $118.8000 | Datasheet | Class D | 1-Channel (Mono) | 2.5W x 1 @ 4Ohm | 2.5V ~ 5.5V | Fully Populated | TPA2031 | Board(s) | 2,363 Cart + RFQ |

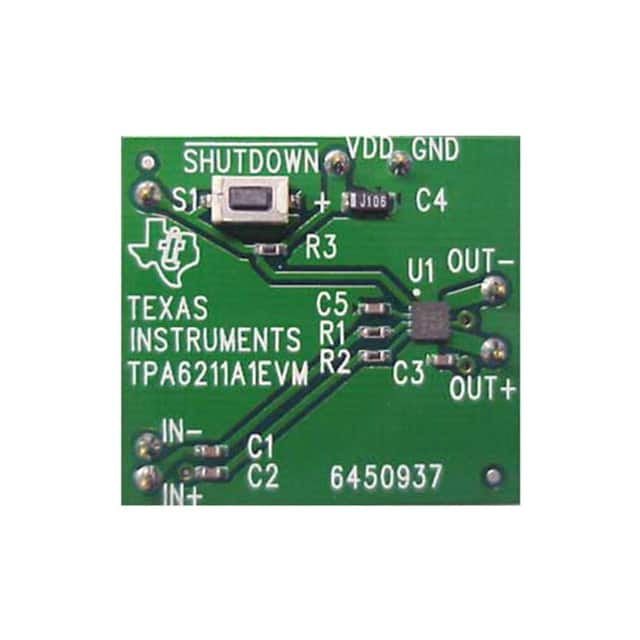

 TPA6211A1EVM Texas Instruments | 1 $118.8000 | Datasheet | Class AB | 1-Channel (Mono) | 3.1W x 1 @ 3Ohm | 2.5V ~ 5.5V | Fully Populated | TPA6211A1 | Board(s) | 5,490 Cart + RFQ |

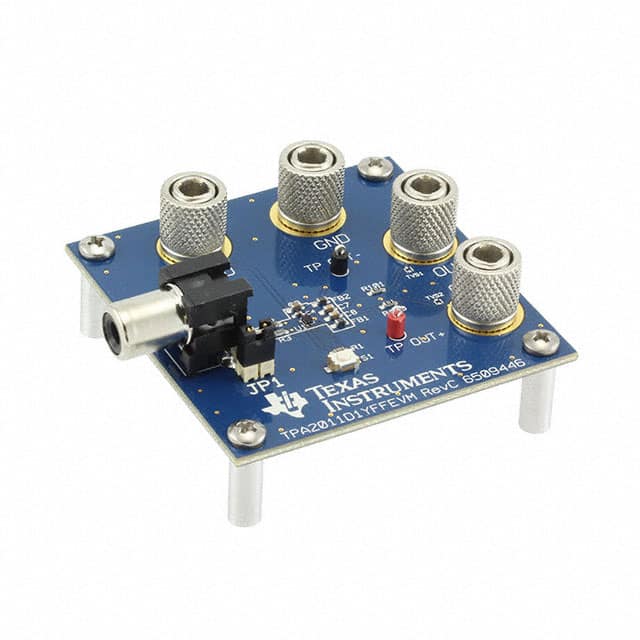

 TPA2011D1YFFEVM Texas Instruments | 1 $118.8000 | Datasheet | Class D | 1-Channel (Mono) | 3.24W x 1 @ 4Ohm | 2.5V ~ 5.5V | Fully Populated | TPA2011D1 | Board(s) | 1,363 Cart + RFQ |

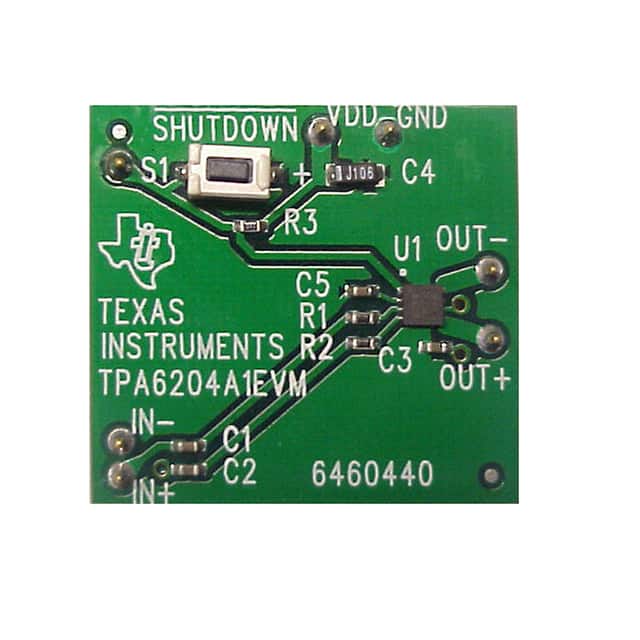

 TPA6204A1EVM Texas Instruments | 1 $118.8000 | Datasheet | Class AB | 1-Channel (Mono) | 1.7W x 1 @ 8Ohm | 2.5V ~ 5.5V | Fully Populated | TPA6204A1 | Board(s) | 7,342 Cart + RFQ |

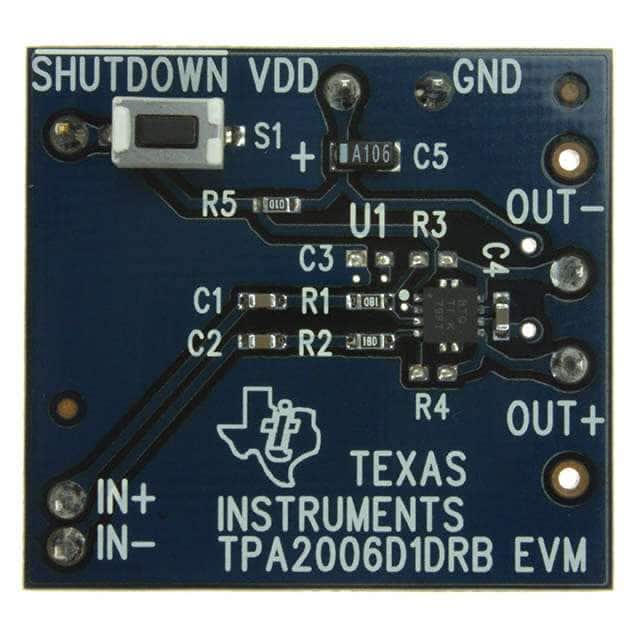

 TPA2006D1EVM Texas Instruments | 1 $118.8000 | Datasheet | Class D | 1-Channel (Mono) | 1.45W x 1 @ 8Ohm | 2.5V ~ 5.5V | Fully Populated | TPA2006D1 | Board(s) | 4,624 Cart + RFQ |

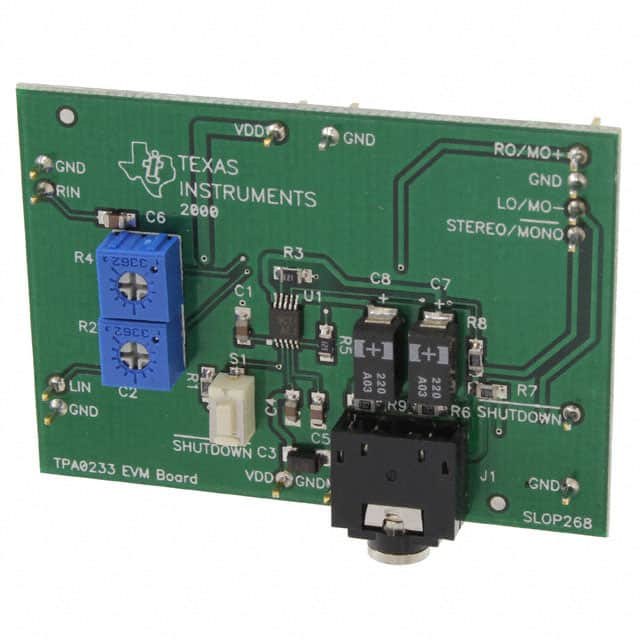

 TPA0233EVM Texas Instruments | 1 $118.8000 | Datasheet | Class AB | 1-Channel (Mono) with Stereo Headphones | 2W x 1 @ 4Ohm; 92mW x 2 @ 32Ohm | 2.5V ~ 5.5V | Fully Populated | TPA0233 | Board(s) | 9,094 Cart + RFQ |

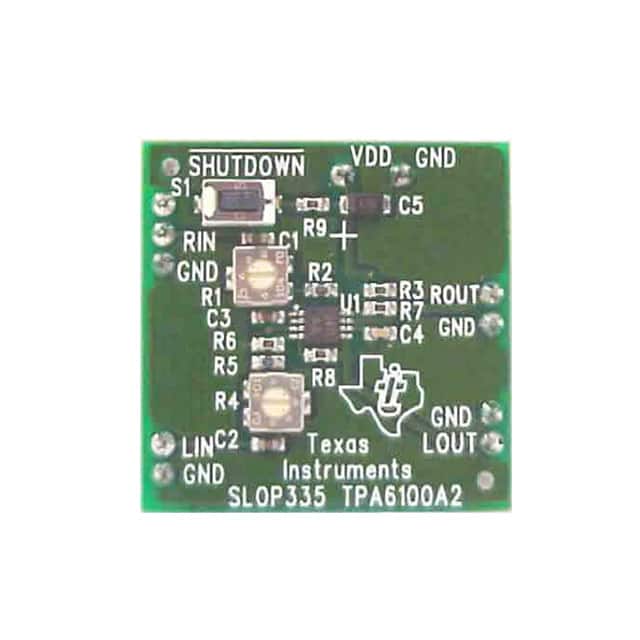

 TPA6100A2EVM Texas Instruments | 1 $118.8000 | Datasheet | Class AB | Headphones, 2-Channel (Stereo) | 50mW x 2 @ 16Ohm | 1.6V ~ 3.6V | Fully Populated | TPA6100A2 | Board(s) | 3,599 Cart + RFQ |

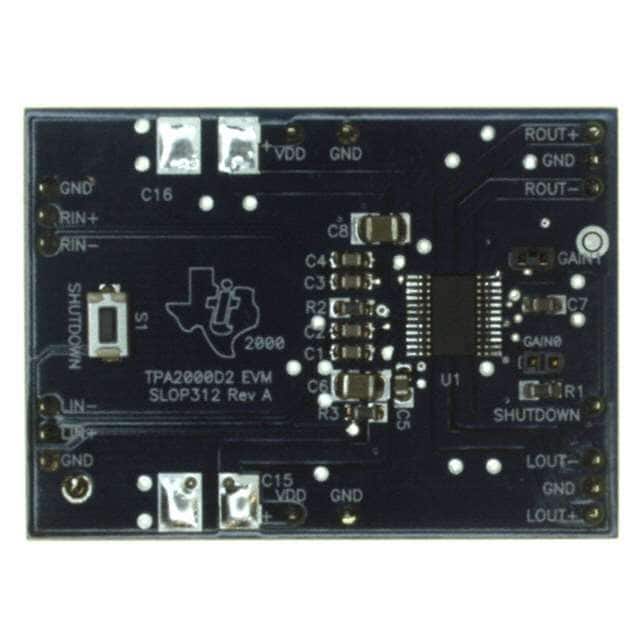

 TPA2000D2EVM Texas Instruments | 1 $118.8000 | Datasheet | Class D | 2-Channel (Stereo) | 2W x 2 @ 3Ohm | 4.5V ~ 5.5V | Fully Populated | TPA2000D2 | Board(s) | 7,713 Cart + RFQ |
