Evaluation Boards - Audio Amplifiers
Audio Amplifier Evaluation boards are populated boards used to provide a working example of a specific analog amplifier or device. The amplifier types are Class AB, Class D, Class G, Class H, and Class K, with output types of headphone, 1 channel (mono), 2 channel (stereo), 3 channel, 4 channel, 6 channel, and 8 channel.
Product List
Total Components: 12
| Product | Pricing | Datasheet | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Board Type | Utilized IC / Part | Supplied Contents | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 IRAUDAMP23 Infineon Technologies | 1 $272.7300 | Datasheet | Class D | 2-Channel (Stereo) | 600W x 2 @ 20Ohm | ±80V ~ 160V | Fully Populated | IRS2452AM | Board(s) | 7,918 Cart + RFQ |
 REFAUDIODMA12070PTOBO1 Infineon Technologies | 1 $61.0300 | Datasheet | Class D | 2-Channel (Stereo) | 80W x 4 @ 4Ohm | 5V ~ 26V | Fully Populated | MA12070P | Board(s) | 7,029 Cart + RFQ |

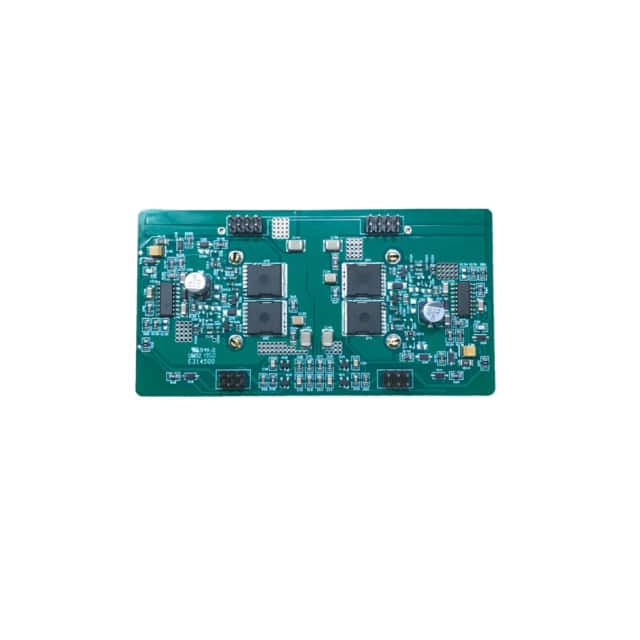

 EVALAUDAMP24TOBO1 Infineon Technologies | 1 $457.9900 | Datasheet | Class D | 2-Channel (Stereo) | 250W x 2 @ 8Ohm | ±38V ~ 75V | Fully Populated | IGT40R070D1 E8220, IRS20957S | Board(s) | 6,996 Cart + RFQ |

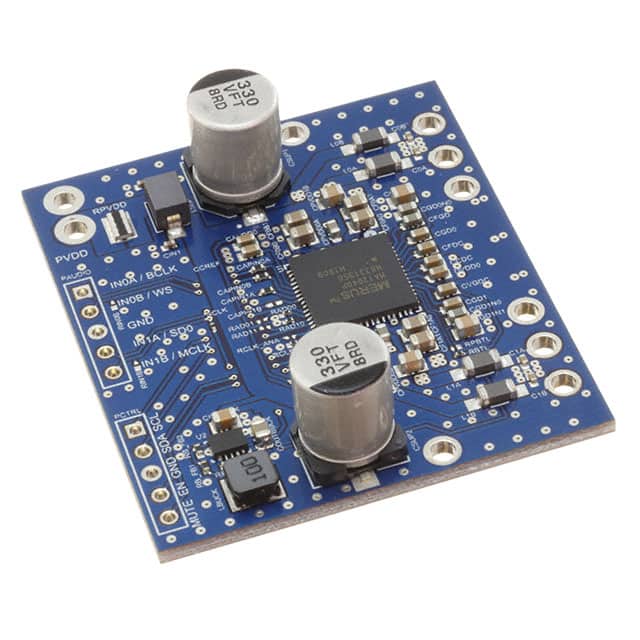

 REFAUDIODMA12040PTOBO1 Infineon Technologies | 1 $63.0000 | Datasheet | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5V ~ 18V | Fully Populated | MA12040P | Board(s) | 2,645 Cart + RFQ |

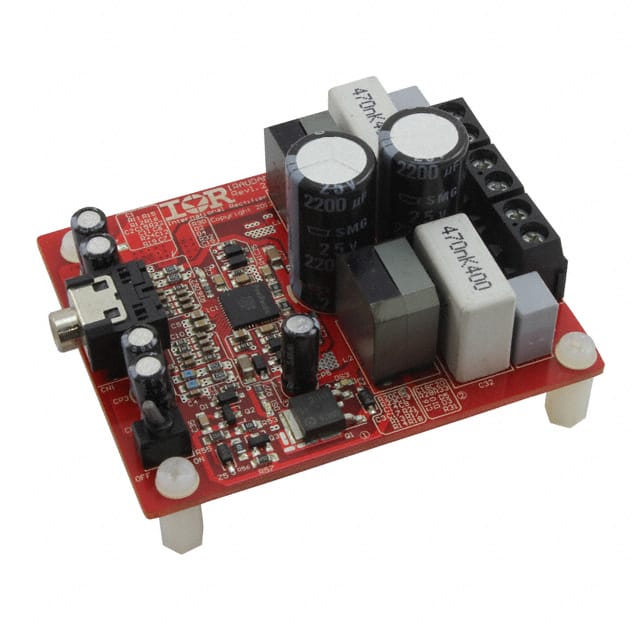

 IRAUDAMP18 Infineon Technologies | 1 $162.5500 | Datasheet | Class D | 2-Channel (Stereo) | 35W x 2 @ 4Ohm | 18V ~ 31V | Fully Populated | IR4312 | Board(s) | 3,889 Cart + RFQ |

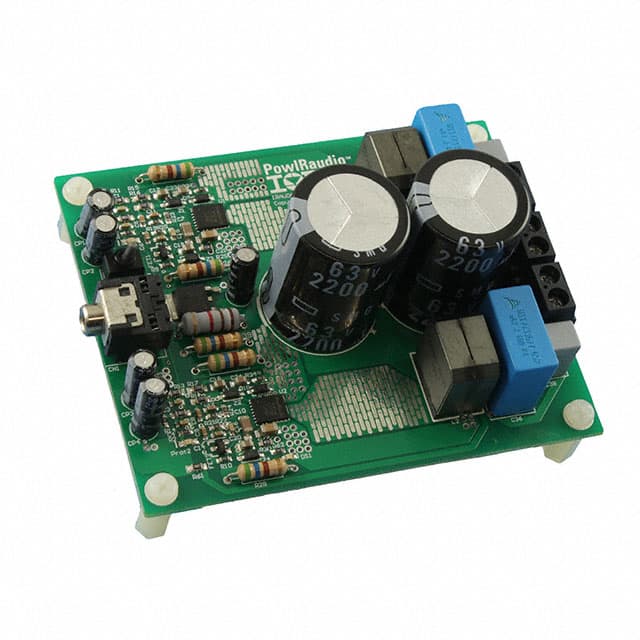

 IRAUDAMP19 Infineon Technologies | 1 $218.1800 | Datasheet | Class D | 2-Channel (Stereo) | 100W x 2 @ 4Ohm | 41V ~ 52V | Fully Populated | IR4301 | Board(s) | 1,932 Cart + RFQ |

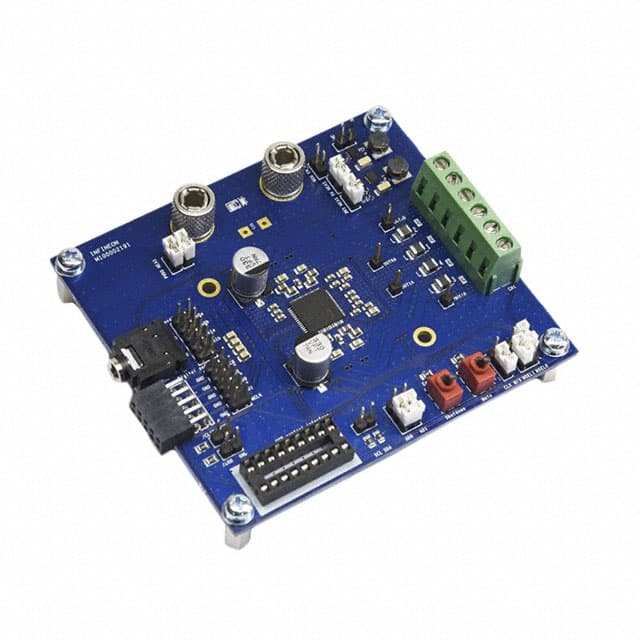

 EVALAUDIOMA12040TOBO1 Infineon Technologies | 1 $238.3900 | Datasheet | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5V ~ 18V | Fully Populated | MA12040 | Board(s) | 8,701 Cart + RFQ |

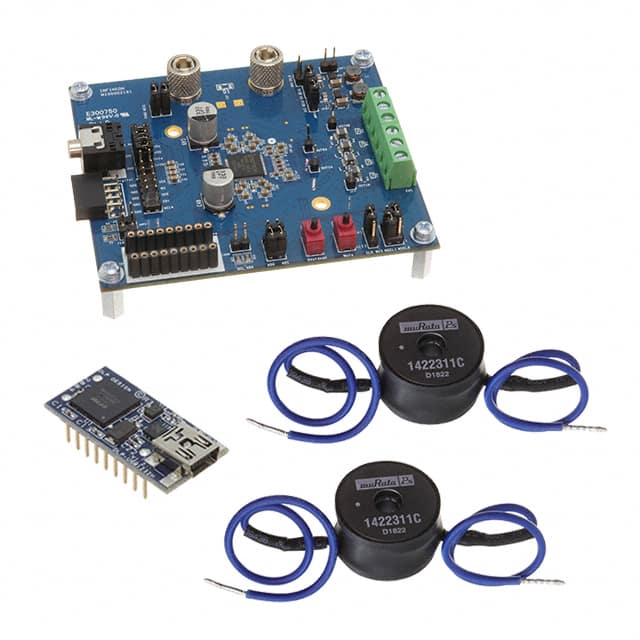

 EVALAUDIOMA12070TOBO1 Infineon Technologies | 1 $239.7200 | Datasheet | Class D | 2-Channel (Stereo) | - | 4V ~ 26V | Fully Populated | MA12070 | Board(s) | 2,032 Cart + RFQ |

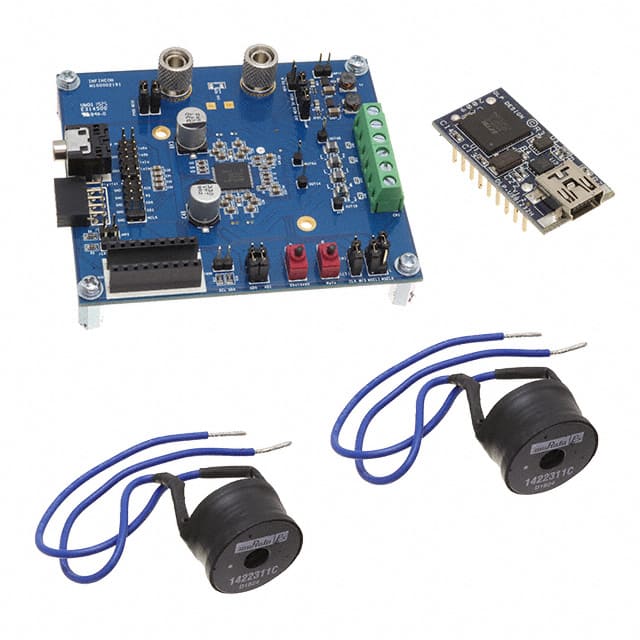

 EVALAUDIOMA12040PTOBO1 Infineon Technologies | 1 $240.0400 | Datasheet | Class D | 2-Channel (Stereo) | 40W x 2 @ 4Ohm | 5.5V ~ 18V | Fully Populated | MA12040P | Board(s) | 5,225 Cart + RFQ |

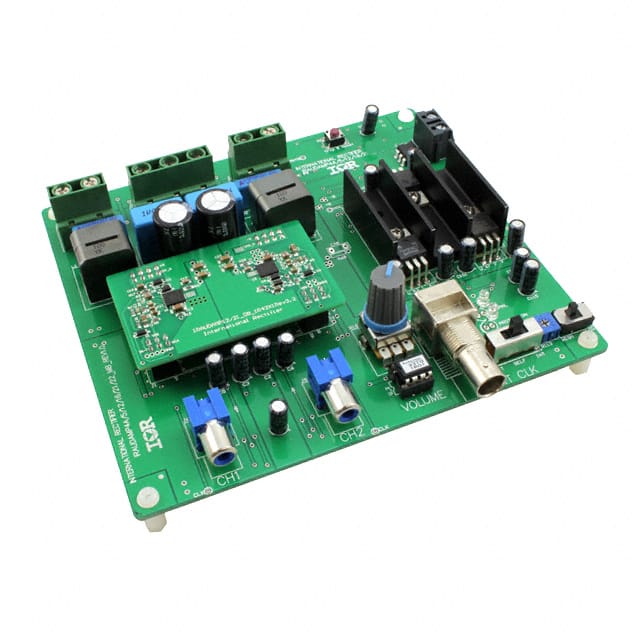

 IRAUDAMP21 Infineon Technologies | 1 $301.0900 | Datasheet | Class D | 2-Channel (Stereo) | 120W x 2 @ 3Ohm | ±12V ~ 18V | Fully Populated | IR4321 | Board(s) | 6,829 Cart + RFQ |

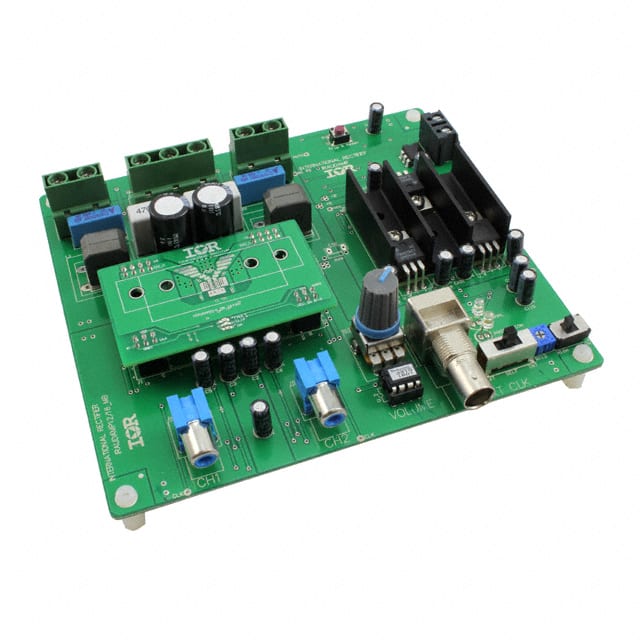

 IRAUDAMP16 Infineon Technologies | 1 $304.3600 | Datasheet | Class D | 2-Channel (Stereo) | 70W x 2 @ 4Ohm | ±13V ~ 23V | Fully Populated | IR4302 | Board(s) | 2,669 Cart + RFQ |
 IRAUDAMP5 Infineon Technologies | 1 $327.2700 | Datasheet | Class D | 2-Channel (Stereo) | 170W x 2 @ 4Ohm | ±25V ~ 35V | Fully Populated | IRF6645, IRS2092 | Board(s) | 8,830 Cart + RFQ |
