Backplanes
Backplanes are boards with a series of connectors attached to them in parallel. They are often located on the rear of a card rack allowing connection for other boards or devices to be inserted into the connectors. The number of channels range from 2 to 21 with interface options such as CompactPCI, Standard Bus, Uncommitted, VME J1, VME J1/J2, and VME J1/J2/J0.
Product List
Total Components: 17
| Product | Pricing | Datasheet | Panel Units | Number of Channels | Interface | Connector Spacing | Stock & Quantity |
|---|---|---|---|---|---|---|---|
 23001004 nVent Schroff | 1 $248.3000 | Datasheet | 3U | 4 | VME J1 | 0.800" (20.32mm) | 3,962 Cart + RFQ |
 23001005 nVent Schroff | 1 $278.8400 | Datasheet | 3U | 5 | VME J1 | 0.800" (20.32mm) | 9,390 Cart + RFQ |
 23006814 nVent Schroff | 1 $347.8400 | Datasheet | 3U | 4 | CompactPCI® | - | 7,384 Cart + RFQ |
 23001010 nVent Schroff | 1 $470.0100 | Datasheet | 3U | 10 | VME J1 | 0.800" (20.32mm) | 7,749 Cart + RFQ |
 23001069 nVent Schroff | 1 $710.3900 | Datasheet | 6U | 9 | VME J1/J2 | 0.800" (20.32mm) | 6,597 Cart + RFQ |
 23001021 nVent Schroff | 1 $799.7600 | Datasheet | 3U | 21 | VME J1 | 0.800" (20.32mm) | 8,736 Cart + RFQ |
 23006300 nVent Schroff | 1 $632.3400 | Datasheet | 3U | 8 | CompactPCI® | - | 4,891 Cart + RFQ |
 23001007 nVent Schroff | 1 $355.2000 | Datasheet | 3U | 7 | VME J1 | 0.800" (20.32mm) | 3,342 Cart + RFQ |
 23001535 nVent Schroff | 1 $997.7200 | Datasheet | 6U | 5 | VME J1/J2 | 0.800" (20.32mm) | 7,557 Cart + RFQ |
 23006-862 nVent Schroff | Datasheet | - | - | - | - | 6,048 Cart + RFQ | |

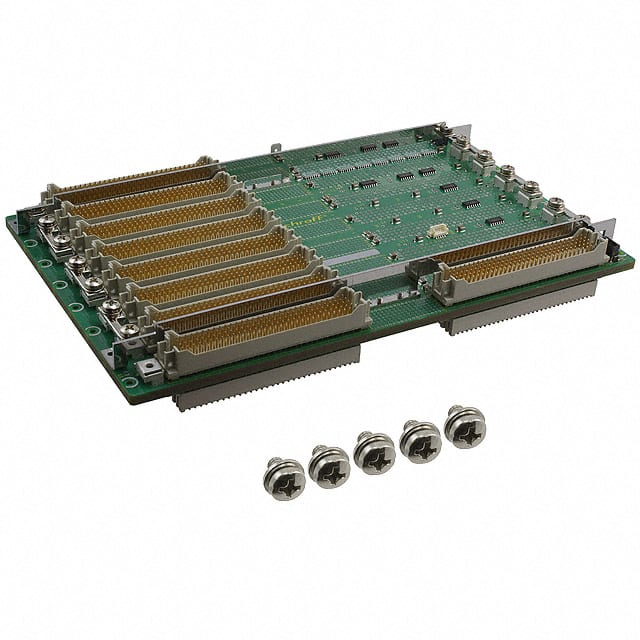

 23001508 nVent Schroff | Datasheet | 6U | 8 | VME J1/J2 | 0.800" (20.32mm) | 3,445 Cart + RFQ | |

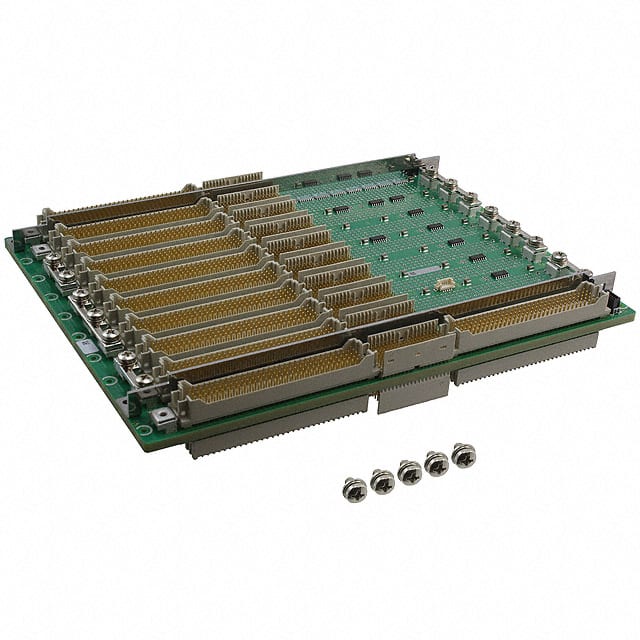

 23001540 nVent Schroff | Datasheet | 6U | 10 | VME J1/J2 | 0.800" (20.32mm) | 4,834 Cart + RFQ | |

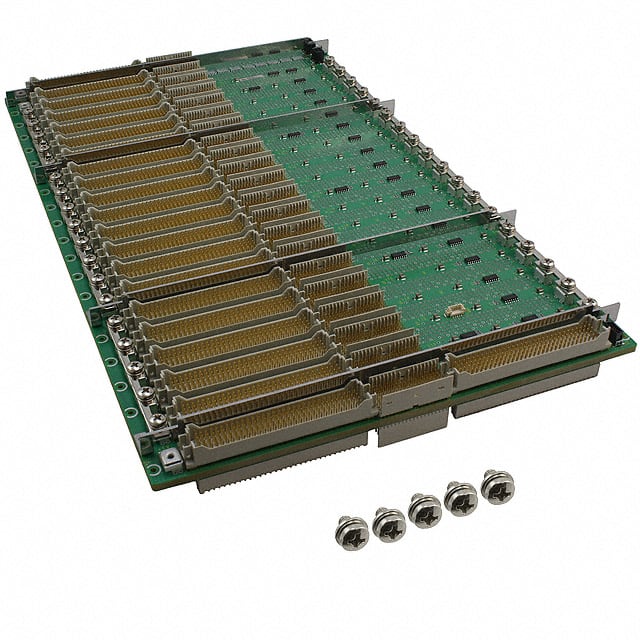

 23001551 nVent Schroff | Datasheet | 6U | 21 | VME J1/J2 | 0.800" (20.32mm) | 3,836 Cart + RFQ | |

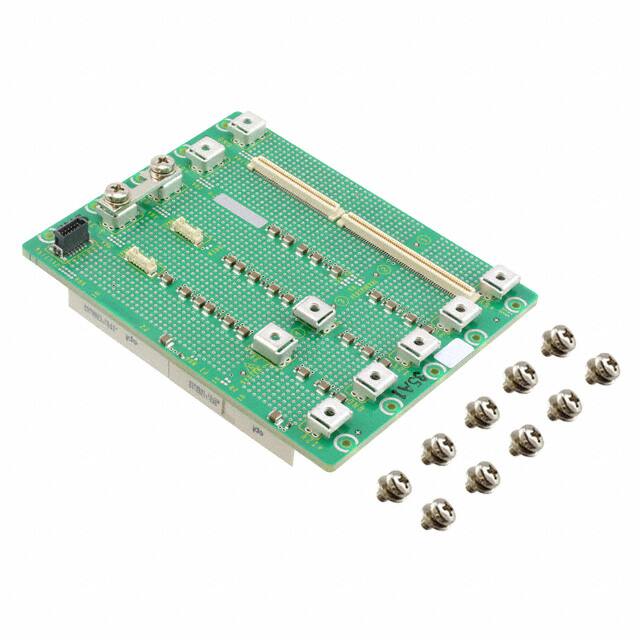

 23006355 nVent Schroff | Datasheet | 3U | 5 | CompactPCI® | - | 3,679 Cart + RFQ | |

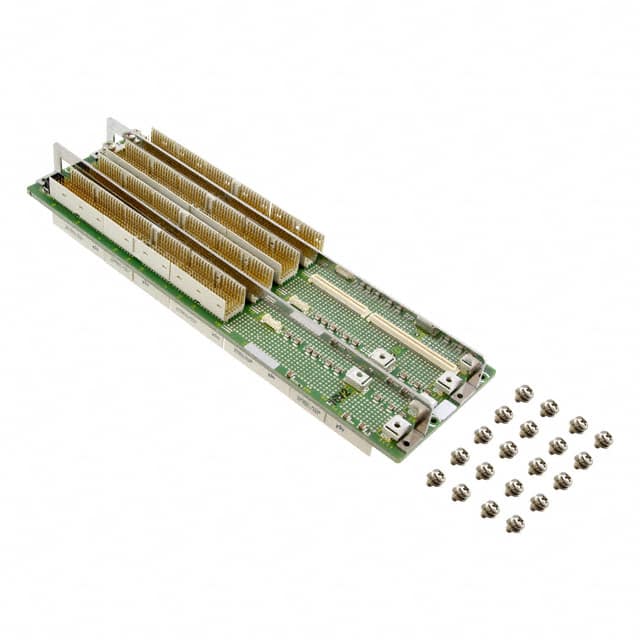

 23006864 nVent Schroff | Datasheet | 6U | 4 | CompactPCI® | - | 5,888 Cart + RFQ | |

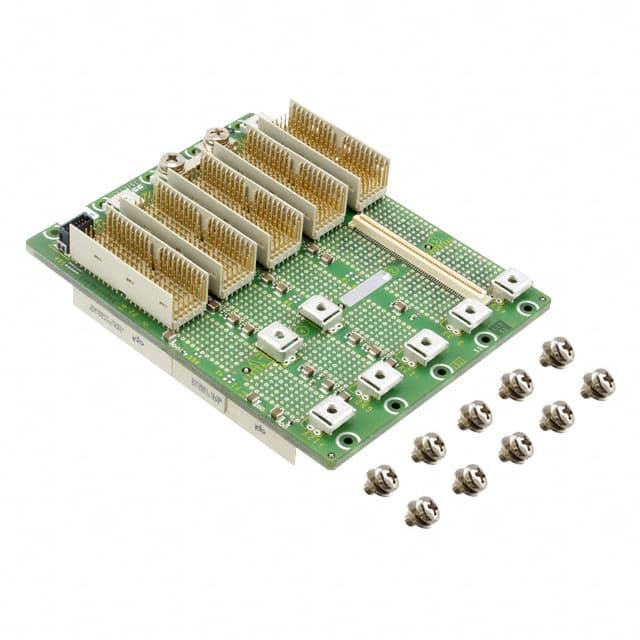

 23006815 nVent Schroff | Datasheet | 3U | 5 | CompactPCI® | - | 8,400 Cart + RFQ | |

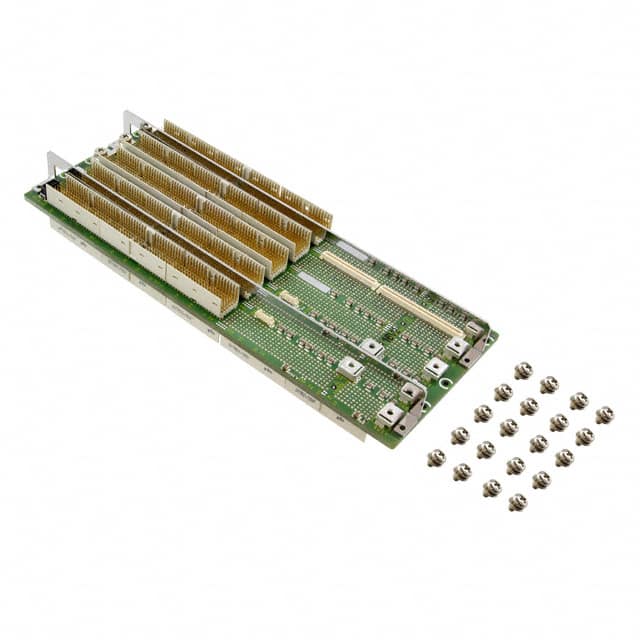

 23006865 nVent Schroff | Datasheet | 6U | 5 | CompactPCI® | - | 5,340 Cart + RFQ |
