Resonators
Products in the resonator family are frequency selective elements used to generate a frequency source when used with an external drive circuit, similar to the manner in which quartz crystal devices are used but incorporating different technologies such as surface acoustic wave (SAW) or piezoceramic materials. Where their application spaces overlap with those of quartz crystals, resonator devices generally offer greater durability in exchange for reduced accuracy and output stability.
Product List
Total Components: 95
| Product | Pricing | Datasheet | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Package / Case | Size / Dimension | Height | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS-CR2-10.00-B-TR ECS Inc. International | 1 $0.5800 | Datasheet | Ceramic | 10 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 3-SMD, Non-Standard | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.059" (1.50mm) | 3,147 Cart + RFQ |
 ECS-SR1-4.00-B-TR ECS Inc. International | 1 $0.6700 | Datasheet | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 3-SMD, Non-Standard | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.087" (2.20mm) | 3,955 Cart + RFQ |

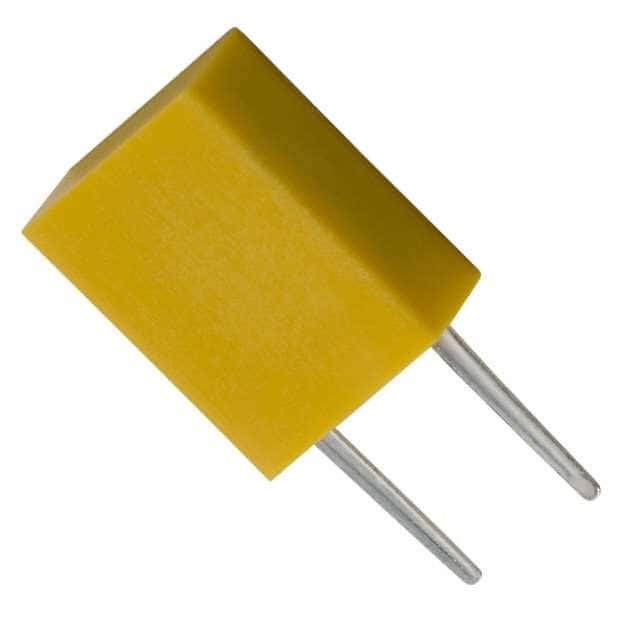

 ZTB455E ECS Inc. International | 1 $0.6600 | Datasheet | Ceramic | 455 kHz | ±0.3% | ±2kHz | - | - | - | -20°C ~ 80°C | Through Hole | Radial, Box - 2 Lead, 5.00mm Pitch | 0.276" L x 0.138" W (7.00mm x 3.50mm) | 0.354" (9.00mm) | 9,336 Cart + RFQ |

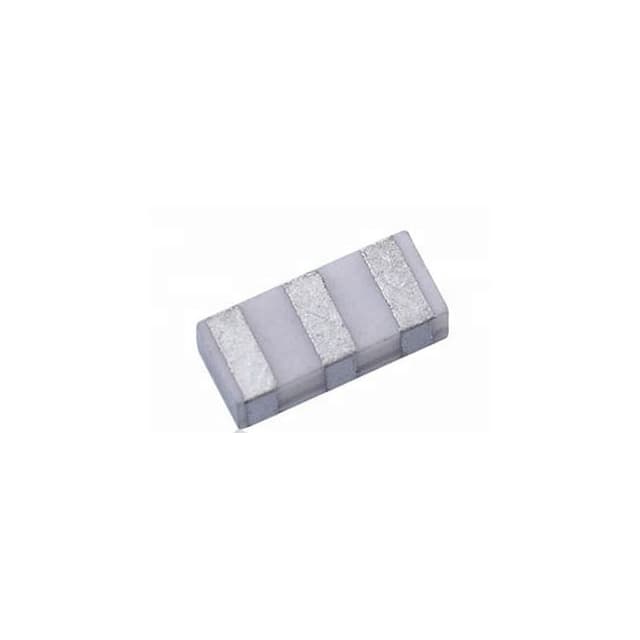

 ECS-CTP-4.00-30-TR ECS Inc. International | 1 $0.3600 | Datasheet | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, No Lead | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.079" (2.00mm) | 7,532 Cart + RFQ |
 ECS-CTE-8.00-33-TR ECS Inc. International | 1 $0.3600 | Datasheet | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, No Lead | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) | 8,422 Cart + RFQ |

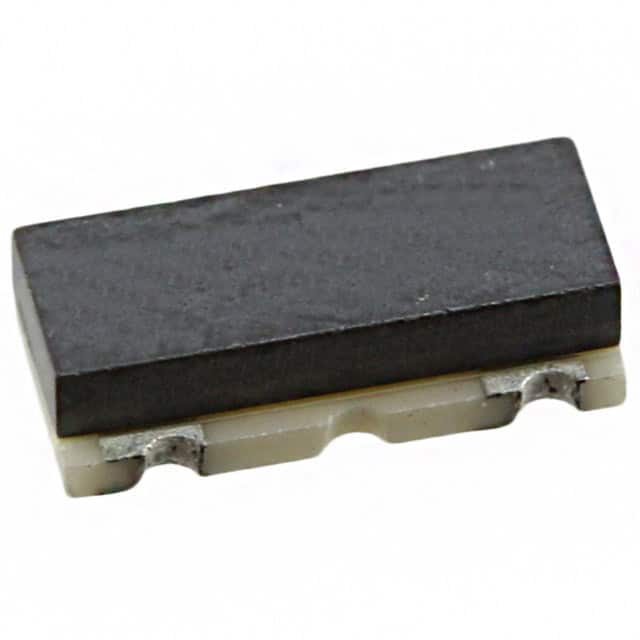

 ECS-SR1-4.00-A-TR ECS Inc. International | 1 $0.6100 | Datasheet | Ceramic | 4 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -20°C ~ 80°C | Surface Mount | 2-SMD, Non-Standard | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.071" (1.80mm) | 9,795 Cart + RFQ |
ECS-SR1-8.00-A-TR ECS Inc. International | 1 $0.6100 | Datasheet | Ceramic | 8 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -20°C ~ 80°C | Surface Mount | 2-SMD, Non-Standard | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.071" (1.80mm) | 1,238 Cart + RFQ |
ECS-CR2-20.00-B-TR ECS Inc. International | 1 $0.5800 | Datasheet | Ceramic | 20 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | - | -20°C ~ 80°C | Surface Mount | 3-SMD, Non-Standard | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.059" (1.50mm) | 2,802 Cart + RFQ |
ECS-SR1-6.00-B-TR ECS Inc. International | 1 $0.6700 | Datasheet | Ceramic | 6 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 3-SMD, Non-Standard | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.087" (2.20mm) | 4,317 Cart + RFQ |
ECS-SR1-3.58-B-TR ECS Inc. International | 1 $0.6700 | Datasheet | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 3-SMD, Non-Standard | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.087" (2.20mm) | 1,049 Cart + RFQ |
ZTA-2.44MG ECS Inc. International | Datasheet | Ceramic | 2.44 MHz | ±0.3% | ±0.5% | - | - | 80 Ohms | -20°C ~ 80°C | Through Hole | Radial - 2 Lead, 5.00mm Pitch | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.295" (7.50mm) | 5,830 Cart + RFQ | |
ZTBF500E ECS Inc. International | Datasheet | Ceramic | 500 kHz | ±0.3% | ±2kHz | - | - | - | -20°C ~ 80°C | Surface Mount | 2-SMD, Non-Standard | 0.276" L x 0.138" W (7.00mm x 3.50mm) | 0.354" (9.00mm) | 2,216 Cart + RFQ | |
ECS-CR1-20.00-B ECS Inc. International | Datasheet | Ceramic | 20 MHz | - | - | Built in Capacitor | - | - | -20°C ~ 80°C | Surface Mount | - | - | - | 2,570 Cart + RFQ | |
ZTT-3.68MG ECS Inc. International | Datasheet | Ceramic | 3.68 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -20°C ~ 80°C | Through Hole | Radial - 3 Lead, 2.50mm Pitch | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.295" (7.50mm) | 7,846 Cart + RFQ | |
ECS-HFR-20.00-A-TR ECS Inc. International | Datasheet | Ceramic | 20 MHz | - | - | - | - | - | -20°C ~ 80°C | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 2,404 Cart + RFQ | |
ECS-HFR-24.00-A-TR ECS Inc. International | Datasheet | Ceramic | 24 MHz | - | - | - | - | - | -20°C ~ 80°C | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 5,481 Cart + RFQ | |
ECS-HFR-25.00-A-TR ECS Inc. International | Datasheet | Ceramic | 25 MHz | - | - | - | - | - | -20°C ~ 80°C | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 1,195 Cart + RFQ | |
ECS-HFR-27.00-A-TR ECS Inc. International | Datasheet | Ceramic | 27 MHz | - | - | - | - | - | -20°C ~ 80°C | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 6,531 Cart + RFQ | |
ECS-HFR-30.00-A-TR ECS Inc. International | Datasheet | Ceramic | 30 MHz | - | - | - | - | - | -20°C ~ 80°C | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 1,073 Cart + RFQ | |
ECS-HFR-40.00-A-TR ECS Inc. International | Datasheet | Ceramic | 40 MHz | - | - | - | - | - | -20°C ~ 80°C | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 2,770 Cart + RFQ |
