Resonators
Products in the resonator family are frequency selective elements used to generate a frequency source when used with an external drive circuit, similar to the manner in which quartz crystal devices are used but incorporating different technologies such as surface acoustic wave (SAW) or piezoceramic materials. Where their application spaces overlap with those of quartz crystals, resonator devices generally offer greater durability in exchange for reduced accuracy and output stability.
Product List
Total Components: 264
| Product | Pricing | Datasheet | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Package / Case | Size / Dimension | Height | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AWSCR-8.00CV-T Abracon | 1 $0.4600 | Datasheet | Ceramic | 8 MHz | ±0.4% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.039" (1.00mm) | 7,607 Cart + RFQ |
 AWSCR-8.00CPLA-C15-T4 Abracon | 1 $0.3700 | Datasheet | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 9,513 Cart + RFQ |
AWSCR-4.00CPLA-C15-T4 Abracon | 1 $0.3700 | Datasheet | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 3,302 Cart + RFQ |
 AWSCR-8.00CELB-C10-T3 Abracon | 1 $0.4500 | Datasheet | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) | 5,866 Cart + RFQ |
 AWSCR-4.00CPLB-C30-T4 Abracon | 1 $0.4500 | Datasheet | Ceramic | 4 MHz | ±0.4% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 2,299 Cart + RFQ |
AWSCR-8.00CPLB-C30-T4 Abracon | 1 $0.4500 | Datasheet | Ceramic | 8 MHz | ±0.4% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 1,901 Cart + RFQ |
AWSCR-2.00CPLA-C30-T4 Abracon | 1 $0.4800 | Datasheet | Ceramic | 2 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 100 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.071" (1.80mm) | 1,337 Cart + RFQ |
AWSCR-3.58CPLA-C30-T4 Abracon | 1 $0.4800 | Datasheet | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 9,859 Cart + RFQ |
AWSCR-16.00CV-T Abracon | 1 $0.4800 | Datasheet | Ceramic | 16 MHz | ±0.3% | ±0.5% | Built in Capacitor | 22 pF | 40 Ohms | -25°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.039" (1.00mm) | 8,288 Cart + RFQ |

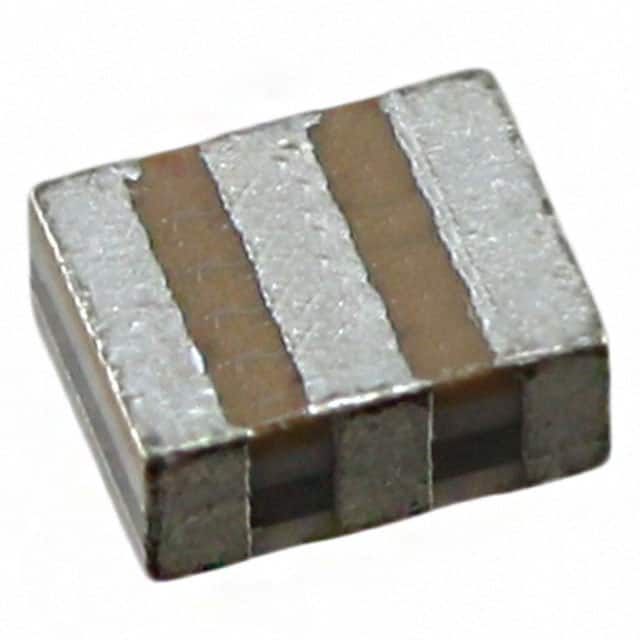

 AWSCR-20.00CW-T Abracon | 1 $0.5600 | Datasheet | Ceramic | 20 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | 60 Ohms | -25°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 5,088 Cart + RFQ |
AWSCR-25.00CW-T Abracon | 1 $0.5600 | Datasheet | Ceramic | 25 MHz | ±0.2% | ±0.5% | Built in Capacitor | 10 pF | 60 Ohms | -25°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) | 3,368 Cart + RFQ |
AWSCR-12.00CV-T Abracon | 1 $0.4800 | Datasheet | Ceramic | 12 MHz | ±0.4% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.039" (1.00mm) | 9,580 Cart + RFQ |

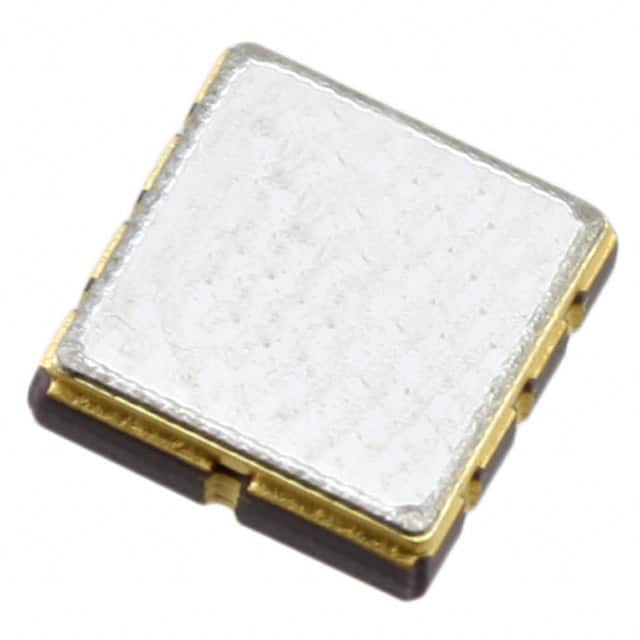

 ASR433.92E-T Abracon | 1 $1.7700 | Datasheet | SAW | 433.92 MHz | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD, No Lead | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.053" (1.35mm) | 9,296 Cart + RFQ |

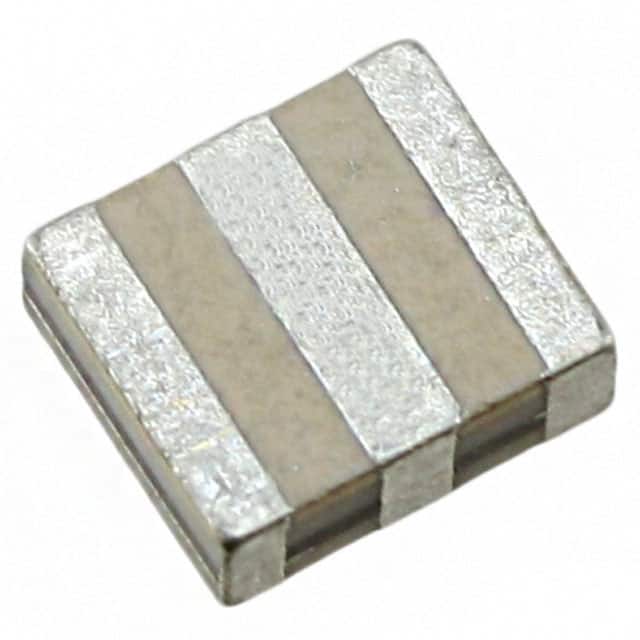

 AWSCR-20.00MTD-T Abracon | 1 $0.3900 | Datasheet | Ceramic | 20 MHz | ±0.5% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.185" L x 0.161" W (4.70mm x 4.10mm) | 0.067" (1.70mm) | 1,201 Cart + RFQ |
 AWSCR-7.37CRLA-C15-T3 Abracon | 1 $0.4300 | Datasheet | Ceramic | 7.37 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.039" (1.00mm) | 9,451 Cart + RFQ |
AWSCR-2.00CPLA-C15-T4 Abracon | 1 $0.4500 | Datasheet | Ceramic | 2 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 100 Ohms | -40°C ~ 85°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.071" (1.80mm) | 6,654 Cart + RFQ |
AWSCR-5.00CPLB-C30-T4 Abracon | 1 $0.4500 | Datasheet | Ceramic | 5 MHz | ±0.4% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 3,917 Cart + RFQ |

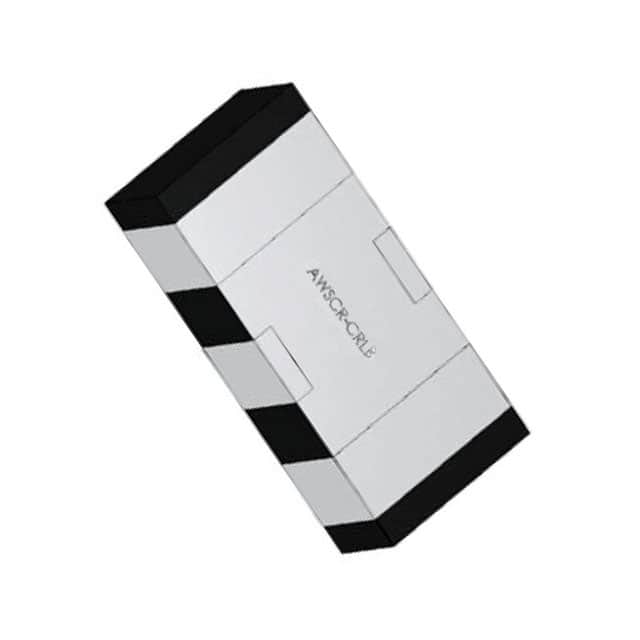

 AWSCR-7.37CRLB-C15-T3 Abracon | 1 $0.4800 | Datasheet | Ceramic | 7.37 MHz | ±0.4% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.039" (1.00mm) | 7,622 Cart + RFQ |
AWSCR-4.00CPLB-C10-T4 Abracon | 1 $0.5100 | Datasheet | Ceramic | 4 MHz | ±0.4% | ±0.5% | Built in Capacitor | 10 pF | 30 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) | 7,360 Cart + RFQ |
AWSCR-2.00CPLB-C47-T4 Abracon | 1 $0.5100 | Datasheet | Ceramic | 2 MHz | ±0.4% | ±0.5% | Built in Capacitor | 47 pF | 100 Ohms | -40°C ~ 125°C | Surface Mount | 3-SMD, Non-Standard | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.071" (1.80mm) | 3,937 Cart + RFQ |
