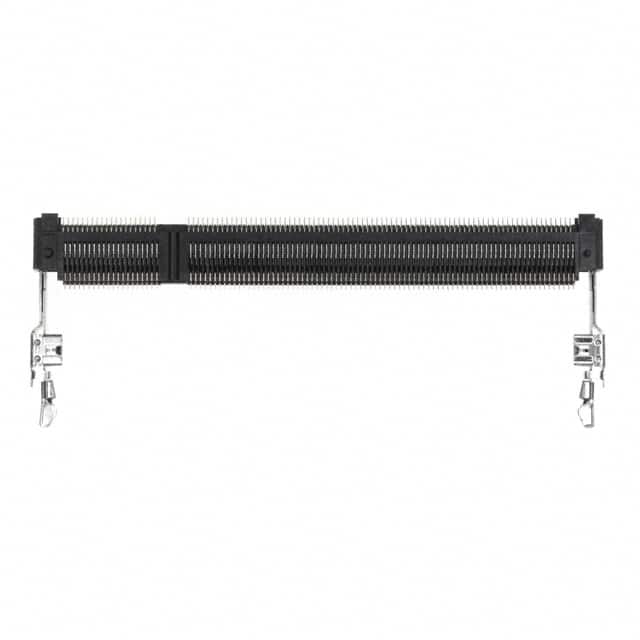

Inline Module Sockets
Inline module sockets are surface mount and through-hole connectors designed to receive DIMM, miniDIMM, RDIMM, SIMM and SODIMM memory module connector styles allowing for periodic removal and replacement. They are selected by the number of positions, mounting features and additional features including board guides, covers, latches and board locks. Compatible memory types include DDR (2, 3, 4), SDRAM, DRAM, RAM and SGRAM.
Product List
Total Components: 100
Product | Pricing | Datasheet | Connector Style | Number of Positions | Memory Type | Standards | Mounting Type | Features | Mounting Feature | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2309407-1 TE Connectivity AMP Connectors | 1 $1.5800 | Datasheet | SODIMM | 260 | DDR4 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 6,805 Cart + RFQ |
2309409-1 TE Connectivity AMP Connectors | 1 $1.6500 | Datasheet | SODIMM | 260 | DDR4 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 2,277 Cart + RFQ |
2309409-2 TE Connectivity AMP Connectors | 1 $1.9400 | Datasheet | SODIMM | 260 | DDR4 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | 5.00µin (0.127µm) | 7,970 Cart + RFQ |
2-2308107-1 TE Connectivity AMP Connectors | 1 $1.5000 | Datasheet | DIMM | 288 | DDR4 SDRAM | MO-309 | Through Hole | Board Lock, Latches | Normal, Standard - Top | Gold | 15.0µin (0.38µm) | 5,021 Cart + RFQ |
2309413-1 TE Connectivity AMP Connectors | 1 $2.2000 | Datasheet | SODIMM | 260 | DDR4 SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 9,196 Cart + RFQ |
2309411-1 TE Connectivity AMP Connectors | 1 $2.1400 | Datasheet | SODIMM | 260 | DDR4 SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 2,919 Cart + RFQ |
2-2013290-1 TE Connectivity AMP Connectors | 1 $4.0800 | Datasheet | SODIMM | 204 | DDR3 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Reverse | Gold | Flash | 4,004 Cart + RFQ |
2-2013310-1 TE Connectivity AMP Connectors | 1 $5.6200 | Datasheet | SODIMM | 204 | DDR3 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 1,267 Cart + RFQ |
2-2013289-1 TE Connectivity AMP Connectors | 1 $3.5640 | Datasheet | SODIMM | 204 | DDR3 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 100,000 Cart + RFQ |
2199155-1 TE Connectivity AMP Connectors | 1 $5.0800 | Datasheet | DIMM | 288 | DDR4 SDRAM | - | Surface Mount | Board Lock, Latches | Normal, Standard - Top | Gold | 15.0µin (0.38µm) | 6,805 Cart + RFQ |
1717254-1 TE Connectivity AMP Connectors | 1 $6.7000 | Datasheet | SODIMM | 200 | DDR SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 8,062 Cart + RFQ |
1717254-4 TE Connectivity AMP Connectors | 1 $7.9100 | Datasheet | SODIMM | 200 | DDR2 SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 9,896 Cart + RFQ |
2013310-1 TE Connectivity AMP Connectors | 1 $7.0100 | Datasheet | SODIMM | 204 | DDR3 SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 6,296 Cart + RFQ |
1473149-4 TE Connectivity AMP Connectors | 1 $7.2000 | Datasheet | SODIMM | 200 | DDR2 SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 9,790 Cart + RFQ |
1-1473005-1 TE Connectivity AMP Connectors | 1 $7.2000 | Datasheet | SODIMM | 200 | DDR SDRAM | - | Surface Mount, 25° Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 2,063 Cart + RFQ |
1473005-1 TE Connectivity AMP Connectors | 1 $7.2000 | Datasheet | SODIMM | 200 | DDR SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 6,948 Cart + RFQ |
MM80-204B1-1 JAE Electronics | 1 $7.4700 | Datasheet | SODIMM | 204 | DDR3 SDRAM | MO-268C | Surface Mount, Right Angle, Screw Mount | Latches | Normal, Standard - Top | Gold | 3.94µin (0.10µm) | 9,549 Cart + RFQ |
1565917-4 TE Connectivity AMP Connectors | 1 $9.5600 | Datasheet | SODIMM | 200 | DDR2 SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | - | 7,900 Cart + RFQ |
MM80-204B1-1R JAE Electronics | 1 $7.7600 | Datasheet | SODIMM | 204 | DDR3 SDRAM | MO-268C | Surface Mount, Right Angle, Screw Mount | Latches | Reverse | Gold | 3.94µin (0.10µm) | 9,857 Cart + RFQ |
1473005-4 TE Connectivity AMP Connectors | 1 $8.3800 | Datasheet | SODIMM | 200 | DDR2 SDRAM | - | Surface Mount, Right Angle | Board Guide, Latches | Normal, Standard - Top | Gold | Flash | 6,584 Cart + RFQ |
