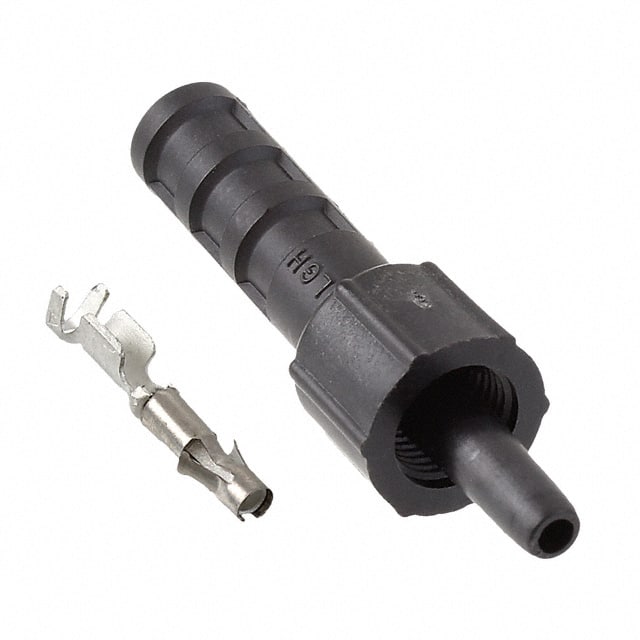

LGH Connectors
Products in the LGH connector family are specialized interconnect products used for high voltage applications involving electric potentials of a few kV to several tens of kV. Based on a circular connector design, single- and multi-position connectors are available. Products in this family include bulkhead/application mounted and cable mounted connector types for use with suitable cabling material.
Product List
Total Components: 69
| Product | Pricing | Datasheet | Style | Connector Type | Number of Positions | Shape | Barrel Depth | Voltage | Mounting Type | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|

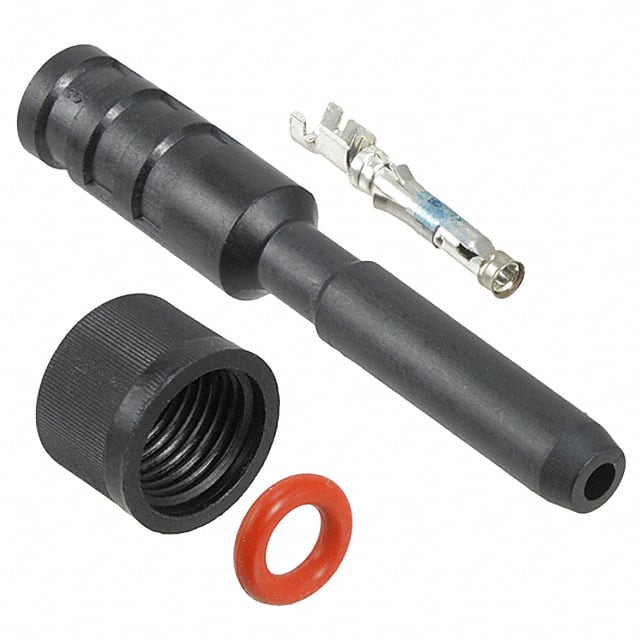

 5-861610-3 Aerospace Defense and Marine / TE Connectivity | 1 $20.7000 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 9,340 Cart + RFQ |

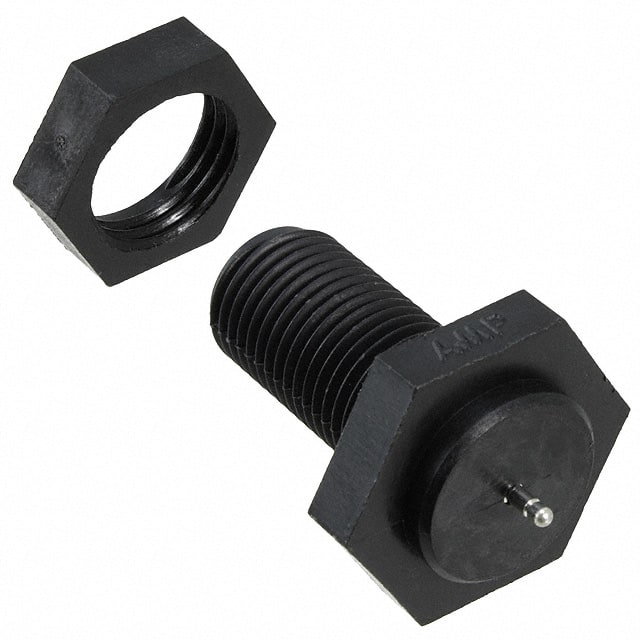

 861611-1 Aerospace Defense and Marine / TE Connectivity | 1 $31.4700 | Datasheet | LGH | Receptacle | 1 | Cylindrical | 1.12" (28.45mm) | 20kVDC | Bulkhead | Flange | 8,637 Cart + RFQ |

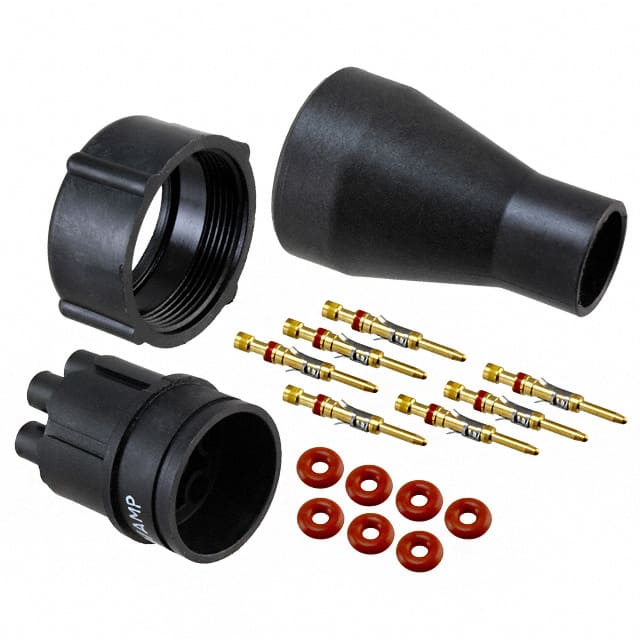

 863024-1 Aerospace Defense and Marine / TE Connectivity | 1 $183.8400 | Datasheet | LGH | Plug | 7 | Circular | - | 27kVDC | Free Hanging (In-Line) | - | 5,167 Cart + RFQ |
863024-2 Aerospace Defense and Marine / TE Connectivity | 1 $272.0800 | Datasheet | LGH | Plug | 7 | Circular | - | 27kVDC | Free Hanging (In-Line) | - | 7,922 Cart + RFQ |

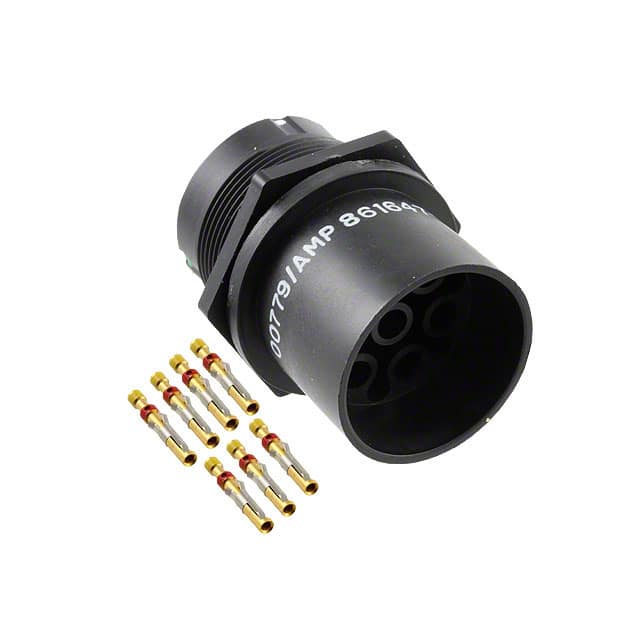

 861647-1 Aerospace Defense and Marine / TE Connectivity | 1 $278.6700 | Datasheet | LGH | Receptacle | 7 | Circular | - | 27kVDC | Panel Mount | - | 5,113 Cart + RFQ |

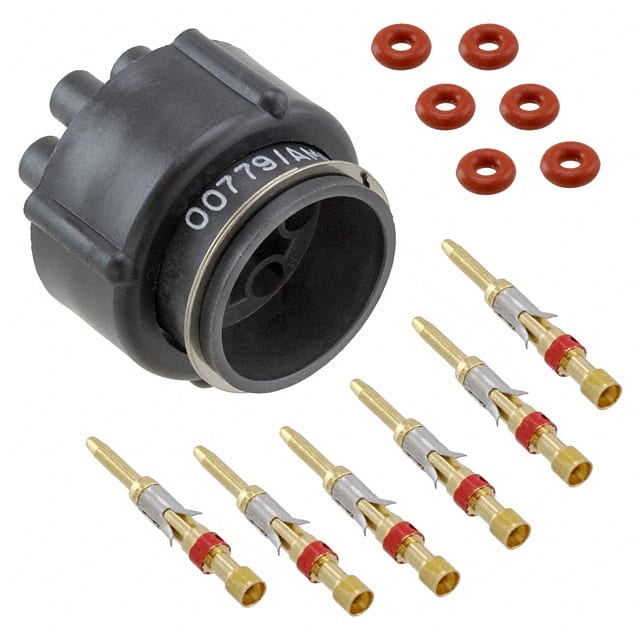

 860267-1 Aerospace Defense and Marine / TE Connectivity | 1 $280.7600 | Datasheet | LGH | Plug | 6 | Circular | - | 27kVDC | Free Hanging (In-Line) | - | 9,797 Cart + RFQ |

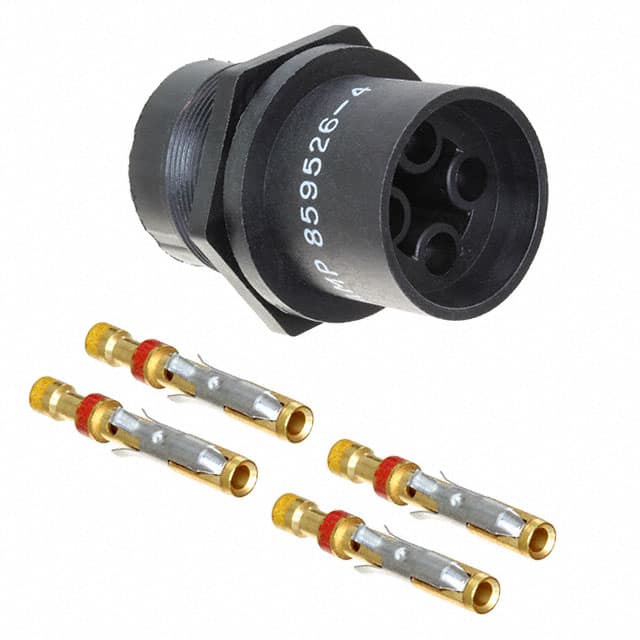

 859526-4 Aerospace Defense and Marine / TE Connectivity | 1 $103.2900 | Datasheet | LGH | Receptacle | 4 | Circular | - | 27kVDC | Panel Mount | Flange | 5,646 Cart + RFQ |

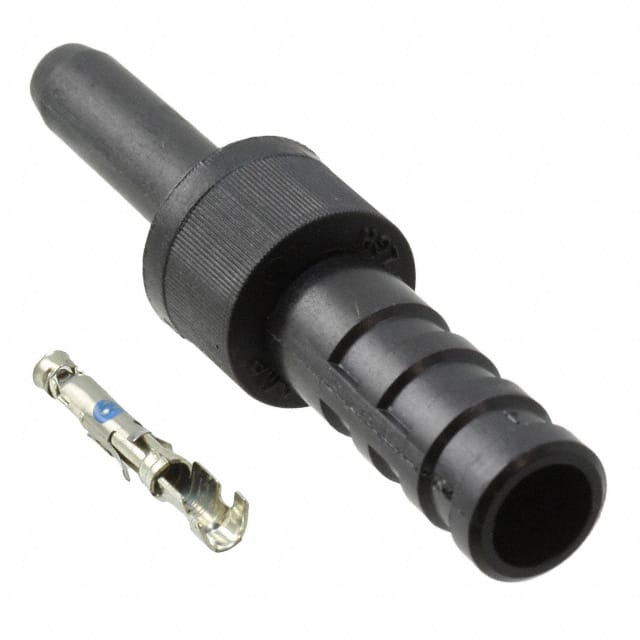

 5-861610-2 Aerospace Defense and Marine / TE Connectivity | 1 $40.4800 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 6,839 Cart + RFQ |

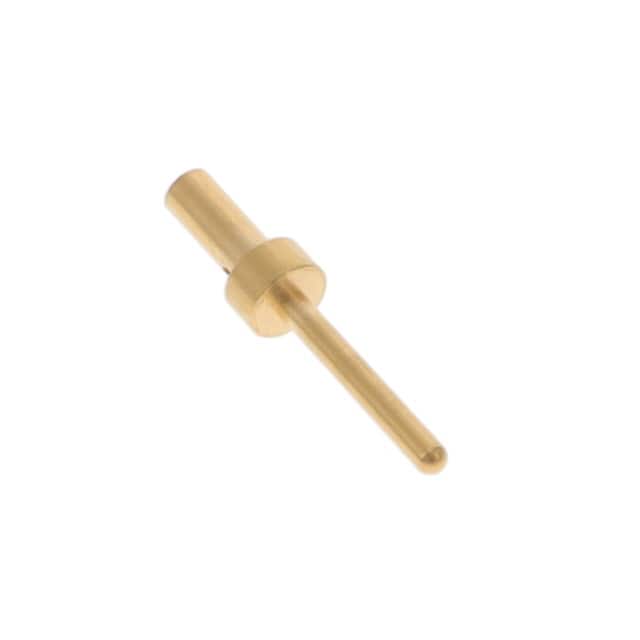

 867782-2 Aerospace Defense and Marine / TE Connectivity | 1 $11.1500 | Datasheet | LGH | Contact | - | - | - | - | - | - | 7,257 Cart + RFQ |

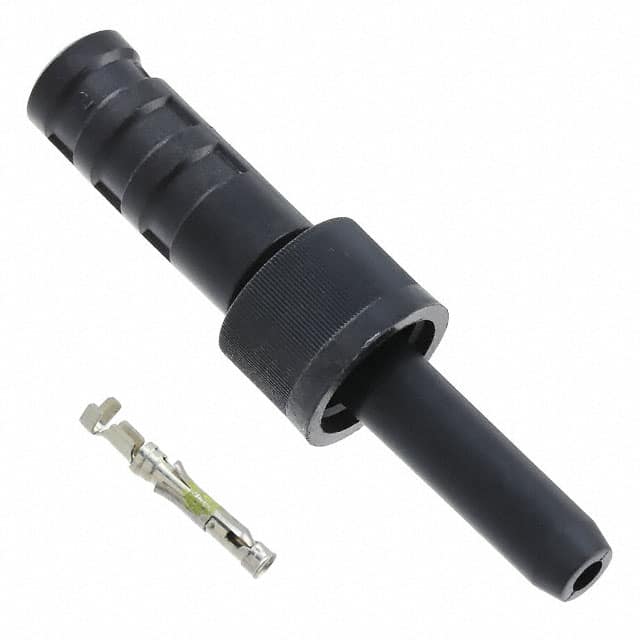

 5-861610-1 Aerospace Defense and Marine / TE Connectivity | 1 $15.0000 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 5,769 Cart + RFQ |

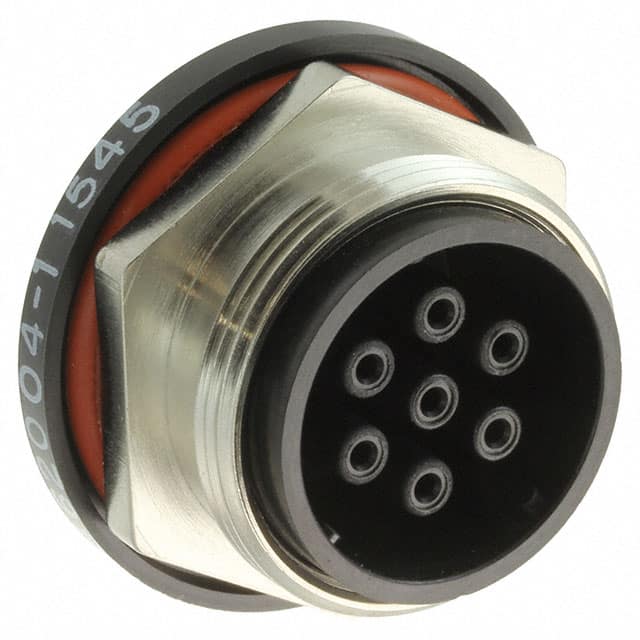

 862004-1 Aerospace Defense and Marine / TE Connectivity | 1 $1.0000 | Datasheet | LGH | Receptacle | 7 | Circular | - | 15kVDC | Panel Mount | Flange | 6,074 Cart + RFQ |

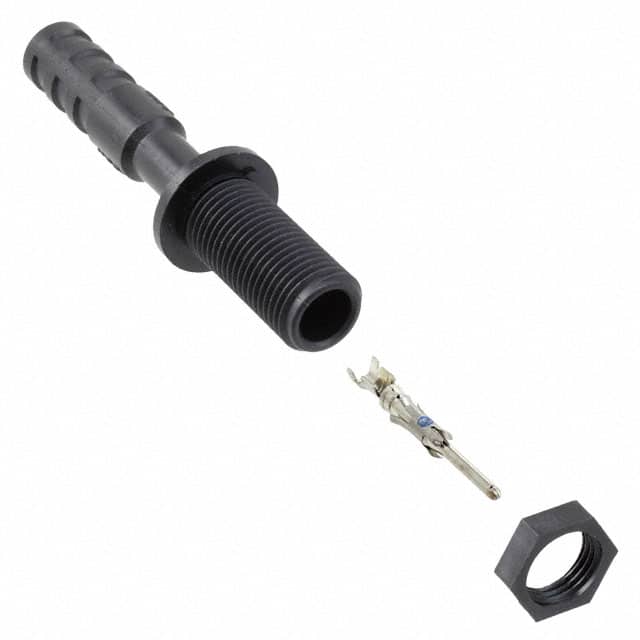

 5-862197-3 Aerospace Defense and Marine / TE Connectivity | 1 $31.3300 | Datasheet | LGH | Receptacle | 1 | Circular | 1.00" (25.40mm) | 20kVDC | Free Hanging (In-Line) | Flange | 3,066 Cart + RFQ |

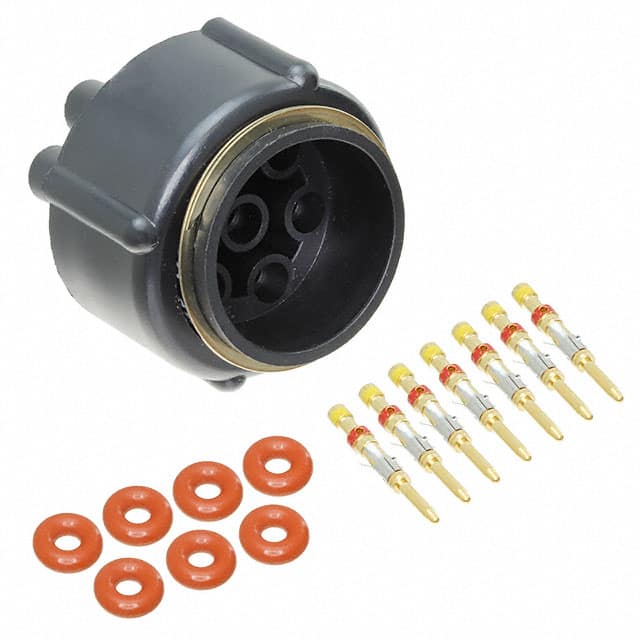

 861648-7 Aerospace Defense and Marine / TE Connectivity | 1 $153.8200 | Datasheet | LGH | Plug | 7 | Circular | - | - | Free Hanging (In-Line) | - | 5,107 Cart + RFQ |

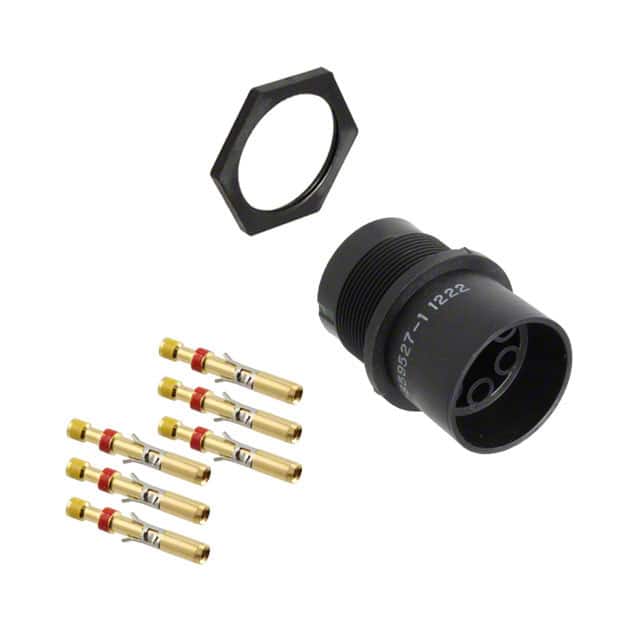

 859527-1 Aerospace Defense and Marine / TE Connectivity | 1 $161.4200 | Datasheet | LGH | Receptacle | 6 | Circular | - | 27kVDC | Panel Mount | Flange | 6,370 Cart + RFQ |
 861403-7 Aerospace Defense and Marine / TE Connectivity | 1 $3.1194 | Datasheet | LGH 1/2, 1/2L | Accessory - Cap | - | - | - | - | - | - | 2,835 Cart + RFQ |
861403-4 Aerospace Defense and Marine / TE Connectivity | 1 $3.2300 | Datasheet | LGH 1/2, 1/2L | Accessory - Cap | - | - | - | - | - | - | 3,066 Cart + RFQ |
861624-1 Aerospace Defense and Marine / TE Connectivity | 1 $3.3330 | Datasheet | - | Accessory - Hardware | - | - | - | - | - | - | 5,828 Cart + RFQ |
446979-1 Aerospace Defense and Marine / TE Connectivity | 1 $4.4844 | Datasheet | - | - | - | - | - | - | - | - | 9,939 Cart + RFQ |
867779-1 Aerospace Defense and Marine / TE Connectivity | 1 $9.2120 | Datasheet | LGH | Socket | 2 | Rectangular | - | - | Free Hanging (In-Line) | Flange | 9,578 Cart + RFQ |
834981-1 Aerospace Defense and Marine / TE Connectivity | 1 $11.5220 | Datasheet | LGH 1 | Accessory - Cap | - | Circular | - | - | - | - | 4,162 Cart + RFQ |
