LGH Connectors
Products in the LGH connector family are specialized interconnect products used for high voltage applications involving electric potentials of a few kV to several tens of kV. Based on a circular connector design, single- and multi-position connectors are available. Products in this family include bulkhead/application mounted and cable mounted connector types for use with suitable cabling material.
Product List
Total Components: 31
| Product | Pricing | Datasheet | Style | Connector Type | Number of Positions | Shape | Barrel Depth | Voltage | Mounting Type | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|

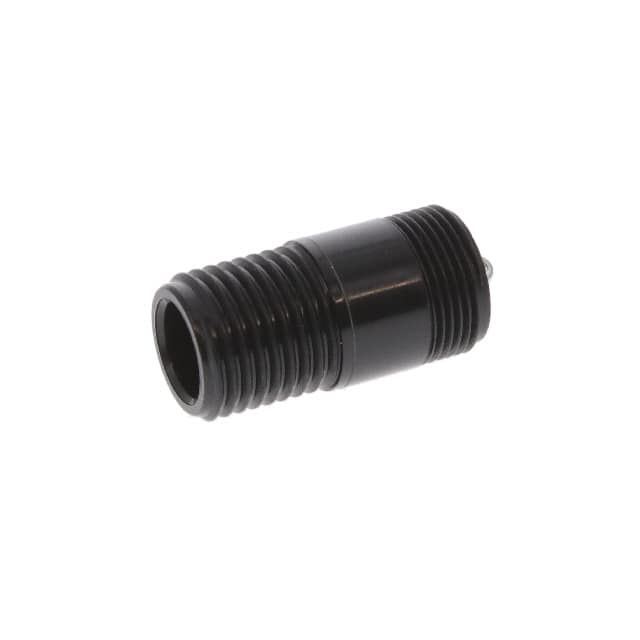

 868092-1 TE Connectivity AMP Connectors | 1 $204.8000 | Datasheet | LGH 1 | Receptacle | 1 | Cylindrical | 0.88" (22.35mm) | - | Free Hanging (In-Line) | - | 6,338 Cart + RFQ |
 846976-1 TE Connectivity AMP Connectors | 1 $4.9594 | Datasheet | LGH 1/2, 1/2L | Accessory - Cap | - | Circular | - | - | - | - | 4,212 Cart + RFQ |
860099-1 TE Connectivity AMP Connectors | 1 $9.1738 | Datasheet | - | Accessory - Hardware | - | - | - | - | - | - | 8,242 Cart + RFQ |
861610-3 TE Connectivity AMP Connectors | 1 $12.3760 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 4,909 Cart + RFQ |
863950-1 TE Connectivity AMP Connectors | 1 $12.5917 | Datasheet | - | - | - | - | - | - | - | - | 5,306 Cart + RFQ |
863950-2 TE Connectivity AMP Connectors | 1 $13.6748 | Datasheet | - | - | - | - | - | - | - | - | 1,807 Cart + RFQ |
862256-1 TE Connectivity AMP Connectors | 1 $18.6500 | Datasheet | LGH | Accessory - Potting Shell | - | - | - | - | - | - | 8,156 Cart + RFQ |
863995-1 TE Connectivity AMP Connectors | 1 $14.5882 | Datasheet | - | - | - | - | - | - | - | - | 9,436 Cart + RFQ |
861753-3 TE Connectivity AMP Connectors | 1 $16.2835 | Datasheet | LGH | Receptacle | - | Circular | 1.00" (25.40mm) | 20kVDC | Free Hanging (In-Line) | - | 8,024 Cart + RFQ |
861610-1 TE Connectivity AMP Connectors | 1 $17.2115 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 3,632 Cart + RFQ |
862435-3 TE Connectivity AMP Connectors | 1 $19.0601 | Datasheet | LGH | Receptacle | 2 | Cylindrical | - | 10kVDC | Panel Mount | - | 8,859 Cart + RFQ |
861610-6 TE Connectivity AMP Connectors | 1 $20.1695 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 4,167 Cart + RFQ |
861753-2 TE Connectivity AMP Connectors | 1 $21.6160 | Datasheet | LGH | Receptacle | - | Circular | 1.00" (25.40mm) | 20kVDC | Free Hanging (In-Line) | - | 7,354 Cart + RFQ |
861610-4 TE Connectivity AMP Connectors | 1 $22.3041 | Datasheet | LGH | Plug | 1 | Cylindrical | - | 20kVDC | Free Hanging (In-Line) | - | 8,990 Cart + RFQ |
864436-1 TE Connectivity AMP Connectors | 1 $23.2926 | Datasheet | LGH | Accessory - Boot | 1 | - | - | - | - | - | 9,670 Cart + RFQ |
862435-1 TE Connectivity AMP Connectors | 1 $23.6633 | Datasheet | LGH | Receptacle | 2 | Cylindrical | - | 10kVDC | Panel Mount | - | 4,905 Cart + RFQ |
862435-9 TE Connectivity AMP Connectors | 1 $23.7353 | Datasheet | LGH | Receptacle | 2 | Cylindrical | - | 10kVDC | Panel Mount | - | 3,518 Cart + RFQ |
1-862435-4 TE Connectivity AMP Connectors | 1 $24.4401 | Datasheet | LGH | Receptacle | 2 | Cylindrical | - | 10kVDC | Panel Mount | - | 6,824 Cart + RFQ |
860095-1 TE Connectivity AMP Connectors | 1 $25.7459 | Datasheet | - | Accessory - Hardware | - | - | - | - | - | - | 6,520 Cart + RFQ |
862197-3 TE Connectivity AMP Connectors | 1 $25.8100 | Datasheet | LGH | Receptacle | 1 | Circular | 1.00" (25.40mm) | 20kVDC | Free Hanging (In-Line) | Flange | 2,745 Cart + RFQ |
