Heavy Duty Connector Housings, Hoods, Bases
Products within this family are the outermost components of modular connector systems listed as "heavy duty," which serve to hold components known as frames, within which inserts and modules are mounted, within which the contacts that carry electrical power or signals are contained. In this context, "heavy duty" refers to a relatively specific range of interconnect products that are typically of rectangular format and characterized by features such as cast metal backshells, guide pins, and pin-and-latch retention mechanisms.
Product List
Total Components: 100
Product | Pricing | Datasheet | Connector Type | Style | Size | Lock Location | Thread Size | Size / Dimension | Housing Color | Features | Ingress Protection | Housing Material | Housing Finish | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

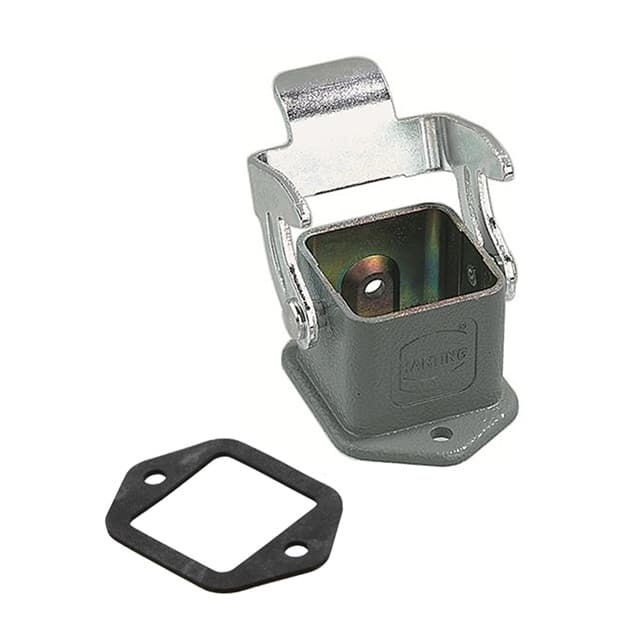

09200030301 HARTING | 1 $10.9900 | Datasheet | Base - Panel Mount | Bottom Entry | 3A | Locking Clip (1) on Base Bottom | - | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | -40°C ~ 125°C | 8,150 Cart + RFQ |

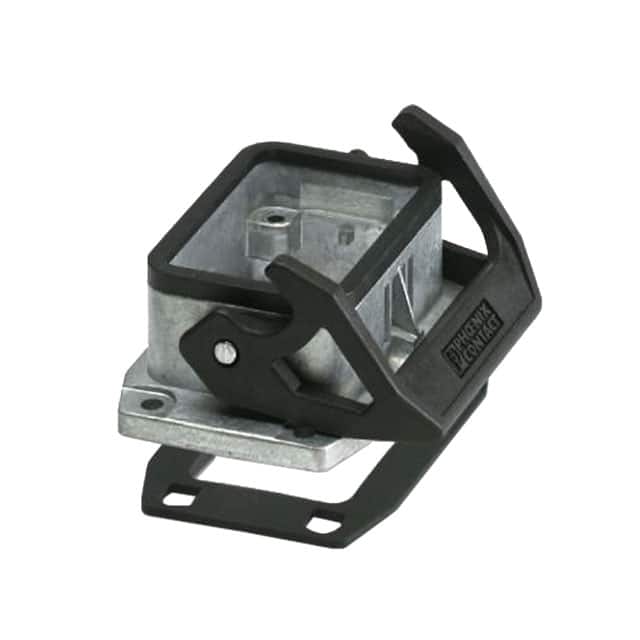

1411318 Phoenix Contact | 1 $19.5700 | Datasheet | Base - Panel Mount | Bottom Entry | B6 | Locking Clip (1) on Base Bottom | - | 3.169" L x 2.087" W x 1.201" H (80.50mm x 53.00mm x 30.50mm) | - | Salt Water Resistant | IP66 - Dust Tight, Water Resistant | Aluminum, Die Cast | - | -40°C ~ 125°C | 7,347 Cart + RFQ |

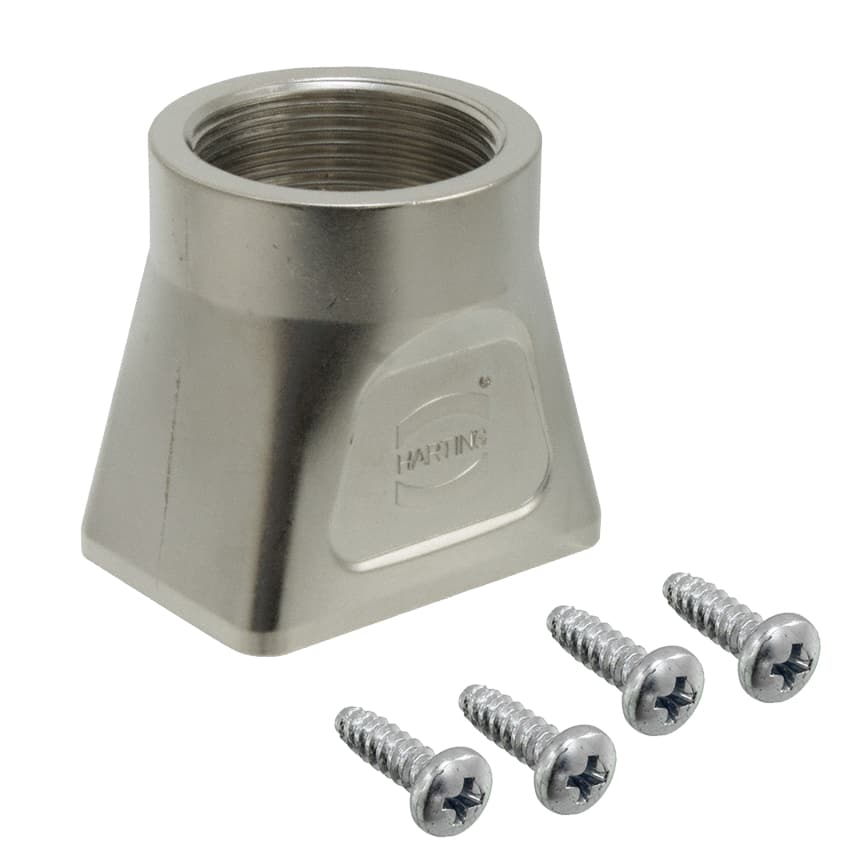

19140010402 HARTING | 1 $23.4300 | Datasheet | Hood | Top Entry | - | - | M32 | 1.890" L x 1.331" W x 1.831" H (48.00mm x 33.80mm x 46.50mm) | - | - | IP65 - Dust Tight, Water Resistant | Zinc, Die Cast | Nickel | -40°C ~ 125°C | 2,285 Cart + RFQ |

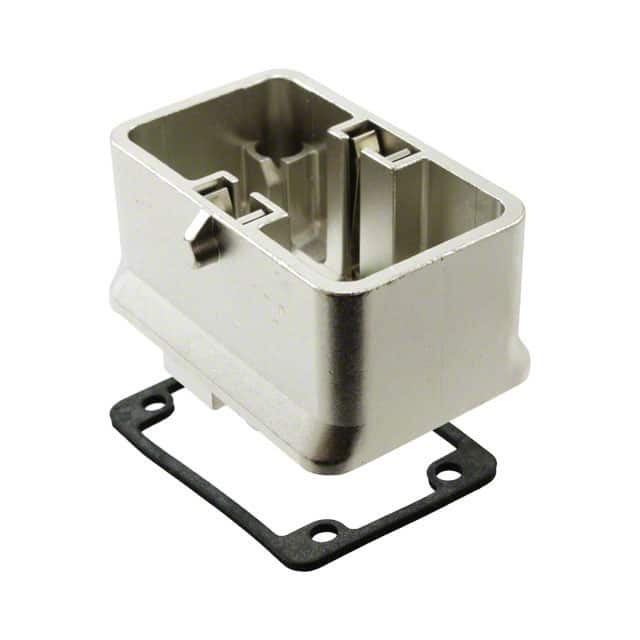

09140010311 HARTING | 1 $23.6000 | Datasheet | Hood | Bottom Entry | - | Locking Clip (1) on Base Bottom | - | 1.890" L x 1.331" W x 0.933" H (48.00mm x 33.80mm x 23.70mm) | - | Grounding Terminal | IP65 - Dust Tight, Water Resistant | Zinc, Die Cast | Nickel | -40°C ~ 125°C | 6,387 Cart + RFQ |

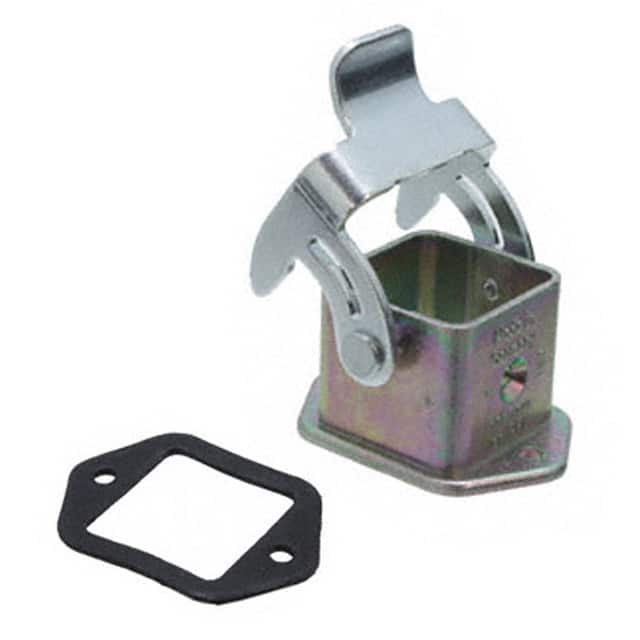

09620030301 HARTING | 1 $23.6900 | Datasheet | Base - Panel Mount | Bottom Entry | 3A | Locking Clip (1) on Base Bottom | - | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | - | - | IP44 | Zinc, Die Cast | EMC Coating | -40°C ~ 125°C | 6,080 Cart + RFQ |

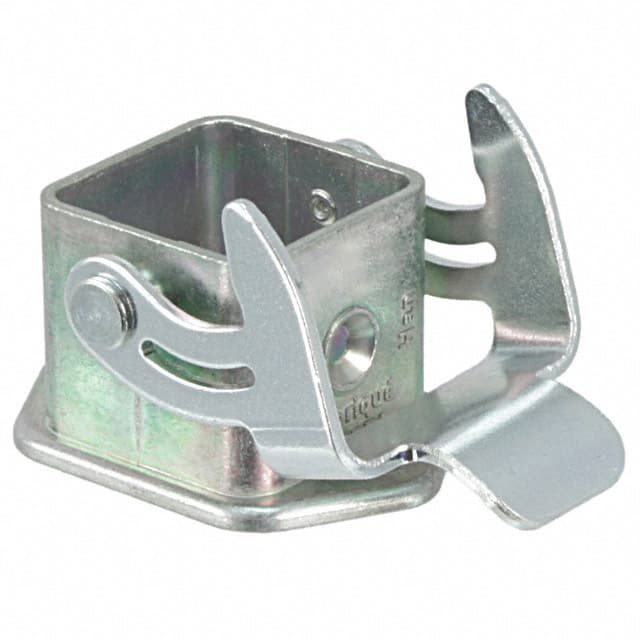

09620030304 HARTING | 1 $25.6000 | Datasheet | Base - Panel Mount | Bottom Entry | 3A | Locking Clip (1) on Base Bottom | - | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | - | - | IP44 | Zinc, Die Cast | EMC Coating | -40°C ~ 125°C | 1,239 Cart + RFQ |

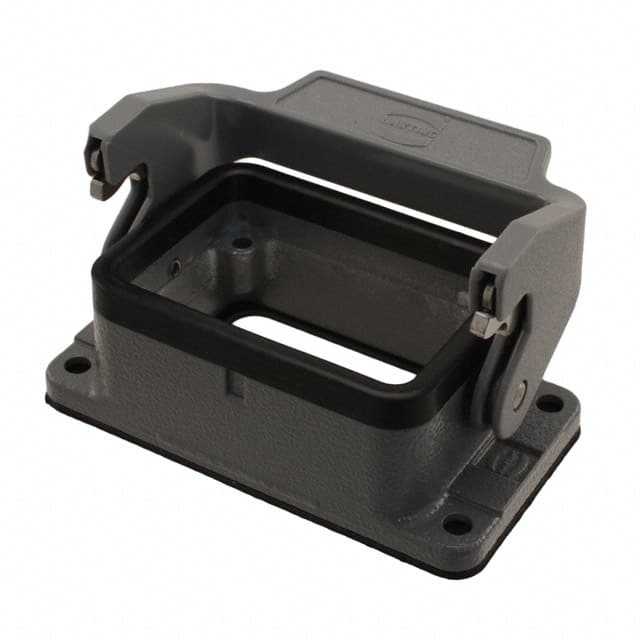

09300060301 HARTING | 1 $21.0400 | Datasheet | Base - Panel Mount | Bottom Entry | 6B | Locking Clip (1) on Base Bottom | - | 3.150" L x 1.709" W x 1.138" H (80.00mm x 43.40mm x 28.90mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | Powder Coated | -40°C ~ 125°C | 4,955 Cart + RFQ |

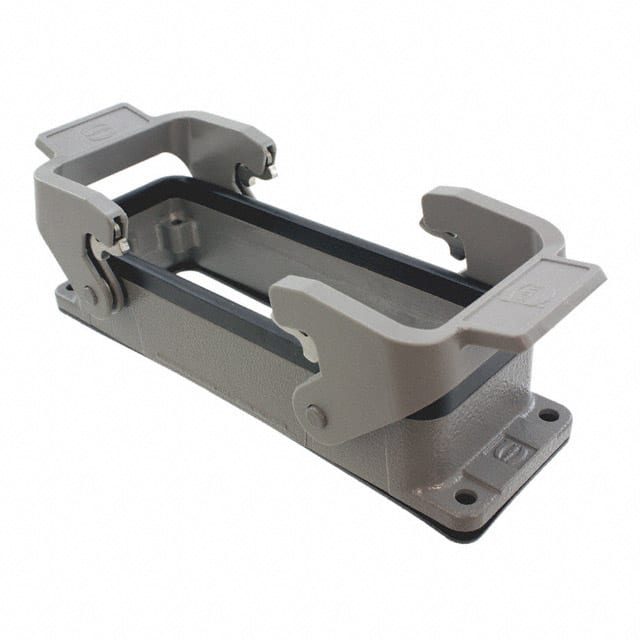

09300240301 HARTING | 1 $30.0800 | Datasheet | Base - Panel Mount | Bottom Entry | 24B | Locking Clip (2) on Base Bottom | - | 5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | Powder Coated | -40°C ~ 125°C | 2,061 Cart + RFQ |

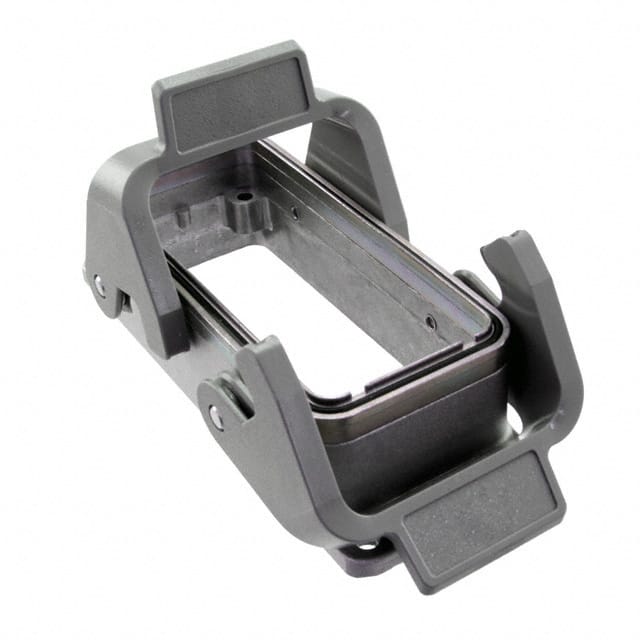

09628160301 HARTING | 1 $42.8400 | Datasheet | Base - Panel Mount | Bottom Entry | 16B | Locking Clip (2) on Base Bottom | - | 4.449" L x 1.693" W x 1.134" H (113.00mm x 43.00mm x 28.80mm) | - | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | EMC Coating | -40°C ~ 125°C | 3,437 Cart + RFQ |

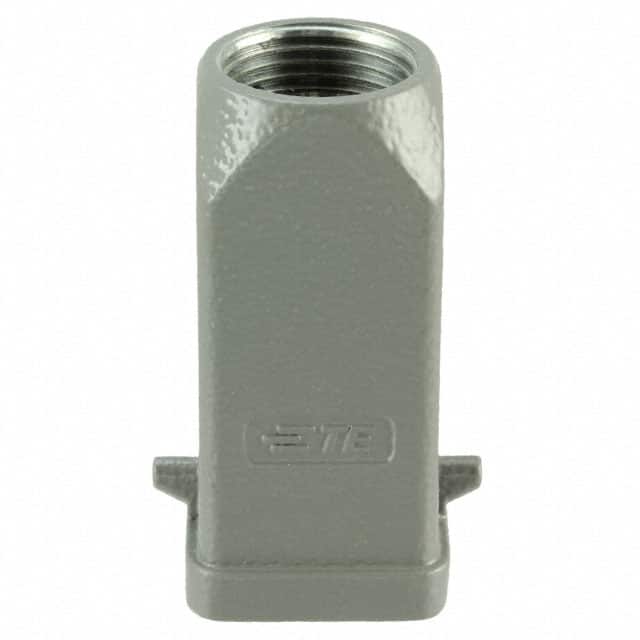

H3A-MTG-M20 TE Connectivity AMP Connectors | 1 $6.5200 | Datasheet | Hood | Top Entry | 3A | Locking Clip (1) on Base Bottom | M20 | 1.055" L x 1.055" W x 2.196" H (26.80mm x 26.80mm x 55.78mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Zinc Alloy | Powder Coated | -40°C ~ 125°C | 1,004 Cart + RFQ |
1497600000 Weidmuller | 1 $6.4500 | Datasheet | Base - Panel Mount | Bottom Entry | 1 | Locking Clip (1) on Base Bottom | - | 1.417" L x 1.654" W x 0.906" H (36.00mm x 42.00mm x 23.00mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | Powder Coated | - | 2,710 Cart + RFQ |

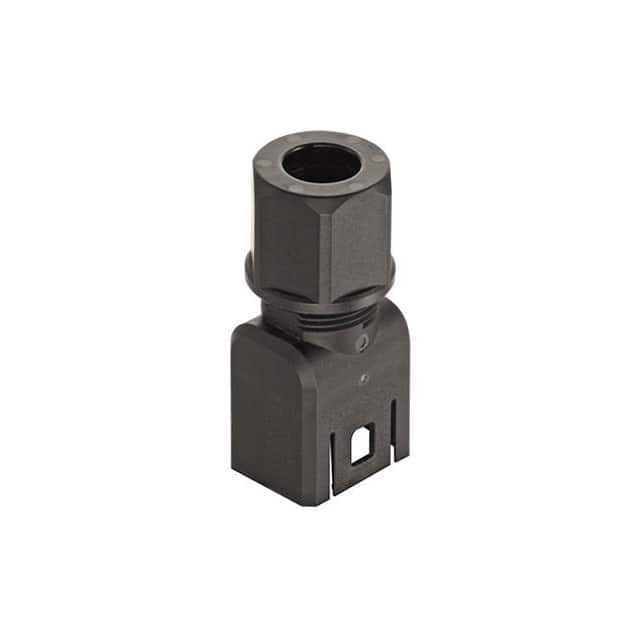

09100000400 HARTING | 1 $6.9100 | Datasheet | Hood | Top Entry | 1A | Locking Clip (1) on Base Bottom | - | 0.799" L x 0.642" W x 1.850" H (20.30mm x 16.30mm x 47.00mm) | Black | - | IP65 - Dust Tight, Water Resistant | Polyamide (PA), Nylon | - | -30°C ~ 90°C | 9,539 Cart + RFQ |

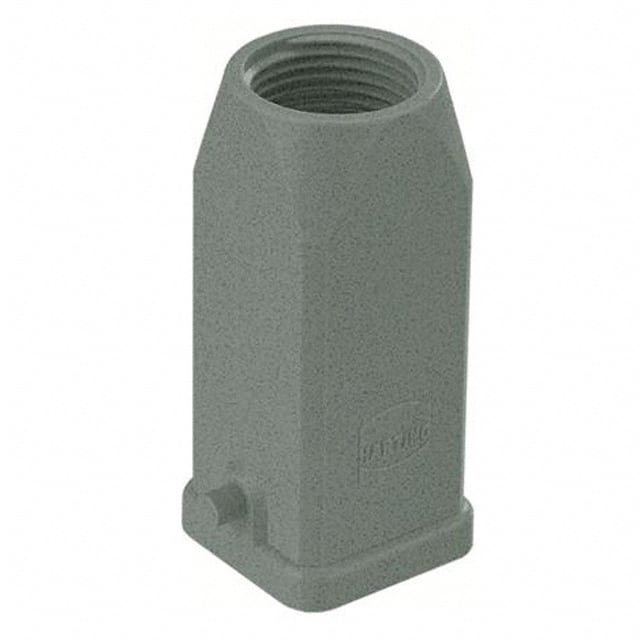

09200031440 HARTING | 1 $9.8700 | Datasheet | Hood | Top Entry | 3A | Locking Clip (1) on Base Bottom | PG11 | 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | -40°C ~ 125°C | 2,565 Cart + RFQ |

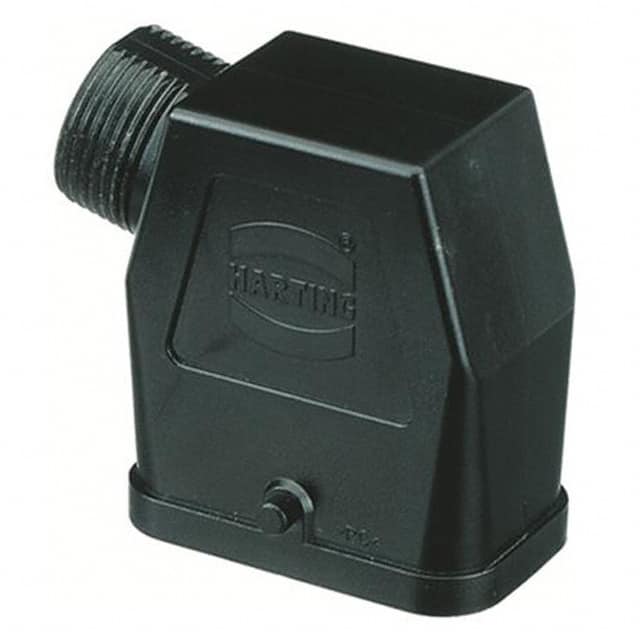

09120080527 HARTING | 1 $10.9200 | Datasheet | Hood | Side Entry | - | Locking Clip (1) on Base Bottom | PG16 | 1.886" L x 1.130" W x 2.126" H (47.90mm x 28.70mm x 54.00mm) | Black | - | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Polycarbonate (PC) | - | -40°C ~ 125°C | 1,210 Cart + RFQ |

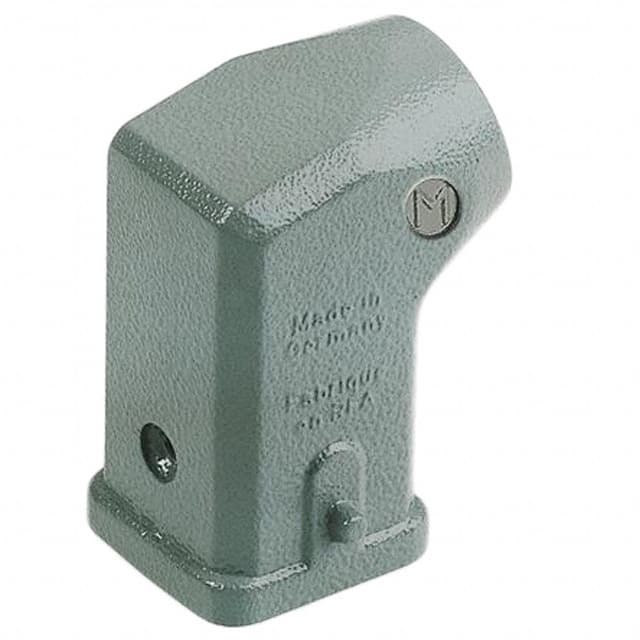

19200031640 HARTING | 1 $10.9600 | Datasheet | Hood - 90° | Side Entry | 3A | Locking Clip (1) on Base Bottom | M20 | 1.063" L x 1.102" W x 2.138" H (27.00mm x 28.00mm x 54.30mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | -40°C ~ 125°C | 6,355 Cart + RFQ |

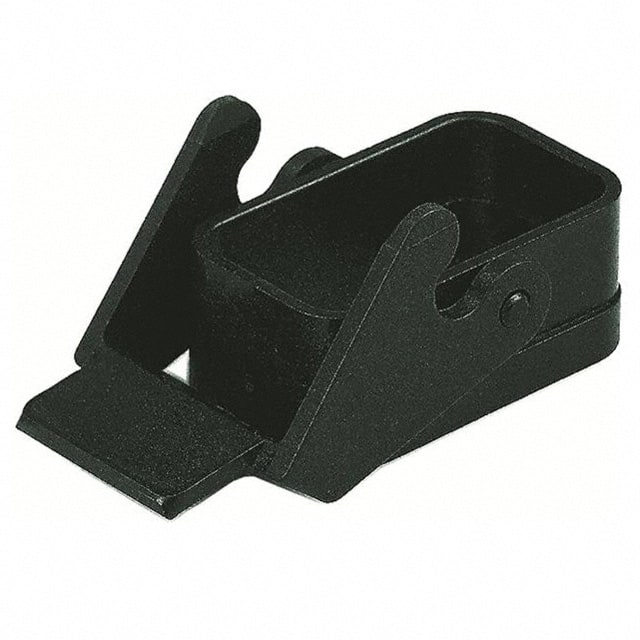

09120080327 HARTING | 1 $11.2200 | Datasheet | Base - Panel Mount | Bottom Entry | - | Locking Clip (1) on Base Bottom | - | 1.807" L x 1.130" W x 0.768" H (45.90mm x 28.70mm x 19.50mm) | Black | - | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Polycarbonate (PC) | - | -40°C ~ 125°C | 9,145 Cart + RFQ |
10422500 LAPP | 1 $13.9800 | Datasheet | Base - Panel Mount | Bottom Entry | A3/4 | Locking Clip (1) on Base Bottom | - | 1.575" L x 1.102" W x 0.866" H (40.00mm x 28.00mm x 22.00mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Zinc Die Cast | Powder Coated | -40°C ~ 125°C | 7,662 Cart + RFQ |

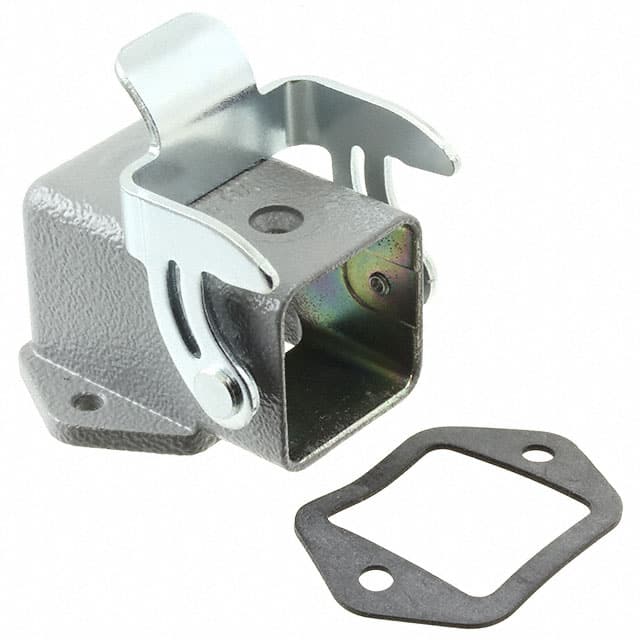

09200030801 HARTING | 1 $15.0700 | Datasheet | Base - Panel Mount 90° | Side Entry | 3A | Locking Clip (1) on Base Bottom | - | 1.102" L x 1.575" W x 1.063" H (28.00mm x 40.00mm x 27.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | -40°C ~ 125°C | 9,874 Cart + RFQ |

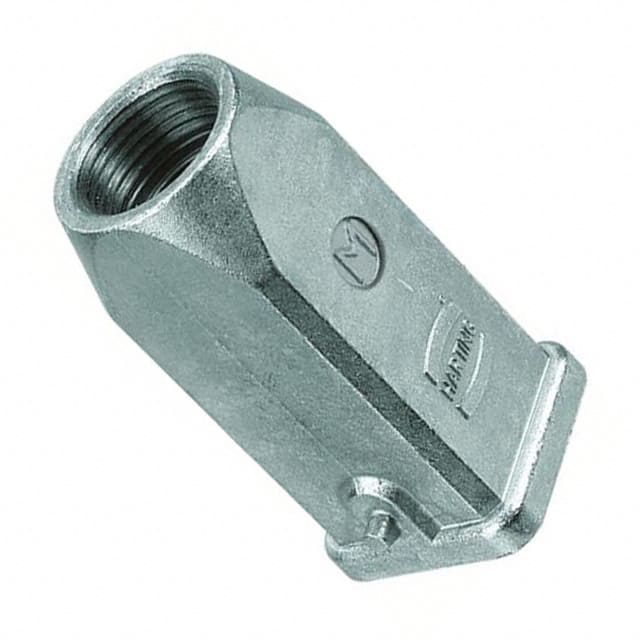

19620031440 HARTING | 1 $15.6900 | Datasheet | Hood | Top Entry | 3A | Locking Clip (1) on Base Bottom | M20 | 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm) | - | - | IP44 | Zinc, Die Cast | EMC Coating | -40°C ~ 125°C | 7,384 Cart + RFQ |

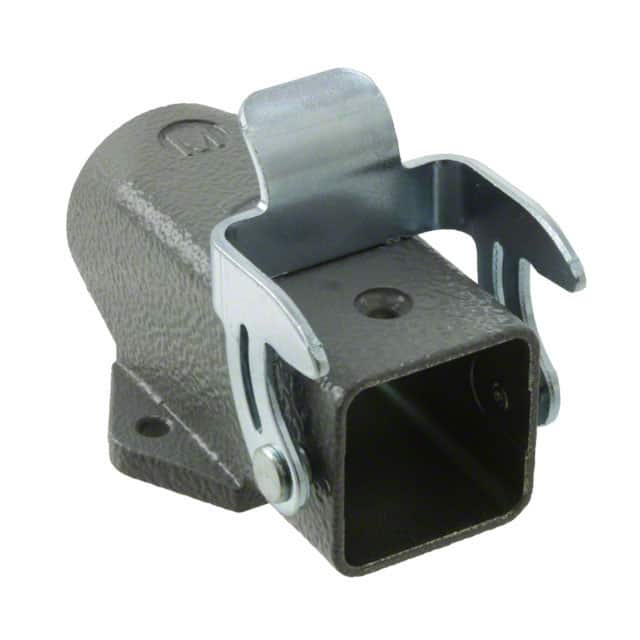

19200031252 HARTING | 1 $16.2900 | Datasheet | Base - Panel Mount 90° | Side Entry | 3A | Locking Clip (1) on Base Bottom | M20 | 1.102" L x 1.575" W x 1.071" H (28.00mm x 40.00mm x 27.20mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | -40°C ~ 125°C | 6,298 Cart + RFQ |
