Heavy Duty Connector Frames
Products within this family are components of modular connector systems listed as "heavy duty," and are used to hold one or more selected contact inserts or modules in position within a housing, hood, or base. In this context, "heavy duty" refers to a relatively specific range of interconnect products that are typically of rectangular format and characterized by features such as cast metal backshells, guide pins, and pin-and-latch retention mechanisms.
Product List
Total Components: 100
Product | Pricing | Datasheet | Number of Modules | Gender | Size | Frame Type | Material | Color | Operating Temperature | Includes | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|

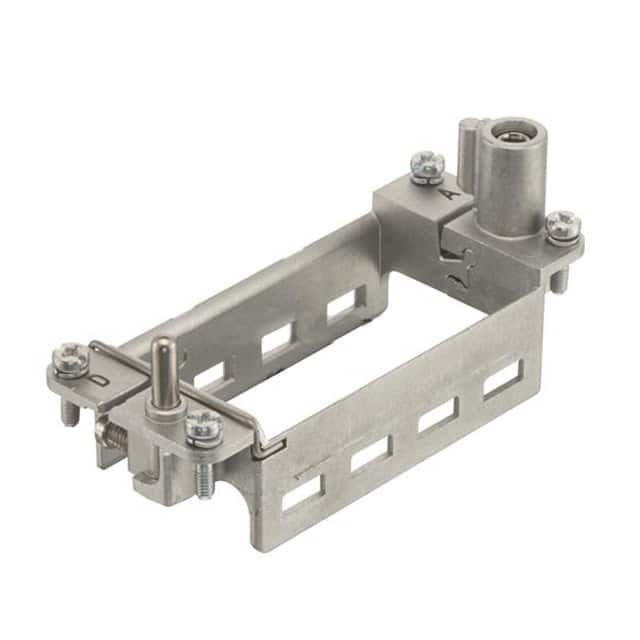

09140160361 HARTING | 1 $24.7600 | Datasheet | 4 | Non-Gendered | 16B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 8,106 Cart + RFQ |

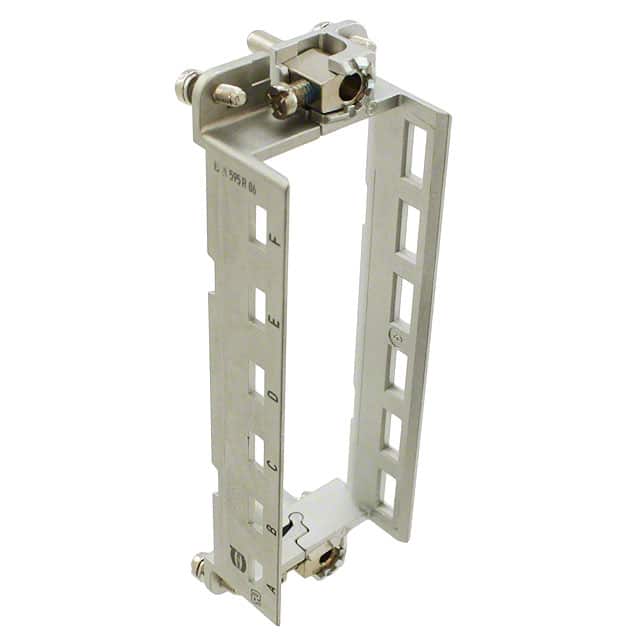

09140240303 HARTING | 1 $24.8100 | Datasheet | 6 | Female/Male | 24B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 3,272 Cart + RFQ |

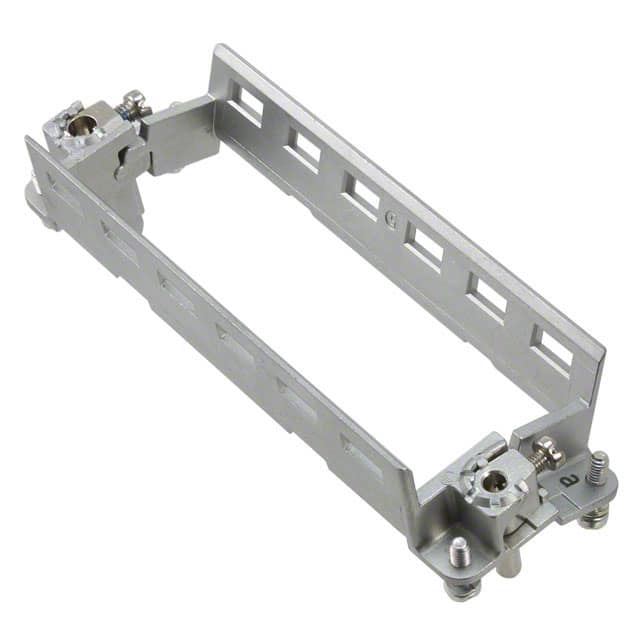

09140240313 HARTING | 1 $24.8100 | Datasheet | 6 | Female/Male | 24B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 9,043 Cart + RFQ |

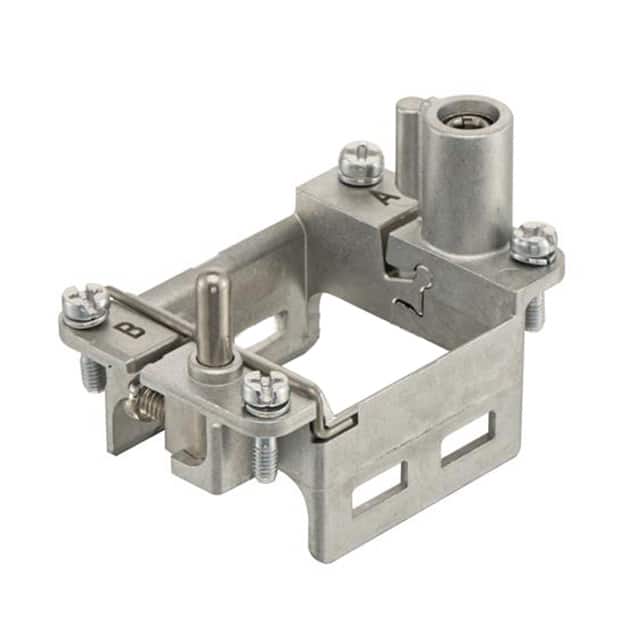

09140060361 HARTING | 1 $24.3100 | Datasheet | 2 | Non-Gendered | 6B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 7,398 Cart + RFQ |

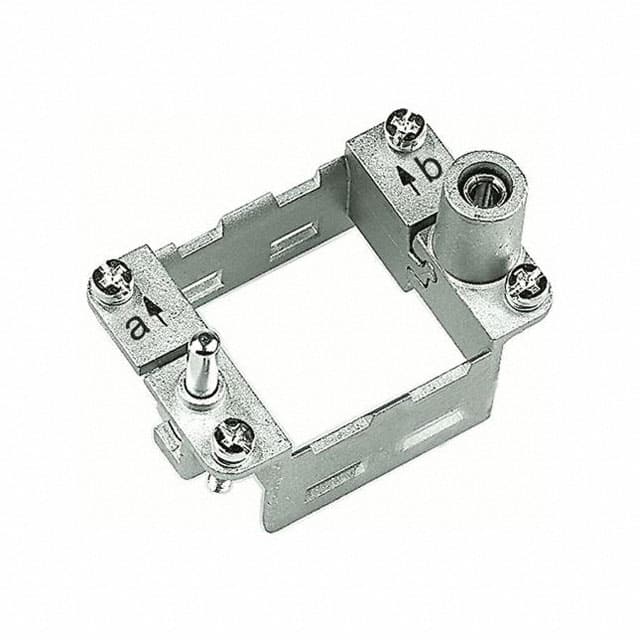

09140060303 HARTING | 1 $24.3100 | Datasheet | 2 | Female/Male | 6B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 8,862 Cart + RFQ |

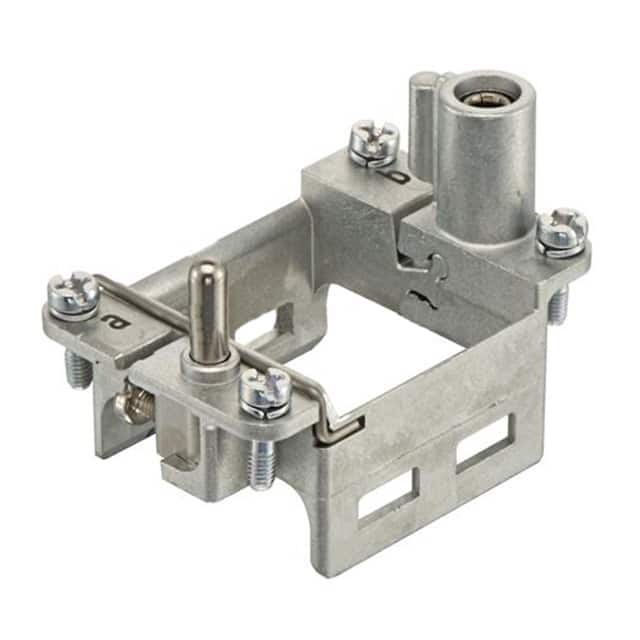

09140060371 HARTING | 1 $24.3100 | Datasheet | 2 | Non-Gendered | 6B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 3,115 Cart + RFQ |

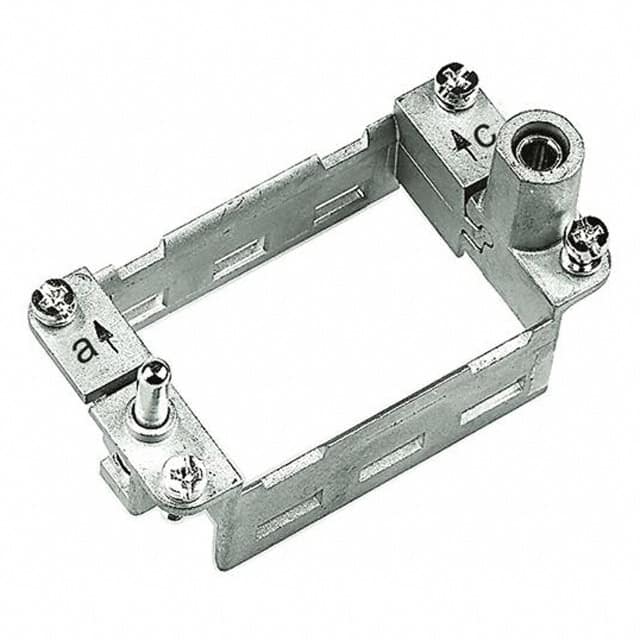

09140100303 HARTING | 1 $24.5500 | Datasheet | 3 | Female/Male | 10B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 5,990 Cart + RFQ |

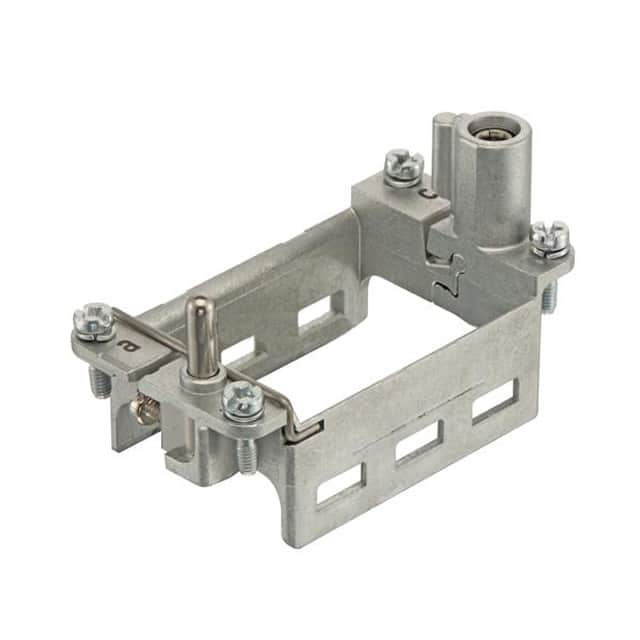

09140100371 HARTING | 1 $24.5500 | Datasheet | 3 | Non-Gendered | 10B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 1,606 Cart + RFQ |

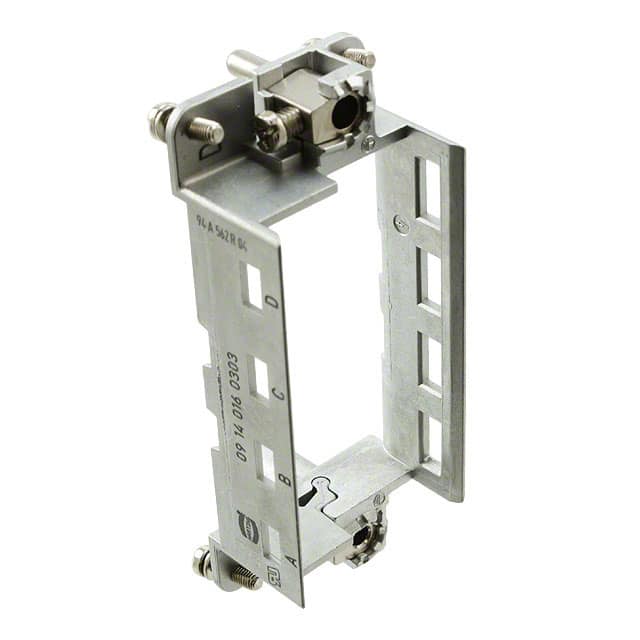

09140160303 HARTING | 1 $24.7600 | Datasheet | 4 | Female/Male | 16B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 7,062 Cart + RFQ |

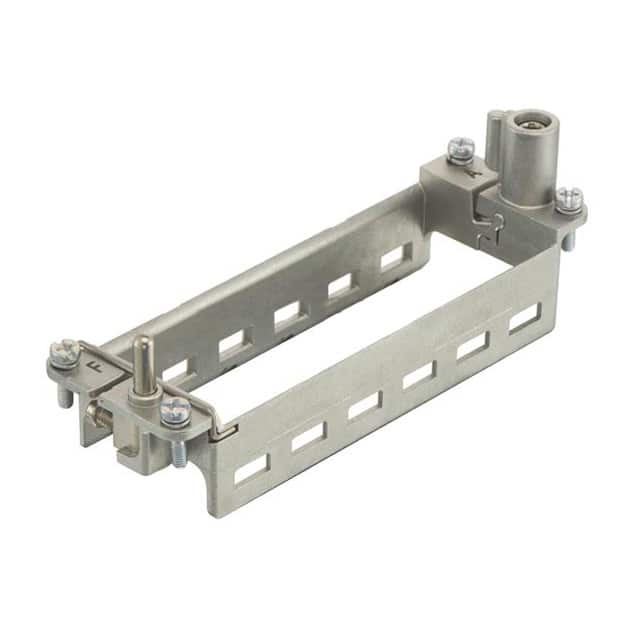

09140240361 HARTING | 1 $24.8100 | Datasheet | 6 | Non-Gendered | 24B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 2,490 Cart + RFQ |

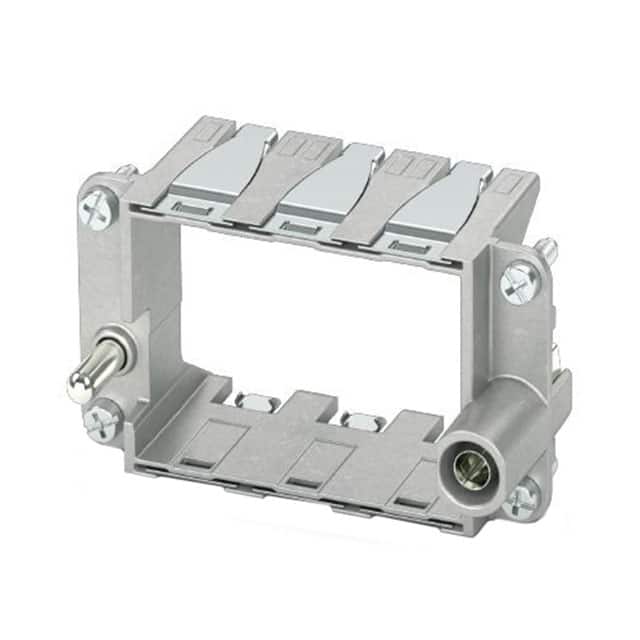

1182088 Phoenix Contact | 1 $21.1700 | Datasheet | 3 | Female/Male | B10 | Panel Mounting Frame | Zinc Alloy, Die Cast | - | -40°C ~ 125°C | - | 8,267 Cart + RFQ |

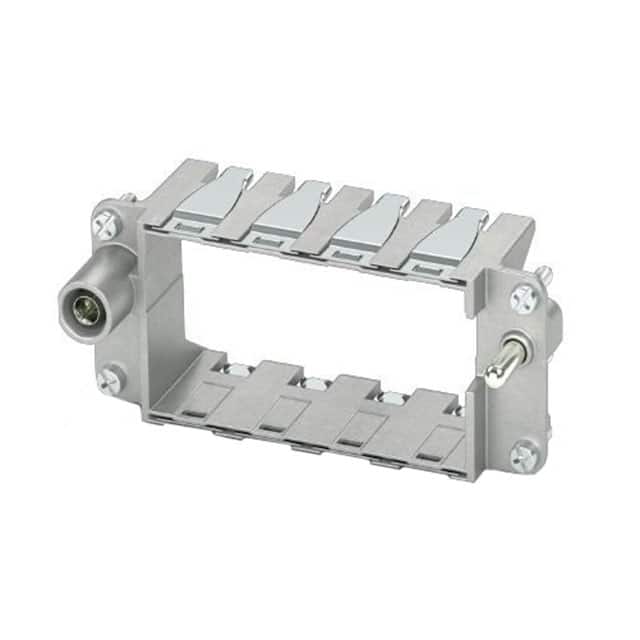

1182093 Phoenix Contact | 1 $21.3800 | Datasheet | 4 | Female/Male | B16 | Panel Mounting Frame | Zinc Alloy, Die Cast | - | -40°C ~ 125°C | - | 5,864 Cart + RFQ |

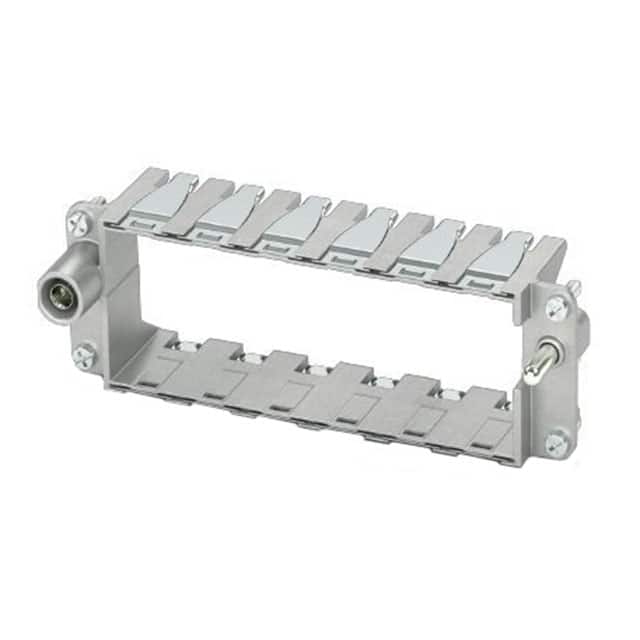

1182095 Phoenix Contact | 1 $21.6500 | Datasheet | 6 | Female/Male | B24 | Panel Mounting Frame | Zinc Alloy, Die Cast | - | -40°C ~ 125°C | - | 3,519 Cart + RFQ |

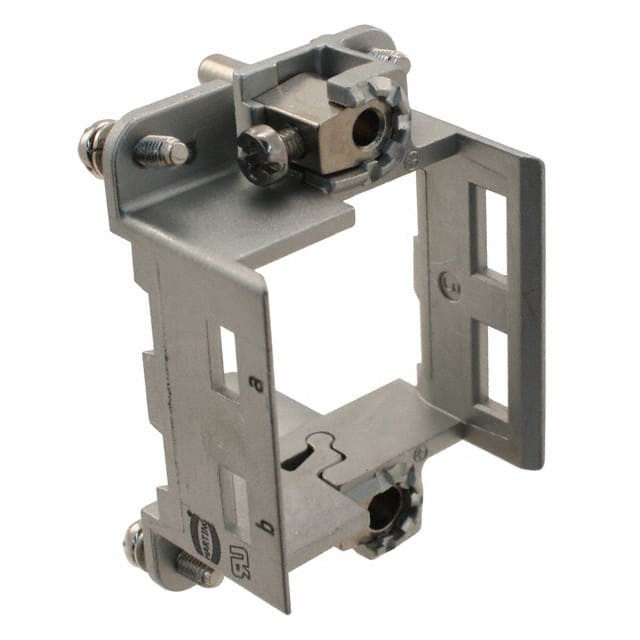

09140060313 HARTING | 1 $24.3100 | Datasheet | 2 | Female/Male | 6B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 8,003 Cart + RFQ |

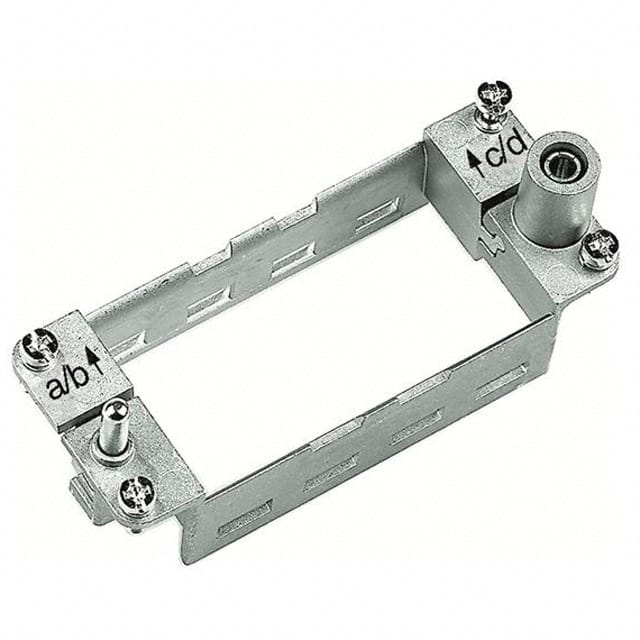

09140160313 HARTING | 1 $24.7600 | Datasheet | 4 | Female/Male | 16B | Retaining Frame, Hinged | Zinc Die Cast | - | -40°C ~ 125°C | 5 pcs - 1 Frame, 4 Screws | 1,460 Cart + RFQ |

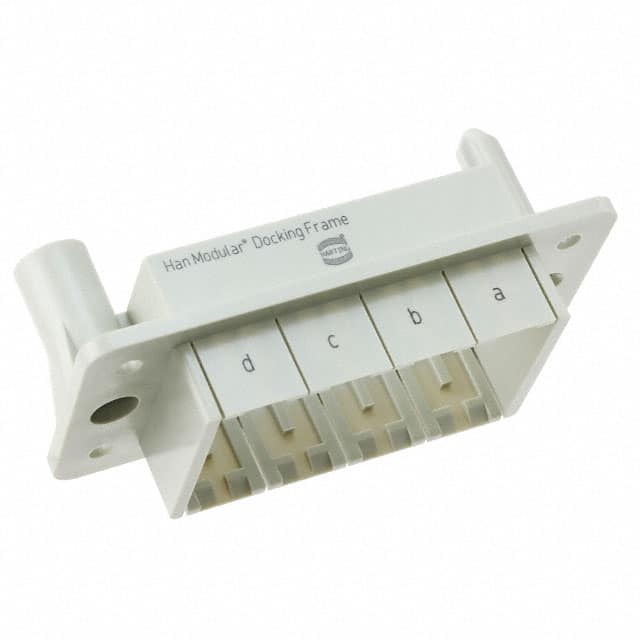

09140161711 HARTING | 1 $8.5500 | Datasheet | 4 | Female/Male | 16B | Docking Frame | Polycarbonate (PC) | - | -40°C ~ 125°C | 1 pc - 1 Frame | 9,290 Cart + RFQ |

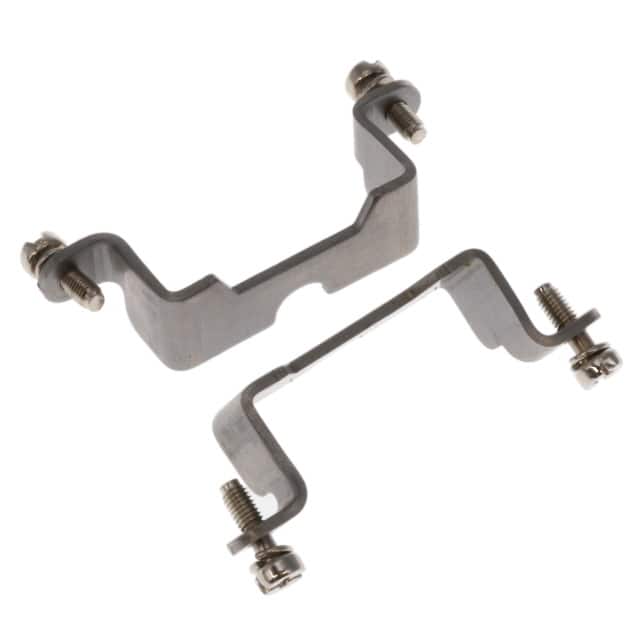

T0924015115-000 TE Connectivity AMP Connectors | 1 $5.4700 | Datasheet | 1 | Non-Gendered | 6B | Fixing Frame | Stainless Steel | - | - | 6 pcs - 2 pc Frame, 4 Screws | 5,070 Cart + RFQ |

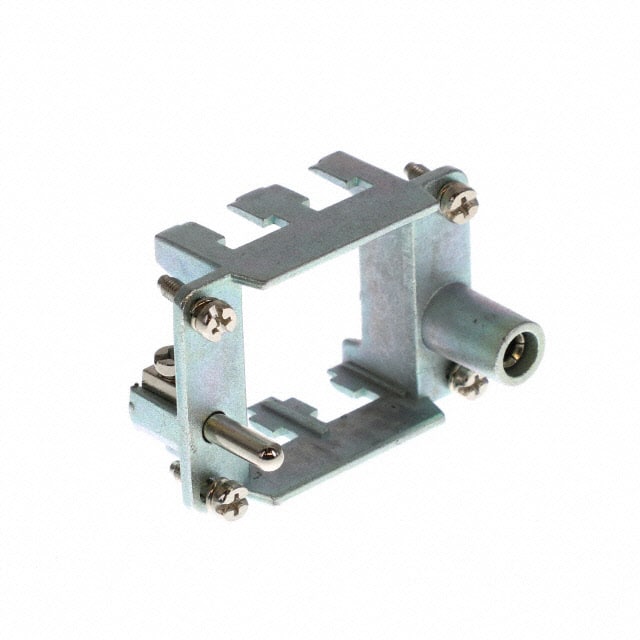

T2070064001-000 TE Connectivity AMP Connectors | 1 $13.4500 | Datasheet | 2 | Female/Male | H6B | Fixing Frame | Zinc Alloy, Die Cast | - | - | 5 pcs - 1 Frame, 4 Screws | 5,483 Cart + RFQ |

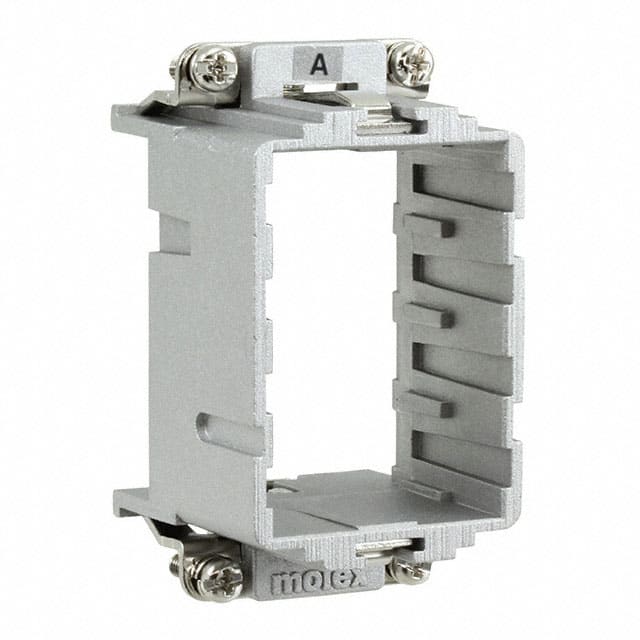

5008100000 Molex | 1 $38.0100 | Datasheet | - | Female/Male | - | Panel Mounting Frame | Aluminum Alloy | - | -55°C ~ 105°C | - | 2,206 Cart + RFQ |
KN06AL-SHL-A JAE Electronics | 1 $21.0600 | Datasheet | 6 | Female | L | Panel Mounting Frame | Resin | Black | - | - | 2,579 Cart + RFQ |
