FFC, FPC (Flat Flexible) Connectors
Products in this family are interconnect products used in conjunction with Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) materials, and are predominantly of the sort which perform a cable-to-board interconnect function, being mounted to a printed circuit board, and providing both electrical connection and mechanical retention for an inserted FFC or FPC cable.
Product List
Total Components: 1
ProductPricingDatasheetTypeNumber of PositionsFor Use With/Related ProductsFlat Flex TypeMounting TypeConnector/Contact TypeNumber of PositionsPitchTerminationFFC, FCB ThicknessHeight Above BoardLocking FeatureCable End TypeContact MaterialContact FinishHousing MaterialActuator MaterialFeaturesVoltage RatingOperating TemperatureMaterial Flammability RatingTypePin or SocketContact TerminationWire GaugeContact FinishContact Finish ThicknessFlat Flex TypeConnector TypeNumber of PositionsNumber of RowsPitchFFC, FCB ThicknessLocking FeatureVoltage RatingHousing MaterialFeaturesOperating TemperatureMaterial Flammability RatingStock & Quantity

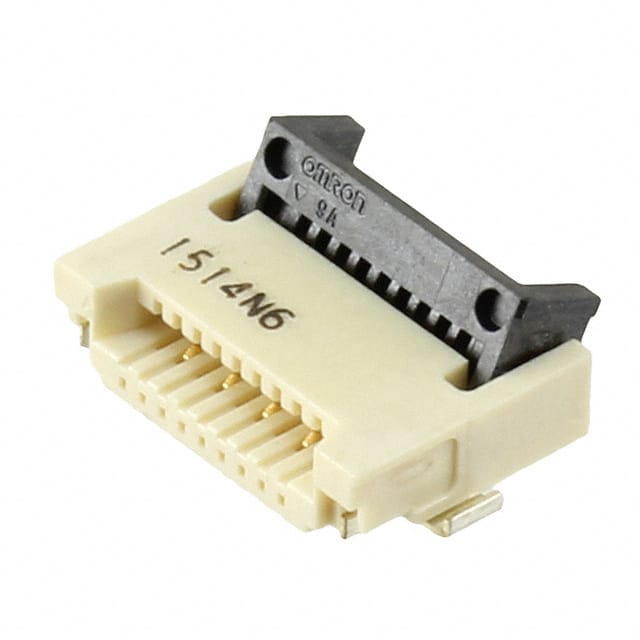

XF3M(1)-0415-1B
Omron Electronic Components
1
$1.0800
Datasheet
---FFC, FPCSurface Mount, Right AngleContacts, Top and Bottom40.039" (1.00mm)Solder0.30mm0.079" (2.00mm)Rotary Lock, BacklockTaperedCopper AlloyGoldLiquid Crystal Polymer (LCP), Halogen FreeLiquid Crystal Polymer (LCP), Halogen FreeSolder Retention50V-30°C ~ 85°CUL94 V-0------------------
7,341
Cart +
RFQ
