D-Sub, D-Shaped Connector Housings
Products in this family are components of D-subminiature style connectors, into which electrical contacts that have been applied to discrete wires can be inserted. So-named in reference to the shape of their mating end and their relatively high interconnect density at the time of introduction, an additional component known as a backshell is needed to form a connector assembly. Note that similar products assembled by means of soldering discrete wires in place are available though grouped separately, alongside similar items intended for mounting directly to a printed circuit board.
Product List
Total Components: 100
Product | Pricing | Datasheet | Connector Style | Connector Type | Number of Positions | Number of Rows | Shell Size, Connector Layout | Contact Type | Mounting Type | Flange Feature | Features | Primary Material | Shell Material, Finish | Shell Finish Thickness | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

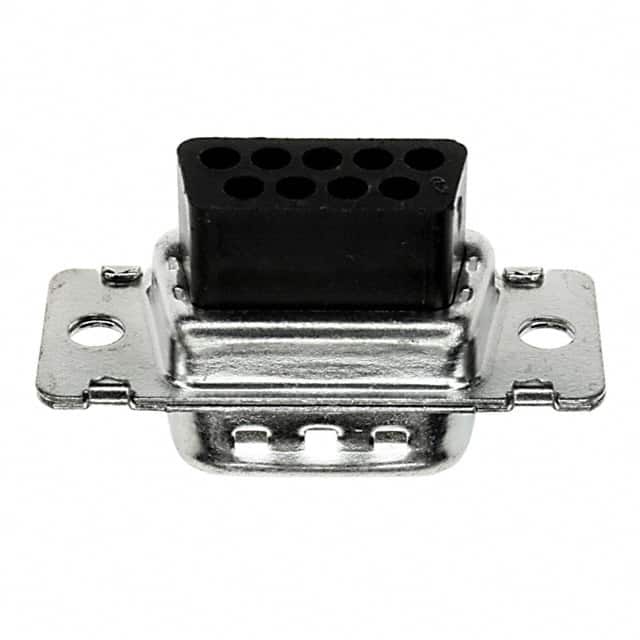

205204-4 TE Connectivity AMP Connectors | 1 $2.3500 | Datasheet | D-Sub | Plug for Male Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Grounding Indents | - | Steel, Tin Plated | - | - | 9,094 Cart + RFQ |

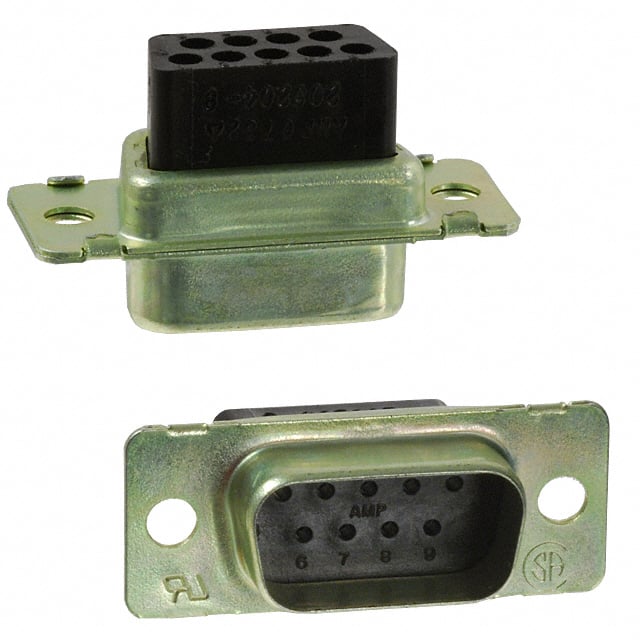

205204-9 TE Connectivity AMP Connectors | 1 $2.4100 | Datasheet | D-Sub | Plug for Male Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 200µin (5.08µm) | - | 7,109 Cart + RFQ |

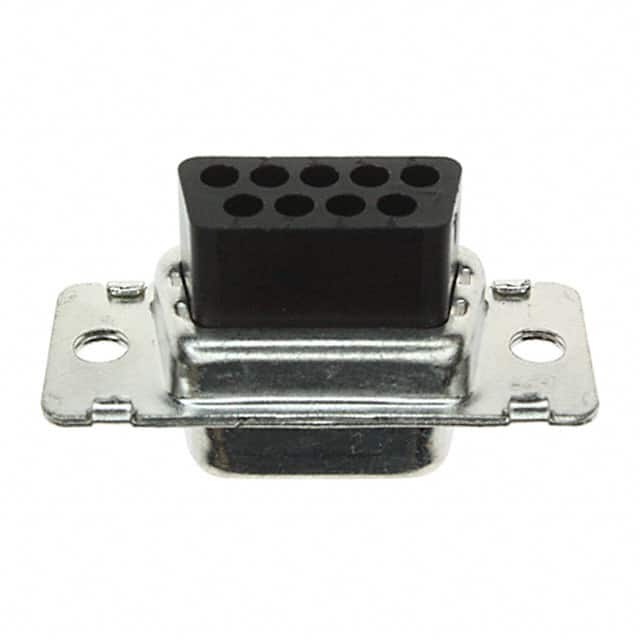

205203-3 TE Connectivity AMP Connectors | 1 $2.4200 | Datasheet | D-Sub | Receptacle for Female Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Tin Plated | - | - | 7,262 Cart + RFQ |

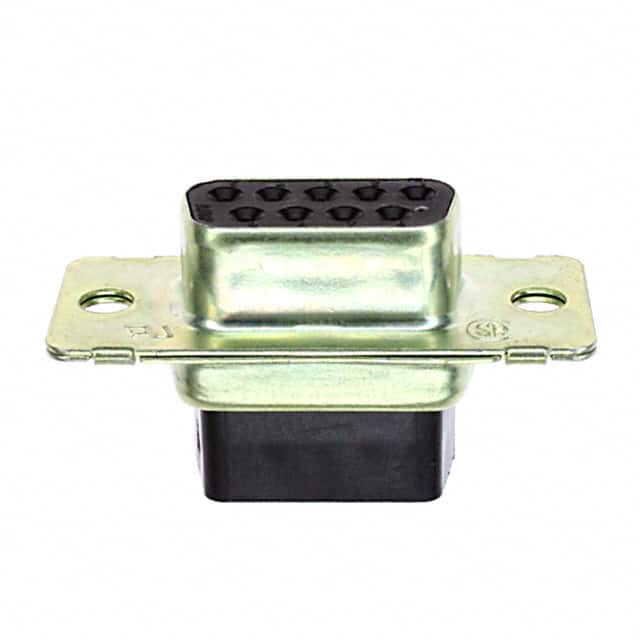

205203-8 TE Connectivity AMP Connectors | 1 $2.7300 | Datasheet | D-Sub | Receptacle for Female Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 200µin (5.08µm) | - | 4,984 Cart + RFQ |

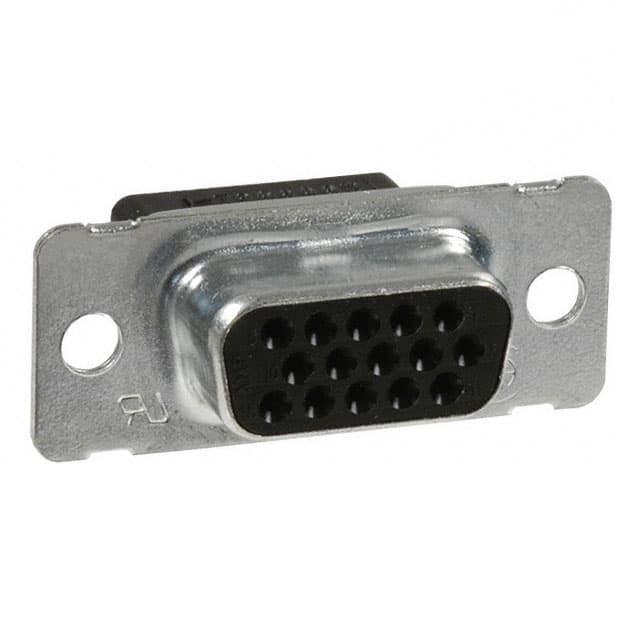

1658681-1 TE Connectivity AMP Connectors | 1 $4.3000 | Datasheet | D-Sub, High Density | Receptacle for Female Contacts | 15 | 3 | 1 (DE, E) High Density | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Tin Plated | 200µin (5.08µm) | - | 2,135 Cart + RFQ |

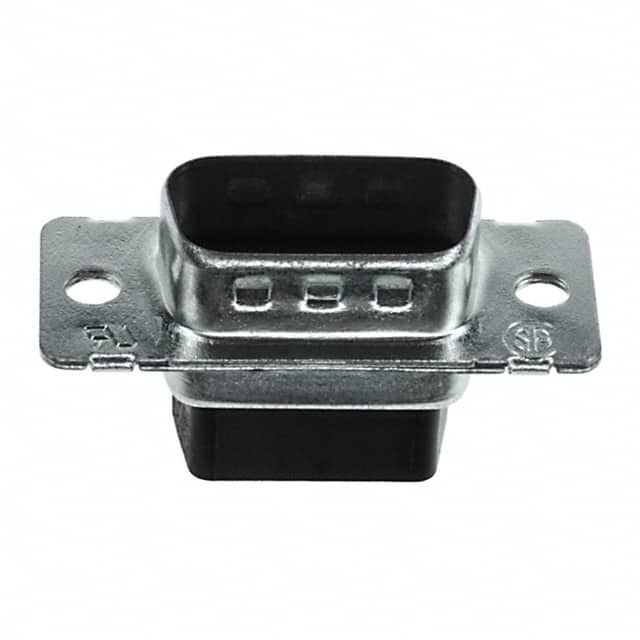

748364-1 TE Connectivity AMP Connectors | 1 $4.6500 | Datasheet | D-Sub, High Density | Plug for Male Contacts | 15 | 3 | 1 (DE, E) High Density | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Grounding Indents | - | Steel, Tin Plated | - | - | 3,725 Cart + RFQ |

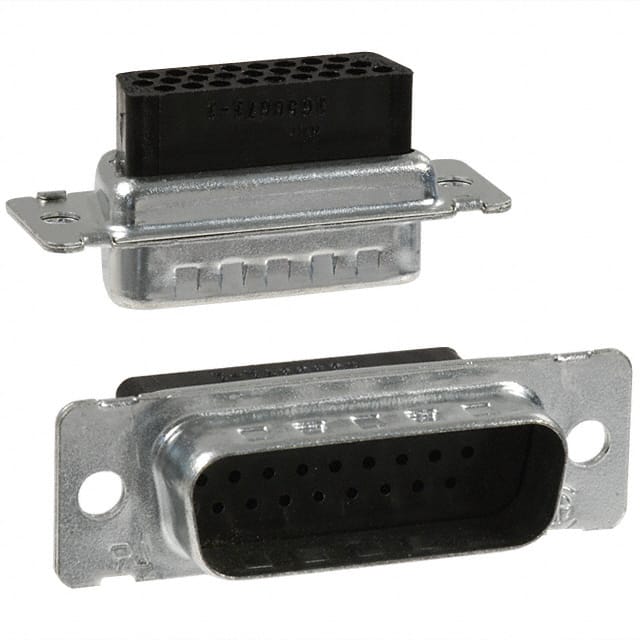

1658671-1 TE Connectivity AMP Connectors | 1 $5.1300 | Datasheet | D-Sub, High Density | Plug for Male Contacts | 26 | 3 | 2 (DA, A) High Density | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Grounding Indents | - | Steel, Tin Plated | 200µin (5.08µm) | - | 2,218 Cart + RFQ |

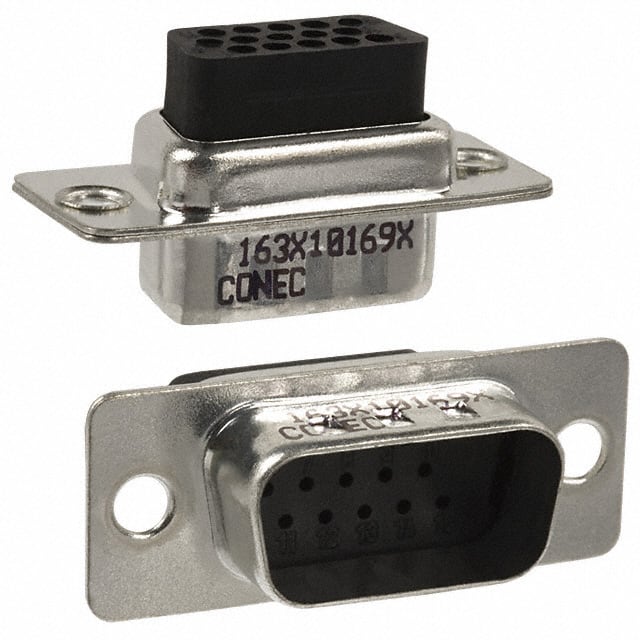

163X10169X CONEC | 1 $5.6700 | Datasheet | D-Sub, High Density | Plug for Male Contacts | 15 | 3 | 1 (DE, E) High Density | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Grounding Indents | - | Steel, Tin Plated | 320µin (8.13µm) | IP20 | 7,918 Cart + RFQ |

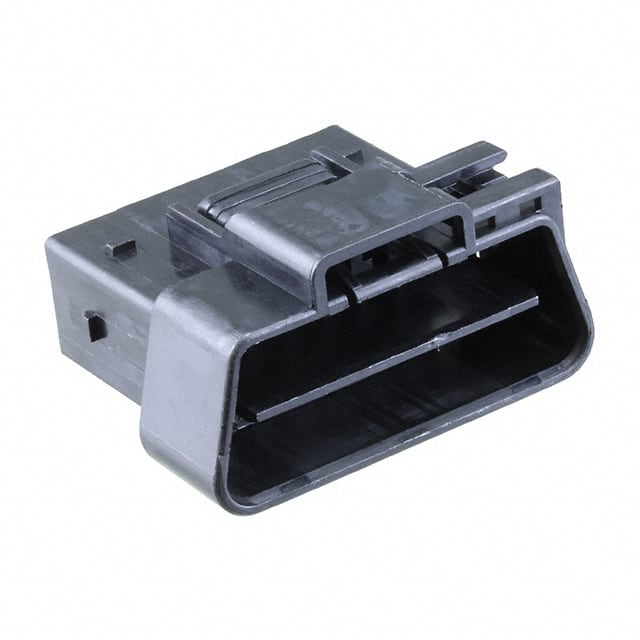

0685031602 Molex | 1 $5.8200 | Datasheet | D-Type | Plug for Male Contacts | 16 | 2 | - | Signal | Free Hanging (In-Line) | - | - | - | - | - | - | 4,933 Cart + RFQ |

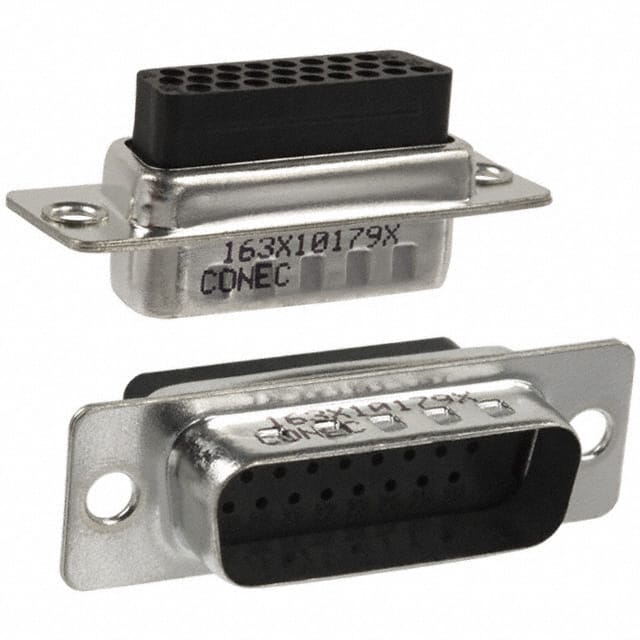

163X10179X CONEC | 1 $5.9800 | Datasheet | D-Sub, High Density | Plug for Male Contacts | 26 | 3 | 2 (DA, A) High Density | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Grounding Indents | - | Steel, Tin Plated | 320µin (8.13µm) | IP20 | 8,914 Cart + RFQ |

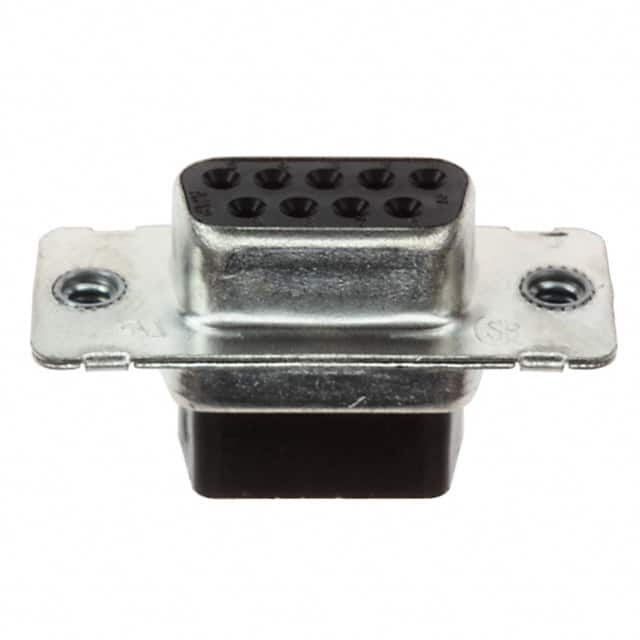

1658643-1 TE Connectivity AMP Connectors | 1 $8.7500 | Datasheet | D-Sub | Receptacle for Female Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Cable Side (4-40) | - | - | Steel, Tin Plated | 200µin (5.08µm) | - | 1,771 Cart + RFQ |
1757820-1 Aerospace Defense and Marine / TE Connectivity | 1 $11.7100 | Datasheet | D-Sub | Receptacle for Female Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Yellow Chromate Plated Zinc | 20µin (0.51µm) | - | 8,115 Cart + RFQ |
1757819-1 Aerospace Defense and Marine / TE Connectivity | 1 $11.7100 | Datasheet | D-Sub | Plug for Male Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Yellow Chromate Plated Zinc | 20µin (0.51µm) | - | 7,260 Cart + RFQ |

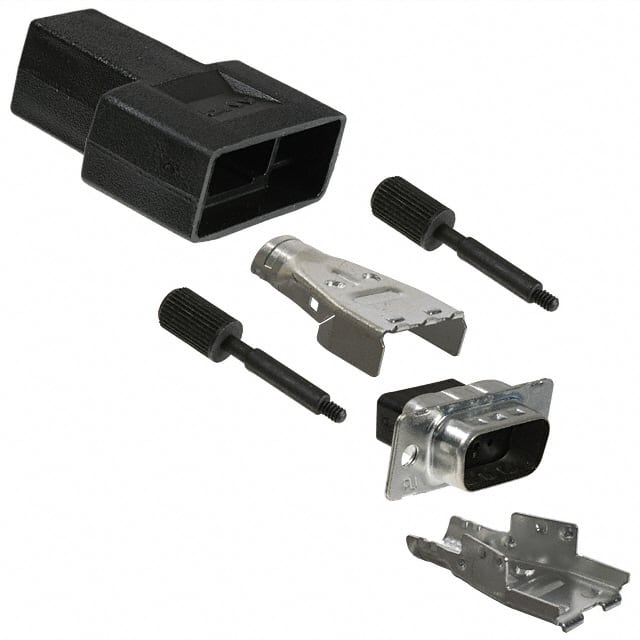

1658655-1 TE Connectivity AMP Connectors | 1 $16.8600 | Datasheet | D-Sub | Plug for Male Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Cable Side (4-40) | Backshell, Grounding Indents, Shielded | - | Steel, Tin Plated | 200µin (5.08µm) | - | 1,954 Cart + RFQ |

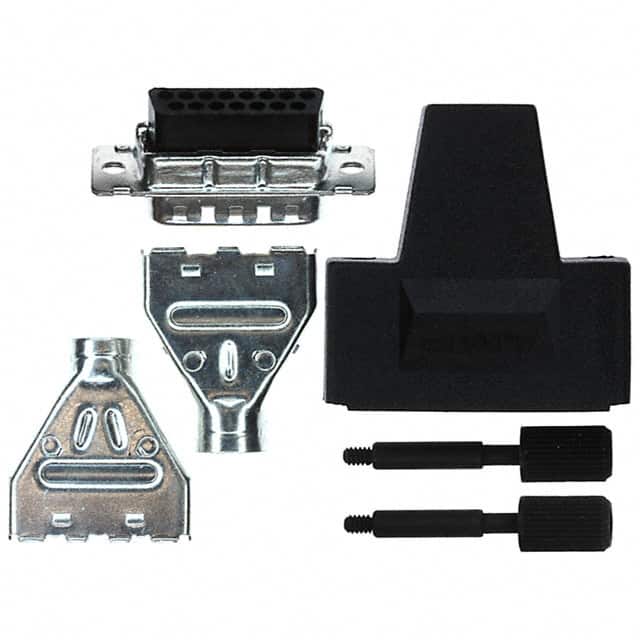

1658657-1 TE Connectivity AMP Connectors | 1 $17.5100 | Datasheet | D-Sub | Plug for Male Contacts | 15 | 2 | 2 (DA, A) | Signal | Free Hanging (In-Line) | Cable Side (4-40) | Backshell, Grounding Indents, Shielded | - | Steel, Tin Plated | 200µin (5.08µm) | - | 4,994 Cart + RFQ |
2335889-1 Aerospace Defense and Marine / TE Connectivity | 1 $19.6400 | Datasheet | D-Sub | Plug for Male Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Stainless Steel, Passivated | - | - | 9,108 Cart + RFQ |

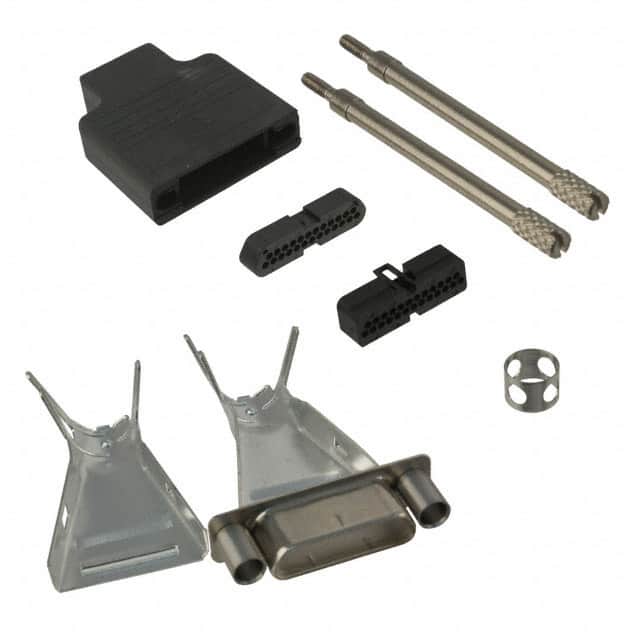

0834249014 Molex | 1 $22.3700 | Datasheet | D-Type, Micro-D | Receptacle for Female Contacts | 25 | 2 | 0.050 Pitch x 0.050 Row to Row | Signal | Free Hanging (In-Line) | Cable Side, Male Jackscrew (2-56) | Shielded | - | Steel, Nickel Plated | - | - | 2,559 Cart + RFQ |

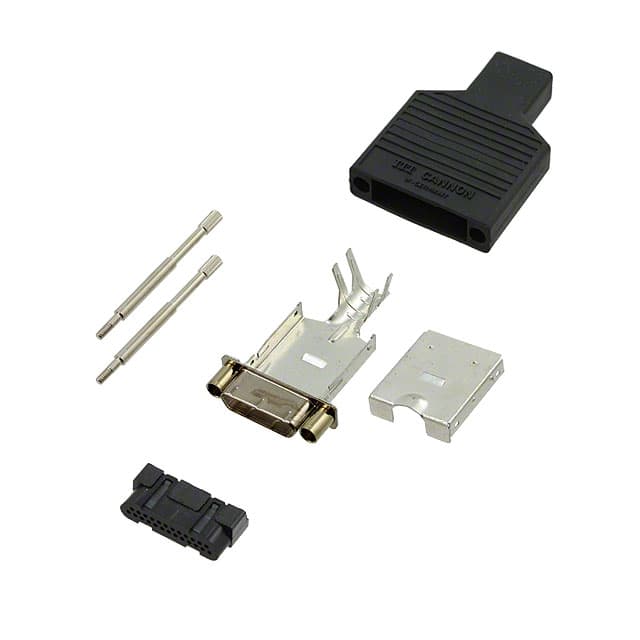

MDSM-25SC-Z11-VS1 Cannon (ITT Cannon) | 1 $18.6200 | Datasheet | D-Type, Micro-D | Receptacle for Female Contacts | 25 | 2 | 0.050 Pitch x 0.100 Row to Row | Signal | Free Hanging (In-Line) | Mating Side (2-56) | Shielded | - | Steel, Tin-Nickel Plated | - | - | 2,471 Cart + RFQ |

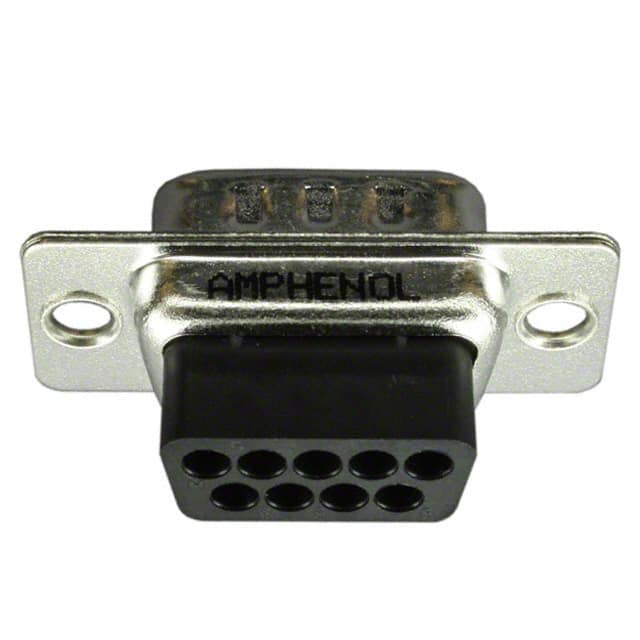

L777-RR-E-09-P Amphenol Commercial IO | 1 $0.6000 | Datasheet | D-Sub | Plug for Male Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Grounding Indents | - | Steel, Tin Plated | 100µin (2.54µm) | - | 3,680 Cart + RFQ |

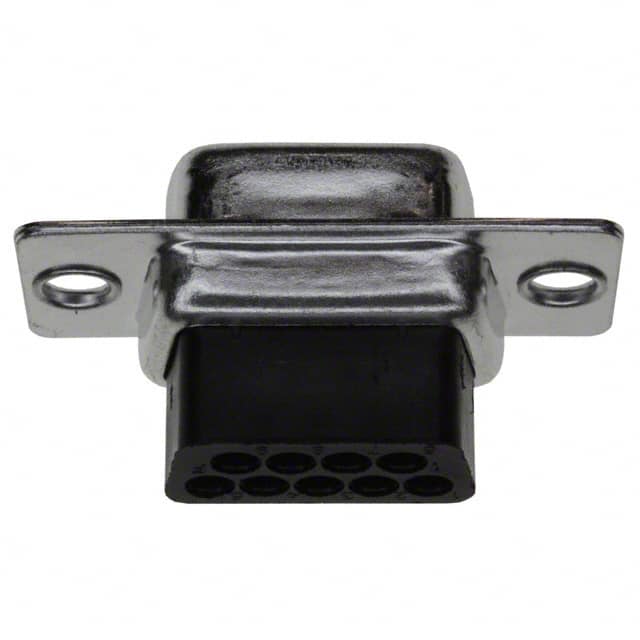

L177-RR-E-09-S Amphenol Commercial IO | 1 $0.6000 | Datasheet | D-Sub | Receptacle for Female Contacts | 9 | 2 | 1 (DE, E) | Signal | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | - | - | Steel, Tin Plated | - | - | 9,988 Cart + RFQ |
