Leadframe

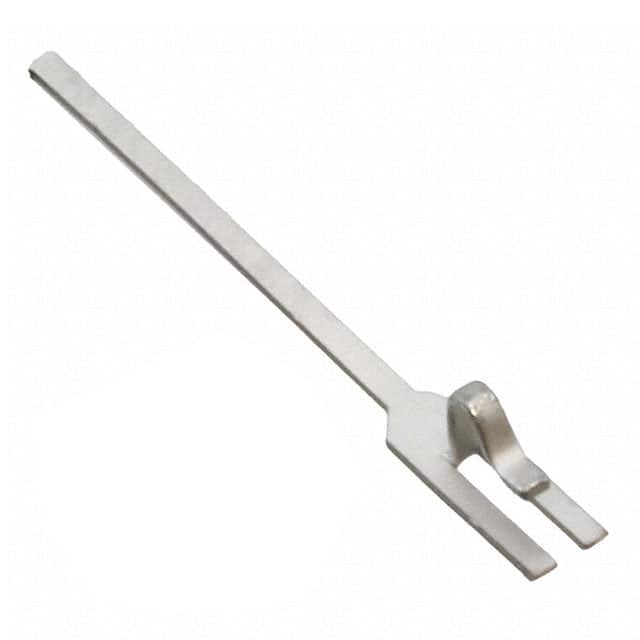

Leadframe terminals connect a semiconductor's thin metal leadframe wiring to the large-scale circuitry on electrical devices and circuit boards. Leadframes and leadframe terminals are used in almost all semiconductor packages. Terminals are chosen by terminal pitch, frame width and thickness, clip style and type, and dimensional considerations such as pin length, clip length, and board thickness.
Product List
Total Components: 63
| Product | Pricing | Datasheet | Clip Style | Clip Type | Clip Length | Pin Length | Termination | Frame Thickness | Frame Width | Pitch | Contact Material | Contact Finish | Board Thickness | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 1544242-1 TE Connectivity AMP Connectors | 1 $0.1000 | Datasheet | SIL | Y1 | 0.055" (1.40mm) | 0.374" (9.50mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.045" (1.14mm) | - | 4,452 Cart + RFQ |
 1544210-2 TE Connectivity AMP Connectors | 1 $0.1000 | Datasheet | SIL | Y1 | 0.043" (1.10mm) | 0.338" (8.59mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.063" (1.60mm) | - | 6,069 Cart + RFQ |
 1544394-1 TE Connectivity AMP Connectors | 1 $0.1000 | Datasheet | SIL | Y1 | 0.071" (1.80mm) | 0.374" (9.50mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.063" (1.60mm) | - | 6,988 Cart + RFQ |
 1544425-1 TE Connectivity AMP Connectors | 1 $0.1000 | Datasheet | SIL | Y1 | 0.069" (1.75mm) | 0.374" (9.50mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 6,733 Cart + RFQ |
 1544445-1 TE Connectivity AMP Connectors | 1 $0.0110 | Datasheet | SIL | Y1 | 0.069" (1.75mm) | 0.346" (8.79mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 2,704 Cart + RFQ |
1544223-1 TE Connectivity AMP Connectors | 1 $0.0116 | Datasheet | SIL | Y1 | 0.067" (1.70mm) | 0.374" (9.50mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 1,320 Cart + RFQ |
1544282-1 TE Connectivity AMP Connectors | 1 $0.0120 | Datasheet | SIL | Y1 | 0.067" (1.70mm) | 0.382" (9.70mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.045" (1.14mm) | Hold-Down | 6,489 Cart + RFQ |
1544290-1 TE Connectivity AMP Connectors | 1 $0.0120 | Datasheet | SIL | Y1 | 0.067" (1.70mm) | 0.382" (9.70mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | Hold-Down | 9,484 Cart + RFQ |
1544281-1 TE Connectivity AMP Connectors | 1 $0.0120 | Datasheet | SIL | Y1 | 0.067" (1.70mm) | 0.382" (9.70mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | Hold-Down | 8,953 Cart + RFQ |
1544207-1 TE Connectivity AMP Connectors | 1 $0.0124 | Datasheet | SIL | - | 0.075" (1.90mm) | 0.339" (8.60mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | - | Tin | - | - | 6,312 Cart + RFQ |
1544169-3 TE Connectivity AMP Connectors | 1 $0.0133 | Datasheet | DIL | F1 | 0.049" (1.25mm) | 0.331" (8.40mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.039" (1.00mm) | - | 3,705 Cart + RFQ |
 1544400-1 TE Connectivity AMP Connectors | 1 $0.0140 | Datasheet | SIL | Y1 | 0.060" (1.52mm) | 0.382" (9.70mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.039" (1.00mm) | - | 7,587 Cart + RFQ |
1544179-1 TE Connectivity AMP Connectors | 1 $0.0140 | Datasheet | DIL | F1 | 0.049" (1.25mm) | 0.350" (8.89mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 7,822 Cart + RFQ |
1544169-1 TE Connectivity AMP Connectors | 1 $0.0140 | Datasheet | DIL | F1 | 0.049" (1.25mm) | 0.331" (8.40mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.039" (1.00mm) | - | 6,349 Cart + RFQ |
1544426-2 TE Connectivity AMP Connectors | 1 $0.0145 | Datasheet | SIL | Y1 | 0.060" (1.52mm) | 0.382" (9.70mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.050" (1.27mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 7,280 Cart + RFQ |
1544210-1 TE Connectivity AMP Connectors | 1 $0.0149 | Datasheet | SIL | Y1 | 0.043" (1.10mm) | 0.338" (8.59mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.063" (1.60mm) | - | 7,355 Cart + RFQ |
1544191-1 TE Connectivity AMP Connectors | 1 $0.0151 | Datasheet | SIL | Y1 | 0.067" (1.70mm) | 0.378" (9.60mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.075" (1.91mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 4,932 Cart + RFQ |
1544301-2 TE Connectivity AMP Connectors | 1 $0.0152 | Datasheet | SIL | Y1 | 0.067" (1.70mm) | 0.374" (9.50mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.039" (1.00mm) | - | 1,598 Cart + RFQ |
 1544425-2 TE Connectivity AMP Connectors | 1 $0.0154 | Datasheet | SIL | Y1 | 0.069" (1.75mm) | 0.374" (9.50mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.025" (0.64mm) | - | 1,193 Cart + RFQ |
1544169-2 TE Connectivity AMP Connectors | 1 $0.0157 | Datasheet | DIL | F1 | 0.049" (1.25mm) | 0.331" (8.40mm) | Through Hole | 0.010" (0.25mm) | 0.713" (18.10mm) | 0.100" (2.54mm) | Phosphor Bronze | Tin | 0.039" (1.00mm) | - | 9,171 Cart + RFQ |
