Contacts, Spring Loaded (Pogo Pins), and Pressure

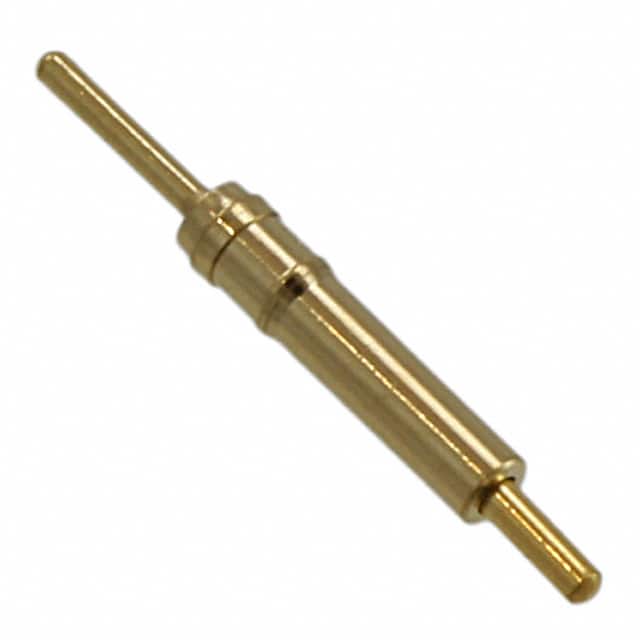

Spring-loaded contacts, also known as "pogo pins" in reference to the toy they resemble, are commonly used to establish electrical contact between two objects whose relative mechanical position cannot be well-controlled, or a connector system tolerant of frequent mating/unmating cycles is desirable. Charging cradles for cordless handheld devices such as bar code scanners and mobile radios are a common example. Contact pads used to create a durable, corrosion-resistant surface for spring-loaded contacts to bear against are also included within this product family.
Product List
Total Components: 100
Product | Pricing | Datasheet | Contact Type | Mounting Type | Maximum Working Height | Recommended Working Height | Minimum Working Height | Pad Layout Dimension | Operating Force - Initial | Operating Force - Mid Compression | Plunger Size | Features | Mating Cycles | Contact Material | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S70-125161545R Harwin | 1 $0.4800 | Datasheet | Contact Pad | Surface Mount | - | - | - | Rectangular - 0.098" L x 0.063" W x 0.006" H (2.50mm x 1.60mm x 0.15mm) | - | - | - | - | - | Beryllium Copper | Gold | Flash | 1,025 Cart + RFQ |
1578-0-57-15-00-00-03-0 Mill-Max | 1 $1.2200 | Datasheet | Contact Pad | Surface Mount | - | - | - | Circular - 0.078" (1.98mm) Dia, 0.025" (0.64mm) H | - | - | - | - | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 4,471 Cart + RFQ |
S70-138305045R Harwin | 1 $0.6200 | Datasheet | Contact Pad | Surface Mount | - | - | - | Rectangular - 0.150" L x 0.118" W x 0.020" H (3.80mm x 3.00mm x 0.50mm) | - | - | - | - | - | Beryllium Copper | Gold | Flash | 9,278 Cart + RFQ |
S70-332002045R Harwin | 1 $0.6300 | Datasheet | Contact Pad | Surface Mount | - | - | - | Circular - 0.126" (3.20mm) Dia, 0.008" (0.20mm) H | - | - | - | - | - | Beryllium Copper | Gold | Flash | 4,977 Cart + RFQ |
0965-0-15-20-80-14-11-0 Mill-Max | 1 $0.4300 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.100" (2.54mm) | 0.088" (2.24mm) | 0.076" (1.93mm) | Circular - 0.072" (1.83mm) | 30gf | 115gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 5,053 Cart + RFQ |
P70-6000045R Harwin | 1 $0.9300 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.087" (2.20mm) | 0.083" (2.10mm) | 0.075" (1.90mm) | Circular - 0.067" (1.70mm) (TH) | - | 39.77gf | 0.024" (0.60mm) Dia | - | 10000 | Brass | Gold | 16.0µin (0.41µm) | 9,333 Cart + RFQ |
P70-1000045R Harwin | 1 $0.9800 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.118" (3.00mm) | 0.114" (2.90mm) | 0.106" (2.70mm) | Circular - 0.087" (2.20mm) | - | 89.74gf | 0.035" (0.90mm) Dia | - | 10000 | Brass | Gold | 16.0µin (0.41µm) | 3,509 Cart + RFQ |
0900-0-15-20-76-14-11-0 Mill-Max | 1 $0.5600 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.137" (3.48mm) | 0.118" (3.00mm) | 0.098" (2.50mm) | Circular - 0.072" (1.83mm) | 15gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 6,545 Cart + RFQ |
0900-2-15-20-75-14-11-0 Mill-Max | 1 $0.5600 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.197" (5.00mm) | 0.169" (4.30mm) | 0.142" (3.60mm) | Circular - 0.072" (1.83mm) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 3,199 Cart + RFQ |
0900-1-15-20-75-14-11-0 Mill-Max | 1 $0.5800 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.177" (4.50mm) | 0.150" (3.80mm) | 0.122" (3.10mm) | Circular - 0.072" (1.83mm) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 4,360 Cart + RFQ |
0906-0-15-20-76-14-11-0 Mill-Max | 1 $0.5900 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.137" (3.48mm) | 0.118" (3.00mm) | 0.098" (2.50mm) | Circular - 0.072" (1.83mm) (TH) | 15gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 2,206 Cart + RFQ |
0906-1-15-20-75-14-11-0 Mill-Max | 1 $0.6100 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.177" (4.50mm) | 0.150" (3.80mm) | 0.122" (3.10mm) | Circular - 0.072" (1.83mm) (TH) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 5,947 Cart + RFQ |
0906-2-15-20-75-14-11-0 Mill-Max | 1 $0.6200 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.197" (5.00mm) | 0.169" (4.30mm) | 0.142" (3.60mm) | Circular - 0.072" (1.83mm) (TH) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 4,119 Cart + RFQ |
0910-0-57-20-76-14-11-0 Mill-Max | 1 $1.1800 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.137" (3.48mm) | 0.117" (2.98mm) | 0.098" (2.50mm) | Circular - 0.072" (1.83mm) | 15gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 1,756 Cart + RFQ |
806-22-001-30-003191 Mill-Max | 1 $1.0000 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.177" (4.50mm) | 0.150" (3.80mm) | - | Circular - 0.072" (1.83mm) | 25gf | 60gf | 0.042" (1.07mm) Dia | Pick and Place | 1000000 | Copper Alloy | Gold | 20.0µin (0.51µm) | 4,421 Cart + RFQ |
P70-2100045R Harwin | 1 $1.0100 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.185" (4.70mm) | 0.177" (4.50mm) | 0.165" (4.20mm) | Circular - 0.104" (2.64mm) (TH) | - | 69.34gf | 0.035" (0.90mm) Dia | - | 10000 | Brass | Gold | 16.0µin (0.41µm) | 6,838 Cart + RFQ |
0906-3-15-20-75-14-11-0 Mill-Max | 1 $0.6300 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.217" (5.51mm) | 0.189" (4.81mm) | 0.162" (4.11mm) | Circular - 0.072" (1.83mm) (TH) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 1,930 Cart + RFQ |
0906-4-15-20-75-14-11-0 Mill-Max | 1 $0.6400 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.236" (6.00mm) | 0.208" (5.29mm) | 0.181" (4.60mm) | Circular - 0.072" (1.83mm) (TH) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 6,133 Cart + RFQ |
P70-2000045R Harwin | 1 $1.0200 | Datasheet | Sleeve & Plunger (Pogo Pins) | Through Hole | 0.122" (3.10mm) | 0.114" (2.90mm) | 0.112" (2.85mm) | Circular - 0.094" (2.40mm) (TH) | - | 129.50gf | 0.035" (0.90mm) Dia | - | 10000 | Brass | Gold | 16.0µin (0.41µm) | 5,877 Cart + RFQ |
0910-1-57-20-75-14-11-0 Mill-Max | 1 $1.2000 | Datasheet | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.177" (4.50mm) | 0.150" (3.80mm) | 0.122" (3.10mm) | Circular - 0.072" (1.83mm) | 10gf | 60gf | 0.042" (1.07mm) Dia | - | 1000000 | Brass Alloy | Gold | 20.0µin (0.51µm) | 9,985 Cart + RFQ |
