Card Edge Connector Housings
Card Edge Connector Housings are contactless connectors designed to be used with card edge circuit boards. The housings have positions ranging from 2 to 350, accommodate card thicknesses from 0.047” to 0.093”, and have pitch dimensions from 0.024” (0.60 mm) to 0.312” (7.92 mm). They come in both free-hanging and panel mount versions.
Product List
Total Components: 100
| Product | Pricing | Datasheet | Card Type | Number of Positions | Card Thickness | Pitch | Features | Mounting Type | Color | Flange Feature | Material - Insulation | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

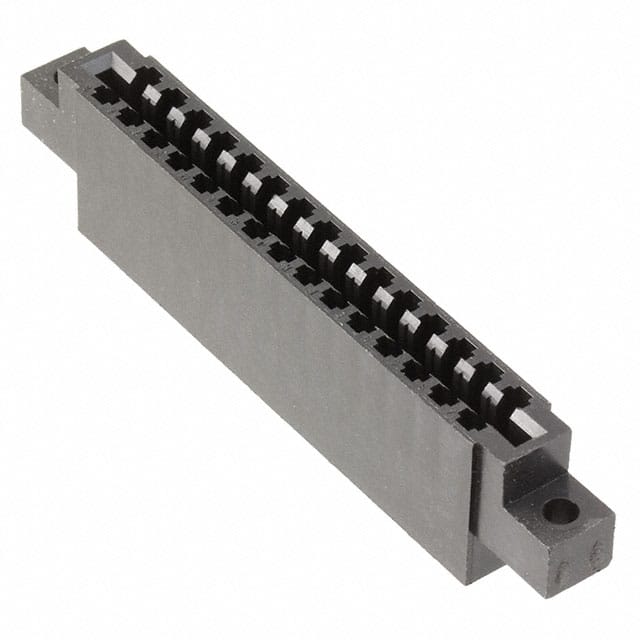

 583680-1 TE Connectivity AMP Connectors | 1 $10.8600 | Datasheet | Non Specified - Dual Edge | 30 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.156" (3.96mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | - | 2,807 Cart + RFQ |
 640136-2 TE Connectivity AMP Connectors | 1 $0.8400 | Datasheet | Non Specified - Single Edge | 2 | 0.062" (1.57mm) | 0.156" (3.96mm) | - | Free Hanging (In-Line) | Natural | - | Polyester Thermoplastic | 3,471 Cart + RFQ |

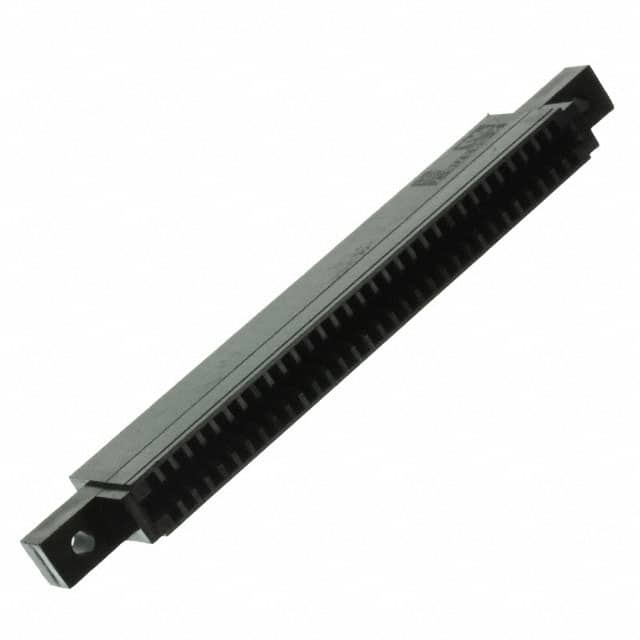

 2-583718-7 TE Connectivity AMP Connectors | 1 $7.7400 | Datasheet | Non Specified - Dual Edge | 64 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.100" (2.54mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic, Glass Filled | 7,932 Cart + RFQ |

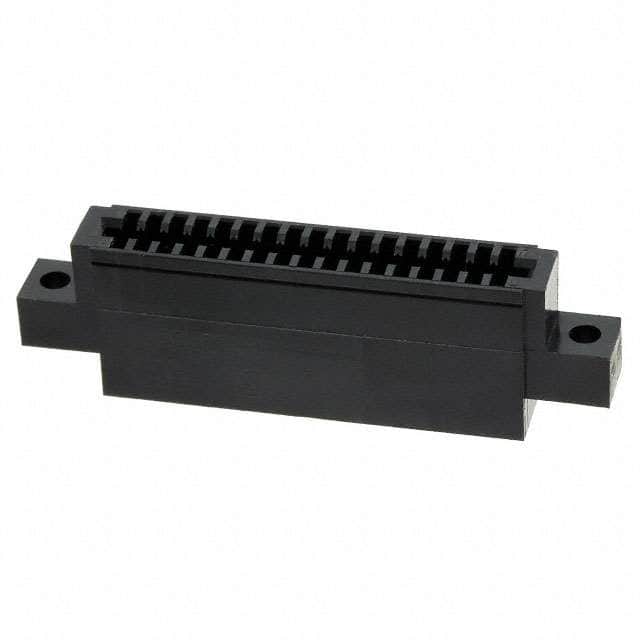

 1-583861-1 TE Connectivity AMP Connectors | 1 $10.3800 | Datasheet | Non Specified - Dual Edge | 34 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.100" (2.54mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic, Glass Filled | 1,248 Cart + RFQ |
 2008900102 Molex | 1 $0.5200 | Datasheet | Non Specified - Single Edge | 2 | 0.063" (1.60mm) | 0.079" (2.00mm) | Latch Lock | Free Hanging (In-Line) | Natural | - | Polyamide (PA), Nylon | 8,444 Cart + RFQ |
 2008900106 Molex | 1 $0.8300 | Datasheet | Non Specified - Single Edge | 6 | 0.063" (1.60mm) | 0.079" (2.00mm) | Latch Lock | Free Hanging (In-Line) | Natural | - | Polyamide (PA), Nylon | 1,475 Cart + RFQ |

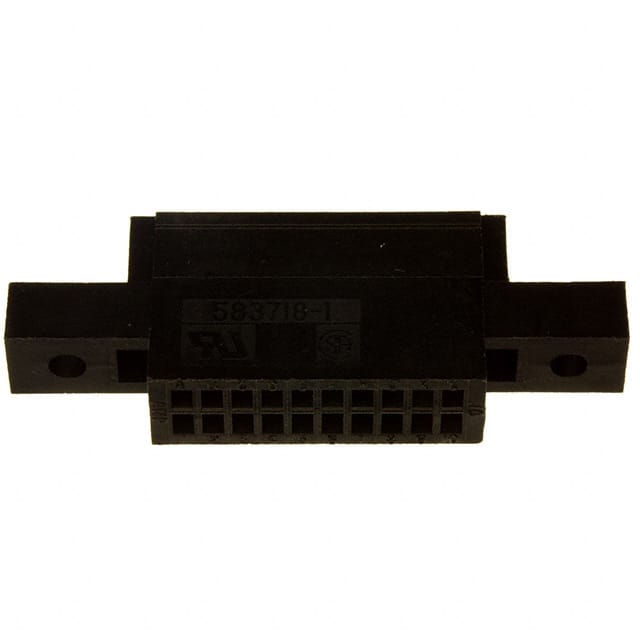

 583718-1 TE Connectivity AMP Connectors | 1 $3.9000 | Datasheet | Non Specified - Dual Edge | 20 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.100" (2.54mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic, Glass Filled | 8,047 Cart + RFQ |

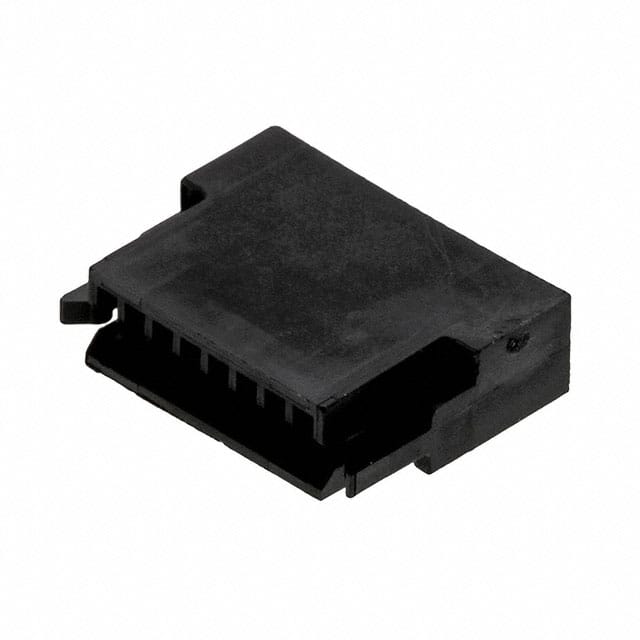

 953552-1 TE Connectivity AMP Connectors | 1 $2.4600 | Datasheet | Non Specified - Single Edge | 8 | - | 0.100" (2.54mm) | - | Free Hanging (In-Line) | - | - | Polyamide (PA66), Nylon 6/6 | 7,810 Cart + RFQ |

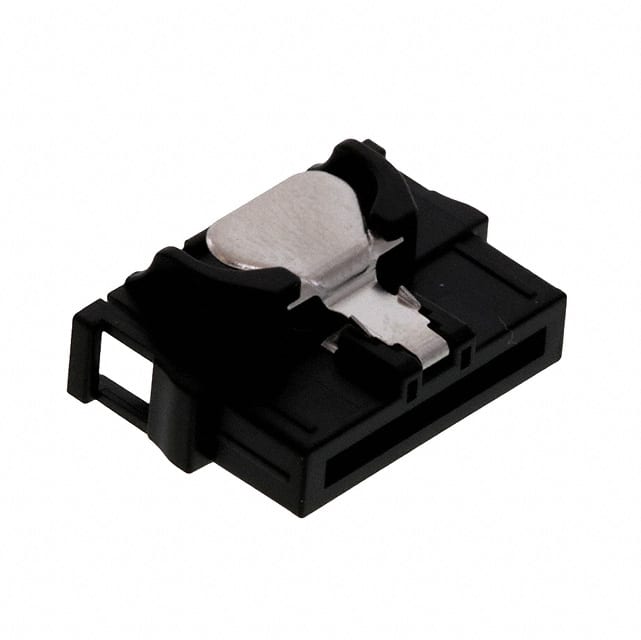

 2317815-1 TE Connectivity AMP Connectors | 1 $8.4800 | Datasheet | Non Specified - Dual Edge | 50 | 0.062" (1.57mm) | 0.024" (0.60mm) | Thumb Latch | Free Hanging (In-Line) | Black | - | Polyamide (PA), Nylon | 4,907 Cart + RFQ |

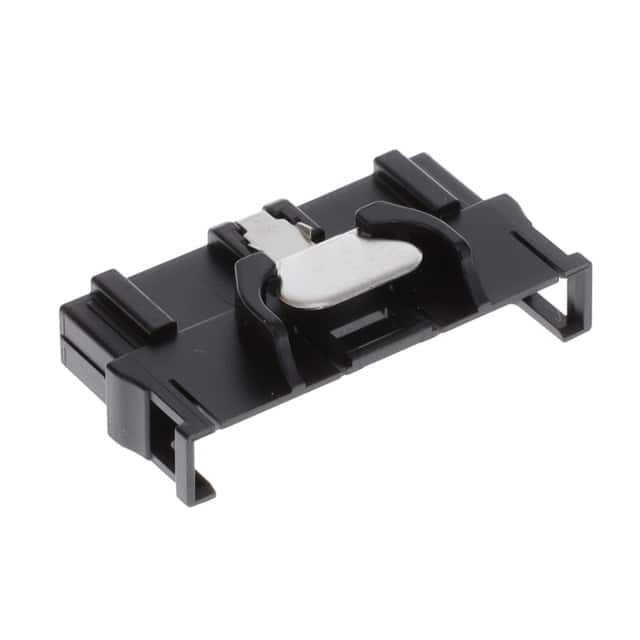

 2317823-1 TE Connectivity AMP Connectors | 1 $9.9700 | Datasheet | Non Specified - Dual Edge | 74 | 0.062" (1.57mm) | 0.024" (0.60mm) | Thumb Latch | Free Hanging (In-Line) | Black | - | Polyamide (PA), Nylon | 9,108 Cart + RFQ |

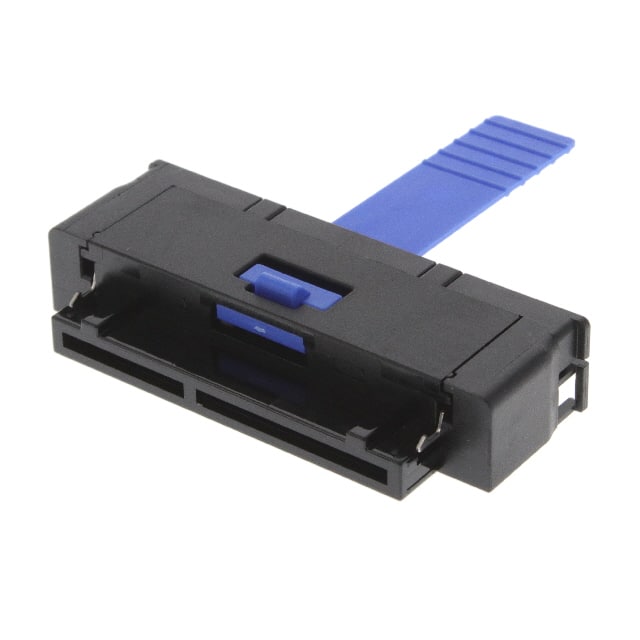

 2339107-1 TE Connectivity AMP Connectors | 1 $11.1400 | Datasheet | Non Specified - Dual Edge | 124 | 0.062" (1.57mm) | 0.024" (0.60mm) | Latch Lock | Free Hanging (In-Line) | Black | - | Polyamide (PA), Nylon | 2,820 Cart + RFQ |

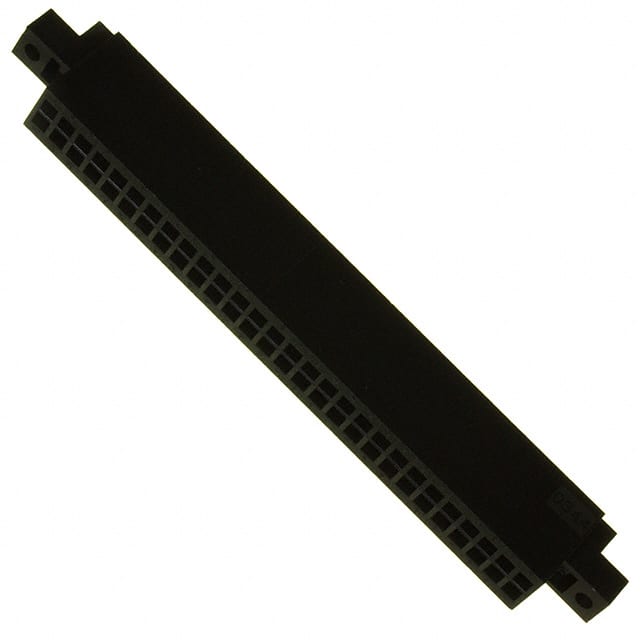

 583859-1 TE Connectivity AMP Connectors | 1 $11.6100 | Datasheet | Non Specified - Dual Edge | 56 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.156" (3.96mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic, Glass Filled | 3,777 Cart + RFQ |
 1703081-1 TE Connectivity AMP Connectors | 1 $0.8050 | Datasheet | - | 3 | 0.059" (1.50mm) | 0.197" (5.00mm) | Locking Latch | Free Hanging (In-Line) | Natural | - | Polyamide (PA66), Nylon 6/6 | 9,426 Cart + RFQ |

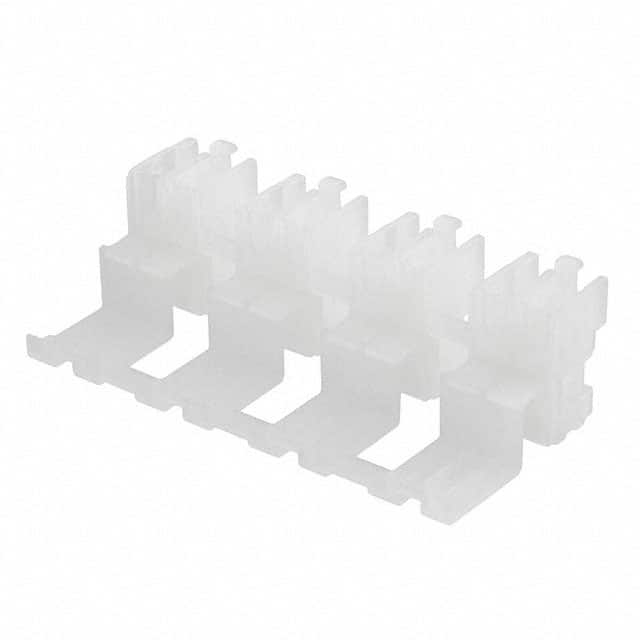

 1703071-1 TE Connectivity AMP Connectors | 1 $0.9475 | Datasheet | - | 2 | 0.059" (1.50mm) | 0.197" (5.00mm) | Latch Lock | Free Hanging (In-Line) | - | - | - | 7,799 Cart + RFQ |

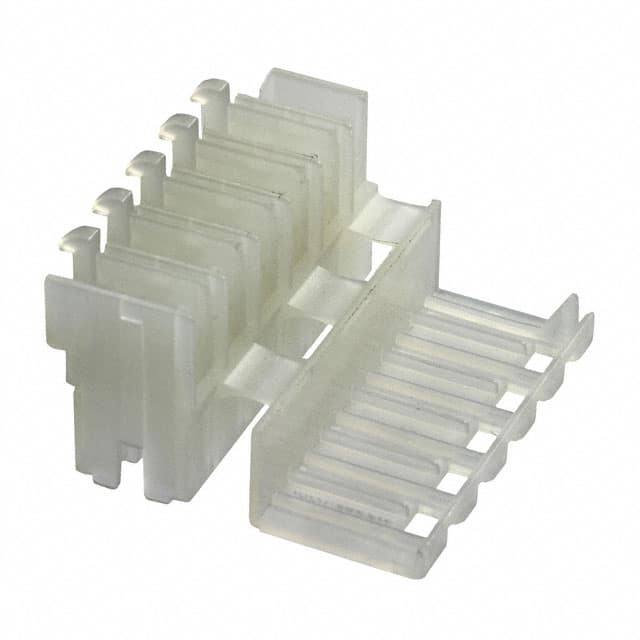

 928017-1 TE Connectivity AMP Connectors | 1 $0.9700 | Datasheet | Non Specified - Dual Edge | 6 | 0.059" (1.50mm) | 0.197" (5.00mm) | Latch Lock | Free Hanging (In-Line) | - | - | - | 9,716 Cart + RFQ |
 1721590612 Molex | 1 $0.9800 | Datasheet | Non Specified - Single Edge | 12 | 0.062" (1.57mm) | 0.156" (3.96mm) | Latch Lock | Free Hanging (In-Line) | White | - | Polyamide (PA), Nylon | 6,184 Cart + RFQ |

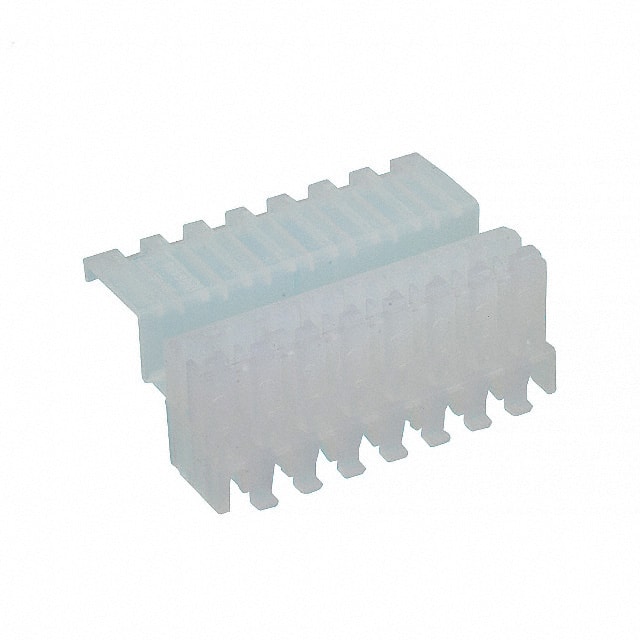

 1703129-1 TE Connectivity AMP Connectors | 1 $1.1700 | Datasheet | Non Specified - Single Edge | 8 | 0.059" (1.50mm) | 0.197" (5.00mm) | Locking Latch | Free Hanging (In-Line) | Natural | - | Polyamide (PA66), Nylon 6/6 | 9,775 Cart + RFQ |
 583861-5 TE Connectivity AMP Connectors | 1 $4.8200 | Datasheet | Non Specified - Dual Edge | 12 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.100" (2.54mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic, Glass Filled | 2,320 Cart + RFQ |

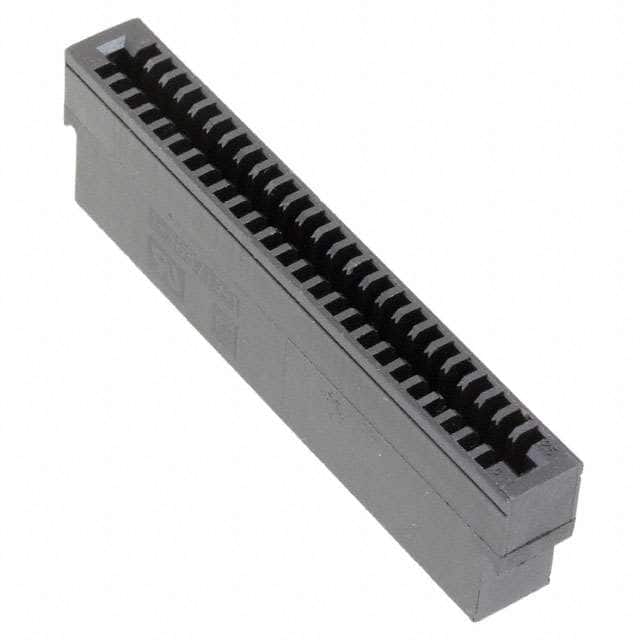

 1-583717-1 TE Connectivity AMP Connectors | 1 $4.4100 | Datasheet | Non Specified - Dual Edge | 50 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.100" (2.54mm) | - | Free Hanging (In-Line) | Black | - | Polyester Thermoplastic, Glass Filled | 8,277 Cart + RFQ |

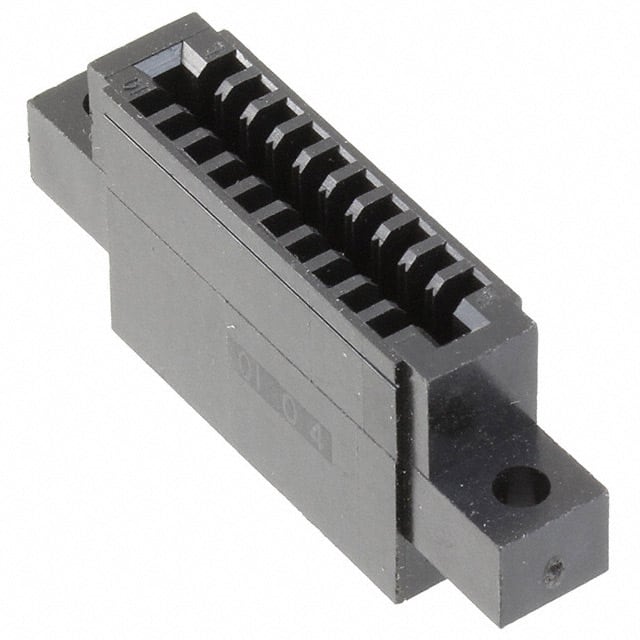

 583861-7 TE Connectivity AMP Connectors | 1 $7.6600 | Datasheet | Non Specified - Dual Edge | 20 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.100" (2.54mm) | Flange | Panel Mount | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic, Glass Filled | 6,426 Cart + RFQ |
