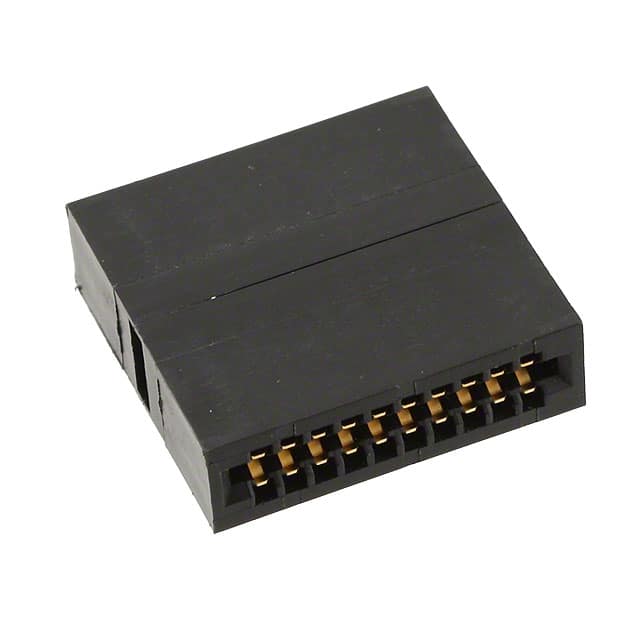

Card Edge Connector Adapters
Card Edge Adapter Connectors are designed to mate a card edge board directly to another one, or to a cable with a socket connector. The adapter types are card slot to card slot, or card slot to male pin header. The mounting types are free-hanging or panel mount, with the number of contact positions ranging from 8 (4 dual) to 120.
Product List
Total Components: 70
| Product | Pricing | Datasheet | Adapter Type | Number of Positions | Card Thickness | Mounting Type | Flange Feature | Contact Material | Contact Finish | Contact Finish Thickness | Housing Material | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 292204-3 TE Connectivity AMP Connectors | 1 $2.9389 | Datasheet | Card Slot to Male Pin Header | 8 (4 Dual) | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.138" (3.5mm) Dia - Panel | Copper Alloy | Gold | 15.0µin (0.38µm) | Polybutylene Terephthalate (PBT), Glass Filled | 2,442 Cart + RFQ |
292204-2 TE Connectivity AMP Connectors | 1 $3.8997 | Datasheet | Card Slot to Male Pin Header | 8 (4 Dual) | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.138" (3.5mm) Dia - Panel | Copper Alloy | - | - | Polybutylene Terephthalate (PBT), Glass Filled | 8,743 Cart + RFQ |
EAC05FSLD Sullins Connector Solutions | 1 $11.3200 | Datasheet | Card Slot to Card Slot | 10 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 8,391 Cart + RFQ |
EAC05FSLN Sullins Connector Solutions | 1 $11.3200 | Datasheet | Card Slot to Card Slot | 10 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 5,723 Cart + RFQ |
EAC06FSLD Sullins Connector Solutions | 1 $12.0800 | Datasheet | Card Slot to Card Slot | 12 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 2,442 Cart + RFQ |
 EAC06FSLN Sullins Connector Solutions | 1 $12.0800 | Datasheet | Card Slot to Card Slot | 12 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 3,044 Cart + RFQ |
EAC10FSLD Sullins Connector Solutions | 1 $15.2100 | Datasheet | Card Slot to Card Slot | 20 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 6,894 Cart + RFQ |
 EAC10FSLN Sullins Connector Solutions | 1 $15.2100 | Datasheet | Card Slot to Card Slot | 20 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 6,340 Cart + RFQ |
EAC12FSLD Sullins Connector Solutions | 1 $16.7900 | Datasheet | Card Slot to Card Slot | 24 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 1,015 Cart + RFQ |
 EAC12FSLN Sullins Connector Solutions | 1 $16.7900 | Datasheet | Card Slot to Card Slot | 24 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 3,058 Cart + RFQ |
EAC17FSLN Sullins Connector Solutions | 1 $17.7190 | Datasheet | Card Slot to Card Slot | 34 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 2,243 Cart + RFQ |
AAC05FSLN Sullins Connector Solutions | 1 $17.7260 | Datasheet | Card Slot to Card Slot | 10 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Beryllium Copper | Gold | 30.0µin (0.76µm) | Polyphenylene Sulfide (PPS) | 1,043 Cart + RFQ |
AAC05FSLD Sullins Connector Solutions | 1 $17.9990 | Datasheet | Card Slot to Card Slot | 10 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Beryllium Copper | Gold | 30.0µin (0.76µm) | Polyphenylene Sulfide (PPS) | 6,488 Cart + RFQ |
EAC17FSLD Sullins Connector Solutions | 1 $18.0480 | Datasheet | Card Slot to Card Slot | 34 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 1,312 Cart + RFQ |
EAC18FSLD Sullins Connector Solutions | 1 $18.3530 | Datasheet | Card Slot to Card Slot | 36 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 4,097 Cart + RFQ |
 EAC18FSLN Sullins Connector Solutions | 1 $18.3530 | Datasheet | Card Slot to Card Slot | 36 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 6,550 Cart + RFQ |
 AAC06FSLN Sullins Connector Solutions | 1 $18.9150 | Datasheet | Card Slot to Card Slot | 12 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Beryllium Copper | Gold | 30.0µin (0.76µm) | Polyphenylene Sulfide (PPS) | 1,459 Cart + RFQ |
EAC15FSLD Sullins Connector Solutions | 1 $19.1100 | Datasheet | Card Slot to Card Slot | 30 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 4,644 Cart + RFQ |
 EAC15FSLN Sullins Connector Solutions | 1 $19.1100 | Datasheet | Card Slot to Card Slot | 30 | 0.062" (1.57mm) | Free Hanging (In-Line) | - | Phosphor Bronze | Gold | 30.0µin (0.76µm) | Polybutylene Terephthalate (PBT) | 8,845 Cart + RFQ |
AAC06FSLD Sullins Connector Solutions | 1 $19.2080 | Datasheet | Card Slot to Card Slot | 12 | 0.062" (1.57mm) | Panel Mount | Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Beryllium Copper | Gold | 30.0µin (0.76µm) | Polyphenylene Sulfide (PPS) | 2,294 Cart + RFQ |
