Audio Connectors

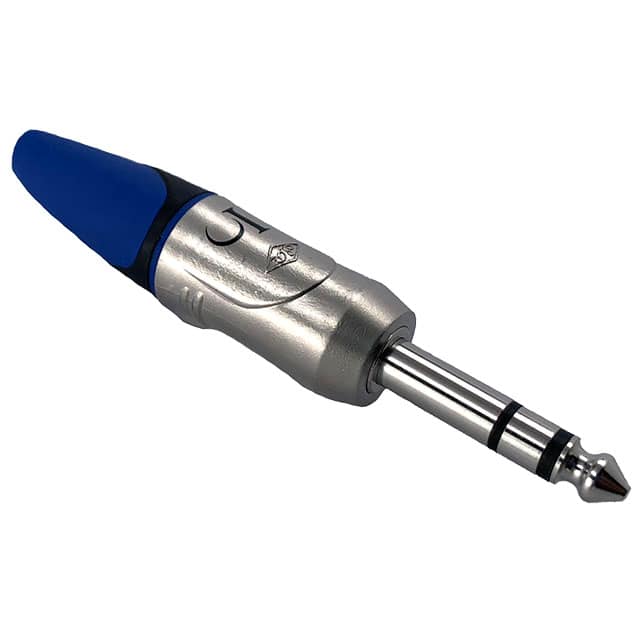

Audio barrel connectors are a style of connector most commonly used for connecting audio equipment such as headphones and small microphones. They are characterized by a cylindrical plug divided into two or more sections along its length and having an indented region near one end that is engaged by a spring loaded contact in a mating jack to provide retention force. Several standard (nominal) sizes are available, the most common being the 1/8" (3.5 mm) format commonly used for audio connections in desktop and mobile devices, and the older 1/4" (6.35 mm) size more commonly found on older or non-portable equipment where durability is of generally greater interest than minimal size.
Product List
Total Components: 100
Product | Pricing | Datasheet | Connector Type | Gender | Signal Lines | Industry Recognized Mating Diameter | Actual Diameter | Number of Positions/Contacts | Internal Switch(s) | Mounting Type | Termination | Shielding | Features | Insulation Color | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SJ-3523-SMT-TR CUI Devices | 1 $1.0100 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | - | -25°C ~ 85°C | 8,812 Cart + RFQ |
STX-3000 Kycon | 1 $0.8000 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Kinked Pin | Unshielded | Board Guide | - | -25°C ~ 80°C | 3,757 Cart + RFQ |
STX-3500-4NTR Kycon | 1 $1.4100 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 4 Contacts | Single Switch | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | - | -25°C ~ 85°C | 9,348 Cart + RFQ |
35RASMT2BHNTRX Conxall / Switchcraft | 1 $1.5600 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | - | -25°C ~ 85°C | 7,468 Cart + RFQ |
35RASMT4BHNTRX Conxall / Switchcraft | 1 $1.7100 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 5 Contacts | Two Switches | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | - | -25°C ~ 85°C | 8,297 Cart + RFQ |
STX-25427-6N-TR Kycon | 1 $1.8500 | Datasheet | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | 0.102" (2.60mm) | 4 Conductors, 6 Contacts | Two Switches | Surface Mount, Right Angle | Solder | Unshielded | Board Guide | - | -25°C ~ 70°C | 9,081 Cart + RFQ |
SJ-43514 CUI Devices | 1 $1.0600 | Datasheet | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 4 Conductors, 4 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | - | - | -20°C ~ 85°C | 1,513 Cart + RFQ |
SJ-43515TS CUI Devices | 1 $1.0500 | Datasheet | Phone Jack | Female | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 4 Conductors, 5 Contacts | Single Switch | Through Hole, Right Angle | Solder | Unshielded | - | - | -20°C ~ 85°C | 6,324 Cart + RFQ |
RCJ-021 CUI Devices | 1 $1.1500 | Datasheet | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | 0.138" (3.50mm ID), 0.327" (8.30mm OD) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Through Hole | Solder | Unshielded | Board Lock | Black | -20°C ~ 85°C | 8,081 Cart + RFQ |
MP3-2501 CUI Devices | 1 $1.3000 | Datasheet | Phone Plug | Male | Mono | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | 0.098" (2.50mm) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | Strain Relief | - | 0°C ~ 40°C | 2,435 Cart + RFQ |
4832.3200 SCHURTER | 1 $1.3200 | Datasheet | Phone Jack | Female | Mono | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.138" (3.50mm) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | -20°C ~ 70°C | 4,931 Cart + RFQ |
MP3-3501 CUI Devices | 1 $1.3500 | Datasheet | Phone Plug | Male | Mono | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.138" (3.50mm) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | Strain Relief | - | 0°C ~ 40°C | 7,350 Cart + RFQ |
SJ1-3535NG CUI Devices | 1 $1.4100 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 5 Contacts | Two Switches | Through Hole, Right Angle | Solder | Unshielded | - | - | -25°C ~ 85°C | 2,959 Cart + RFQ |
MR-3501 CUI Devices | 1 $1.4500 | Datasheet | Phone Jack | Female | Mono | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | -20°C ~ 70°C | 9,746 Cart + RFQ |
4832.2330 SCHURTER | 1 $1.4600 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 4 Contacts | Single Switch | Through Hole, Right Angle | Solder | Unshielded | - | - | -20°C ~ 70°C | 2,851 Cart + RFQ |
MJ-3502N CUI Devices | 1 $1.4800 | Datasheet | Phone Jack | Female | Mono | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 2 Conductors, 3 Contacts | Single Switch | Through Hole, Right Angle | Solder Eyelet(s) | Unshielded | - | - | -20°C ~ 85°C | 2,020 Cart + RFQ |
0472570001 Molex | 1 $1.5000 | Datasheet | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.140" (3.56mm) | 3 Conductors, 4 Contacts | Single Switch | Through Hole | Solder | Unshielded | Board Guide | - | -40°C ~ 85°C | 9,547 Cart + RFQ |
MJ-3502 CUI Devices | 1 $1.5900 | Datasheet | Phone Jack | Female | Mono | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 2 Conductors, 3 Contacts | Single Switch | Panel Mount, Through Hole, Right Angle | Solder Eyelet(s) | Unshielded | Mounting Hardware, Thread Lock | - | -20°C ~ 85°C | 4,675 Cart + RFQ |
RCJ-041 CUI Devices | 1 $1.6600 | Datasheet | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | 0.130" (3.30mm ID), 0.327" (8.30mm OD) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | Black | -20°C ~ 85°C | 2,733 Cart + RFQ |
RCJ-042 CUI Devices | 1 $1.6600 | Datasheet | Phono (RCA) Jack | Female | Mono | 3.20mm ID, 9.00mm OD (RCA) | 0.130" (3.30mm ID), 0.327" (8.30mm OD) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Through Hole, Right Angle | Solder | Unshielded | Board Lock | Red | -20°C ~ 85°C | 7,642 Cart + RFQ |
