Alarms, Buzzers, and Sirens
Alarms, Buzzers, and Sirens are devices that produce an audible signal usually like a steady high-pitched hum that is encased within a molded housing. The characteristics are driver circuitry, input type, voltage rated, voltage range, frequency, technology, operating mode, current supply, and port location. The technology is electromechanical, magnetic, piezo, and piezo (with feedback) with a frequency from multiple, 200Hz to 8kHz.
Product List
Total Components: 51
Product | Pricing | Datasheet | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension | Height - Seated (Max) | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AST0927MW-03TRQ Mallory Sonalert Products | 1 $1.7000 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 5V | 2.7kHz | Magnetic | Single Tone | - | 90dB @ 3V, 10cm | 90mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) | 0.098" (2.50mm) | 9,148 Cart + RFQ |
AST1341MCTRQ Mallory Sonalert Products | 1 $2.1900 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 8mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.098" (2.50mm) | 5,674 Cart + RFQ |
AST7525MATRQ Mallory Sonalert Products | 1 $2.6600 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 100mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.098" (2.50mm) | 5,542 Cart + RFQ |
PT-2040PQ Mallory Sonalert Products | 1 $1.5300 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 90dB @ 5V, 10cm | 1.5mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.370" (9.40mm) | 2,176 Cart + RFQ |

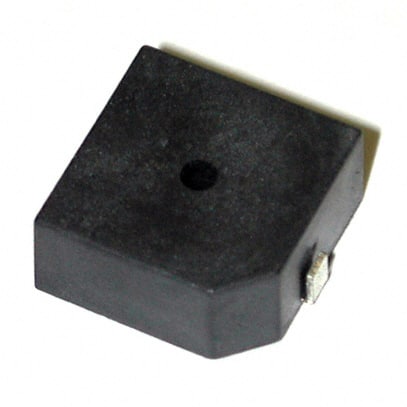

AST1575BMATRQ Mallory Sonalert Products | 1 $2.4700 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 7 V | 1 ~ 30V | 3.65kHz | Piezo | Single Tone | - | 85dB @ 7V, 10cm | 5mA | Top | -30°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.583" L x 0.583" W (14.80mm x 14.80mm) | 0.303" (7.70mm) | 3,116 Cart + RFQ |
ASI301TRQ Mallory Sonalert Products | 1 $4.2400 | Datasheet | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 90dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.496" L x 0.496" W (12.60mm x 12.60mm) | 0.402" (10.20mm) | 3,158 Cart + RFQ |
ASI12N35MTRQ Mallory Sonalert Products | 1 $4.4500 | Datasheet | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 3.5kHz | Piezo | Single Tone | - | 83dB @ 12V, 10cm | 10mA | Top | -20°C ~ 100°C | - | Washable | - | Surface Mount | Solder Pads | 0.551" L x 0.551" W (14.00mm x 14.00mm) | 0.295" (7.50mm) | 2,971 Cart + RFQ |

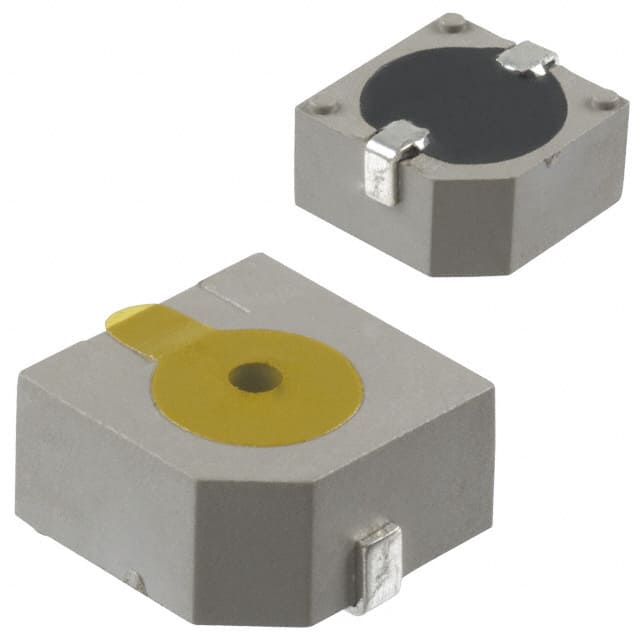

AST605Q Mallory Sonalert Products | 1 $3.5100 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 4 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 87dB @ 5V, 10cm | 50mA | Top | -40°C ~ 85°C | - | Washable | - | Surface Mount | Solder Pads | 0.496" L x 0.496" W (12.60mm x 12.60mm) | 0.283" (7.20mm) | 7,258 Cart + RFQ |
PB-12N32MP-05AQ Mallory Sonalert Products | 1 $3.8100 | Datasheet | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 3.2kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 50mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.323" (8.20mm) | 9,776 Cart + RFQ |
PK-11N40PQ Mallory Sonalert Products | 1 $3.9500 | Datasheet | Indicator, Internally Driven | DC | 5 V | 3 ~ 5V | 4.1kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 5mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.217" (5.50mm) | 4,253 Cart + RFQ |
ASI301Q Mallory Sonalert Products | 1 $4.0500 | Datasheet | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 90dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.496" L x 0.496" W (12.60mm x 12.60mm) | 0.402" (10.20mm) | 1,822 Cart + RFQ |

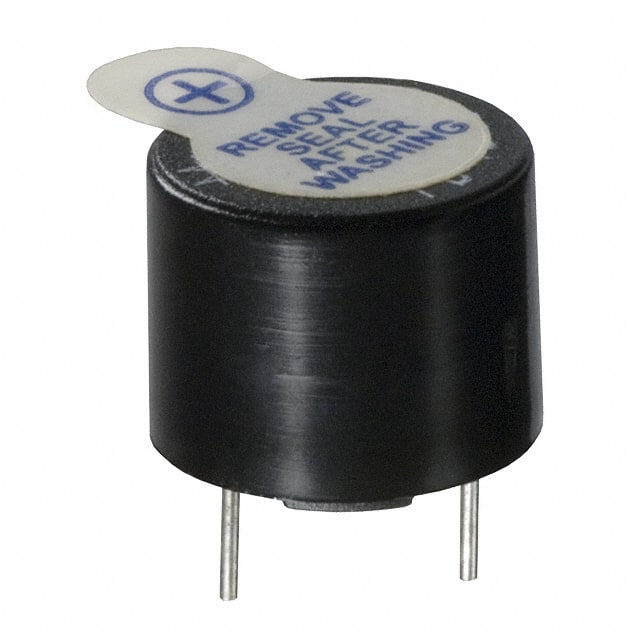

PB-12N23P-05Q Mallory Sonalert Products | 1 $4.1100 | Datasheet | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.402" (10.20mm) | 4,354 Cart + RFQ |
PB-12N23P-03Q Mallory Sonalert Products | 1 $4.1100 | Datasheet | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.402" (10.20mm) | 6,301 Cart + RFQ |

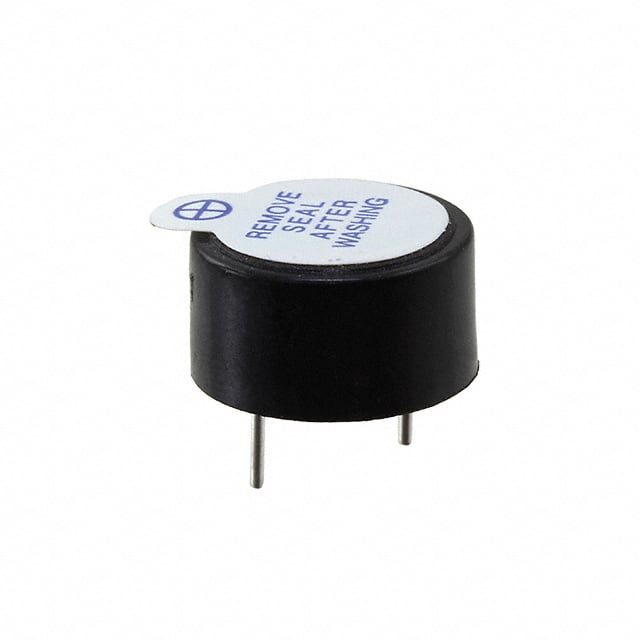

PK-12N40PEQ Mallory Sonalert Products | 1 $4.2400 | Datasheet | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 4.1kHz | Piezo | Single Tone | - | 83dB @ 12V, 10cm | 10mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) | 0.303" (7.70mm) | 4,319 Cart + RFQ |

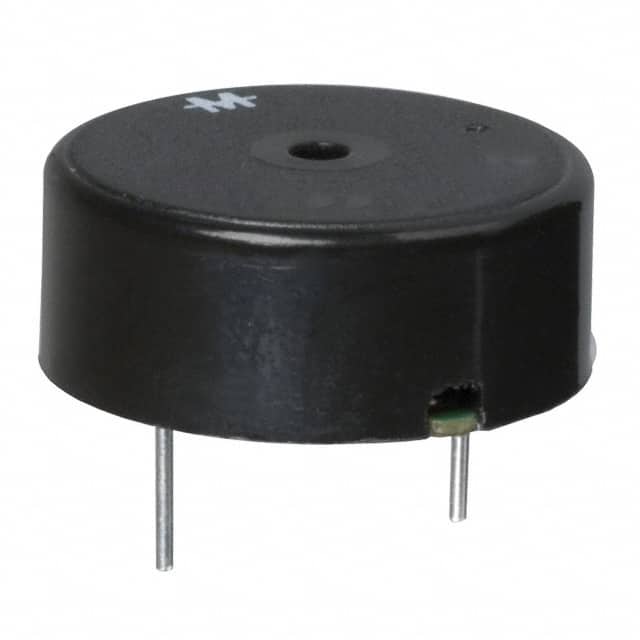

PK-21N30PQ Mallory Sonalert Products | 1 $4.2900 | Datasheet | Indicator, Internally Driven | DC | 12 V | 1.5 ~ 30V | 3kHz | Piezo | Single Tone | - | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.382" (9.70mm) | 7,600 Cart + RFQ |

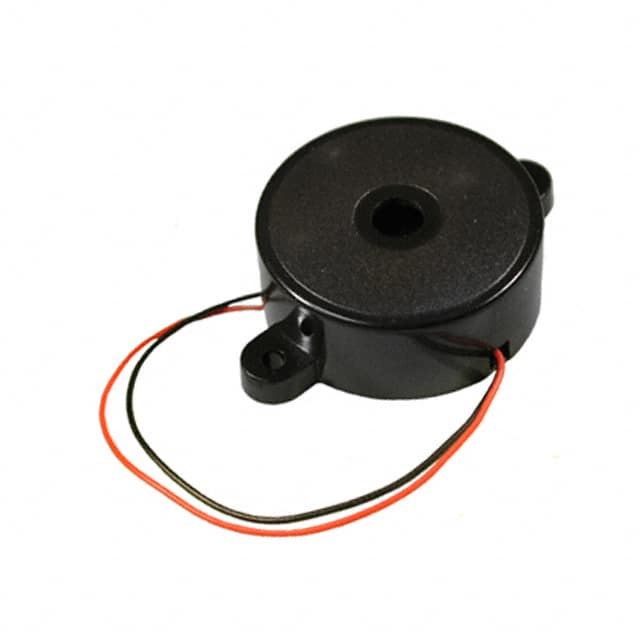

PK-27N25WQ Mallory Sonalert Products | 1 $4.7100 | Datasheet | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.638" (16.20mm) | 3,916 Cart + RFQ |

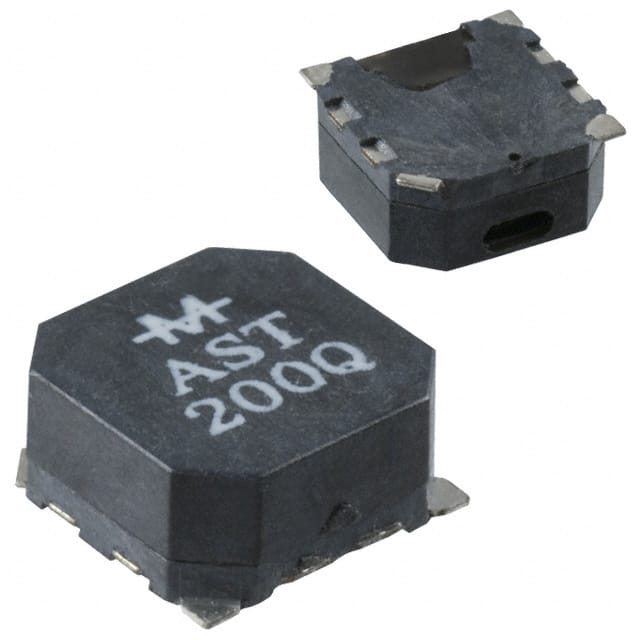

AST200Q Mallory Sonalert Products | 1 $4.8400 | Datasheet | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.343" L x 0.343" W (8.70mm x 8.70mm) | 0.165" (4.20mm) | 8,356 Cart + RFQ |

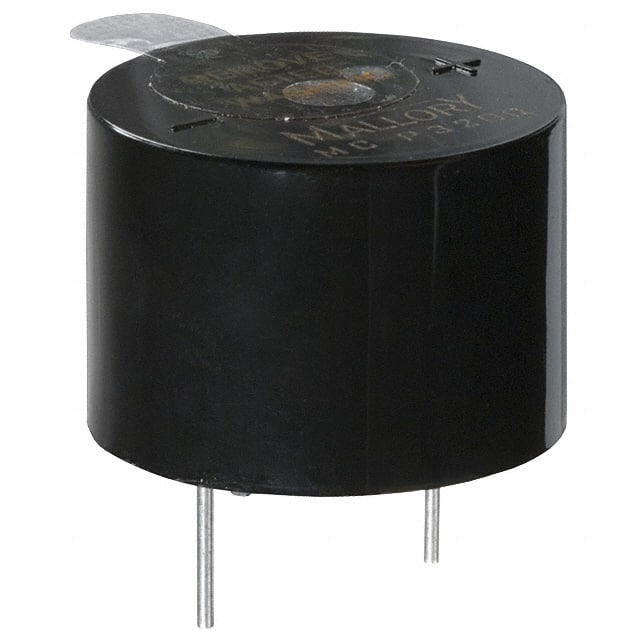

MCP320Q Mallory Sonalert Products | 1 $4.9800 | Datasheet | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.15kHz | Piezo | Single Tone | - | 55dB @ 3V, 61cm | 3 ~ 25mA | Top | -20°C ~ 90°C | - | Washable | - | Through Hole | PC Pins | 0.945" Dia (24.00mm) | 0.689" (17.50mm) | 2,031 Cart + RFQ |

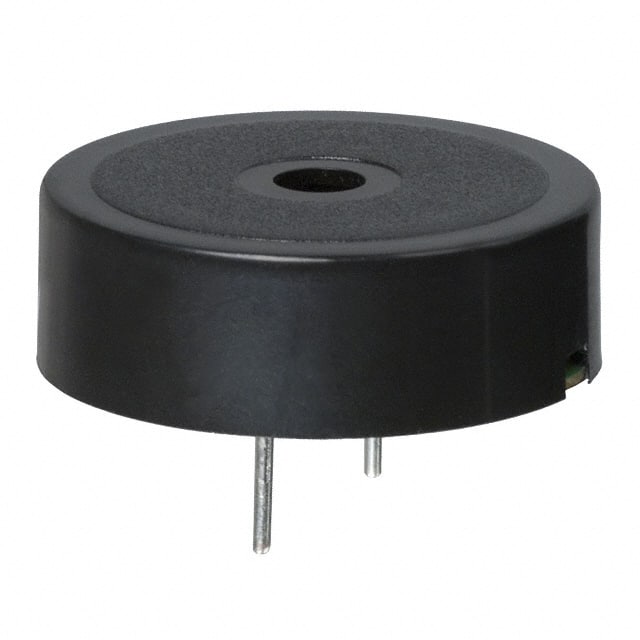

PK-27N36PSQ Mallory Sonalert Products | 1 $5.0900 | Datasheet | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) | 0.402" (10.20mm) | 3,359 Cart + RFQ |

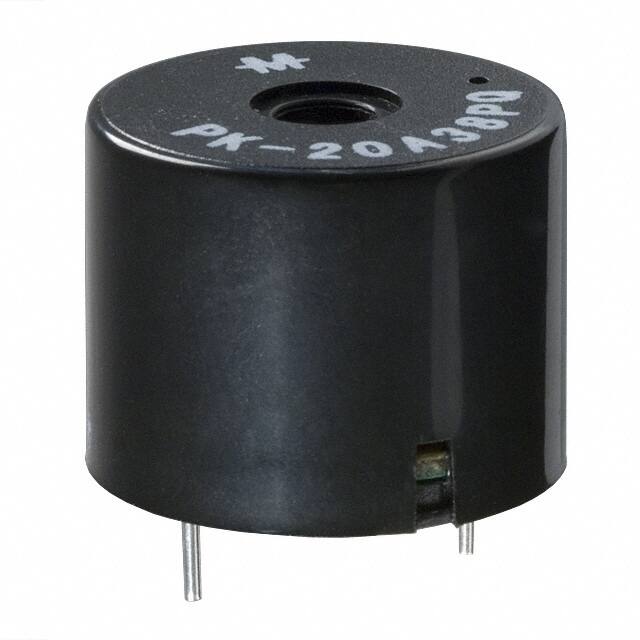

PK-20A38PQ Mallory Sonalert Products | 1 $5.2900 | Datasheet | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.8kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) | 0.717" (18.20mm) | 9,524 Cart + RFQ |
