Specialized
Specialized Backplane Connectors conform to a set of specifications for use with daughterboards, midplane, coplanar, or front boards, and are meant to be used in a backplane or rack and panel system. They are characterized by the connector type, number of positions, pitch, number of rows, and contact layout.
Product List
Total Components: 100
| Product | Pricing | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

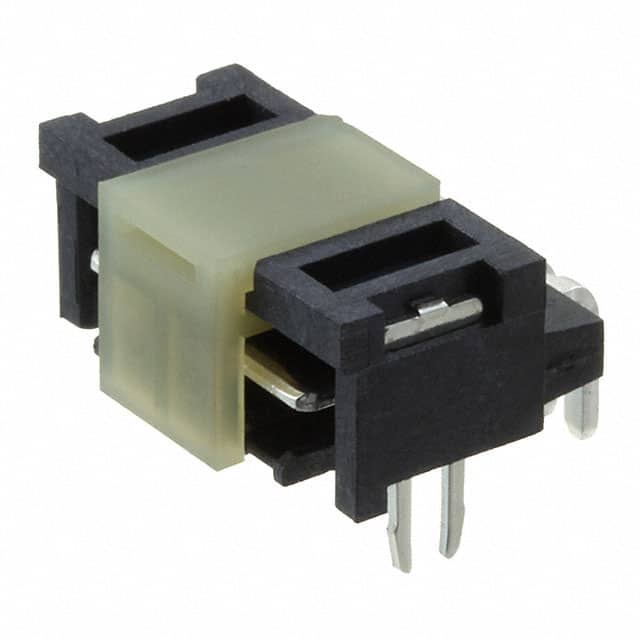

 1982295-2 TE Connectivity AMP Connectors | 1 $3.3900 | Datasheet | - | Header, Male Blades | - | 2 | All | 0.307" (7.80mm) | 1 | - | Through Hole, Right Angle | Solder | 2 Power | Board Lock | Gold | Flash | Black | 1,692 Cart + RFQ |

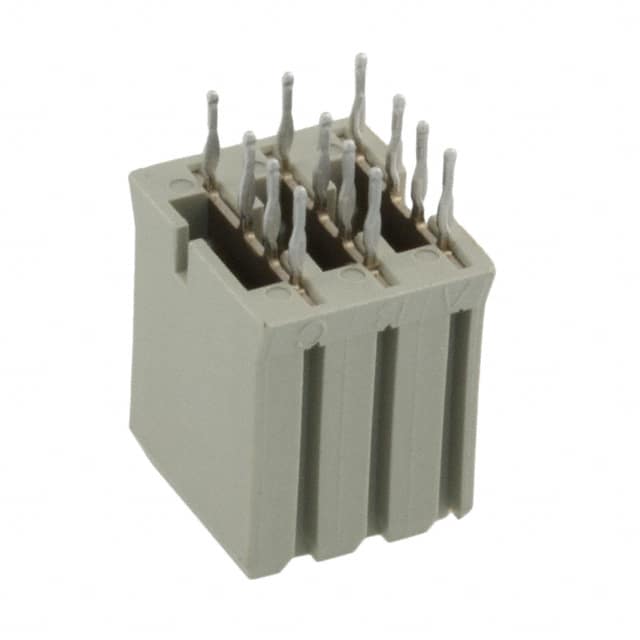

 5-5223955-2 TE Connectivity AMP Connectors | 1 $2.2500 100 $1.8000 500 $1.5000 | Datasheet | Backplane | Receptacle, Female Blade Sockets | Blade Power | 3 | All | - | 1 | - | Through Hole | Press-Fit | 3 Power | - | Gold or Gold-Palladium | - | Gray | 3,625 Cart + RFQ |
 M20-6102045 Harwin | 1 $6.0500 | Datasheet | - | Stackthrough, Unkeyed (PC/104) | PC/104 | 40 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Solder | - | - | Gold | 3.00µin (0.076µm) | Black | 1,231 Cart + RFQ |

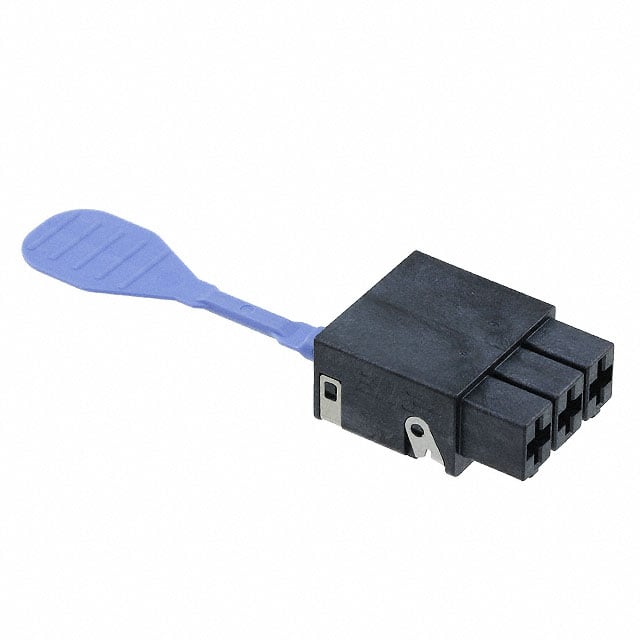

 2204534-1 TE Connectivity AMP Connectors | 1 $6.5000 | Datasheet | - | Receptacle, Female Sockets | - | 3 | - | 0.224" (5.70mm) | 1 | - | Free Hanging (In-Line) | Crimp | 3 Power | Pull Tab | Silver | 3.00µin (0.076µm) | Black | 4,373 Cart + RFQ |
 4P01-2A02-DA 3M | 1 $6.6400 | Datasheet | - | Non-Stackthrough, (PC/104) | PC/104 | 40 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Solder | - | - | Gold | 3.00µin (0.076µm) | - | 8,174 Cart + RFQ |
 M20-6103245 Harwin | 1 $8.2000 | Datasheet | - | Stackthrough, Unkeyed (PC/104) | PC/104 | 64 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Solder | - | - | Gold | 3.00µin (0.076µm) | Black | 8,749 Cart + RFQ |
 0782121001 Molex | 1 $8.9600 | Datasheet | - | Receptacle, Female Blade Sockets | - | 4 | All | - | 2 | 2 | Through Hole | Press-Fit | 4 Power | - | Gold | 30.0µin (0.76µm) | Black | 9,223 Cart + RFQ |

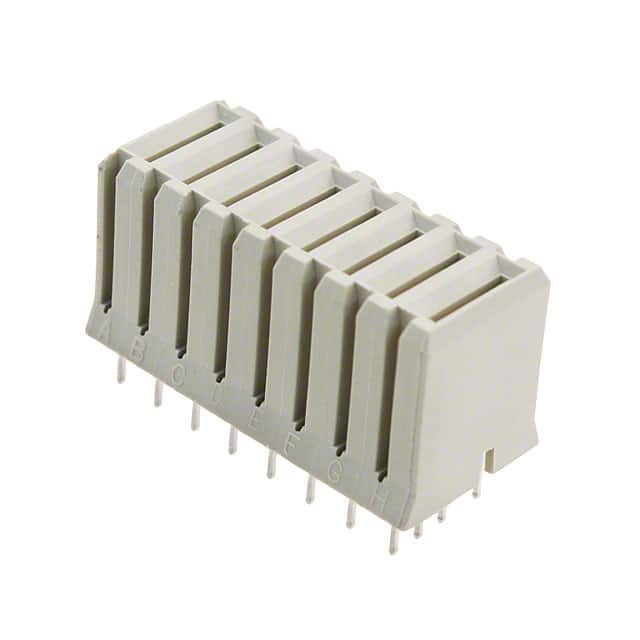

 120953-5 TE Connectivity AMP Connectors | 1 $9.2200 | Datasheet | Backplane | Receptacle, Female Blade Sockets | Blade Power | 8 | All | - | 1 | - | Through Hole | Press-Fit | 8 Power | - | Gold or Gold-Palladium | - | Gray | 9,870 Cart + RFQ |

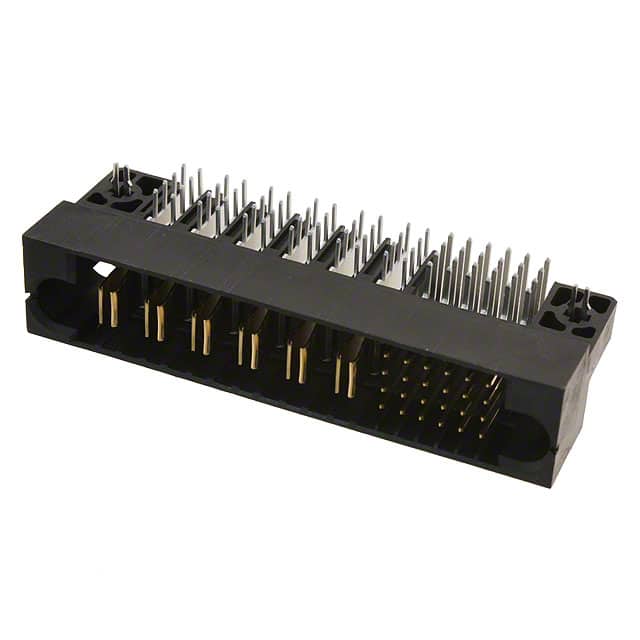

 51721-10002406AALF Amphenol Commercial IO | 1 $9.2300 | Datasheet | - | Header, Male Pins and Blades | Blade Power | 30 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 24 Signal, 6 Power | Board Lock, Mating Guide | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black | 2,682 Cart + RFQ |

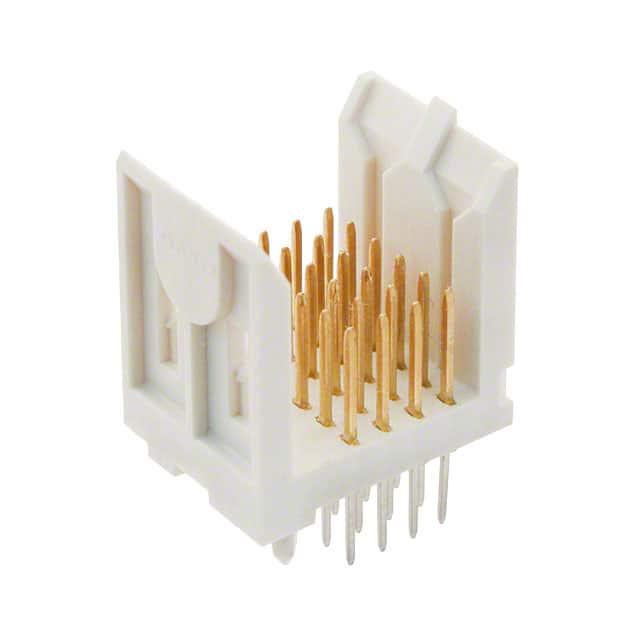

 5536501-1 TE Connectivity AMP Connectors | 1 $9.7300 | Datasheet | - | Header, Male Pins | Futurebus | 24 | All | 0.079" (2.00mm) | 4 | - | Through Hole | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | - | 9,800 Cart + RFQ |
 0760151403 Molex | 1 $10.3800 | Datasheet | Backplane, Midplane, Orthogonal | Header, Male Pins | I-Trac | 56 | All | 0.073" (1.85mm) | 7 | 4 | Through Hole | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | Black | 3,955 Cart + RFQ |

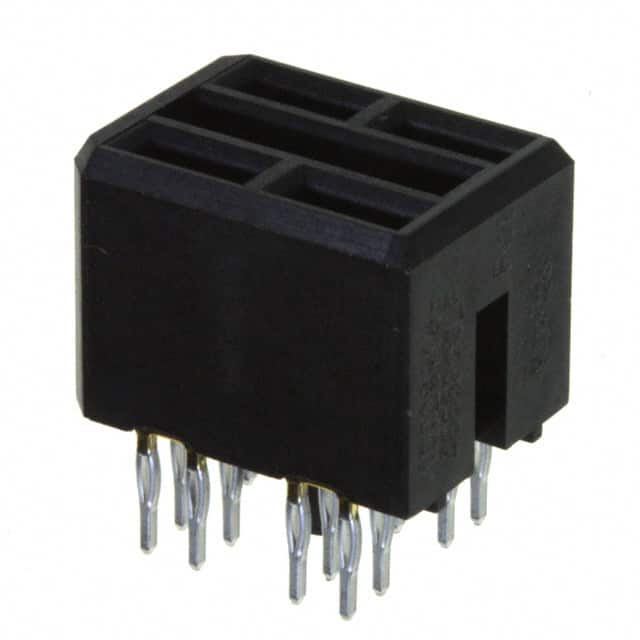

 10028916-4555P00LF Amphenol Commercial IO | 1 $11.2200 | Datasheet | - | Receptacle, Female Blade Sockets | Blade Power | 4 | All | - | 2 | - | Through Hole | Press-Fit | 4 Power | Board Guide | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black | 7,376 Cart + RFQ |

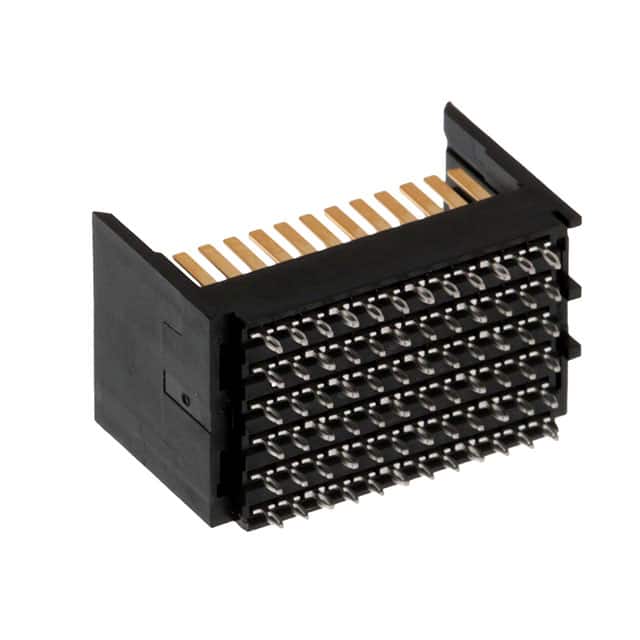

 10114761-101LF Amphenol Commercial IO | 1 $11.3400 | Datasheet | Daughtercard | Header, Male Pins | High Speed | 72 | All | - | 12 | 6 | Through Hole | Press-Fit | - | - | Gold | - | Black | 6,013 Cart + RFQ |

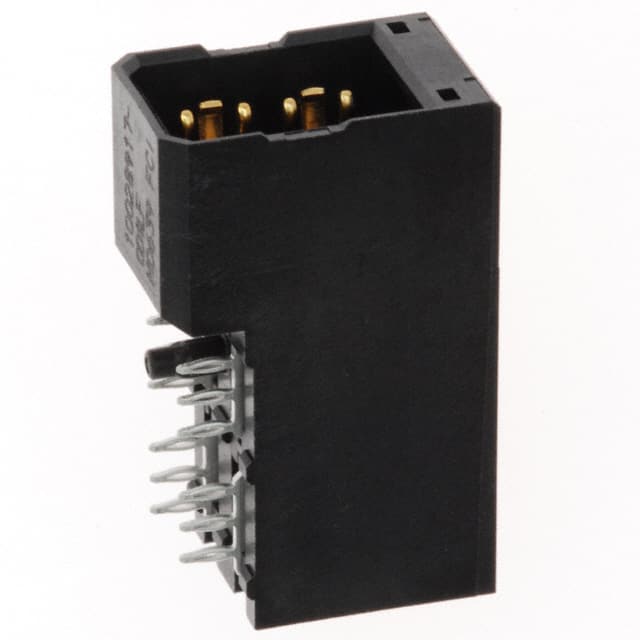

 10028917-001LF Amphenol Commercial IO | 1 $11.7000 | Datasheet | Daughtercard | Header, Male Blades | Blade Power | 4 | All | - | 2 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 4 Power | Board Guide | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black | 6,938 Cart + RFQ |
 0461144241 Molex | 1 $12.7300 | Datasheet | - | Receptacle, Outer Shroud Contacts | LPHPower | 28 | All | - | 2 | - | Through Hole | Press-Fit | 24 Signal, 4 Power | - | Gold | 30.0µin (0.76µm) | Black | 6,652 Cart + RFQ |
 0782291002 Molex | 1 $13.3800 | Datasheet | - | Header, Male Blades | I-Trac, Hold Down Left | 2 | All | - | 2 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 2 Power | Board Guide | Gold | 30.0µin (0.76µm) | Black | 2,449 Cart + RFQ |

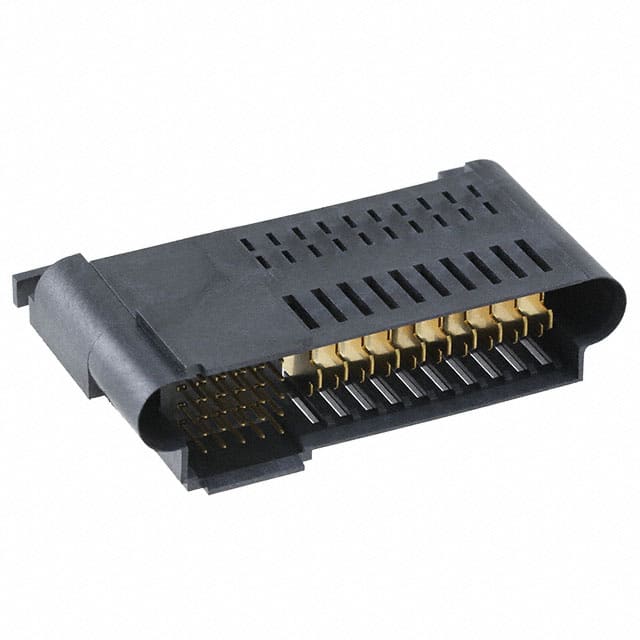

 10108888-R10253SLF Amphenol Commercial IO | 1 $13.9100 | Datasheet | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 35 | All | 0.079" (2.00mm) | - | - | Board Edge, Through Hole, Right Angle | Press-Fit | 25 Signal, 10 Power | Board Lock | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black | 9,286 Cart + RFQ |

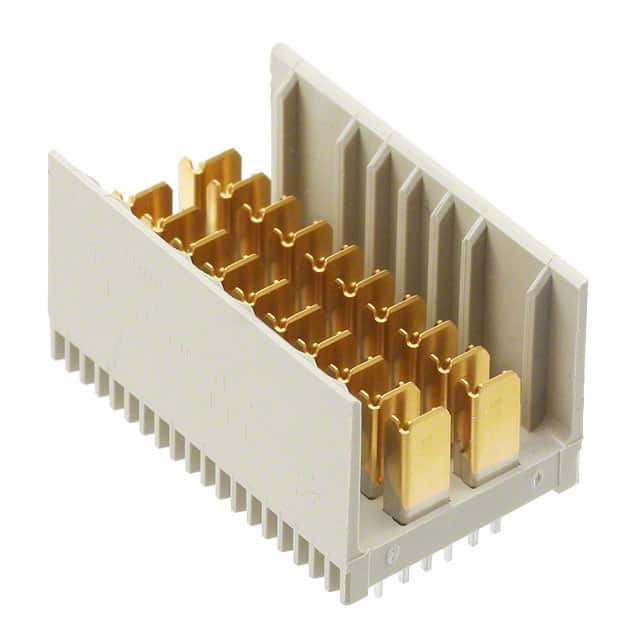

 6469025-1 TE Connectivity AMP Connectors | 1 $14.4500 | Datasheet | Backplane | Header, Male Pins and Blades | High Speed | 60 | All | 0.098" (2.50mm) | 4 | 10 | Through Hole | Press-Fit | 40 Signal, 20 Ground | - | Gold | 30.0µin (0.76µm) | - | 2,083 Cart + RFQ |

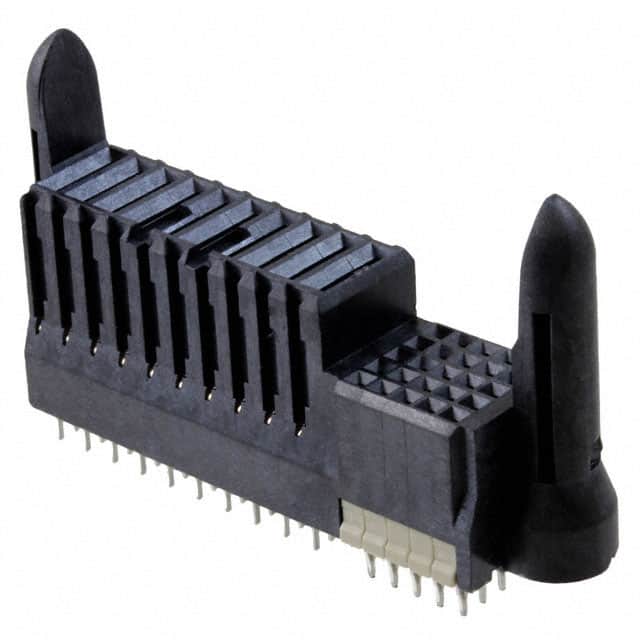

 1892787-6 TE Connectivity AMP Connectors | 1 $14.9800 | Datasheet | - | Receptacle, Female Sockets and Blade Sockets | - | 35 | All | - | - | - | Through Hole | Press-Fit, Solder | 25 Signal, 10 Power | Guide Pin | Gold or Gold-Palladium | 30.0µin (0.76µm) | Black | 8,561 Cart + RFQ |
 0761703038 Molex | 1 $15.1000 | Datasheet | - | Receptacle, Female Sockets | Impact, Guide Left | 72 | All | 0.053" (1.35mm) | 9 | 8 | Board Edge, Through Hole, Right Angle | Press-Fit | 24 Differential Pairs | Board Guide | Gold | 30.0µin (0.76µm) | Black | 8,554 Cart + RFQ |
