TVS - Varistors, MOVs
Transient voltage suppression (TVS) products based on Metal Oxide Varistor (MOV) technology are used to protect electrical and electronic devices against excess voltage hazards, such as may be caused by lighting induced transients, static electricity, or similar hazards. Their relatively high parasitic capacitance limits their application to low frequency circuits such as AC utility power inputs, in which application they excel due to their comparably high power dissipation capability and clamping behavior, which allows continued operation of protected devices without need of a reset process following a protection event, as is common with crowbar protection mechanisms.
Product List
Total Components: 26
Product | Pricing | Datasheet | Maximum AC Volts | Maximum DC Volts | Varistor Voltage (Min) | Varistor Voltage (Typ) | Varistor Voltage (Max) | Current - Surge | Energy | Number of Circuits | Capacitance @ Frequency | Operating Temperature | Features | Mounting Type | Package / Case | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B72590D0050H160 EPCOS (TDK) | 1 $0.3300 | Datasheet | - | 5.6 V | 150 V | - | - | - | - | 1 | 0.9 pF @ 1 MHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 0402 (1005 Metric) | 2,032 Cart + RFQ |
B72500T0250K060 EPCOS (TDK) | 1 $0.3900 | Datasheet | 25 V | 31 V | 35.1 V | 39 V | 42.9 V | 30 A | 0.3J | 1 | 90 pF @ 1 MHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 0603 (1608 Metric) | 6,174 Cart + RFQ |
B72500E0140K060 EPCOS (TDK) | 1 $0.4800 | Datasheet | 14 V | 18 V | 19.8 V | 22 V | 24.2 V | 30 A | 0.2J | 1 | 100 pF @ 1 MHz | -55°C ~ 150°C (TA) | - | Surface Mount, MLCV | 0603 (1608 Metric) | 7,070 Cart + RFQ |
B72510T0300K062 EPCOS (TDK) | 1 $0.4200 | Datasheet | 30 V | 38 V | 42.3 V | 47 V | 51.7 V | 80 A | 0.3J | 1 | 200 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 0805 (2012 Metric) | 6,233 Cart + RFQ |

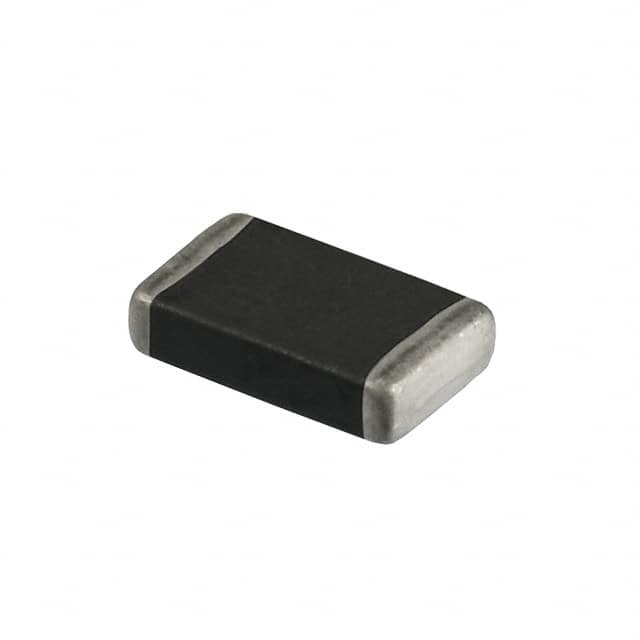

B72520T0400K062 EPCOS (TDK) | 1 $0.5500 | Datasheet | 40 V | 56 V | 61.2 V | 68 V | 74.8 V | 100 A | 0.5J | 1 | 250 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1206 (3216 Metric) | 3,689 Cart + RFQ |
B72520T0350K062 EPCOS (TDK) | 1 $0.5500 | Datasheet | 35 V | 45 V | 50.4 V | 56 V | 61.6 V | 100 A | 0.4J | 1 | 600 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1206 (3216 Metric) | 8,944 Cart + RFQ |
B72520T0060M062 EPCOS (TDK) | 1 $0.5500 | Datasheet | 6 V | 8 V | 8.8 V | 11 V | 13.2 V | 200 A | 0.4J | 1 | 1200 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount | 1206 (3216 Metric) | 5,652 Cart + RFQ |
B72520T0250K062 EPCOS (TDK) | 1 $0.5500 | Datasheet | 25 V | 31 V | 35.1 V | 39 V | 42.9 V | 200 A | 1J | 1 | 550 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1206 (3216 Metric) | 9,430 Cart + RFQ |
B72520T0300K062 EPCOS (TDK) | 1 $0.5500 | Datasheet | 30 V | 38 V | 42.3 V | 47 V | 51.7 V | 200 A | 1.1J | 1 | 1100 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1206 (3216 Metric) | 2,193 Cart + RFQ |
B72520T0200K062 EPCOS (TDK) | 1 $0.5500 | Datasheet | 20 V | 26 V | 29.7 V | 33 V | 36.3 V | 200 A | 0.7J | 1 | 600 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1206 (3216 Metric) | 8,675 Cart + RFQ |
B72520E0200K062 EPCOS (TDK) | 1 $0.5700 | Datasheet | 17 V | 22 V | 29.7 V | 33 V | 36.3 V | 200 A | 7J | 1 | 600 pF @ 1 kHz | -55°C ~ 150°C (TA) | - | Surface Mount | 1206 (3216 Metric) | 8,795 Cart + RFQ |
B72530T0350K062 EPCOS (TDK) | 1 $0.5700 | Datasheet | 35 V | 45 V | 50.4 V | 56 V | 61.6 V | 250 A | 2J | 1 | 600 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1210 (3225 Metric) | 7,954 Cart + RFQ |
B72530T0400K062 EPCOS (TDK) | 1 $0.5700 | Datasheet | 40 V | 56 V | 61.2 V | 68 V | 74.8 V | 250 A | 2.3J | 1 | 500 pF @ 1 kHz | -55°C ~ 125°C (TA) | - | Surface Mount, MLCV | 1210 (3225 Metric) | 3,385 Cart + RFQ |

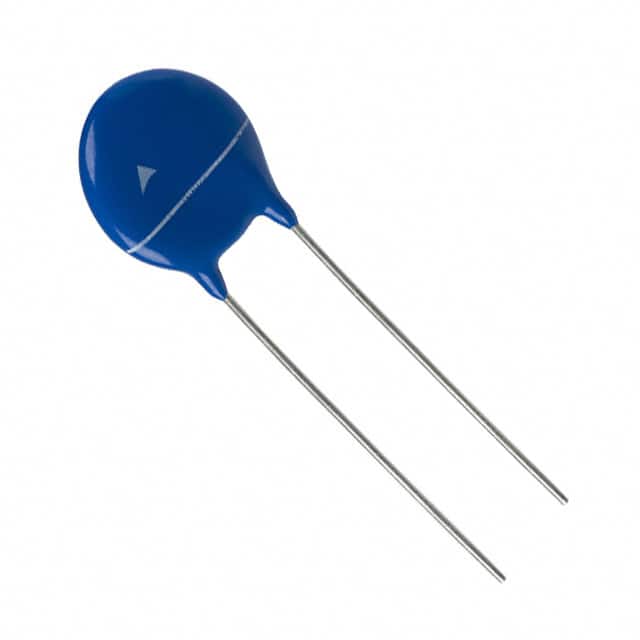

B72214S0500K151 EPCOS (TDK) | 1 $0.6500 | Datasheet | 50 V | 65 V | 73.8 V | 82 V | 90.2 V | 4.5 kA | 15J | 1 | 1800 pF @ 1 kHz | -40°C ~ 105°C (TA) | - | Through Hole | Disc 14mm | 3,927 Cart + RFQ |

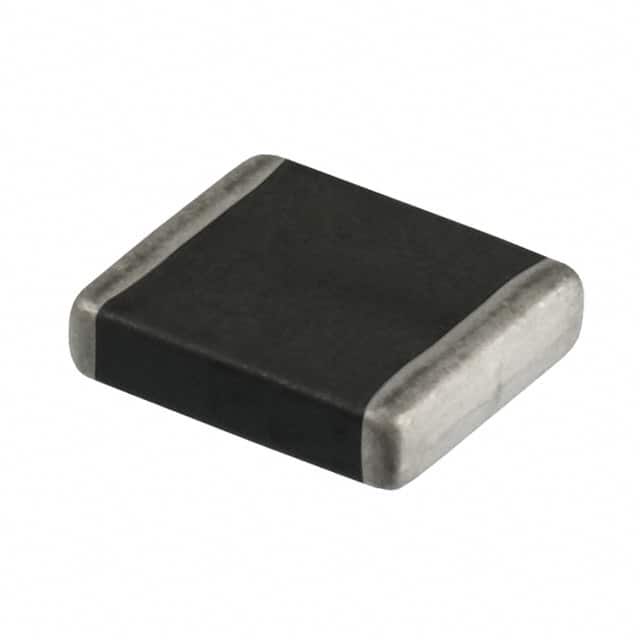

B72530E0250K062 EPCOS (TDK) | 1 $0.6100 | Datasheet | 25 V | 31 V | 35.1 V | 39 V | 42.9 V | 300 A | 1.7J | 1 | 1500 pF @ 1 kHz | -55°C ~ 150°C (TA) | - | Surface Mount, MLCV | 1210 (3225 Metric) | 1,993 Cart + RFQ |
B72580T0300K062 EPCOS (TDK) | 1 $0.9000 | Datasheet | 30 V | 38 V | 42.3 V | 47 V | 51.7 V | 800 A | 4.2J | 1 | - | - | - | Surface Mount, MLCV | 1812 (4532 Metric) | 4,952 Cart + RFQ |

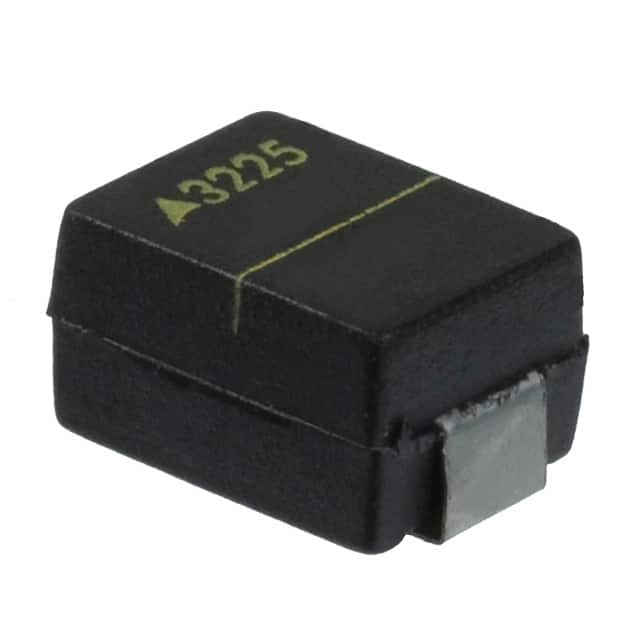

B72650M0151K072 EPCOS (TDK) | 1 $0.9300 | Datasheet | 150 V | 200 V | 216 V | 240 V | 264 V | 400 A | 4.9J | 1 | 90 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 3225 (8063 Metric) | 2,296 Cart + RFQ |
B72650M0271K072 EPCOS (TDK) | 1 $0.9300 | Datasheet | 275 V | 350 V | 387 V | 430 V | 473 V | 400 A | 8.6J | 1 | 50 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 3225 (8063 Metric) | 4,626 Cart + RFQ |
B72650M0131K072 EPCOS (TDK) | 1 $0.9900 | Datasheet | 130 V | 170 V | 184.5 V | 205 V | 225.5 V | 400 A | 4.2J | 1 | 100 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 3225 (8063 Metric) | 6,239 Cart + RFQ |
B72580E0250K062 EPCOS (TDK) | 1 $0.3971 100 $0.3176 500 $0.2647 | Datasheet | 25 V | 31 V | 35.1 V | 39 V | 42.9 V | 800 A | 3.7J | 1 | 2500 pF @ 1 kHz | -55°C ~ 150°C (TA) | - | Surface Mount | 1812 (4532 Metric) | 12,000 Cart + RFQ |
