TVS - Varistors, MOVs
Transient voltage suppression (TVS) products based on Metal Oxide Varistor (MOV) technology are used to protect electrical and electronic devices against excess voltage hazards, such as may be caused by lighting induced transients, static electricity, or similar hazards. Their relatively high parasitic capacitance limits their application to low frequency circuits such as AC utility power inputs, in which application they excel due to their comparably high power dissipation capability and clamping behavior, which allows continued operation of protected devices without need of a reset process following a protection event, as is common with crowbar protection mechanisms.
Product List
Total Components: 15
Product | Pricing | Datasheet | Maximum AC Volts | Maximum DC Volts | Varistor Voltage (Min) | Varistor Voltage (Typ) | Varistor Voltage (Max) | Current - Surge | Energy | Number of Circuits | Capacitance @ Frequency | Operating Temperature | Features | Mounting Type | Package / Case | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EZA-EG2N50AX Panasonic | 1 $0.5900 | Datasheet | - | 500 V | - | 30 V | - | - | - | 1 | - | -55°C ~ 125°C | - | Surface Mount | 0402 (1005 Metric) | 8,391 Cart + RFQ |
EZA-EG1N50AC Panasonic | 1 $0.6000 | Datasheet | - | 500 V | - | 30 V | - | - | - | 1 | - | -55°C ~ 125°C | - | Surface Mount | 0201 (0603 Metric) | 4,761 Cart + RFQ |
EZA-EG3A50AV Panasonic | 1 $0.5300 | Datasheet | - | 30 V | - | - | - | - | - | 1 | - | -55°C ~ 125°C | - | Surface Mount, MLCV | 0603 (1608 Metric) | 7,515 Cart + RFQ |

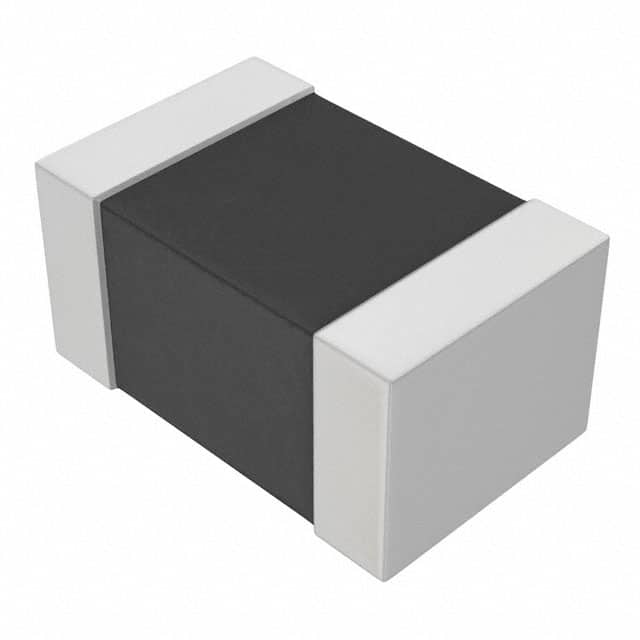

EZJ-S2YD472 Panasonic | 1 $0.6300 | Datasheet | - | 30 V | - | 50 V | - | - | - | 1 | 4700 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 0805 (2012 Metric) | 1,062 Cart + RFQ |
EZJ-S2YC822 Panasonic | 1 $0.6300 | Datasheet | - | 18 V | - | 30 V | - | - | - | 1 | 8200 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 0805 (2012 Metric) | 3,158 Cart + RFQ |
EZJ-S1VB822 Panasonic | 1 $0.9400 | Datasheet | - | 6 V | - | 12 V | - | - | - | 1 | 8200 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 0603 (1608 Metric) | 7,320 Cart + RFQ |
EZJ-S1VD182 Panasonic | 1 $0.9900 | Datasheet | - | 30 V | - | 50 V | - | - | - | 1 | 1800 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Surface Mount, MLCV | 0603 (1608 Metric) | 7,881 Cart + RFQ |

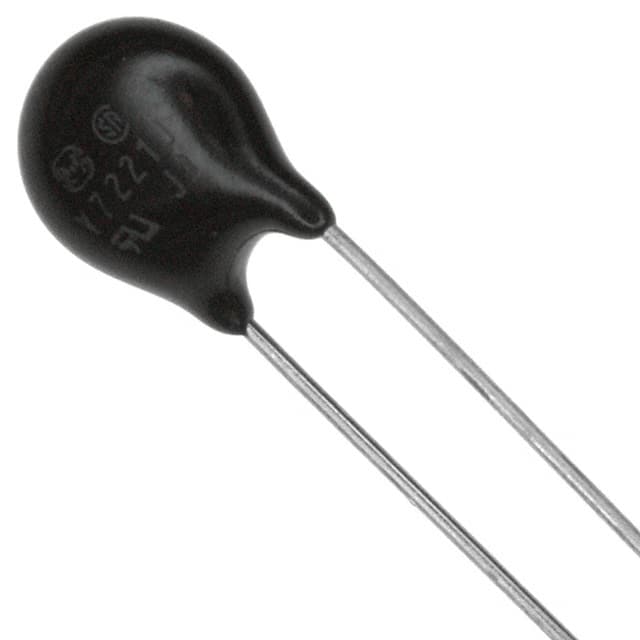

ERZ-V07D390 Panasonic | 1 $0.4100 | Datasheet | 25 V | 31 V | 35 V | 39 V | 43 V | 500 A | 2.4J | 1 | 1600 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 8.5mm | 3,593 Cart + RFQ |

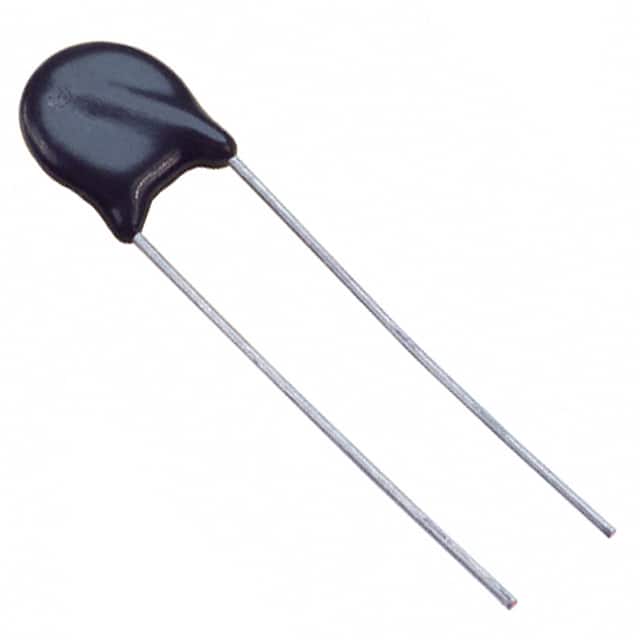

ERZ-V10D241 Panasonic | 1 $0.4600 | Datasheet | 150 V | 200 V | 216 V | 240 V | 264 V | 3.5 kA | 42J | 1 | 380 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 11.5mm | 1,824 Cart + RFQ |
ERZ-V07D470 Panasonic | 1 $0.4600 | Datasheet | 30 V | 38 V | 42 V | 47 V | 52 V | 500 A | 2.8J | 1 | 1550 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 8.5mm | 7,105 Cart + RFQ |
ERZ-V10D431 Panasonic | 1 $0.4900 | Datasheet | 275 V | 350 V | 387 V | 430 V | 473 V | 3.5 kA | 80J | 1 | 270 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 11.5mm | 4,591 Cart + RFQ |
ERZ-V10D470 Panasonic | 1 $0.5200 | Datasheet | 30 V | 38 V | 42 V | 47 V | 52 V | 1 kA | 6.8J | 1 | 4600 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 11.5mm | 2,658 Cart + RFQ |

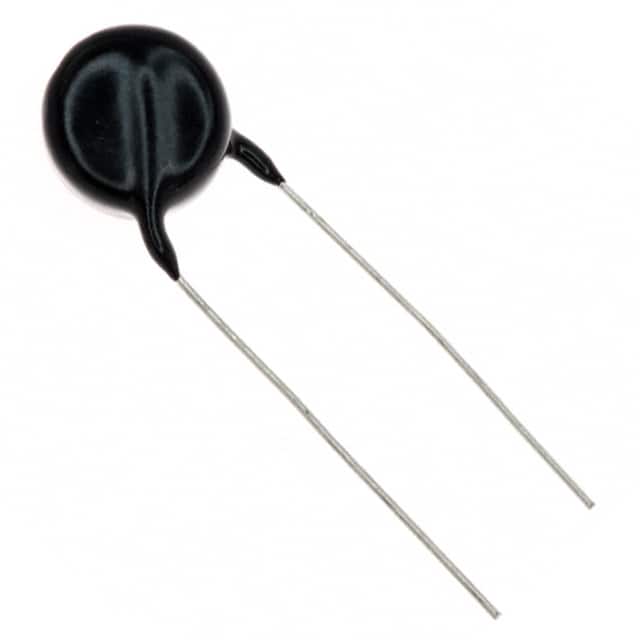

ERZ-V14D241 Panasonic | 1 $0.5500 | Datasheet | 150 V | 200 V | 216 V | 240 V | 264 V | 6 kA | 84J | 1 | 700 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 15.5mm | 4,340 Cart + RFQ |
ERZ-V10D102 Panasonic | 1 $0.6300 | Datasheet | 625 V | 825 V | 900 V | 1 kV | 1.1 kV | 3.5 kA | 140J | 1 | 110 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 12.50mm | 9,814 Cart + RFQ |
ERZ-V10D751 Panasonic | 1 $0.6200 | Datasheet | 460 V | 615 V | 675 V | 750 V | 825 V | 3.5 kA | 100J | 1 | 160 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | Through Hole | Disc 10mm | 4,521 Cart + RFQ |
