TVS - Thyristors
Thyristor-based Transient Voltage Suppression (TVS) devices are over-voltage protection devices that approximate an open circuit under normal operating conditions. Application of a voltage across them in excess of some specific value called the breakover voltage causes them to enter a conductive state approximating a short circuit. This state persists until current flow through the device is reduced below a minimum value called "hold current" by some outside influence within the circuit.
Product List
Total Components: 48
Product | Pricing | Datasheet | Voltage - Breakover | Voltage - Off State | Voltage - On State | Current - Peak Pulse (8/20µs) | Current - Peak Pulse (10/1000µs) | Current - Hold (Ih) | Number of Elements | Capacitance | Mounting Type | Package / Case | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P3100SALRP Hamlin / Littelfuse | 1 $0.2687 100 $0.2149 500 $0.1791 | Datasheet | 350V | 275V | 4 V | 150 A | 45 A | 150 mA | 1 | 35pF | Surface Mount | DO-214AA, SMB | 250 Cart + RFQ |
P0300SALRP Hamlin / Littelfuse | 1 $1.3800 | Datasheet | 40V | 25V | 4 V | 150 A | 45 A | 50 mA | 1 | 140pF | Surface Mount | DO-214AA, SMB | 7,213 Cart + RFQ |
P3100SBLRP Hamlin / Littelfuse | 1 $0.2238 100 $0.1790 500 $0.1492 | Datasheet | 350V | 275V | 4 V | 250 A | 80 A | 150 mA | 1 | 45pF | Surface Mount | DO-214AA, SMB | 250 Cart + RFQ |
P0300SCLRP Hamlin / Littelfuse | 1 $1.6200 | Datasheet | 40V | 25V | 4 V | 400 A | 100 A | 50 mA | 1 | 250pF | Surface Mount | DO-214AA, SMB | 1,995 Cart + RFQ |
P0080SCMCLRP Hamlin / Littelfuse | 1 $1.5900 | Datasheet | 25V | 6V | 5 V | 400 A | 100 A | 50 mA | 1 | 75pF | Surface Mount | DO-214AA, SMB | 8,597 Cart + RFQ |
P0220SCMCLRP Hamlin / Littelfuse | 1 $1.5900 | Datasheet | 32V | 15V | 4 V | 400 A | 100 A | 50 mA | 1 | 50pF | Surface Mount | DO-214AA, SMB | 9,000 Cart + RFQ |
P2300MEL Hamlin / Littelfuse | 1 $12.2100 | Datasheet | 260V | 180V | 4 V | 5 kA | - | 50 mA | 1 | 600pF | Through Hole | TO-218-3, TO-218AC | 9,053 Cart + RFQ |
SDP0240T023G5RP Hamlin / Littelfuse | 1 $0.9900 | Datasheet | - | 24V | 4 V | 50 A | - | 30 mA | 1 | 5pF | Surface Mount | SC-74A, SOT-753 | 3,425 Cart + RFQ |
P0080SALRP Hamlin / Littelfuse | 1 $0.5600 | Datasheet | 25V | 6V | 4 V | 150 A | 45 A | 50 mA | 1 | 150pF | Surface Mount | DO-214AA, SMB | 100,000 Cart + RFQ |
P0220SALRP Hamlin / Littelfuse | 1 $1.3800 | Datasheet | 32V | 15V | 4 V | 150 A | 45 A | 50 mA | 1 | 150pF | Surface Mount | DO-214AA, SMB | 2,320 Cart + RFQ |
P0300SAMCLRP Hamlin / Littelfuse | 1 $1.4300 | Datasheet | 40V | 25V | 4 V | 150 A | 45 A | 50 mA | 1 | 35pF | Surface Mount | DO-214AA, SMB | 6,045 Cart + RFQ |
P0080SCLRP Hamlin / Littelfuse | 1 $1.6200 | Datasheet | 25V | 6V | 4 V | 400 A | 100 A | 50 mA | 1 | 260pF | Surface Mount | DO-214AA, SMB | 2,189 Cart + RFQ |
P0300SBLRP Hamlin / Littelfuse | 1 $1.5100 | Datasheet | 40V | 25V | 4 V | 250 A | 80 A | 50 mA | 1 | 140pF | Surface Mount | DO-214AA, SMB | 6,153 Cart + RFQ |
P1800SCMCLRP Hamlin / Littelfuse | 1 $1.5900 | Datasheet | 220V | 170V | 5 V | 400 A | 100 A | 150 mA | 1 | 50pF | Surface Mount | DO-214AA, SMB | 5,196 Cart + RFQ |
P0640SCMCLRP Hamlin / Littelfuse | 1 $1.5900 | Datasheet | 77V | 58V | 5 V | 400 A | 100 A | 150 mA | 1 | 85pF | Surface Mount | DO-214AA, SMB | 6,523 Cart + RFQ |

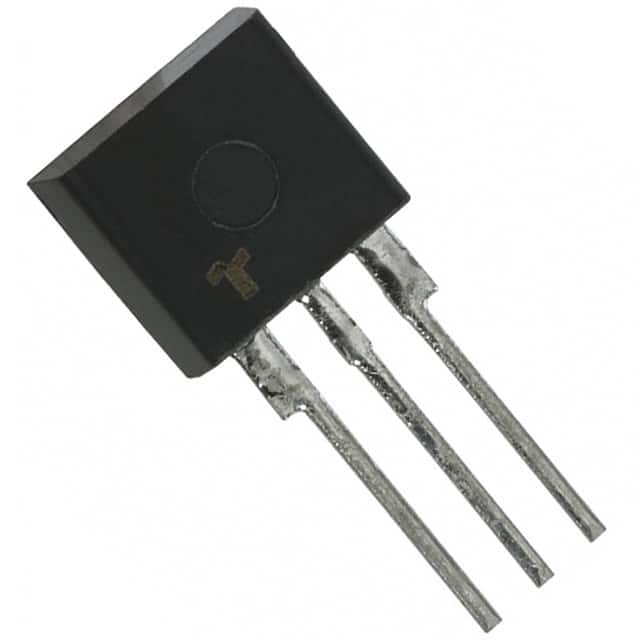

P0602AAL Hamlin / Littelfuse | 1 $3.0000 | Datasheet | 40V, 80V | 25V, 50V | 4 V | 150 A | 45 A | 50 mA | 2 | 90pF, 145pF | Through Hole | TO-220-3 No Tab | 5,563 Cart + RFQ |
SDP0240T023G6RP Hamlin / Littelfuse | 1 $1.0100 | Datasheet | - | 19V | - | 30 A | - | 40 mA | 1 | 3pF | Surface Mount | SOT-23-6 | 5,331 Cart + RFQ |

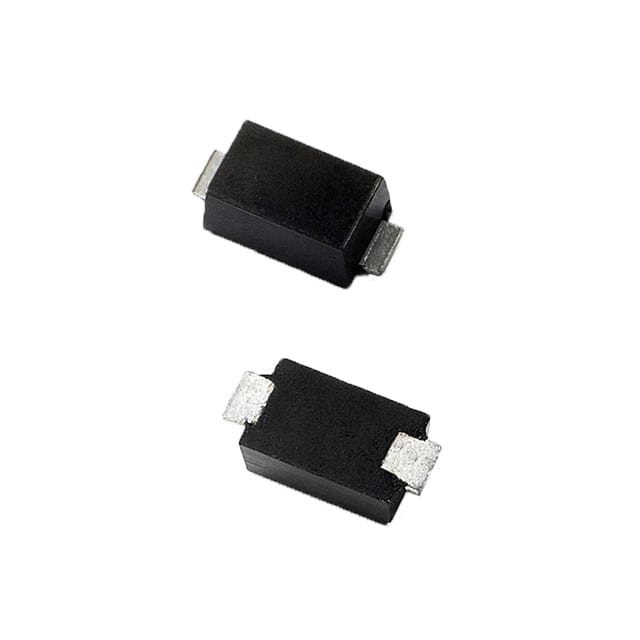

P0080S4BLRP Hamlin / Littelfuse | 1 $1.2600 | Datasheet | 25V | 6V | 4 V | 150 A | 50 A | 50 mA | 1 | 25pF | Surface Mount | SOD-123F | 3,370 Cart + RFQ |
P0080SAMCLRP Hamlin / Littelfuse | 1 $0.2100 100 $0.1680 500 $0.1400 | Datasheet | 25V | 6V | 4 V | 150 A | 45 A | 50 mA | 1 | 55pF | Surface Mount | DO-214AA, SMB | 72 Cart + RFQ |
P0080Q12ALRP Hamlin / Littelfuse | 1 $1.4500 | Datasheet | 25V | 6V | 5 V | 150 A | 45 A | 50 mA | 1 | 55pF | Surface Mount | 2-TDFN | 2,631 Cart + RFQ |
