TVS - Thyristors
Thyristor-based Transient Voltage Suppression (TVS) devices are over-voltage protection devices that approximate an open circuit under normal operating conditions. Application of a voltage across them in excess of some specific value called the breakover voltage causes them to enter a conductive state approximating a short circuit. This state persists until current flow through the device is reduced below a minimum value called "hold current" by some outside influence within the circuit.
Product List
Total Components: 39
| Product | Pricing | Datasheet | Voltage - Breakover | Voltage - Off State | Voltage - On State | Current - Peak Pulse (8/20µs) | Current - Peak Pulse (10/1000µs) | Current - Hold (Ih) | Number of Elements | Capacitance | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TISP4240M3BJR-S Bourns, Inc. | 1 $0.8000 | Datasheet | 240V | 180V | 3 V | 220 A | 50 A | 150 mA | 1 | 50pF | Surface Mount | DO-214AA, SMB | 9,655 Cart + RFQ |
TISP4040H1BJR-S Bourns, Inc. | 1 $0.8700 | Datasheet | 40V | 25V | 3 V | 400 A | 100 A | 50 mA | 1 | 61pF | Surface Mount | DO-214AA, SMB | 6,794 Cart + RFQ |
TISP4070J3BJR-S Bourns, Inc. | 1 $1.2700 | Datasheet | 70V | 58V | - | 800 A | 200 A | 150 mA | 1 | 200pF | Surface Mount | DO-214AA, SMB | 4,006 Cart + RFQ |
TISP4015L1AJR-S Bourns, Inc. | 1 $0.4600 | Datasheet | 15V | 8V | - | 120 A | 30 A | 50 mA | 1 | 30pF | Surface Mount | DO-214AC, SMA | 7,634 Cart + RFQ |
TISP4015L1BJR-S Bourns, Inc. | 1 $0.4600 | Datasheet | 15V | 8V | - | 120 A | 30 A | 50 mA | 1 | 30pF | Surface Mount | DO-214AA, SMB | 1,013 Cart + RFQ |
TISP4350T3BJR-S Bourns, Inc. | 1 $0.8000 | Datasheet | 350V | 275V | 3 V | 250 A | 80 A | 150 mA | 1 | 52pF | Surface Mount | DO-214AA, SMB | 8,161 Cart + RFQ |
TISP4070M3BJR-S Bourns, Inc. | 1 $0.8000 | Datasheet | 70V | 58V | 3 V | 220 A | 50 A | 150 mA | 1 | 87pF | Surface Mount | DO-214AA, SMB | 9,768 Cart + RFQ |
TISP4265M3BJR-S Bourns, Inc. | 1 $0.8000 | Datasheet | 265V | 200V | 3 V | 220 A | 50 A | 150 mA | 1 | 83pF | Surface Mount | DO-214AA, SMB | 5,355 Cart + RFQ |
 TISP4P015L1NR-S Bourns, Inc. | 1 $0.8300 | Datasheet | 15V | 8V | - | 30 A | 18 A | 30 mA | 1 | 6.5pF | Surface Mount | SC-74A, SOT-753 | 5,475 Cart + RFQ |
TISP4P035L1NR-S Bourns, Inc. | 1 $0.8300 | Datasheet | 35V | 24V | - | 30 A | 18 A | 30 mA | 1 | 3.5pF | Surface Mount | SC-74A, SOT-753 | 1,308 Cart + RFQ |
TISP4015H1BJR-S Bourns, Inc. | 1 $0.8700 | Datasheet | 15V | 8V | 3 V | 400 A | 100 A | 50 mA | 1 | 85pF | Surface Mount | DO-214AA, SMB | 7,118 Cart + RFQ |
TISP4350H3BJR-S Bourns, Inc. | 1 $0.8900 | Datasheet | 350V | 275V | 3 V | 300 A | 100 A | 150 mA | 1 | 62pF | Surface Mount | DO-214AA, SMB | 3,665 Cart + RFQ |
TISP4500H3BJR-S Bourns, Inc. | 1 $0.8900 | Datasheet | 500V | 350V | - | - | 100 A | 150 mA | 1 | 62pF | Surface Mount | DO-214AA, SMB | 4,973 Cart + RFQ |
TISP4C350H3BJR-S Bourns, Inc. | 1 $0.9100 | Datasheet | 350V | 275V | 3 V | - | 100 A | 150 mA | 1 | 40pF | Surface Mount | DO-214AA, SMB | 3,869 Cart + RFQ |
 TISP61089BDR-S Bourns, Inc. | 1 $1.4500 | Datasheet | 64V | 170V | - | - | 30 A | 150 mA | 2 | 100pF | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 4,265 Cart + RFQ |
TISP4030L1AJR-S Bourns, Inc. | 1 $0.4600 | Datasheet | 30V | 15V | - | 120 A | 30 A | 50 mA | 1 | 29pF | Surface Mount | DO-214AC, SMA | 5,738 Cart + RFQ |
TISP4040L1AJR-S Bourns, Inc. | 1 $0.4600 | Datasheet | 40V | 25V | - | 120 A | 30 A | 50 mA | 1 | 24pF | Surface Mount | DO-214AC, SMA | 2,001 Cart + RFQ |
TISP4310T3BJR-S Bourns, Inc. | 1 $0.8000 | Datasheet | 310V | 269V | 3 V | - | 80 A | 150 mA | 1 | 52pF | Surface Mount | DO-214AA, SMB | 9,790 Cart + RFQ |
TISP4400M3BJR-S Bourns, Inc. | 1 $0.8200 | Datasheet | 400V | 300V | 3 V | 220 A | 50 A | 350 mA | 1 | 50pF | Surface Mount | DO-214AA, SMB | 5,949 Cart + RFQ |

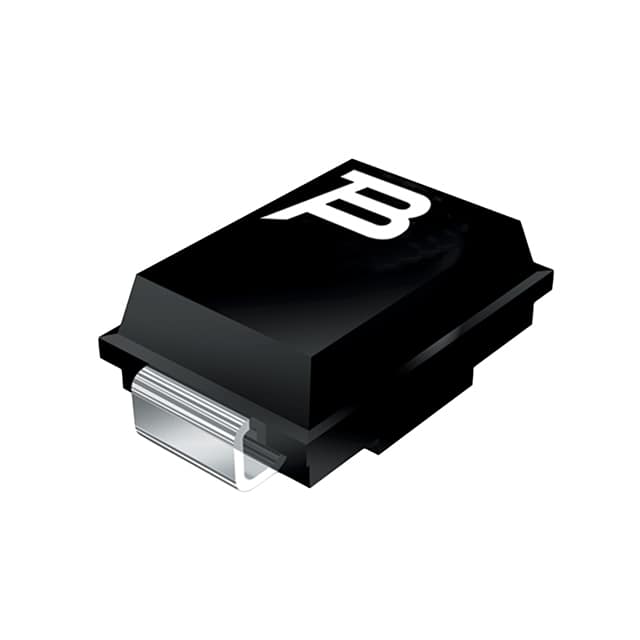

 TISP4011H1BJR-S Bourns, Inc. | 1 $0.8700 | Datasheet | 10.5V | 5.25V | 3 V | - | 100 A | 60 mA | 1 | 110pF | Surface Mount | DO-214AA, SMB | 8,376 Cart + RFQ |
