Fuses
A fuse is a device designed to stop current flow when it exceeds a certain limit (overcurrent protection). The devices works by creating an opening in a material situated between two end terminals. The material will melt (blow) from an increase in heat generated by the device as the current flow changes. The amount of time it takes the device to blow is often defined as fast or slow-blow.
Product List
Total Components: 16
| Product | Pricing | Datasheet | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Package / Case | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 36911000000 Hamlin / Littelfuse | 1 $0.0970 100 $0.0776 500 $0.0647 | Datasheet | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 300 V | - | Slow Blow | Radial, Box | 50A | 5.8 | cULus, PSE/JET | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | 5,430 Cart + RFQ |
36912000000 Hamlin / Littelfuse | 1 $0.5900 | Datasheet | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 300 V | - | Slow Blow | Radial, Box | 50A | 21 | cULus, PSE/JET | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | 1,653 Cart + RFQ |

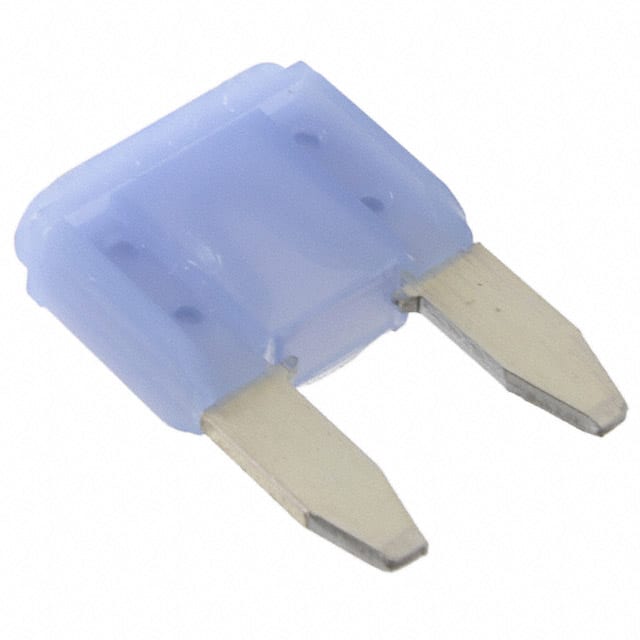

 0297015.H Hamlin / Littelfuse | 1 $0.4000 | Datasheet | Holder | Automotive | 15 A | - | 32 V | - | Blade, Miniature | 1kA | 270 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 6,197 Cart + RFQ |
0297015.L Hamlin / Littelfuse | 1 $0.4800 | Datasheet | Holder | Automotive | 15 A | - | 32 V | Fast Blow | Blade, Miniature | 1kA | 270 | UL, UR | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 2,831 Cart + RFQ |
0297015.WXNV Hamlin / Littelfuse | 1 $0.2900 | Datasheet | Holder | Automotive | 15 A | - | 32 V | Fast Blow | Blade, Miniature | 1kA | 270 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 3,566 Cart + RFQ |
 0297003.WXNV Hamlin / Littelfuse | 1 $0.2900 | Datasheet | Holder | Automotive | 3 A | - | 32 V | Fast Blow | Blade, Miniature | 1kA | 9.4 | - | -40°C ~ 125°C | Violet | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 8,335 Cart + RFQ |
 0297005.WXNV Hamlin / Littelfuse | 1 $0.2900 | Datasheet | Holder | Automotive | 5 A | - | 32 V | Fast Blow | Blade, Miniature | 1kA | 25 | - | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 2,977 Cart + RFQ |

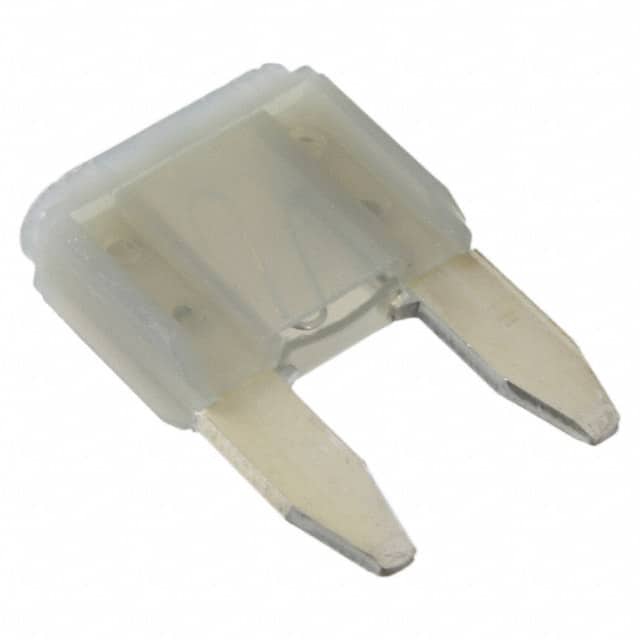

 0297002.WXNV Hamlin / Littelfuse | 1 $0.2900 | Datasheet | Holder | Automotive | 2 A | - | 32 V | Fast Blow | Blade, Miniature | 1kA | 2.8 | - | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 6,881 Cart + RFQ |
 0297010.WXNV Hamlin / Littelfuse | 1 $0.2900 | Datasheet | Holder | Automotive | 10 A | - | 32 V | Fast Blow | Blade, Miniature | 1kA | 93 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | 6,207 Cart + RFQ |

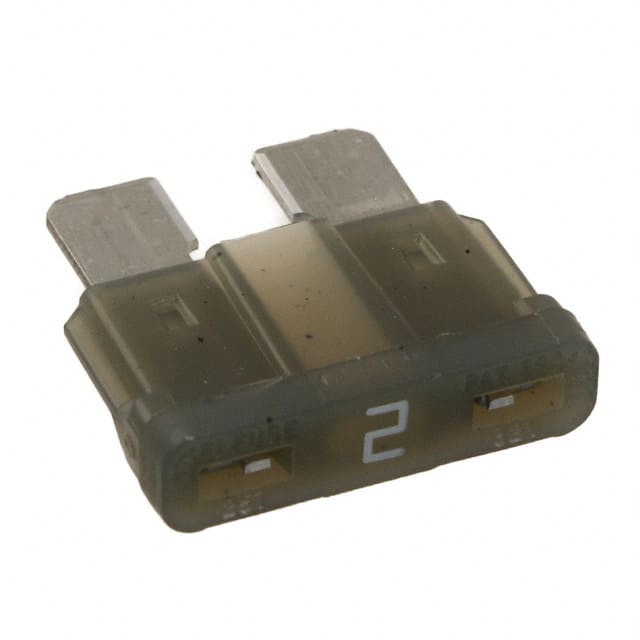

 0287002.PXCN Hamlin / Littelfuse | 1 $0.3300 | Datasheet | Holder | Automotive | 2 A | - | 32 V | Fast Blow | Blade, ATO/ATC | 1kA | 1.4 | UL | -40°C ~ 105°C | Gray | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | 1,304 Cart + RFQ |

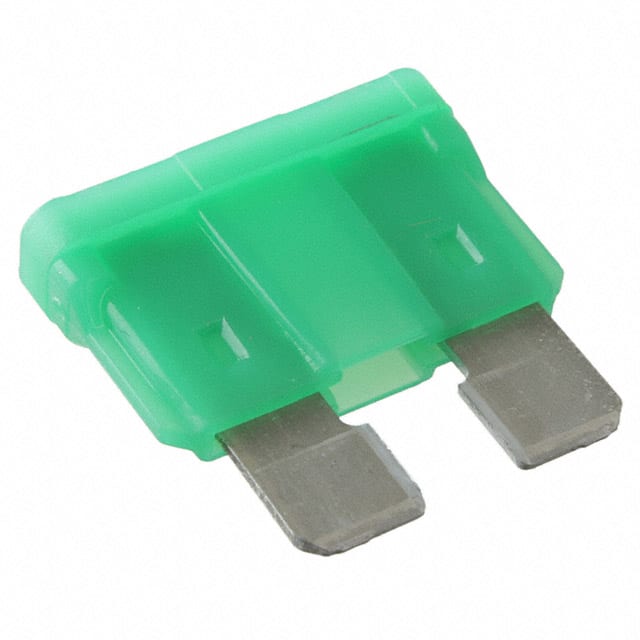

 0287030.PXCN Hamlin / Littelfuse | 1 $0.3300 | Datasheet | Holder | Automotive | 30 A | - | 32 V | - | Blade, ATO/ATC | - | 1510 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | 8,796 Cart + RFQ |

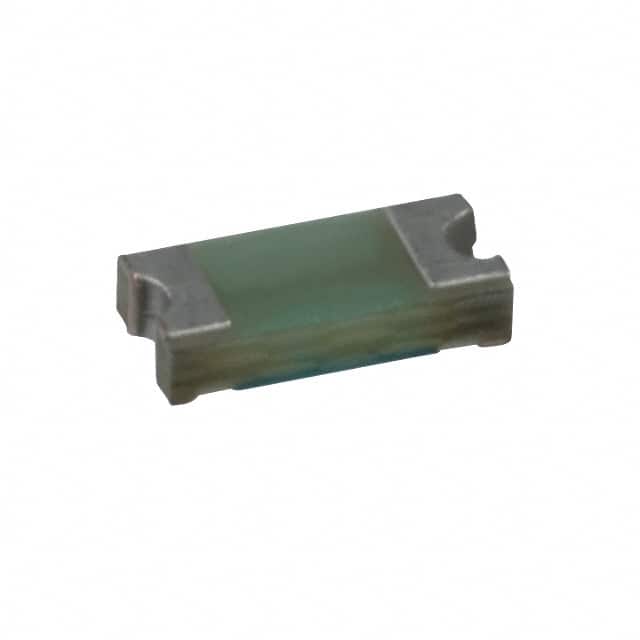

 0466.125NRHF Hamlin / Littelfuse | 1 $0.9100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 1206 (3216 Metric) | 50A | 0.0004 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | 7,260 Cart + RFQ |
0466001.NR Hamlin / Littelfuse | 1 $0.0900 100 $0.0720 500 $0.0600 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 63 V | 63 V | Fast Blow | 1206 (3216 Metric) | 50A | 0.0423 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | 5,000 Cart + RFQ |
0466.200NRHF Hamlin / Littelfuse | 1 $0.9100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 125 V | Fast Blow | 1206 (3216 Metric) | 50A | 0.00055 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | 8,585 Cart + RFQ |
0466.500NRHF Hamlin / Littelfuse | 1 $0.9100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 63 V | 63 V | Fast Blow | 1206 (3216 Metric) | 50A | 0.006 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | 3,306 Cart + RFQ |
0466.500NR Hamlin / Littelfuse | 1 $0.9100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 63 V | 63 V | Fast Blow | 1206 (3216 Metric) | 50A | 0.006 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | 7,774 Cart + RFQ |
