Fuses
A fuse is a device designed to stop current flow when it exceeds a certain limit (overcurrent protection). The devices works by creating an opening in a material situated between two end terminals. The material will melt (blow) from an increase in heat generated by the device as the current flow changes. The amount of time it takes the device to blow is often defined as fast or slow-blow.
Product List
Total Components: 14
| Product | Pricing | Datasheet | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Package / Case | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SF-1206F100-2 Bourns, Inc. | 1 $0.5100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 63 V | Fast Blow | 1206 (3216 Metric) | 50A | 0.034 | UL | -40°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | 2,523 Cart + RFQ |
SF-1206S050-2 Bourns, Inc. | 1 $0.5400 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 63 V | Slow Blow | 1206 (3216 Metric) | 50A | 0.03 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | 6,155 Cart + RFQ |
SF-1206S200-2 Bourns, Inc. | 1 $0.5400 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 63 V | Slow Blow | 1206 (3216 Metric) | 50A | 0.339 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | 6,643 Cart + RFQ |

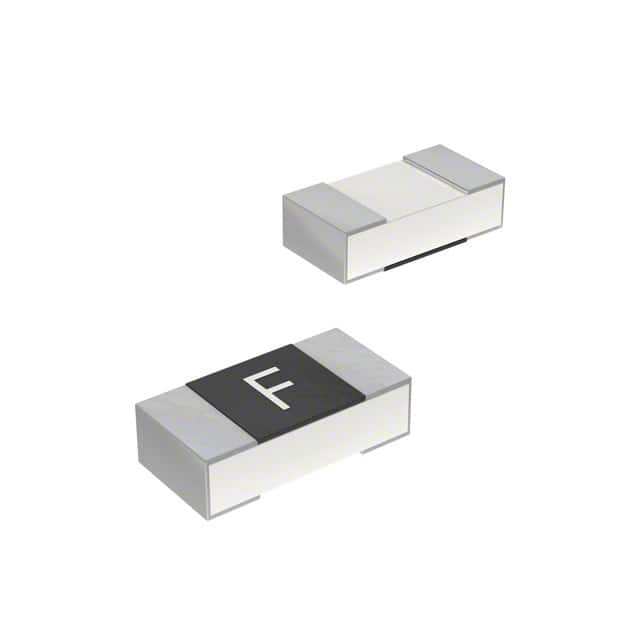

 SF-0603F500-2 Bourns, Inc. | 1 $0.5400 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Fast Blow | 0603 (1608 Metric) | 50A | 0.433 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | 4,750 Cart + RFQ |
SF-1206S150-2 Bourns, Inc. | 1 $0.5400 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | - | 63 V | Slow Blow | 1206 (3216 Metric) | 50A | 0.236 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | 2,821 Cart + RFQ |
SF-1206S400-2 Bourns, Inc. | 1 $0.5400 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 32 V | Slow Blow | 1206 (3216 Metric) | 50A | 1.537 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | 7,855 Cart + RFQ |
SF-0603S300-2 Bourns, Inc. | 1 $0.5800 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | - | 32 V | Slow Blow | 0603 (1608 Metric) | 50A | 0.21 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | 2,813 Cart + RFQ |
SF-0603S050-2 Bourns, Inc. | 1 $0.5800 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 50 V | Slow Blow | 0603 (1608 Metric) | 50A | 0.009 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | 7,502 Cart + RFQ |
SF-0603S040-2 Bourns, Inc. | 1 $0.6400 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 400 mA | 35 V | 50 V | Slow Blow | 0603 (1608 Metric) | 50A | 0.004 | UL | -20°C ~ 105°C | - | 0.063" L x 0.031" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | 5,524 Cart + RFQ |

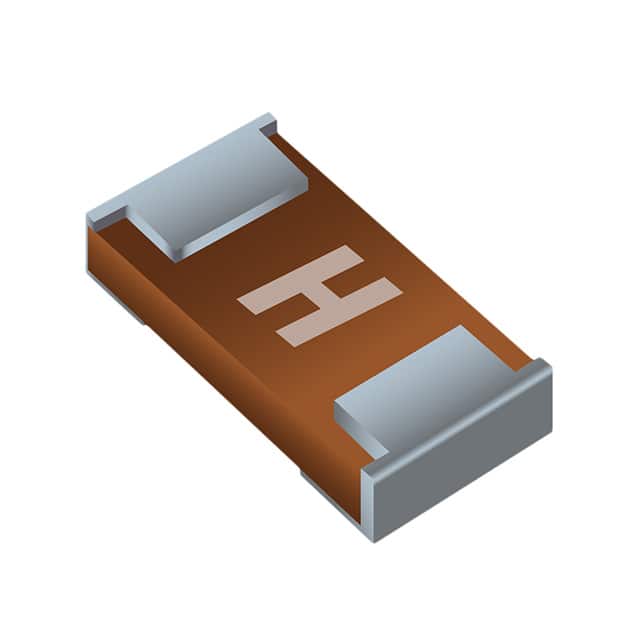

 SF-0603FP050F-2 Bourns, Inc. | 1 $0.6500 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 65 V | 65 V | Fast Blow | 0603 (1608 Metric) | 13A AC, 50A DC | 0.012 | UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm) | 1,129 Cart + RFQ |
SF-0603S200-2 Bourns, Inc. | 1 $0.7100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 32 V | Slow Blow | 0603 (1608 Metric) | 50A | 0.115 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | 6,473 Cart + RFQ |
 SF-0603S100M-2 Bourns, Inc. | 1 $0.7100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 63 V | Slow Blow | 0603 (1608 Metric) | 35A | 0.013 | - | -55°C ~ 125°C | - | 0.063" L x 0.031" W x 0.037" H (1.60mm x 0.80mm x 0.95mm) | 6,860 Cart + RFQ |
SF-0603S125-2 Bourns, Inc. | 1 $0.8000 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | - | 32 V | Slow Blow | 0603 (1608 Metric) | 50A | 0.057 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | 1,051 Cart + RFQ |

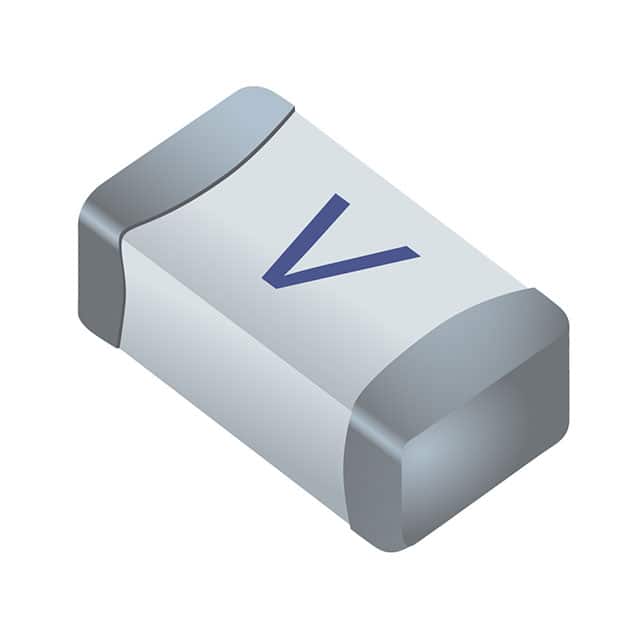

 SF-1206HV25M-2 Bourns, Inc. | 1 $0.8100 | Datasheet | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | - | 35 V | Slow Blow | 1206 (3216 Metric) | 200A | 120 | UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm) | 7,156 Cart + RFQ |
