Fuseholders
Fuseholders/fuse holders are devices created to house or clip onto different styles of fuses. They are available for fuse styles such as: blade, bolt down, cartridge, link, radial, rectangular, threaded, etc. The termination options are bolt down, box lug, crimp, pc pin, quick connect of various sizes, screw, solder, wire lead, through hole, etc. There are options that hold just 1 fuse, all the way up to 60. For use with fuse sizes such as: mini ATO, ATC, radial, 5 mm, 5 mm x 20 mm, and many other various sizes including custom, non-standard options.
Product List
Total Components: 36
Product | Pricing | Datasheet | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01110501Z Hamlin / Littelfuse | 1 $0.1500 | Datasheet | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Spring Brass | Tin | 4,580 Cart + RFQ |
01000057Z Hamlin / Littelfuse | 1 $0.2100 | Datasheet | Through Hole | - | 15 A | ATC, ATO | Blade | Clip | 1 | 125V | Vertical | PC Pin | Spring Brass | Tin | 8,391 Cart + RFQ |
01020071Z Hamlin / Littelfuse | 1 $0.2700 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 15 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Spring Brass | Tin | 6,903 Cart + RFQ |
10207101009 Hamlin / Littelfuse | 1 $0.3000 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 10 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 500V | Horizontal | PC Pin | Brass | Tin | 8,369 Cart + RFQ |
01000056Z Hamlin / Littelfuse | 1 $0.4200 | Datasheet | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Spring Brass | Tin | 4,391 Cart + RFQ |

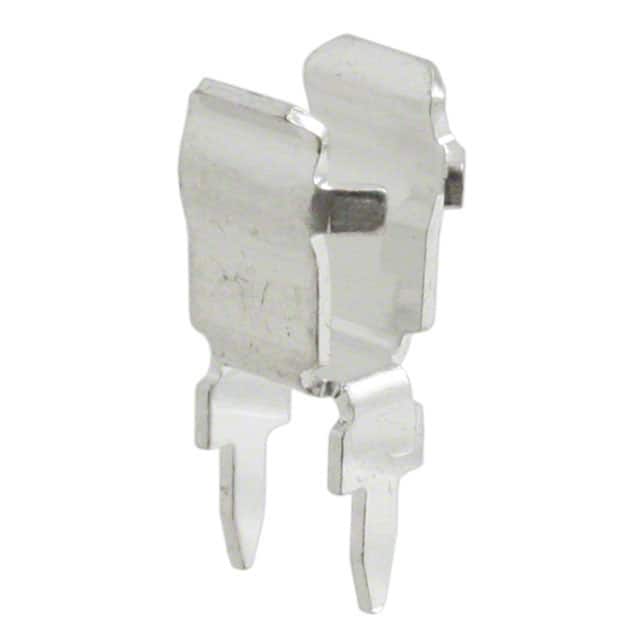

01000020Z Hamlin / Littelfuse | 1 $0.7200 | Datasheet | Through Hole | 0.197" Dia (5mm) | 20 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 600V | Horizontal | PC Pin | Phosphorus Bronze | Tin | 9,907 Cart + RFQ |

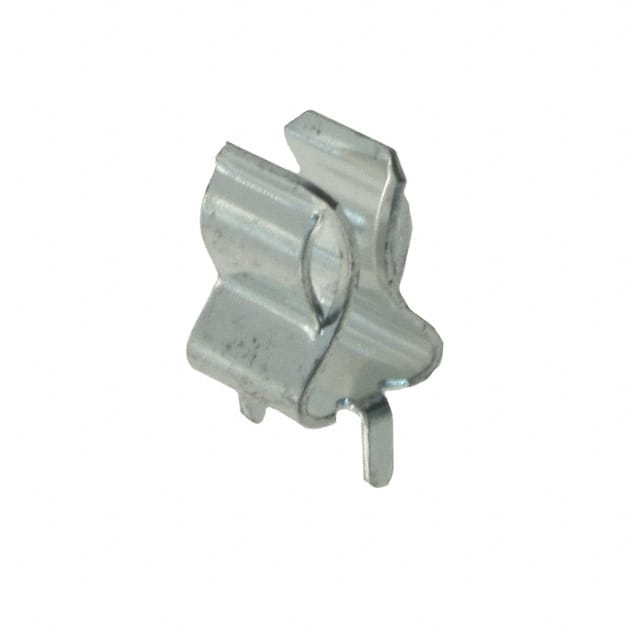

01220083Z Hamlin / Littelfuse | 1 $0.8500 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 30 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Beryllium Copper | Silver | 5,945 Cart + RFQ |

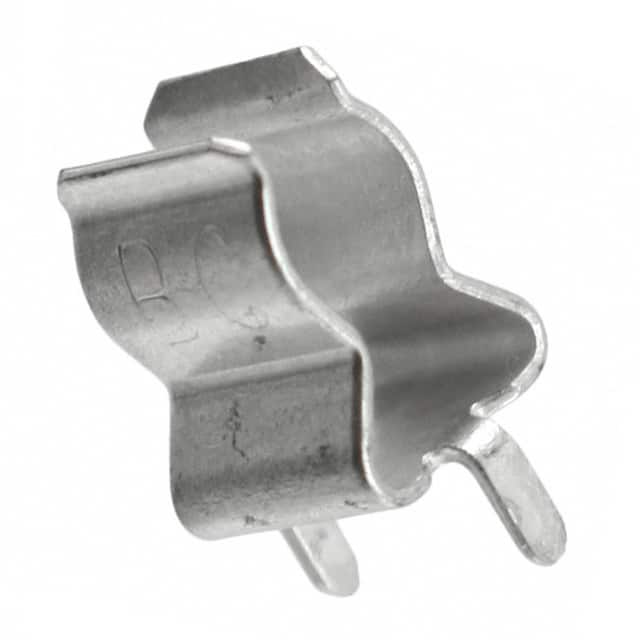

01220093Z Hamlin / Littelfuse | 1 $0.8500 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 30 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Beryllium Copper | Tin | 9,417 Cart + RFQ |

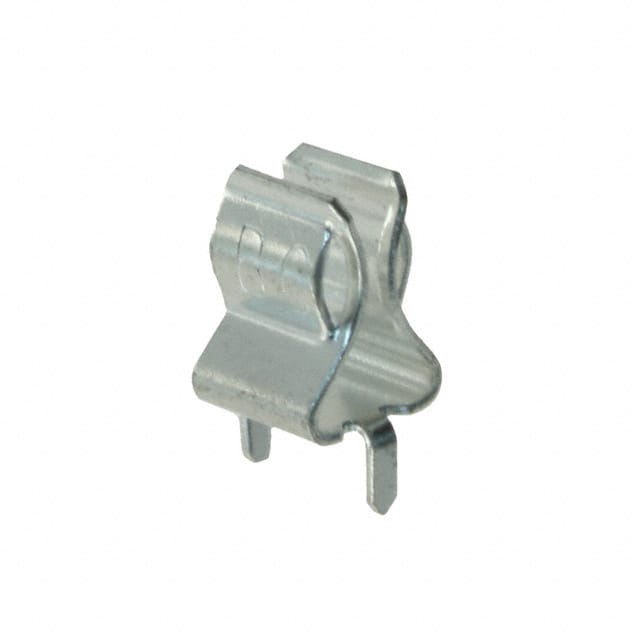

01220088Z Hamlin / Littelfuse | 1 $0.8500 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 30 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 1000V | Horizontal | PC Pin | Beryllium Copper | Tin | 1,254 Cart + RFQ |

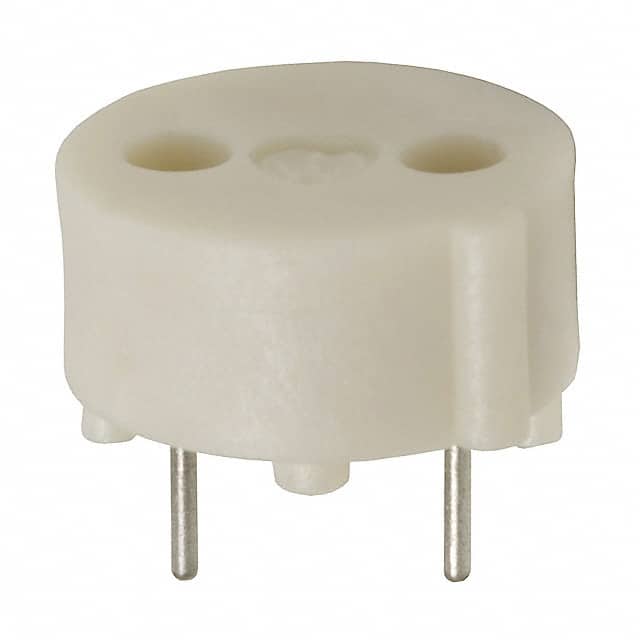

56000001009 Hamlin / Littelfuse | 1 $0.8800 | Datasheet | Through Hole | Radial 0.2" (5.08mm) Pitch | 6.3 A | Radial Box, Can | Radial | Holder | 1 | 250V | Vertical | PC Pin | Copper Alloy | Tin | 6,326 Cart + RFQ |

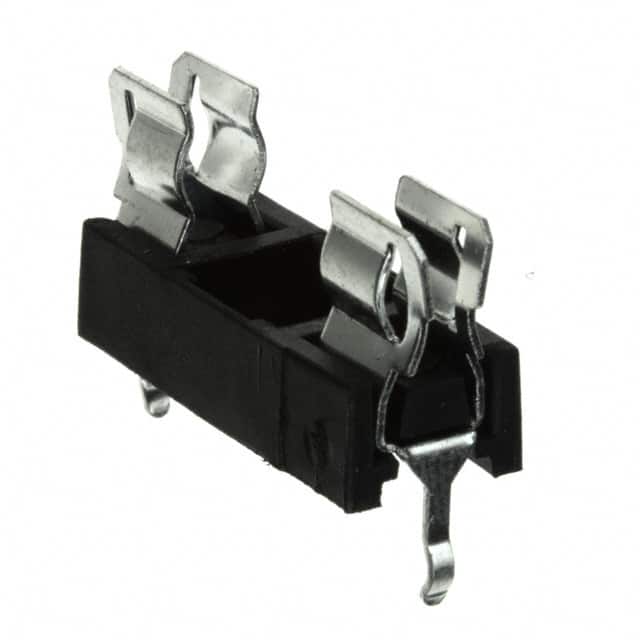

64600001223 Hamlin / Littelfuse | 1 $0.9100 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 6.3 A | 5mm x 20mm | Cartridge | Block | 1 | 250V | Horizontal | PC Pin | Copper Alloy | Tin | 9,577 Cart + RFQ |

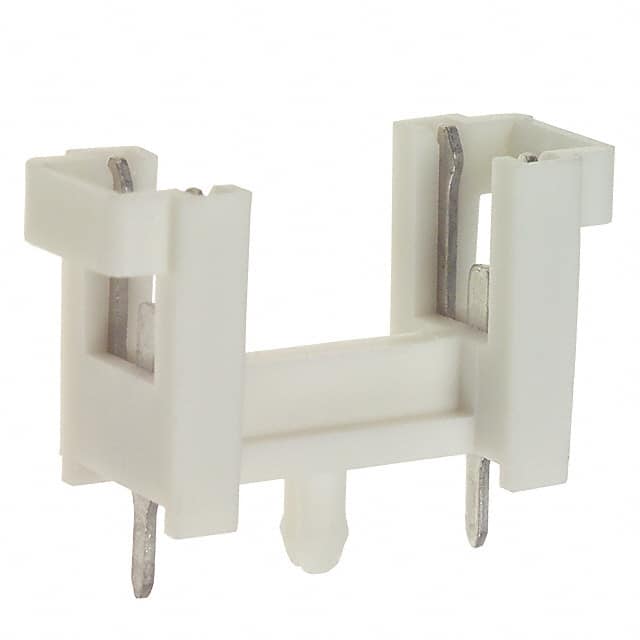

64900001039 Hamlin / Littelfuse | 1 $1.0200 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 6.3 A | 5mm x 20mm | Cartridge | Block | 1 | 250V | Horizontal | PC Pin | Copper Alloy | Tin | 4,668 Cart + RFQ |
64600001003 Hamlin / Littelfuse | 1 $1.0500 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 6.3 A | 5mm x 20mm | Cartridge | Block | 1 | 250V | Horizontal | PC Pin | Copper Alloy | Tin | 5,467 Cart + RFQ |

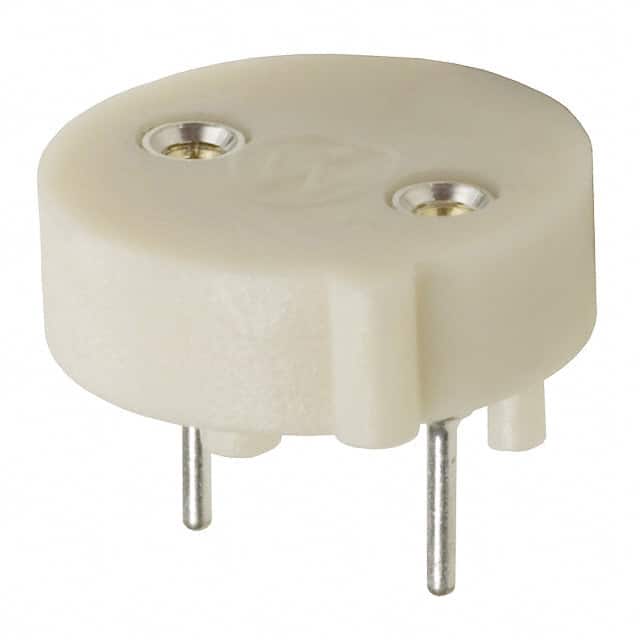

56000001319 Hamlin / Littelfuse | 1 $1.0600 | Datasheet | Through Hole | Radial 0.2" (5.08mm) Pitch | 6.3 A | Radial Box, Can | Radial | Holder | 1 | 250V | Vertical | PC Pin | Copper Alloy | Tin | 7,857 Cart + RFQ |

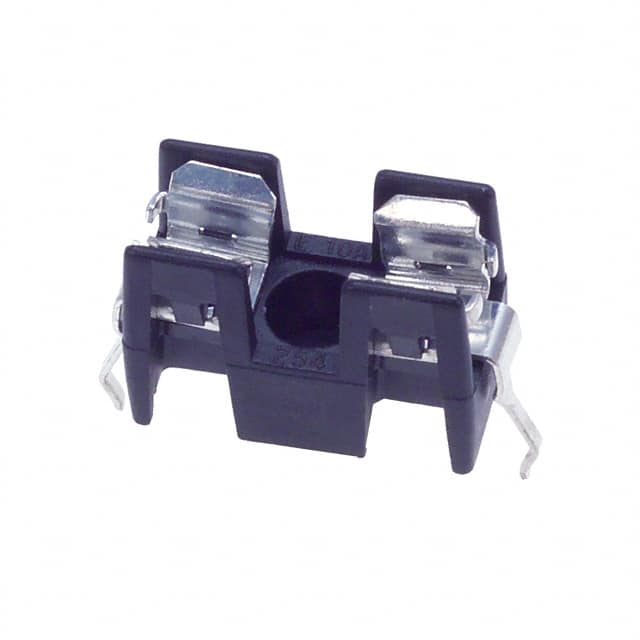

02540101Z Hamlin / Littelfuse | 1 $1.5600 | Datasheet | Through Hole | 0.177" Dia x 0.57" L (4.5mm x 14.48mm) | 10 A | 2AG, 5mm x 15mm | Cartridge | Block | 1 | 400V | Horizontal | PC Pin | Spring Brass | Tin | 7,295 Cart + RFQ |

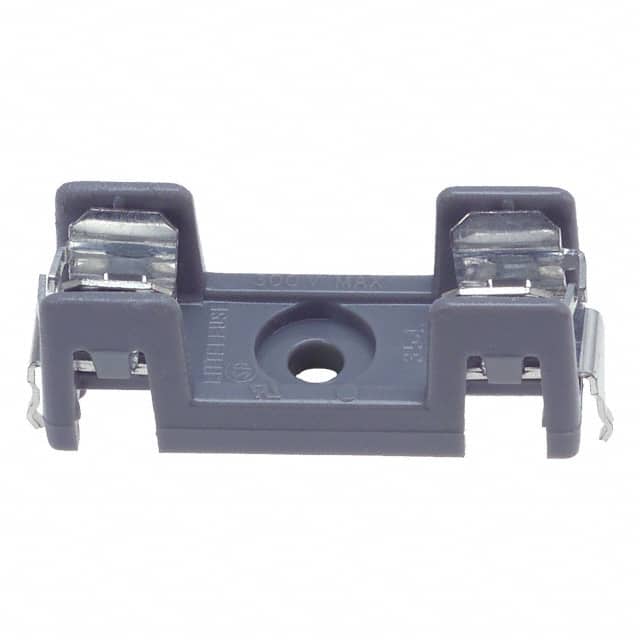

03540101ZXGY Hamlin / Littelfuse | 1 $1.5600 | Datasheet | Through Hole | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 15 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 1 | 600V | Horizontal | PC Pin | Phosphorus Bronze | Tin | 7,828 Cart + RFQ |

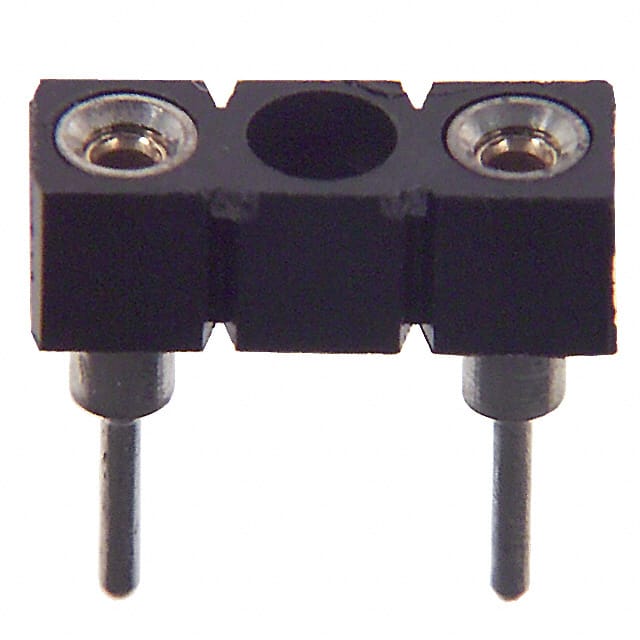

56200001009 Hamlin / Littelfuse | 1 $1.6400 | Datasheet | Through Hole | Radial 0.2" (5.08mm) Pitch | 6.3 A | Radial Box, Can | Radial | Holder | 1 | 250V | Vertical | PC Pin | Copper Alloy | Tin | 5,312 Cart + RFQ |

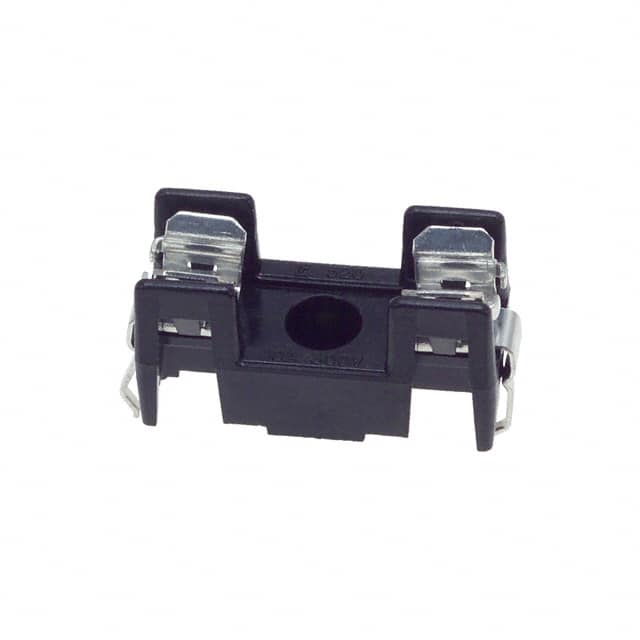

05200101Z Hamlin / Littelfuse | 1 $1.7300 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 600V | Horizontal | PC Pin | Brass | Tin | 2,453 Cart + RFQ |

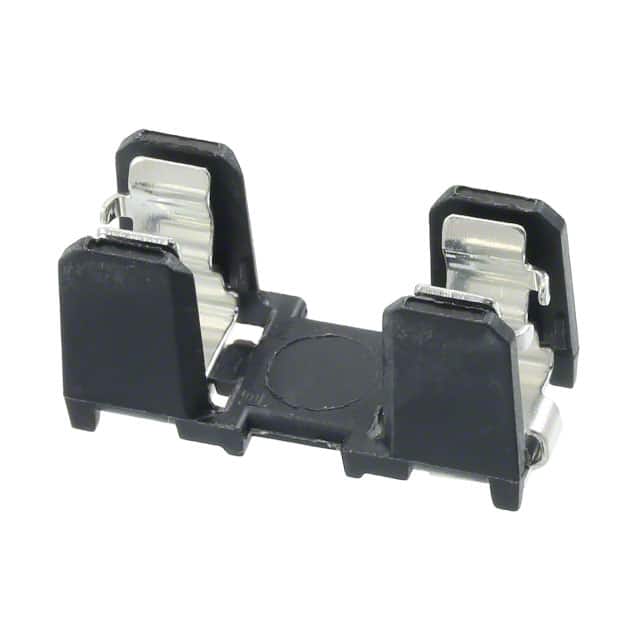

65800001109 Hamlin / Littelfuse | 1 $3.4200 | Datasheet | Surface Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 250V | - | J-Lead | Copper Alloy | Tin | 9,072 Cart + RFQ |

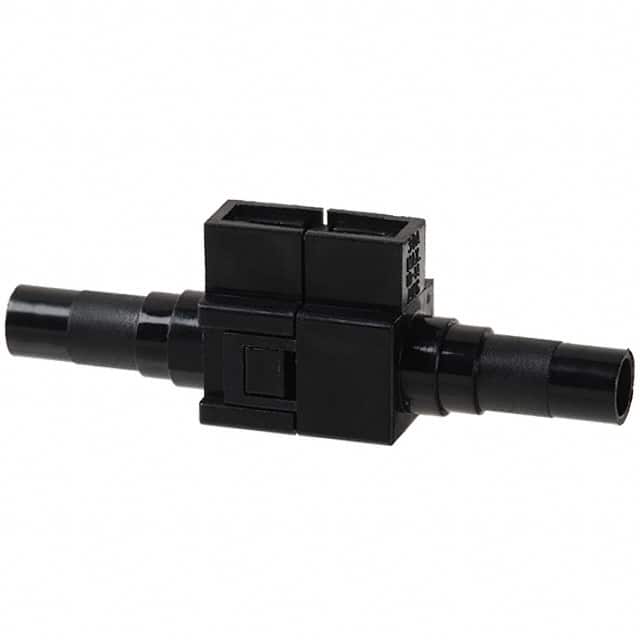

01530002H Hamlin / Littelfuse | 1 $2.0000 | Datasheet | Free Hanging (In-Line) | 0.433" L x 0.152" W (11.00mm x 3.85mm) | 20 A | Miniature (ATM) | Blade | Holder | 1 | - | - | Crimp | Copper Alloy | Tin | 2,683 Cart + RFQ |
