Fuseholders
Fuseholders/fuse holders are devices created to house or clip onto different styles of fuses. They are available for fuse styles such as: blade, bolt down, cartridge, link, radial, rectangular, threaded, etc. The termination options are bolt down, box lug, crimp, pc pin, quick connect of various sizes, screw, solder, wire lead, through hole, etc. There are options that hold just 1 fuse, all the way up to 60. For use with fuse sizes such as: mini ATO, ATC, radial, 5 mm, 5 mm x 20 mm, and many other various sizes including custom, non-standard options.
Product List
Total Components: 22
Product | Pricing | Datasheet | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0751.0110 SCHURTER | 1 $0.1400 | Datasheet | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Brass | Tin | 2,159 Cart + RFQ |
0751.0062 SCHURTER | 1 $0.1600 | Datasheet | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Brass | Tin | 6,426 Cart + RFQ |

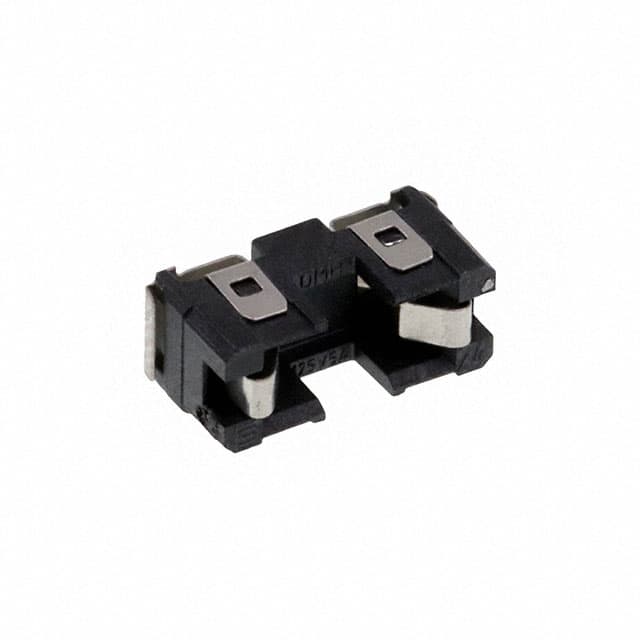

0031.7701.22 SCHURTER | 1 $1.5300 | Datasheet | Surface Mount | 0.291" L x 0.122" W x 0.102" H (7.39mm x 3.1mm x 2.59mm) | 5 A | 2-SMD, J-Lead | Cartridge | Holder | 1 | 125V | - | J-Lead | Copper Alloy | Tin | 1,411 Cart + RFQ |

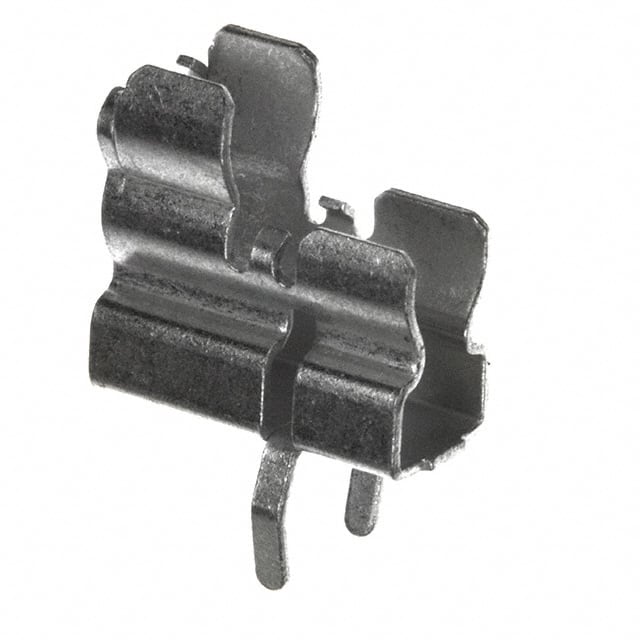

0751.0100 SCHURTER | 1 $0.8000 | Datasheet | Through Hole | 0.25" Dia (6.35mm), 0.197" Dia (5mm) | 16 A | 1/4" Dia, 5mm Dia Fuses | Cartridge | Clip | 1 | 600V | Horizontal | PC Pin | Brass | Tin | 9,435 Cart + RFQ |

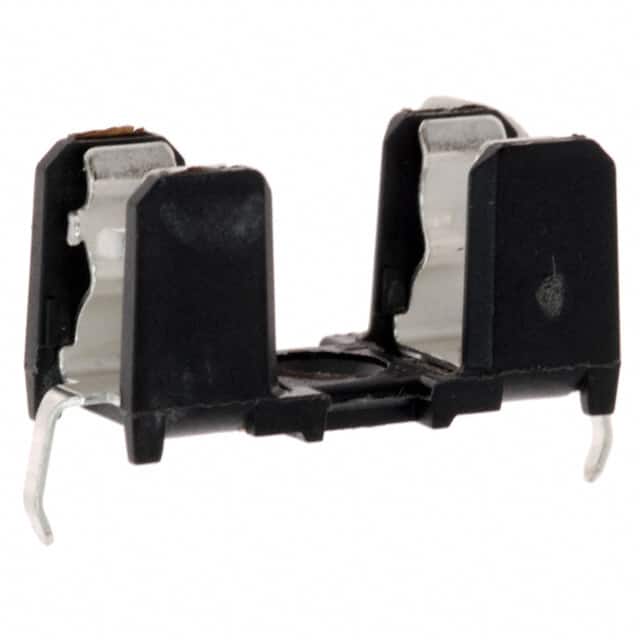

0031.8211 SCHURTER | 1 $0.9100 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 500V | Horizontal | PC Pin | Copper Alloy | Tin | 9,909 Cart + RFQ |

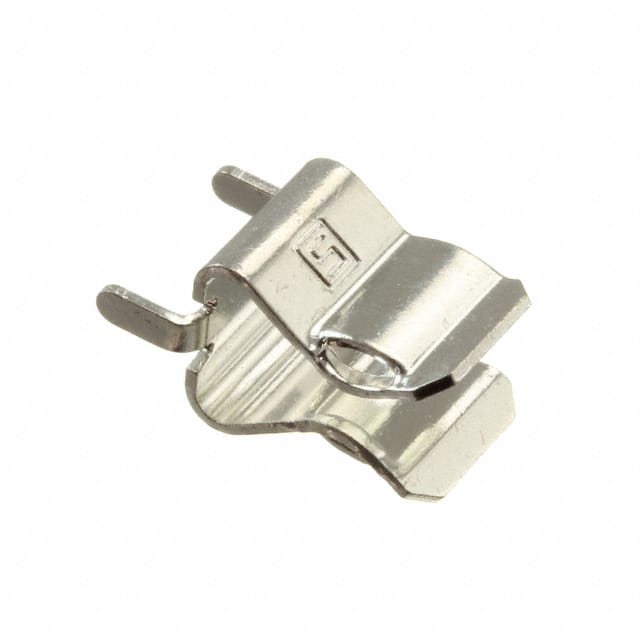

8040.0001 SCHURTER | 1 $0.9300 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 32 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 600V | Horizontal | PC Pin | Beryllium Copper | Tin | 1,813 Cart + RFQ |

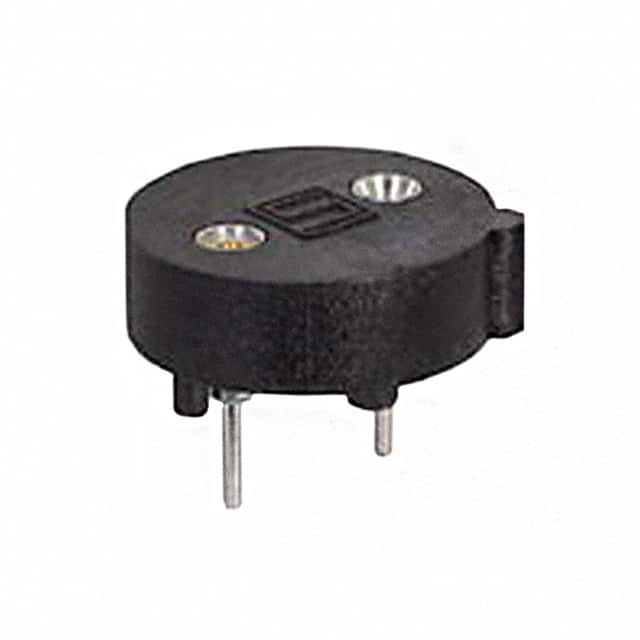

0031.7601 SCHURTER | 1 $0.9500 | Datasheet | Through Hole | Radial 0.2" (5.08mm) Pitch | 6.3 A | Radial Can | Radial | Holder | 1 | 250V | Vertical | PC Pin | Copper Alloy | Tin | 5,338 Cart + RFQ |

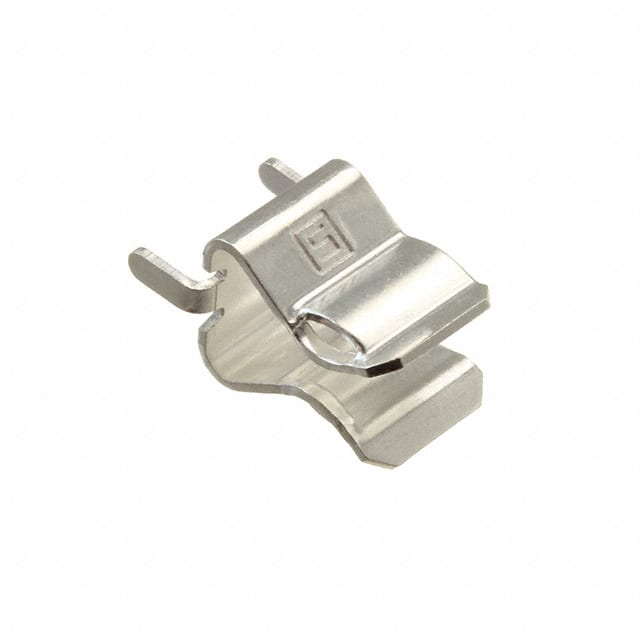

8040.0003 SCHURTER | 1 $1.0900 | Datasheet | Through Hole | 0.25" Dia (6.35mm) | 32 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 600V | Horizontal | PC Pin | Beryllium Copper | Silver | 8,651 Cart + RFQ |

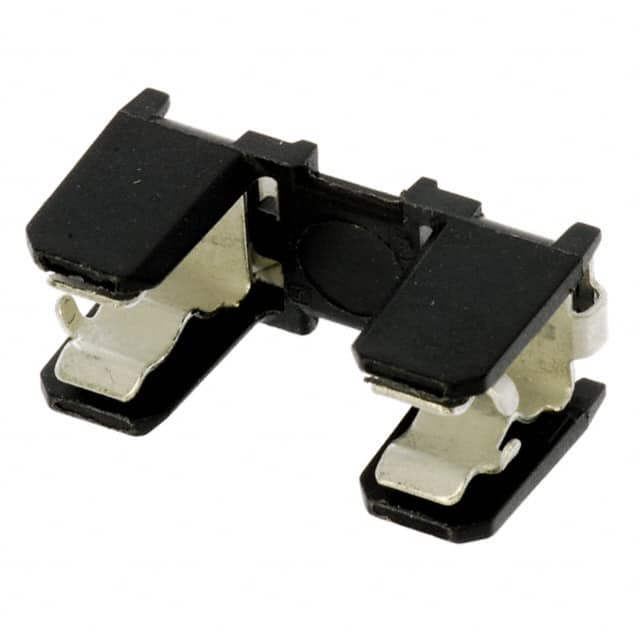

0031.8221 SCHURTER | 1 $1.3600 | Datasheet | Surface Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 500V | - | J-Lead | Copper Alloy | Tin | 2,758 Cart + RFQ |

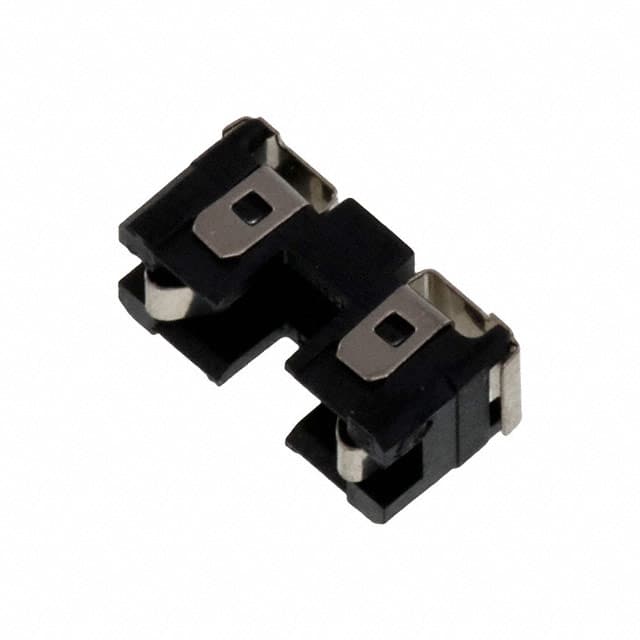

0031.7701.11 SCHURTER | 1 $1.3900 | Datasheet | Surface Mount | 0.291" L x 0.122" W x 0.102" H (7.39mm x 3.1mm x 2.59mm) | 5 A | 2-SMD, J-Lead | Cartridge | Holder | 1 | 125V | - | J-Lead | Copper Alloy | Tin | 3,533 Cart + RFQ |

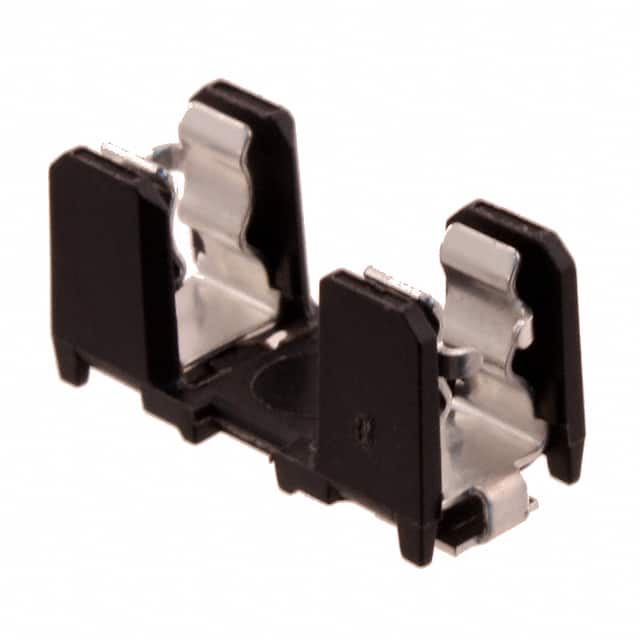

0031.8225 SCHURTER | 1 $2.1100 | Datasheet | Surface Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 500V | - | J-Lead | Copper Alloy | Tin | 2,826 Cart + RFQ |

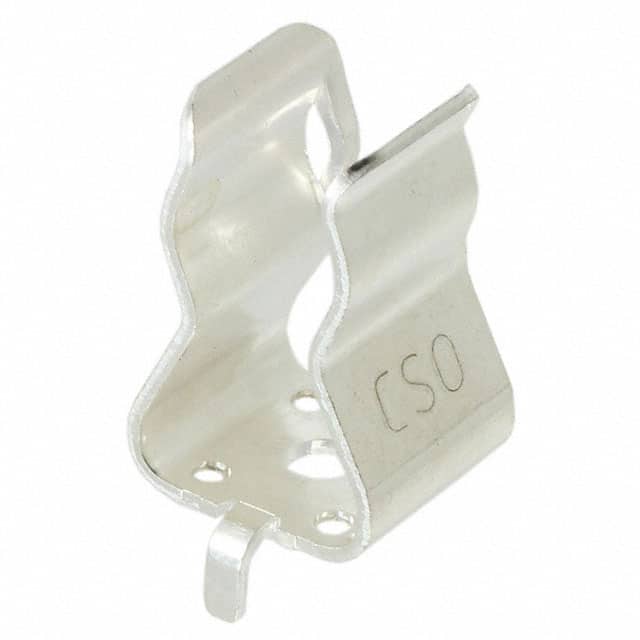

0751.0505 SCHURTER | 1 $1.4200 | Datasheet | Through Hole | 0.394" Dia (10mm) | 32 A | 13/32" Dia Fuses | Cartridge | Clip | - | 1500V | Horizontal | PC Pin | Copper Alloy | Silver | 2,531 Cart + RFQ |

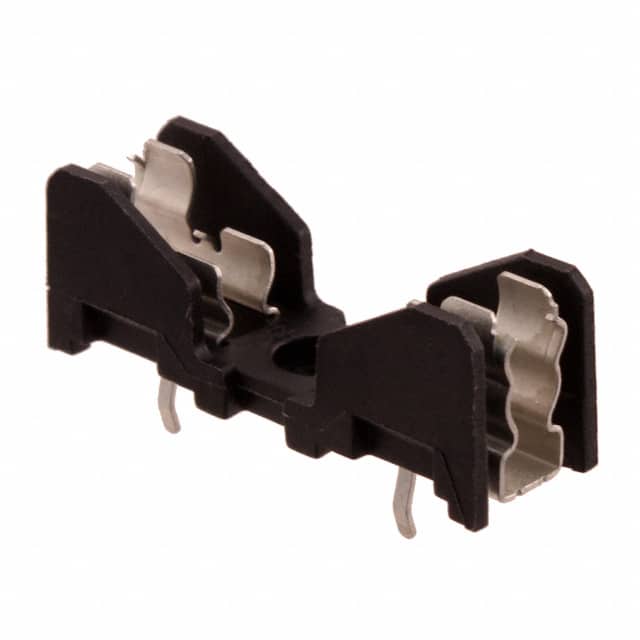

0031.8231 SCHURTER | 1 $1.8800 | Datasheet | Through Hole | 0.25" Dia x 1.26" L (6.35mm x 32mm), 5mm x 20mm | 16 A | 3AG, 1/4" x 1-1/4", 5mm x 20mm | Cartridge | Block | 1 | 600V | Horizontal | PC Pin | Copper Alloy | Tin | 7,797 Cart + RFQ |

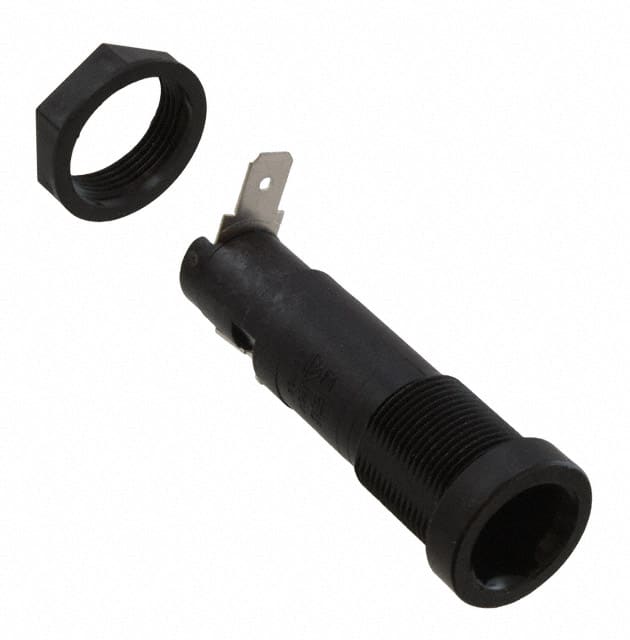

0031.1693 SCHURTER | 1 $2.6000 | Datasheet | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm), 5mm x 20mm | 20 A | 3AG, 1/4" x 1-1/4", 5mm x 20mm | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.187" (4.7mm) | Copper Alloy | Tin | 9,710 Cart + RFQ |

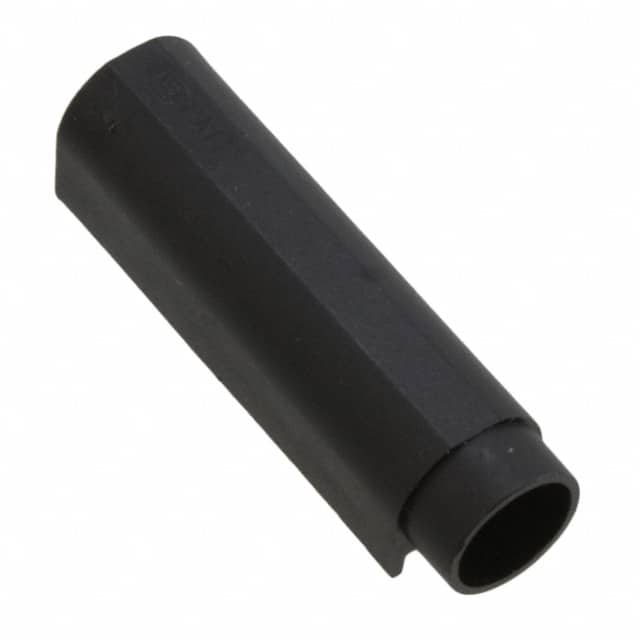

0031.3577 SCHURTER | 1 $2.6200 | Datasheet | Through Hole | 0.25" Dia x 1.26" L (6.35mm x 32mm), 5mm x 20mm | 16 A | 3AG, 1/4" x 1-1/4", 5mm x 20mm | Cartridge | Holder | 1 | 250V | Horizontal | PC Pin | Copper Alloy | Tin | 6,896 Cart + RFQ |
0031.3803 SCHURTER | 1 $3.1300 | Datasheet | Through Hole | 0.25" Dia x 1.26" L (6.35mm x 32mm), 5mm x 20mm | 16 A | 3AG, 1/4" x 1-1/4", 5mm x 20mm | Cartridge | Holder | 1 | 400V | Vertical | PC Pin | Copper Alloy | Tin | 9,561 Cart + RFQ |

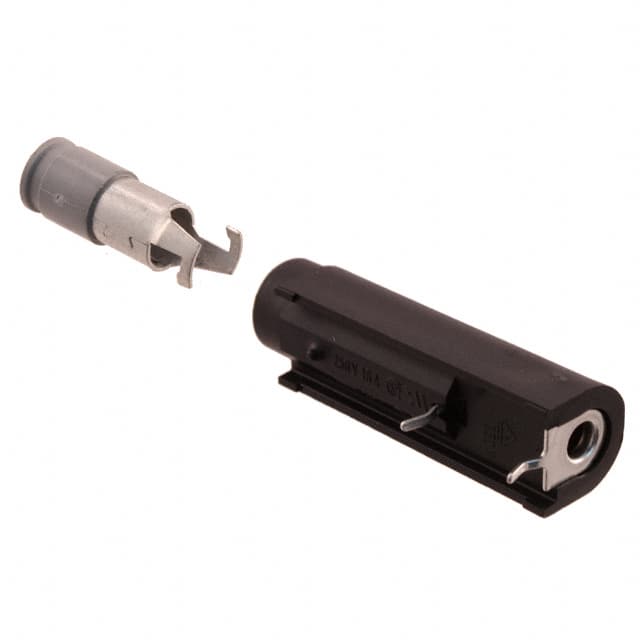

0031.3581 SCHURTER | 1 $3.9900 | Datasheet | Through Hole | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 16 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | Horizontal | PC Pin | Copper Alloy | Tin | 9,243 Cart + RFQ |

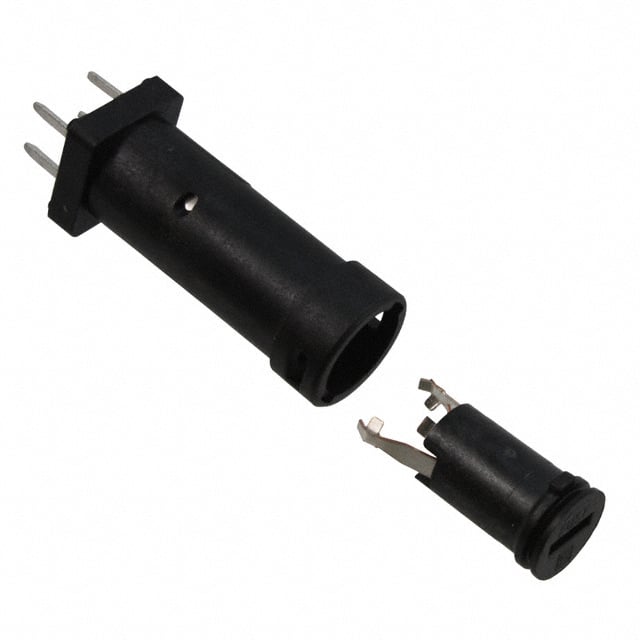

3101.0040 SCHURTER | 1 $4.0200 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 16 A | 5mm x 20mm | Cartridge | Holder | 1 | 500V | Vertical | PC Pin | Copper Alloy | Tin | 7,562 Cart + RFQ |

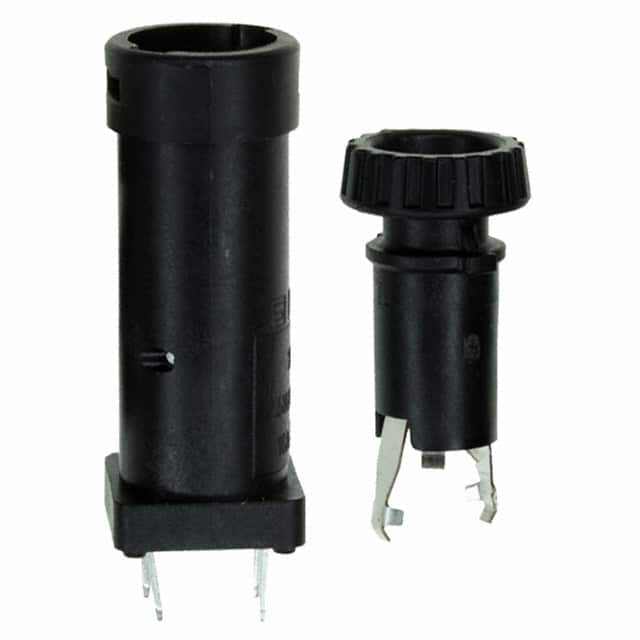

3101.0045 SCHURTER | 1 $4.0200 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 16 A | 5mm x 20mm | Cartridge | Holder | 1 | 500V | Vertical | PC Pin | Copper Alloy | Tin | 4,238 Cart + RFQ |

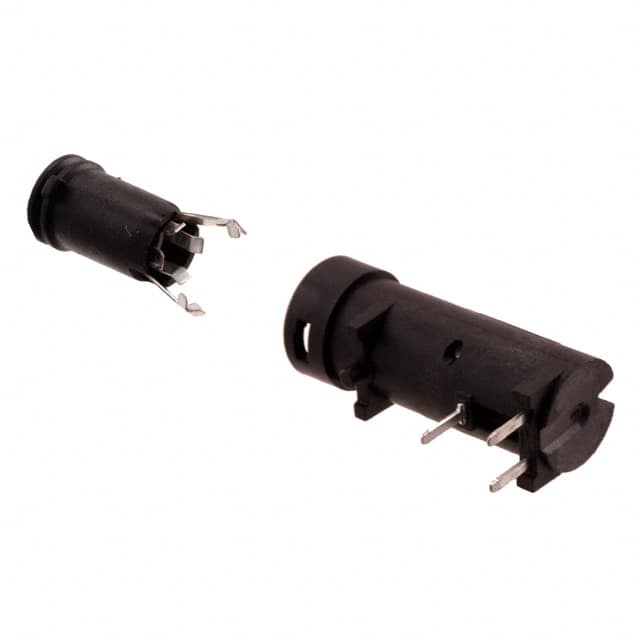

3101.0050 SCHURTER | 1 $4.0200 | Datasheet | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 16 A | 5mm x 20mm | Cartridge | Holder | 1 | 400V | Horizontal | PC Pin | Copper Alloy | Tin | 6,505 Cart + RFQ |
