Electrical, Specialty Fuses
Products in this family are used for over-current fault protection, and function on the basis of current flow in excess of a desired maximum causing the destruction of a conductive element within the device. They are distinguished from common fuses by one of several factors; bearing a non-supplementary classification under the UL248 standard, certification for use in hazardous or explosive environments, or a form factor other than those commonly encountered in products used for supplementary equipment protection such as those with an indication function or fusible cable links, and fuses designated for specific applications such as protection of telecommunications circuits or multimeters.
Product List
Total Components: 73
Product | Pricing | Datasheet | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Package / Case | Size / Dimension | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

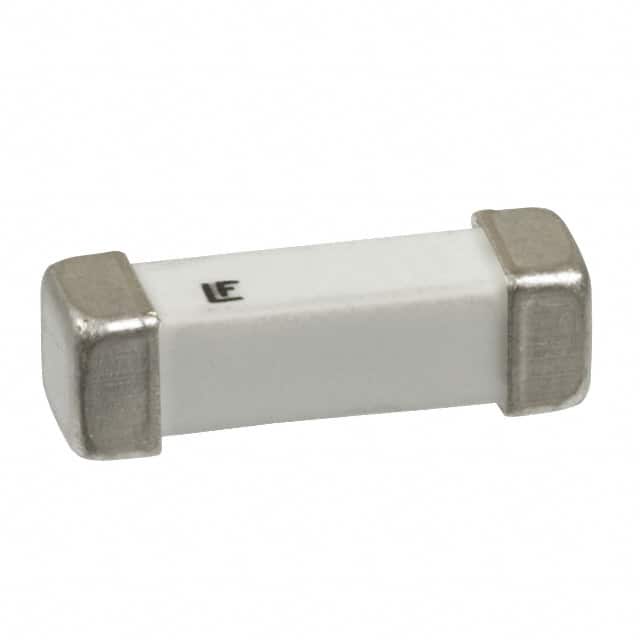

0461.500ER Hamlin / Littelfuse | 1 $2.0800 | Datasheet | Surface Mount | Board Mount | 500mA | 600 V | 80 V | Slow Blow | Telecom | - | - | CSA, UR | -55°C ~ 125°C | 60A AC, 100A DC | 2-SMD, Square End Block | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | 1,573 Cart + RFQ |

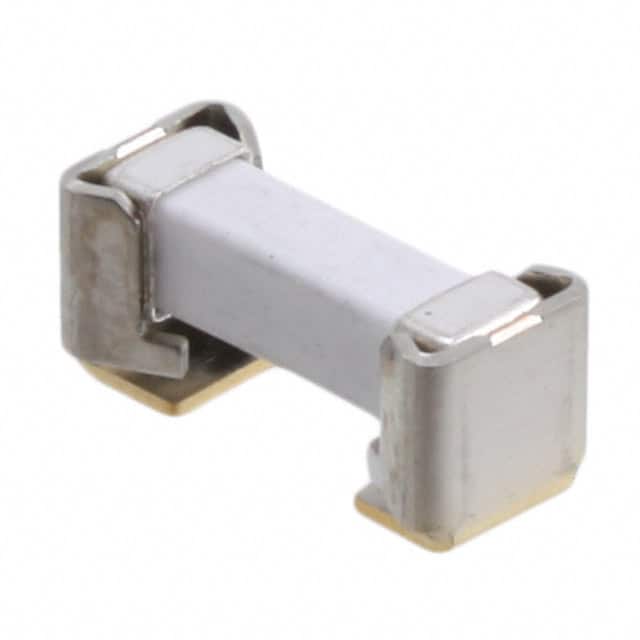

0159.500MR Hamlin / Littelfuse | 1 $4.1500 | Datasheet | Surface Mount | Board Mount | 500mA | 600 V | - | - | Telecom | Clips Included | - | cURus | -55°C ~ 125°C | 60A | 2-SMD, Square End Block with Clip | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | 8,862 Cart + RFQ |

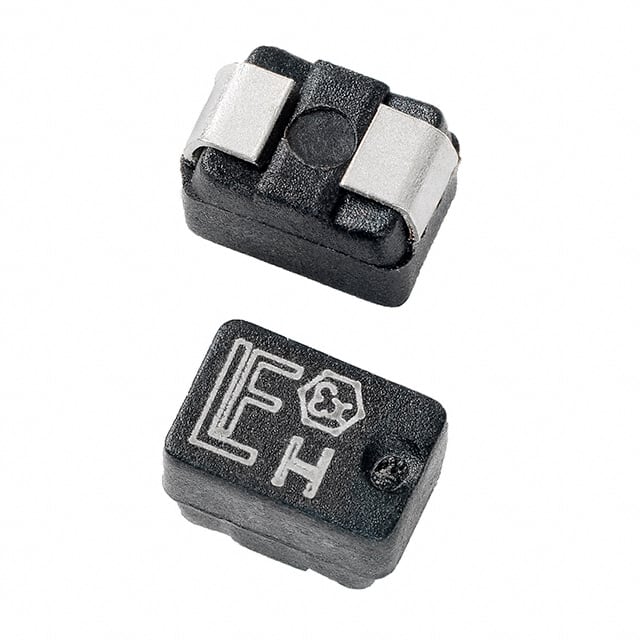

0308.250UR Hamlin / Littelfuse | 1 $3.9300 | Datasheet | Surface Mount | Board Mount | 250mA | 24 V | 30 V | Slow Blow | Hazardous Locations | Intrinsically Safe | - | cURus, Ex, IEC, IECEx | -40°C ~ 70°C | 50A | 2-SMD, J-Lead | 0.213" L x 0.150" W x 0.144" H (5.40mm x 3.80mm x 3.65mm) | 2,589 Cart + RFQ |

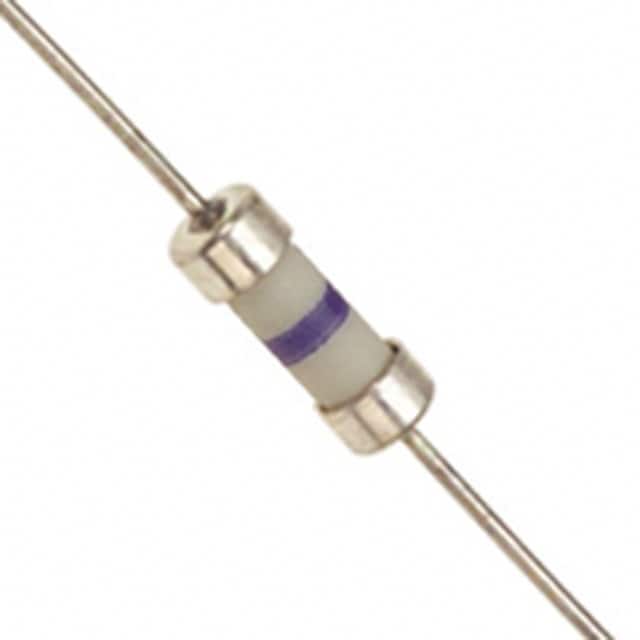

0242.100UAT1 Hamlin / Littelfuse | 1 $5.3800 | Datasheet | Through Hole | Cartridge | 100mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Axial | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 3,360 Cart + RFQ |

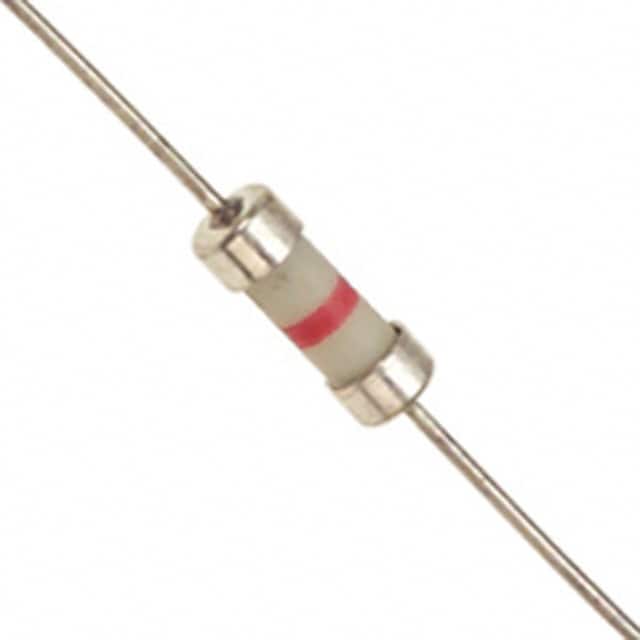

0242.050UAT1 Hamlin / Littelfuse | 1 $5.3800 | Datasheet | Through Hole | Cartridge | 50mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Axial | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 8,035 Cart + RFQ |
0242.125UR Hamlin / Littelfuse | 1 $6.1200 | Datasheet | Surface Mount | Cartridge | 125mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Cartridge, Non-Standard | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 2,094 Cart + RFQ |

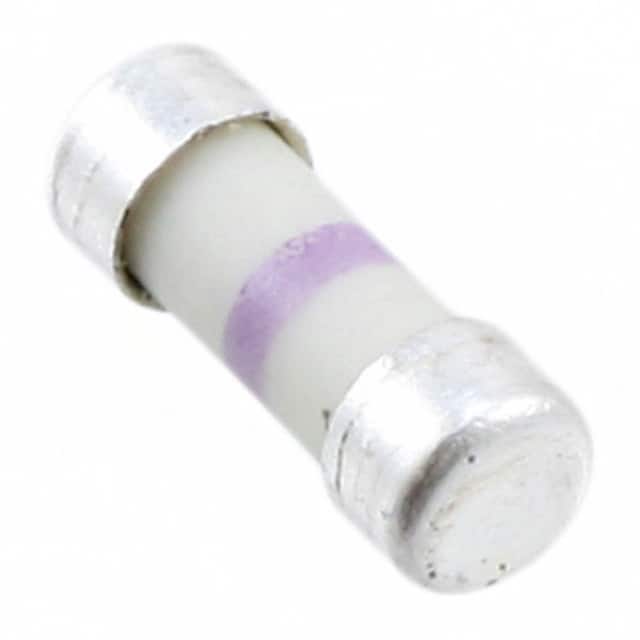

0242.160UR Hamlin / Littelfuse | 1 $6.1200 | Datasheet | Surface Mount | Cartridge | 160mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Cartridge, Non-Standard | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 3,366 Cart + RFQ |

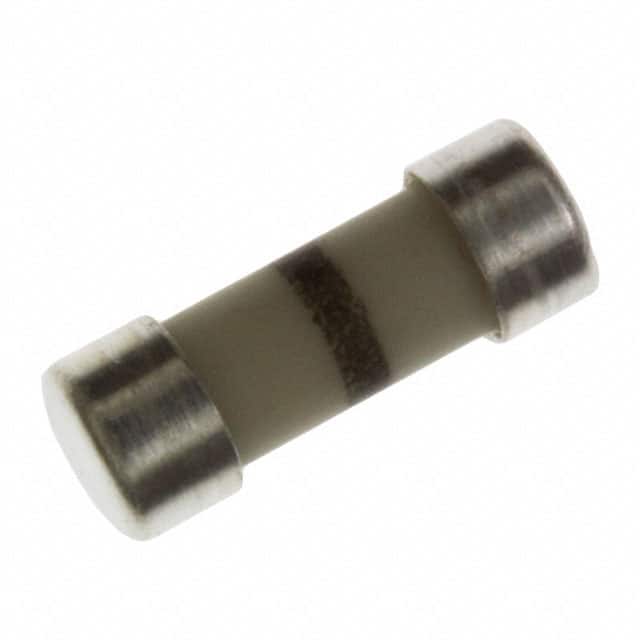

0242.250UR Hamlin / Littelfuse | 1 $6.1200 | Datasheet | Surface Mount | Cartridge | 250mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Cartridge, Non-Standard | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 9,550 Cart + RFQ |
0242.040UR Hamlin / Littelfuse | 1 $6.3700 | Datasheet | Surface Mount | Cartridge | 40mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Cartridge, Non-Standard | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 9,653 Cart + RFQ |

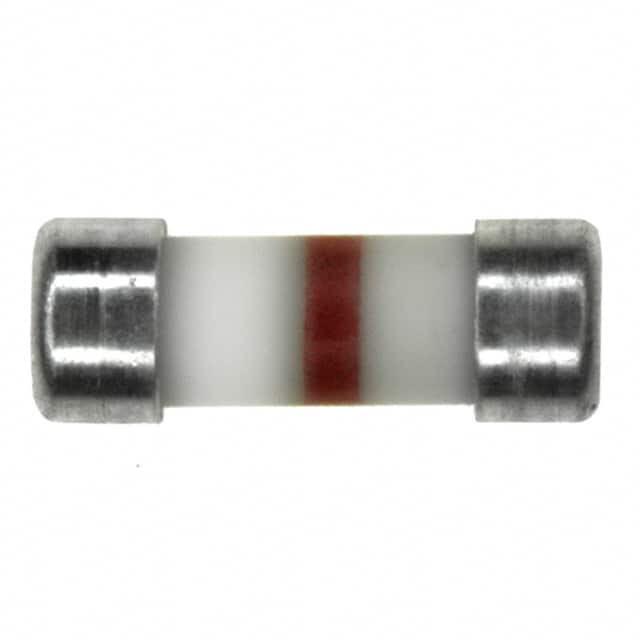

0242.200UR Hamlin / Littelfuse | 1 $6.1200 | Datasheet | Surface Mount | Cartridge | 200mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Cartridge, Non-Standard | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 9,615 Cart + RFQ |

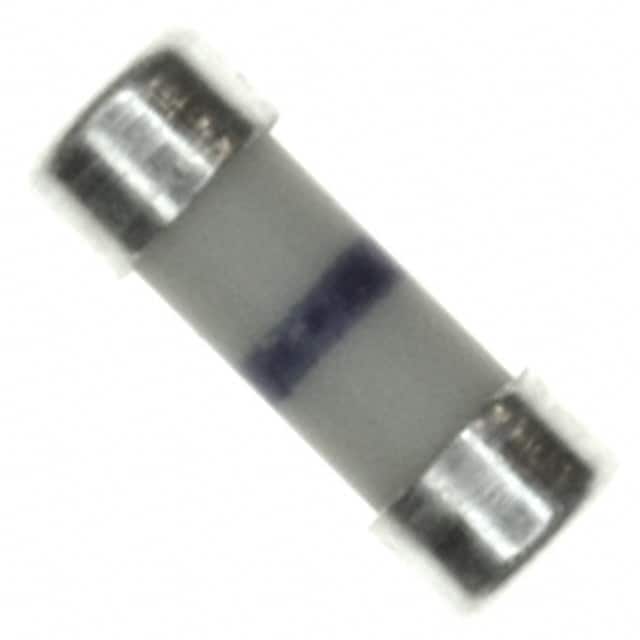

0242.100UR Hamlin / Littelfuse | 1 $6.1200 | Datasheet | Surface Mount | Cartridge | 100mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA | Cartridge, Non-Standard | 0.119" Dia x 0.331" L (3.02mm x 8.40mm) | 9,114 Cart + RFQ |

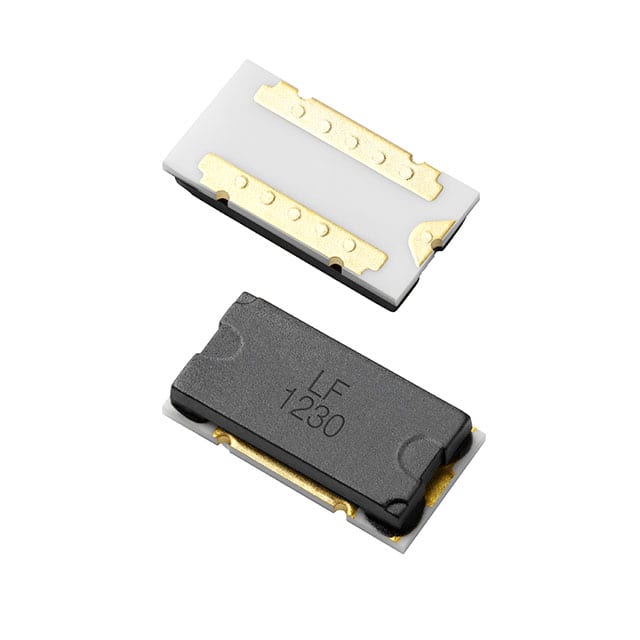

ITV9550L3045MR Hamlin / Littelfuse | 1 $8.2400 | Datasheet | Surface Mount | Board Mount | 45A | - | 62 V | Fast Blow | Battery Protection | 22.3 ~ 31.5V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 120A | Nonstandard SMD | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | 6,729 Cart + RFQ |

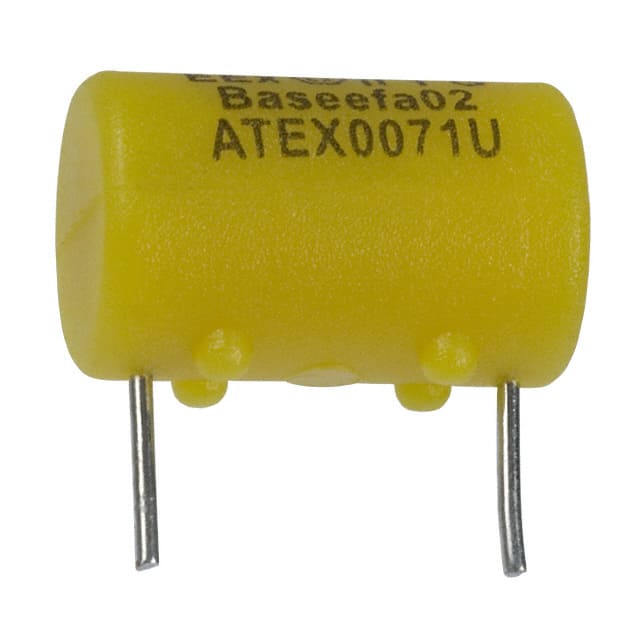

0259.125T Hamlin / Littelfuse | 1 $7.3600 | Datasheet | Through Hole | Board Mount | 125mA | 125 V | 125 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | Radial, Can, Horizontal | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 5,300 Cart + RFQ |
0259.125M Hamlin / Littelfuse | 1 $7.0000 | Datasheet | Through Hole | Board Mount | 125mA | 125 V | 125 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | Radial, Can, Horizontal | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 5,315 Cart + RFQ |
0259.250M Hamlin / Littelfuse | 1 $7.0000 | Datasheet | Through Hole | Board Mount | 250mA | 125 V | 125 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | Radial, Can, Horizontal | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 9,676 Cart + RFQ |
0259.062M Hamlin / Littelfuse | 1 $7.0000 | Datasheet | Through Hole | Board Mount | 62mA | 125 V | 125 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | Radial, Can, Horizontal | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 4,437 Cart + RFQ |
0259.375T Hamlin / Littelfuse | 1 $7.3600 | Datasheet | Through Hole | Board Mount | 375mA | 125 V | 125 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC | Radial, Can, Horizontal | 0.315" Dia x 0.512" L (8.00mm x 13.00mm) | 1,156 Cart + RFQ |

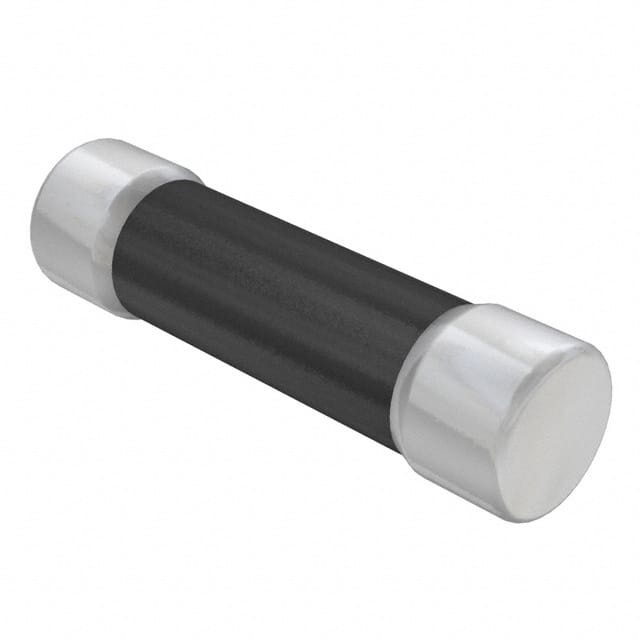

0SPF004.T Hamlin / Littelfuse | 1 $19.0900 | Datasheet | Holder | Cartridge | 4A | - | 1 kV | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 5AG, 10mm x 38mm (Midget) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 9,699 Cart + RFQ |
0SPF020.T Hamlin / Littelfuse | 1 $19.0900 | Datasheet | Holder | Cartridge | 20A | - | 1 kV | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 5AG, 10mm x 38mm (Midget) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 6,847 Cart + RFQ |
0SPF030.T Hamlin / Littelfuse | 1 $19.0900 | Datasheet | Holder | Cartridge | 30A | - | 1 kV | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 5AG, 10mm x 38mm (Midget) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 4,139 Cart + RFQ |
