Trimmers, Variable Capacitors
Trimmer and variable capacitors are a group of devices that provide a capacitance that is user-adjustable within some specified, relatively narrow range. Devices covering capacitance ranges of a few picofarads to a few nanofarads are commonly available, with voltage ratings from the tens of volts into the kilovolts. Typically used for calibration, tuning, and matching applications, their relatively high cost and potential for maladjustment recommends the use of fixed value devices where feasible.
Product List
Total Components: 2,268
Product | Pricing | Datasheet | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

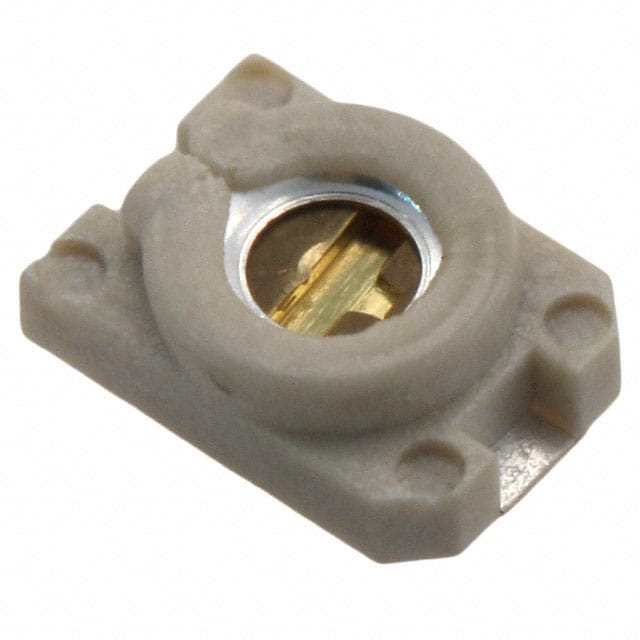

SGC3S100 None | 1 $1.0600 | Datasheet | 3 ~ 10pF | Top | 100 V | Ceramic | 600 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile | 6,802 Cart + RFQ |

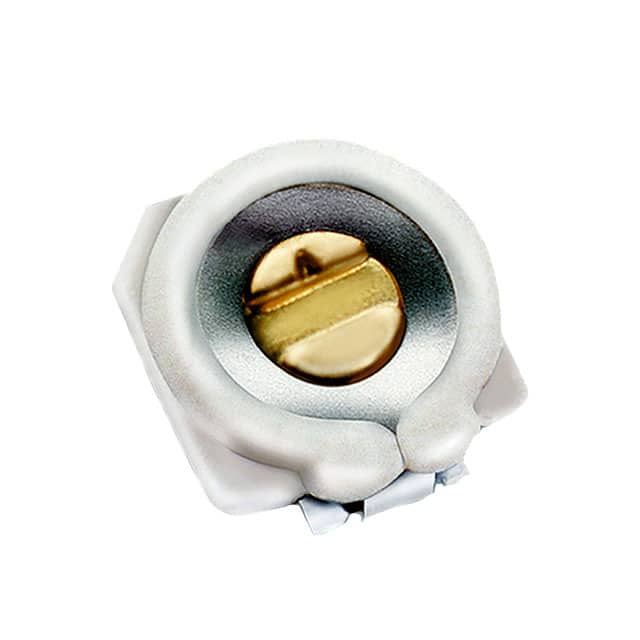

JR060 Knowles Precision | 1 $3.2300 | Datasheet | 2 ~ 6pF | Top | 125 V | Ceramic | 1000 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 5,863 Cart + RFQ |
JZ060 Knowles Precision | 1 $3.1400 | Datasheet | 2 ~ 6pF | Top | 125 V | Ceramic | 1000 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 7,908 Cart + RFQ |
JR030 Knowles Precision | 1 $3.2300 | Datasheet | 1.5 ~ 3pF | Top | 125 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 2,951 Cart + RFQ |
JZ300 Knowles Precision | 1 $3.3800 | Datasheet | 5.5 ~ 30pF | Top | 125 V | Ceramic | 200 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 8,033 Cart + RFQ |
JZ400 Knowles Precision | 1 $3.3800 | Datasheet | 8 ~ 40pF | Top | 125 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 3,314 Cart + RFQ |
JR300 Knowles Precision | 1 $3.4600 | Datasheet | 5.5 ~ 30pF | Top | 125 V | Ceramic | 1500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 9,470 Cart + RFQ |
JR400 Knowles Precision | 1 $3.4600 | Datasheet | 8 ~ 40pF | Top | 125 V | Ceramic | 1500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 9,410 Cart + RFQ |
JZ060HV Knowles Precision | 1 $4.4500 | Datasheet | 2 ~ 6pF | Top | 350 V | Ceramic | 1000 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 8,640 Cart + RFQ |
JZ400HV Knowles Precision | 1 $4.0600 | Datasheet | 8 ~ 40pF | Top | 350 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 4,970 Cart + RFQ |
JZ300HV Knowles Precision | 1 $4.0600 | Datasheet | 5.5 ~ 30pF | Top | 350 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 6,932 Cart + RFQ |
JZ500 Knowles Precision | 1 $4.5900 | Datasheet | 8 ~ 50pF | Top | 125 V | Ceramic | 200 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose | 9,748 Cart + RFQ |
BFC280832659 Phoenix Passive Components / Vishay | 1 $6.8900 | Datasheet | 5.5 ~ 65pF | Top and Bottom | 150 V | Polypropylene (PP) | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | -40°C ~ 70°C | Through Hole | General Purpose | 8,947 Cart + RFQ |
2322-2GR1 Knowles Precision | 1 $12.7700 | Datasheet | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed | 5,492 Cart + RFQ |
27263-2R2 Knowles Precision | 1 $21.4400 | Datasheet | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.094" Dia (2.39mm) | 0.225" (5.72mm) | -65°C ~ 125°C | Surface Mount | General Purpose | 8,619 Cart + RFQ |

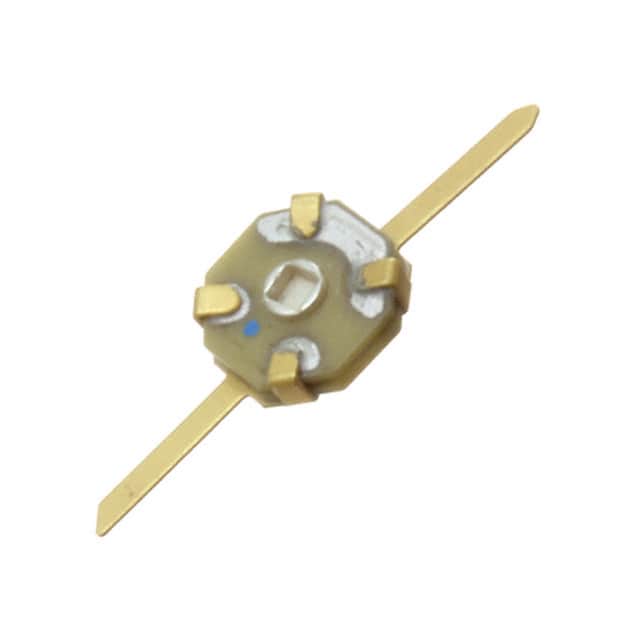

9402-2 Knowles Precision | 1 $18.1800 | Datasheet | 2.5 ~ 10pF | Top | 250 V | - | 1000 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose | 7,619 Cart + RFQ |
9701-0SL-1 Knowles Precision | 1 $18.1800 | Datasheet | 0.25 ~ 0.7pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.150" Dia (3.81mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose | 2,239 Cart + RFQ |
9702-2SL-1 Knowles Precision | 1 $18.1800 | Datasheet | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose | 5,338 Cart + RFQ |
9702-0SL-1 Knowles Precision | 1 $18.1800 | Datasheet | 0.5 ~ 2.5pF | Top | 250 V | Ceramic | 3000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose | 9,972 Cart + RFQ |
27273-3R5 Knowles Precision | 1 $26.5600 | Datasheet | 0.6 ~ 4.5pF | Top | 500 V | Sapphire | 3000 @ 250MHz | 0.140" Dia (3.56mm) | 0.314" (7.98mm) | -65°C ~ 125°C | Surface Mount | General Purpose | 5,847 Cart + RFQ |
