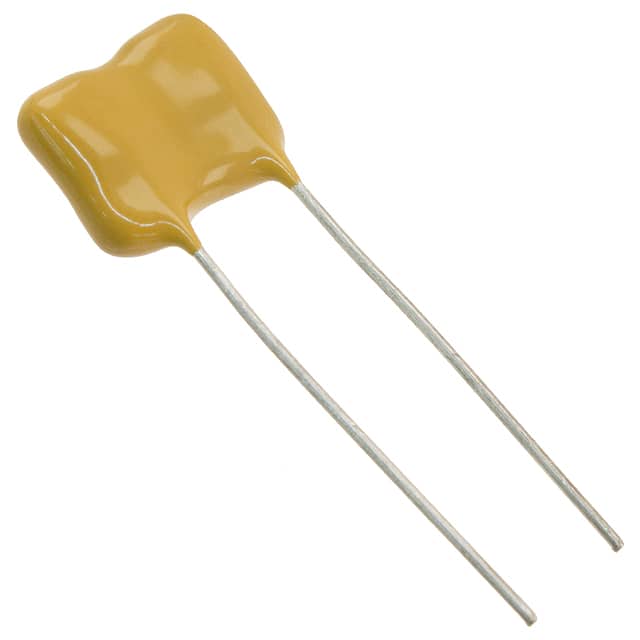

Mica and PTFE Capacitors
Capacitors incorporating mica or PTFE (Teflon®) dielectrics are used in applications that require good parametric stability, low losses, and relatively high voltage ratings. An electrostatic (non-polarized) capacitor type, the tradeoff for these desirable characteristics are relatively high cost and a limited range of available capacitance values, generally of a few tens of nanofarads or less.
Product List
Total Components: 9,086
| Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | Dielectric Material | Operating Temperature | Mounting Type | Package / Case | Lead Spacing | Features | Size / Dimension | Height - Seated (Max) | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

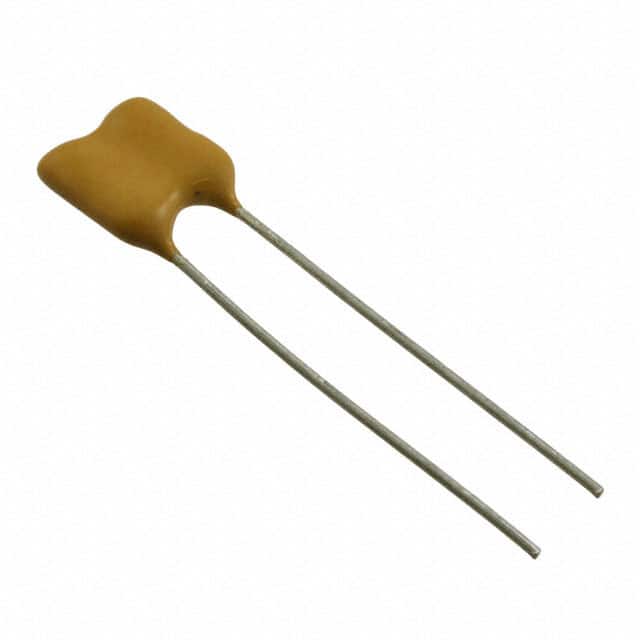

 CDV16FF471JO3F CDE (Cornell Dubilier Electronics) | 1 $4.2300 | Datasheet | 470 pF | ±5% | 1 kV | Mica | -55°C ~ 150°C | Through Hole | Radial | 0.234" (5.94mm) | RF, High Q, Low Loss | 0.449" L x 0.161" W (11.40mm x 4.10mm) | 0.469" (11.90mm) | 7,595 Cart + RFQ |
 CD19FD102JO3F CDE (Cornell Dubilier Electronics) | 1 $4.2400 | Datasheet | 1000 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.343" (8.70mm) | General Purpose | 0.650" L x 0.220" W (16.50mm x 5.60mm) | 0.520" (13.20mm) | 9,666 Cart + RFQ |
 CDV16FF102JO3 CDE (Cornell Dubilier Electronics) | 1 $4.7500 | Datasheet | 1000 pF | ±5% | 1 kV | Mica | -55°C ~ 150°C | Through Hole | Radial | 0.232" (5.90mm) | RF, High Q, Low Loss | 0.461" L x 0.173" W (11.70mm x 4.40mm) | 0.500" (12.70mm) | 6,544 Cart + RFQ |
CDV16FF102JO3F CDE (Cornell Dubilier Electronics) | 1 $4.9000 | Datasheet | 1000 pF | ±5% | 1 kV | Mica | -55°C ~ 150°C | Through Hole | Radial | 0.234" (5.94mm) | RF, High Q, Low Loss | 0.461" L x 0.173" W (11.70mm x 4.40mm) | 0.500" (12.70mm) | 2,726 Cart + RFQ |

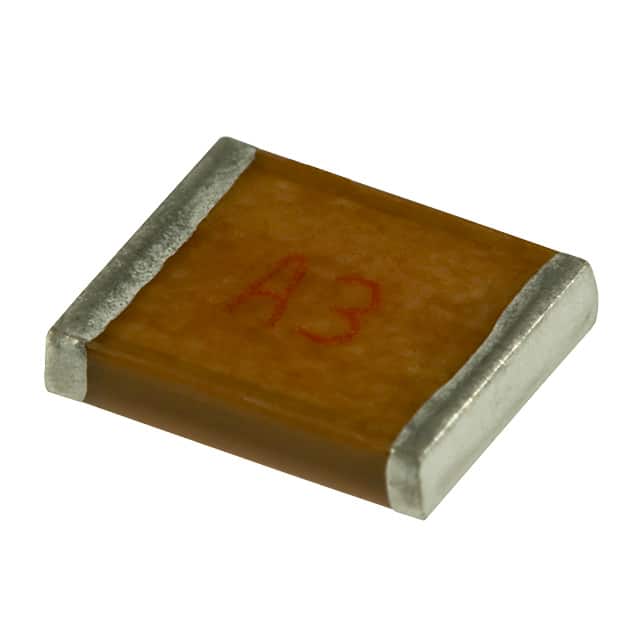

 MC22FF101J-F CDE (Cornell Dubilier Electronics) | 1 $5.5300 | Datasheet | 100 pF | ±5% | 1 kV | Mica | -55°C ~ 125°C | Surface Mount | 2220 (5750 Metric) | - | RF, High Q, Low Loss | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.157" (4.00mm) | 1,998 Cart + RFQ |
CDV19FF102JO3F CDE (Cornell Dubilier Electronics) | 1 $5.7900 | Datasheet | 1000 pF | ±5% | 1 kV | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.343" (8.70mm) | General Purpose | 0.669" L x 0.252" W (17.00mm x 6.40mm) | 0.532" (13.50mm) | 9,813 Cart + RFQ |
CD19FD392JO3F CDE (Cornell Dubilier Electronics) | 1 $10.2000 | Datasheet | 3900 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.343" (8.70mm) | General Purpose | 0.689" L x 0.311" W (17.50mm x 7.90mm) | 0.559" (14.20mm) | 6,071 Cart + RFQ |
CDV16FF222JO3F CDE (Cornell Dubilier Electronics) | 1 $10.7300 | Datasheet | 2200 pF | ±5% | 1 kV | Mica | -55°C ~ 150°C | Through Hole | Radial | 0.232" (5.90mm) | RF, High Q, Low Loss | 0.469" L x 0.252" W (11.90mm x 6.40mm) | 0.520" (13.20mm) | 8,916 Cart + RFQ |
CD19FD472JO3F CDE (Cornell Dubilier Electronics) | 1 $11.4100 | Datasheet | 4700 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.343" (8.70mm) | General Purpose | 0.701" L x 0.350" W (17.80mm x 8.90mm) | 0.579" (14.70mm) | 7,369 Cart + RFQ |
CD19FD502JO3F CDE (Cornell Dubilier Electronics) | 1 $12.3600 | Datasheet | 5000 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.343" (8.70mm) | General Purpose | 0.709" L x 0.370" W (18.00mm x 9.40mm) | 0.591" (15.00mm) | 9,095 Cart + RFQ |
CD19FD472FO3F CDE (Cornell Dubilier Electronics) | 1 $14.8100 | Datasheet | 4700 pF | ±1% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.343" (8.70mm) | General Purpose | 0.701" L x 0.350" W (17.80mm x 8.90mm) | 0.579" (14.70mm) | 4,372 Cart + RFQ |

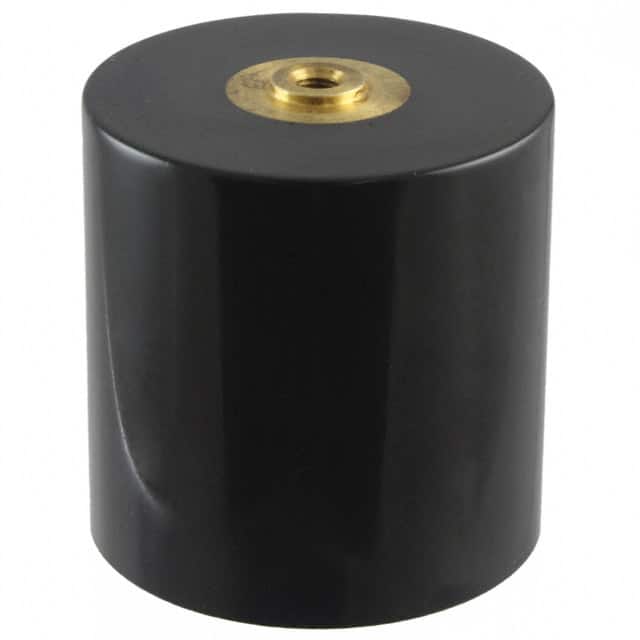

 29280B222JO0 CDE (Cornell Dubilier Electronics) | 1 $852.4000 | Datasheet | 2200 pF | ±5% | 8 kV | Mica | -55°C ~ 125°C | Requires Holder | Disk, Metal Fitting - Threaded | - | General Purpose | 2.500" Dia (63.50mm) | 2.562" (65.07mm) | 2,573 Cart + RFQ |
29280B272JO0 CDE (Cornell Dubilier Electronics) | 1 $852.4000 | Datasheet | 2700 pF | ±5% | 8 kV | Mica | -55°C ~ 125°C | Requires Holder | Disk, Metal Fitting - Threaded | - | General Purpose | 2.500" Dia (63.50mm) | 2.562" (65.07mm) | 7,750 Cart + RFQ |
CDV16FF101JO3F CDE (Cornell Dubilier Electronics) | 1 $2.2000 | Datasheet | 100 pF | ±5% | 1 kV | Mica | -55°C ~ 150°C | Through Hole | Radial | 0.232" (5.90mm) | RF, High Q, Low Loss | 0.429" L x 0.150" W (10.90mm x 3.80mm) | 0.461" (11.70mm) | 3,031 Cart + RFQ |
CDV16FF121JO3F CDE (Cornell Dubilier Electronics) | 1 $2.2000 | Datasheet | 120 pF | ±5% | 1 kV | Mica | -55°C ~ 150°C | Through Hole | Radial | 0.232" (5.90mm) | RF, High Q, Low Loss | 0.429" L x 0.150" W (10.90mm x 3.80mm) | 0.461" (11.70mm) | 8,904 Cart + RFQ |

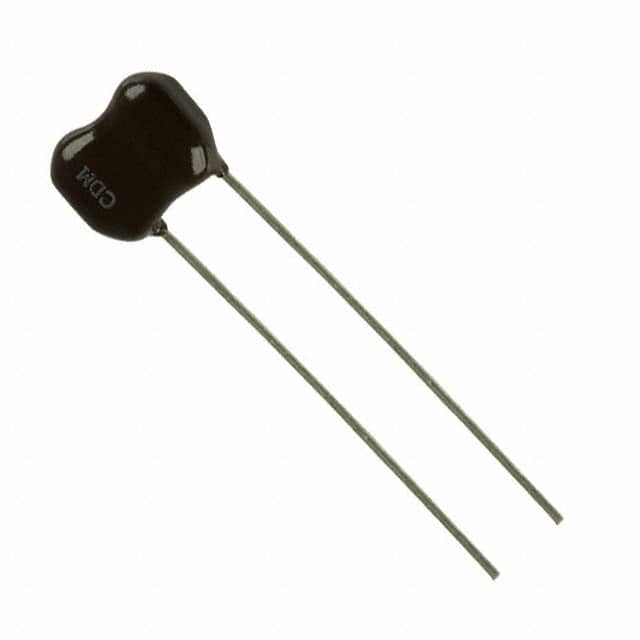

 CD15ED560JO3F CDE (Cornell Dubilier Electronics) | 1 $2.6100 | Datasheet | 56 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.232" (5.90mm) | General Purpose | 0.449" L x 0.169" W (11.40mm x 4.30mm) | 0.358" (9.10mm) | 7,429 Cart + RFQ |
CD15ED330JO3 CDE (Cornell Dubilier Electronics) | 1 $2.6100 | Datasheet | 33 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.232" (5.90mm) | General Purpose | 0.449" L x 0.169" W (11.40mm x 4.30mm) | 0.358" (9.10mm) | 9,432 Cart + RFQ |
CD15ED390JO3 CDE (Cornell Dubilier Electronics) | 1 $2.6100 | Datasheet | 39 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.232" (5.90mm) | General Purpose | 0.449" L x 0.169" W (11.40mm x 4.30mm) | 0.358" (9.10mm) | 5,873 Cart + RFQ |
CD15CD050DO3 CDE (Cornell Dubilier Electronics) | 1 $2.6100 | Datasheet | 5 pF | ±0.5pF | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.232" (5.90mm) | General Purpose | 0.449" L x 0.169" W (11.40mm x 4.30mm) | 0.358" (9.10mm) | 9,073 Cart + RFQ |
CD15ED470JO3F CDE (Cornell Dubilier Electronics) | 1 $2.6100 | Datasheet | 47 pF | ±5% | 500 V | Mica | -55°C ~ 125°C | Through Hole | Radial | 0.232" (5.90mm) | General Purpose | 0.449" L x 0.169" W (11.40mm x 4.30mm) | 0.358" (9.10mm) | 8,743 Cart + RFQ |
