Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
Product List
Total Components: 122
Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DSK-3R3H703T414-HRL Elna America | 1 $1.3000 | Datasheet | 70 mF | -20%, +80% | 3.3 V | 100Ohm | 500 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.189" Dia (4.80mm) | 0.085" (2.16mm) | -10°C ~ 70°C | 5,140 Cart + RFQ |
RSCX11045R5F13013U Elna America | 1 $1.6500 | Datasheet | 100 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.532" (13.50mm) | -25°C ~ 70°C | 8,998 Cart + RFQ |
RSCB12245R5G07014T Elna America | 1 $1.6900 | Datasheet | 220 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.295" (7.50mm) | -25°C ~ 70°C | 1,840 Cart + RFQ |

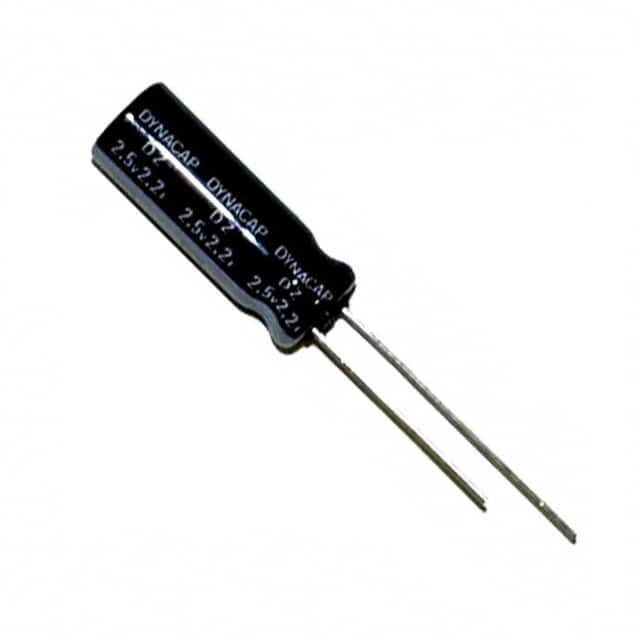

RSDZ13352R5G23300T Elna America | 1 $3.0900 | Datasheet | 3.3 F | -20%, +80% | 2.5 V | 300mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.984" (25.00mm) | -25°C ~ 70°C | 9,190 Cart + RFQ |
RSCX11045R5F05013U Elna America | 1 $1.7600 | Datasheet | 100 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.217" (5.50mm) | -25°C ~ 70°C | 2,646 Cart + RFQ |
DC-2R5E404T-E Elna America | 1 $0.5016 | Datasheet | 400 mF | -20%, +80% | 2.5 V | 100Ohm | 500 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | 0.079" (2.00mm) | 0.268" Dia (6.80mm) | 0.102" (2.60mm) | -25°C ~ 70°C | 3,629 Cart + RFQ |
RSCS12042R5D01004T Elna America | 1 $0.5356 | Datasheet | 200 mF | -20%, +80% | 2.5 V | 100Ohm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.268" Dia (6.80mm) | 0.071" (1.80mm) | -25°C ~ 70°C | 6,912 Cart + RFQ |
RSCS12242R5D02008U Elna America | 1 $0.7283 | Datasheet | 220 mF | -20%, +80% | 2.5 V | 100Ohm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.268" Dia (6.80mm) | 0.118" (3.00mm) | -25°C ~ 70°C | 4,672 Cart + RFQ |
DC-2R5D204T614 Elna America | 1 $1.4741 | Datasheet | 200 mF | -20%, +80% | 2.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | - | Requires Holder | Coin | - | 0.268" Dia (6.80mm) | 0.083" (2.10mm) | -25°C ~ 70°C | 8,622 Cart + RFQ |
DCK-3R3D204T614 Elna America | 1 $1.4741 | Datasheet | 200 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.083" (2.10mm) | -10°C ~ 60°C | 5,491 Cart + RFQ |
RSCVS4733R6G08012T Elna America | 1 $2.3591 | Datasheet | 47 mF | - | 3.6 V | 30Ohm | - | SMD (SMT) Tabs | Surface Mount | Radial, Can - SMD | - | 0.492" Dia (12.50mm) | 0.335" (8.50mm) | -25°C ~ 85°C | 5,321 Cart + RFQ |
RSDZN2062R5K40300T Elna America | 1 $4.7087 | Datasheet | 20 F | -20%, +80% | 2.5 V | 20mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 70°C | 8,024 Cart + RFQ |
DZN-2R5D506T Elna America | 1 $24.8500 | Datasheet | 50 F | -20%, +80% | 2.5 V | 30mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | -25°C ~ 70°C | 4,309 Cart + RFQ |
DK-6R3D105T Elna America | Datasheet | 1 F | -20%, +80% | 6.3 V | 30Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C | 7,183 Cart + RFQ | |
DC-2R5E224U-E Elna America | Datasheet | 220 mF | -20%, +80% | 2.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.102" (2.60mm) | -25°C ~ 70°C | 4,684 Cart + RFQ | |
DCK-3R3E224U-E Elna America | Datasheet | 220 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.083" (2.10mm) | -10°C ~ 60°C | 1,593 Cart + RFQ | |
DK-6R3D104T Elna America | Datasheet | 100 mF | -20%, +80% | 6.3 V | 200Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C | 1,912 Cart + RFQ | |
DK-6R3D474T Elna America | Datasheet | 470 mF | -20%, +80% | 6.3 V | 50Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C | 3,784 Cart + RFQ | |
DK-6R3D684T Elna America | Datasheet | 680 mF | -20%, +80% | 6.3 V | 50Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C | 3,184 Cart + RFQ | |
DX-5R5L473T Elna America | Datasheet | 47 mF | -20%, +80% | 5.5 V | 120Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.197" (5.00mm) | -25°C ~ 70°C | 3,568 Cart + RFQ |
