Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
Product List
Total Components: 234
Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DGH105Q2R7 CDE (Cornell Dubilier Electronics) | 1 $1.0700 | Datasheet | 1 F | -10%, +30% | 2.7 V | 200mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.610" (15.50mm) | -40°C ~ 85°C | 7,851 Cart + RFQ |
304DCN2R7SCBB CDE (Cornell Dubilier Electronics) | 1 $1.3900 | Datasheet | 300 mF | -20%, +50% | 2.7 V | 1Ohm | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.492" (12.50mm) | -40°C ~ 60°C | 1,334 Cart + RFQ |
DGH305Q2R7 CDE (Cornell Dubilier Electronics) | 1 $1.6600 | Datasheet | 3 F | -10%, +30% | 2.7 V | 80mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | -40°C ~ 85°C | 8,946 Cart + RFQ |
DGH335Q2R7 CDE (Cornell Dubilier Electronics) | 1 $1.6600 | Datasheet | 3.3 F | -10%, +30% | 2.7 V | 80mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | -40°C ~ 85°C | 7,735 Cart + RFQ |
DGH106Q2R7 CDE (Cornell Dubilier Electronics) | 1 $2.7500 | Datasheet | 10 F | -10%, +30% | 2.7 V | 40mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 85°C | 4,928 Cart + RFQ |

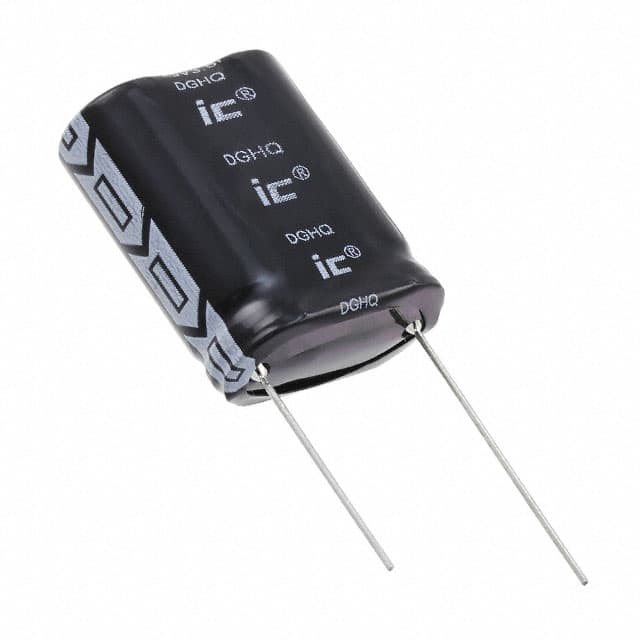

DGH155Q5R5 CDE (Cornell Dubilier Electronics) | 1 $3.4800 | Datasheet | 1.5 F | -10%, +30% | 5.5 V | 160mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.472" (12.00mm) | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.984" (25.00mm) | -40°C ~ 85°C | 8,667 Cart + RFQ |

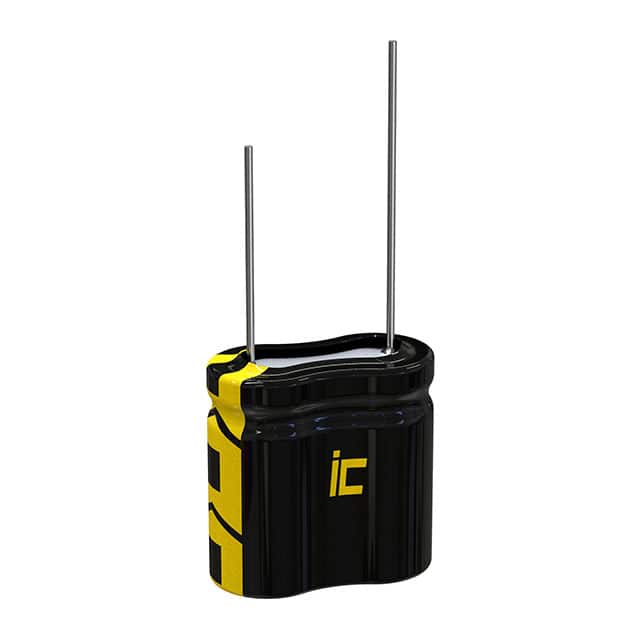

DSF155Q6R0HAE CDE (Cornell Dubilier Electronics) | 1 $3.5200 | Datasheet | 1.5 F | -10%, +30% | 6 V | 180mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.472" (12.00mm) | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.945" (24.00mm) | -40°C ~ 65°C | 1,174 Cart + RFQ |

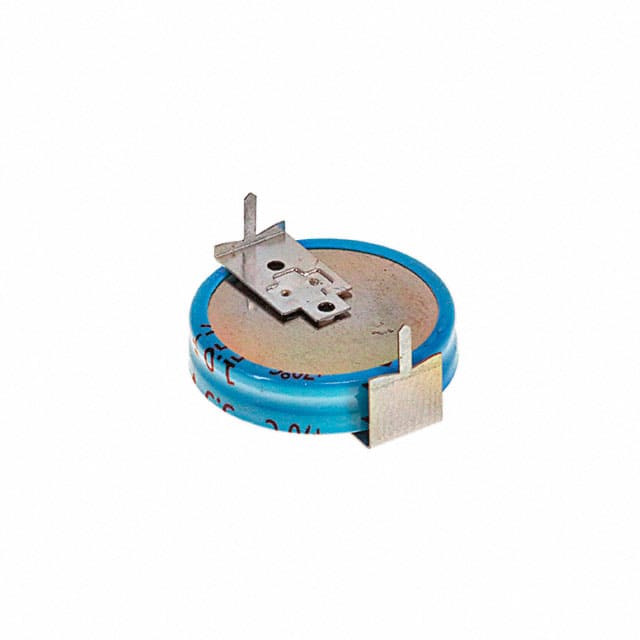

EDC105Z5R5H CDE (Cornell Dubilier Electronics) | 1 $4.0300 | Datasheet | 1 F | -20%, +80% | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.787" (20.00mm) | 0.748" Dia (19.00mm) | 0.276" (7.00mm) | -25°C ~ 70°C | 1,968 Cart + RFQ |
DGH255Q5R5 CDE (Cornell Dubilier Electronics) | 1 $4.2900 | Datasheet | 2.5 F | -10%, +30% | 5.5 V | 140mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.610" (15.50mm) | 0.827" L x 0.433" W (21.00mm x 11.00mm) | 0.984" (25.00mm) | -40°C ~ 85°C | 6,216 Cart + RFQ |
DGH256Q2R7 CDE (Cornell Dubilier Electronics) | 1 $4.3600 | Datasheet | 25 F | -10%, +30% | 2.7 V | 25mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 8,276 Cart + RFQ |
DGH505Q5R5 CDE (Cornell Dubilier Electronics) | 1 $4.8200 | Datasheet | 5 F | -10%, +30% | 5.5 V | 80mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.709" (18.00mm) | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 1.142" (29.00mm) | -40°C ~ 85°C | 7,869 Cart + RFQ |

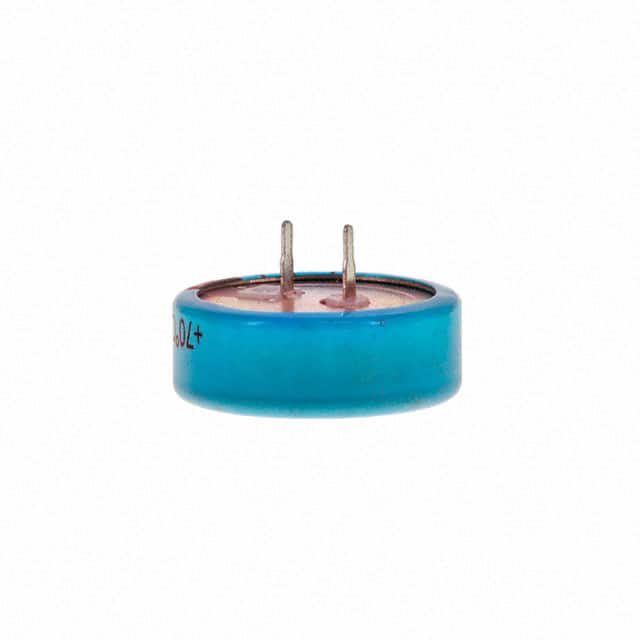

EDC155Z5R5C CDE (Cornell Dubilier Electronics) | 1 $4.7800 | Datasheet | 1.5 F | -20%, +80% | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.295" (7.50mm) | -25°C ~ 70°C | 9,825 Cart + RFQ |
DSF205Q3R0 CDE (Cornell Dubilier Electronics) | 1 $1.3200 100 $1.0560 500 $0.8800 | Datasheet | 2 F | -10%, +30% | 3 V | 160mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.610" (15.50mm) | -40°C ~ 65°C | 500 Cart + RFQ |
DSF706Q3R0 CDE (Cornell Dubilier Electronics) | 1 $5.4000 | Datasheet | 70 F | -10%, +30% | 3 V | 20mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | -40°C ~ 65°C | 3,614 Cart + RFQ |
EDC105Z6R3C CDE (Cornell Dubilier Electronics) | 1 $5.6600 | Datasheet | 1 F | -20%, +80% | 6.3 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C | 5,072 Cart + RFQ |
VMF227M3R8 CDE (Cornell Dubilier Electronics) | 1 $16.5000 | Datasheet | 220 F | ±20% | 3.8 V | 60mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -15°C ~ 70°C | 8,280 Cart + RFQ |
DGH407Q2R7 CDE (Cornell Dubilier Electronics) | 1 $16.7000 | Datasheet | 400 F | -10%, +30% | 2.7 V | 3mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | -40°C ~ 85°C | 1,664 Cart + RFQ |
DGH607Q2R7 CDE (Cornell Dubilier Electronics) | 1 $19.8000 | Datasheet | 600 F | -10%, +30% | 2.7 V | 3mOhm @ 1kHz | 1500 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.756" (70.00mm) | -40°C ~ 65°C | 6,649 Cart + RFQ |
DSF607Q3R0L CDE (Cornell Dubilier Electronics) | 1 $25.9300 | Datasheet | 600 F | -10%, +30% | 3 V | 3mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.835" (72.00mm) | -40°C ~ 65°C | 2,982 Cart + RFQ |
EDC473Z5R5V CDE (Cornell Dubilier Electronics) | 1 $1.0005 | Datasheet | 47 mF | -20%, +80% | 5.5 V | 120Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.512" (13.00mm) | -25°C ~ 70°C | 4,691 Cart + RFQ |
