Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
Product List
Total Components: 136
Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TPL-1.2/6X15F Tecate Group | 1 $1.8800 | Datasheet | 1.2 F | -10%, +20% | 2.7 V | 330mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | -40°C ~ 85°C | 2,997 Cart + RFQ |
TPL-10/10X30F Tecate Group | 1 $1.8400 | Datasheet | 10 F | -10%, +20% | 2.7 V | 60mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | -40°C ~ 85°C | 8,462 Cart + RFQ |
TPLH-2R7/12WR10X30 Tecate Group | 1 $1.8400 | Datasheet | 12 F | - | 2.7 V | 36mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 85°C | 5,321 Cart + RFQ |
TPLC-3R8/10MR8X14 Tecate Group | 1 $2.3700 | Datasheet | 10 F | ±20% | 3.8 V | 500mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.630" (16.00mm) | -15°C ~ 70°C | 7,728 Cart + RFQ |
TPL-25/16X26F Tecate Group | 1 $2.7800 | Datasheet | 25 F | -10%, +20% | 2.7 V | 28mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.083" (27.50mm) | -40°C ~ 85°C | 4,485 Cart + RFQ |
TPLH-2R7/30WR16X26 Tecate Group | 1 $2.9900 | Datasheet | 30 F | - | 2.7 V | 16mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.102" (28.00mm) | -40°C ~ 85°C | 8,150 Cart + RFQ |
TPLC-3R8/30MR10X16 Tecate Group | 1 $3.4800 | Datasheet | 30 F | ±20% | 3.8 V | 260mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | -15°C ~ 70°C | 9,235 Cart + RFQ |
TPLH-2R7/35WR16X31 Tecate Group | 1 $3.9600 | Datasheet | 35 F | - | 2.7 V | 19mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 4,252 Cart + RFQ |
SCAP,PBL-5.0/5.4 Tecate Group | 1 $5.4300 | Datasheet | 5 F | - | 5.4 V | 120mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.606" (15.40mm) | 0.866" L x 0.472" W (22.00mm x 12.00mm) | 1.378" (35.00mm) | -40°C ~ 85°C | 3,270 Cart + RFQ |
TPL-50/18X40F Tecate Group | 1 $6.0600 | Datasheet | 50 F | -10%, +20% | 2.7 V | 15mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | -40°C ~ 85°C | 7,801 Cart + RFQ |
TPLH-2R7/120WR18X60 Tecate Group | 1 $7.8200 | Datasheet | 120 F | - | 2.7 V | 8mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.441" (62.00mm) | -40°C ~ 85°C | 2,504 Cart + RFQ |
TPL-100/22X45F Tecate Group | 1 $7.2900 | Datasheet | 100 F | -10%, +20% | 2.7 V | 10mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.374" (9.50mm) | 0.866" Dia (22.00mm) | 1.831" (46.50mm) | -40°C ~ 85°C | 9,309 Cart + RFQ |

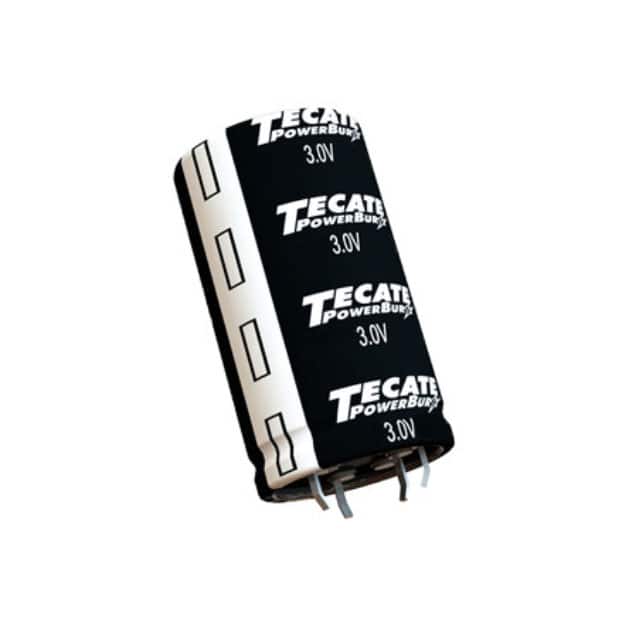

TPLH-3R0/450SS35X71 Tecate Group | 1 $12.3200 | Datasheet | 450 F | - | 3 V | 3.6mOhm | 1500 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In - 4 Lead | 0.902" (22.90mm) | 1.378" Dia (35.00mm) | 2.874" (73.00mm) | -40°C ~ 65°C | 5,554 Cart + RFQ |

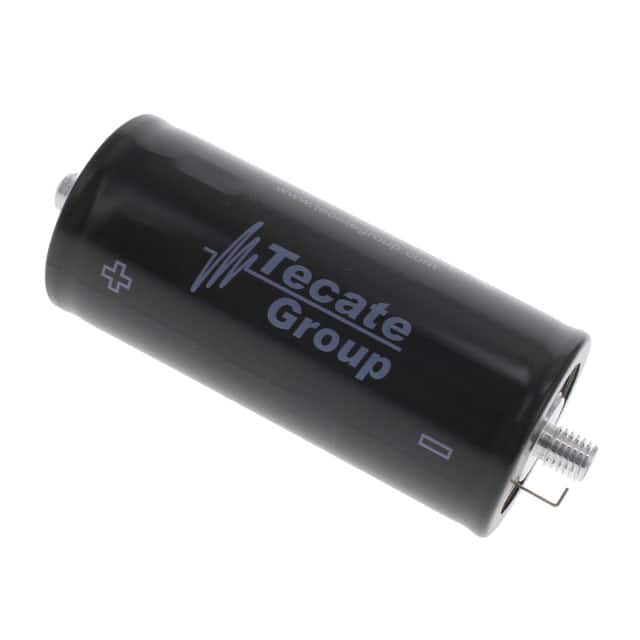

TPLH-3R0/3000SL60138 Tecate Group | 1 $57.6900 | Datasheet | 3000 F | - | 3 V | 0.26mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis, Stud Mount | Axial, Can - Screw Terminals | - | 2.362" Dia (60.00mm) | 5.453" (138.50mm) | -40°C ~ 65°C | 1,327 Cart + RFQ |

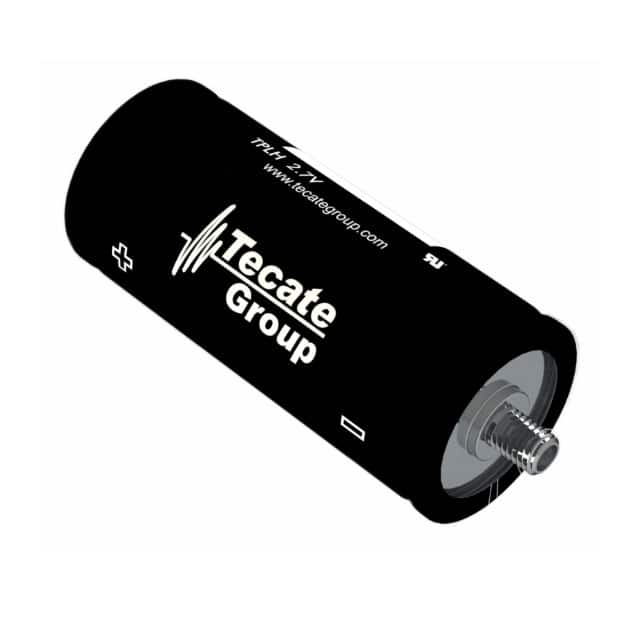

TPLH-2R7/3000SL60138 Tecate Group | 1 $57.6900 | Datasheet | 3000 F | - | 2.7 V | 0.26mOhm | 1500 Hrs @ 65°C | Screw Terminals | Chassis, Stud Mount | Axial, Can - Screw Terminals | - | 2.362" Dia (60.00mm) | 5.374" (136.50mm) | -40°C ~ 65°C | 1,745 Cart + RFQ |

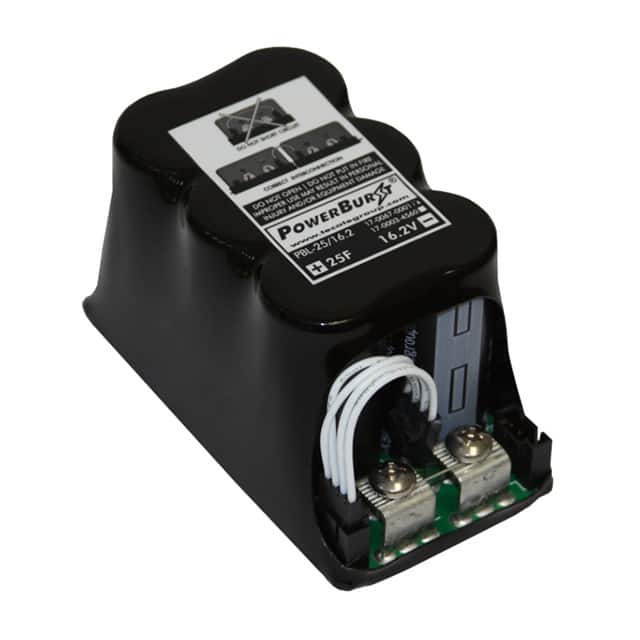

SCAP,PBL-25/16.2 Tecate Group | 1 $131.8000 | Datasheet | 25 F | - | 16.2 V | 50mOhm | - | Screw Terminals | Chassis Mount | Module, Wire Leads | - | 3.740" L x 2.047" W (95.00mm x 52.00mm) | 2.244" (57.00mm) | -40°C ~ 65°C | 3,748 Cart + RFQ |
SCAP,PBL-0.47/5.4 Tecate Group | 1 $5.5000 | Datasheet | 470 mF | - | 5.4 V | 630mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.472" (12.00mm) | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.669" (17.00mm) | -40°C ~ 85°C | 8,480 Cart + RFQ |
SCAP,PBLL-2.5/5.4 Tecate Group | 1 $5.8200 | Datasheet | 2.5 F | - | 5.4 V | 245mOhm @ 1kHz | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Radial, Can | - | 0.866" L x 0.472" W (22.00mm x 12.00mm) | 0.984" (25.00mm) | -40°C ~ 85°C | 6,937 Cart + RFQ |
SCAP,PBLL-0.47/5.4 Tecate Group | 1 $6.1400 | Datasheet | 470 mF | - | 5.4 V | 690mOhm @ 1kHz | 1000 Hrs @ 65°C | Wire Leads with Connector | User Defined | Radial, Can | - | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.669" (17.00mm) | -40°C ~ 85°C | 1,494 Cart + RFQ |
SCAP,PBLL-11.0/5.4 Tecate Group | 1 $10.8900 | Datasheet | 11 F | -10%, +20% | 5.4 V | 130mOhm @ 1kHz | 1000 Hrs @ 85°C | Wire Leads with Connector | User Defined | Radial, Can | - | 1.516" L x 1.024" W (38.50mm x 26.00mm) | 0.531" (13.50mm) | -40°C ~ 85°C | 3,974 Cart + RFQ |
