Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
Product List
Total Components: 261
Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

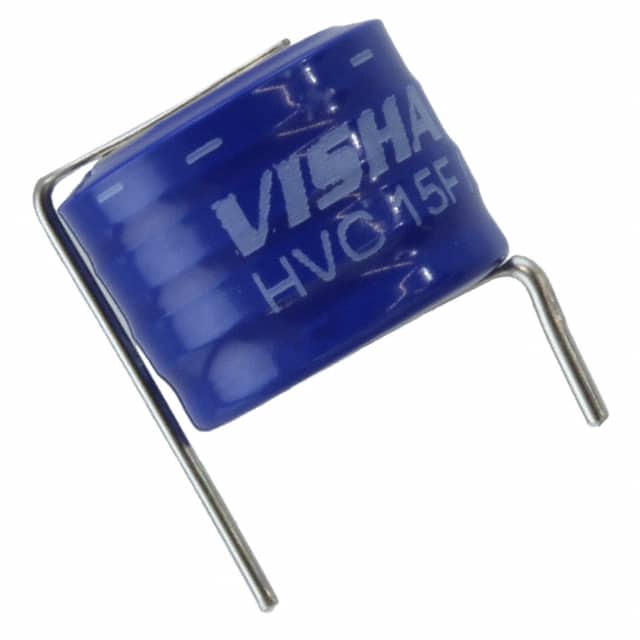

MAL219691204E3 Phoenix Passive Components / Vishay | 1 $10.7300 | Datasheet | 15 F | -20%, +80% | 5.6 V | 2.4Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.492" (12.50mm) | 0.472" Dia (12.00mm) | 0.394" (10.00mm) | -20°C ~ 85°C | 5,209 Cart + RFQ |
MAL222091002E3 Phoenix Passive Components / Vishay | 1 $3.9800 | Datasheet | 35 F | -20%, +50% | 2.7 V | 14mOhm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 5,278 Cart + RFQ |
MAL223091003E3 Phoenix Passive Components / Vishay | 1 $4.0300 | Datasheet | 20 F | -20%, +50% | 3 V | 28mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | -40°C ~ 85°C | 5,879 Cart + RFQ |
MAL222091003E3 Phoenix Passive Components / Vishay | 1 $4.2200 | Datasheet | 20 F | -20%, +50% | 2.7 V | 18mOhm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | -40°C ~ 85°C | 3,560 Cart + RFQ |
MAL223091001E3 Phoenix Passive Components / Vishay | 1 $4.5600 | Datasheet | 40 F | -20%, +50% | 3 V | 22mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 8,162 Cart + RFQ |
MAL223591007E3 Phoenix Passive Components / Vishay | 1 $4.8300 | Datasheet | 30 F | -20%, +50% | 3 V | 17mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 2,132 Cart + RFQ |
MAL223591001E3 Phoenix Passive Components / Vishay | 1 $5.1700 | Datasheet | 40 F | -20%, +50% | 3 V | 16mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 3,175 Cart + RFQ |
MAL222090006E3 Phoenix Passive Components / Vishay | 1 $5.5800 | Datasheet | 20 F | -20%, +50% | 2.7 V | 28mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 4,875 Cart + RFQ |
MAL222090002E3 Phoenix Passive Components / Vishay | 1 $6.1200 | Datasheet | 30 F | -20%, +50% | 2.7 V | 26mOhm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 1,061 Cart + RFQ |
MAL222090008E3 Phoenix Passive Components / Vishay | 1 $7.2700 | Datasheet | 45 F | -20%, +50% | 2.7 V | 21mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | -40°C ~ 85°C | 3,286 Cart + RFQ |
MAL223591009E3 Phoenix Passive Components / Vishay | 1 $7.3000 | Datasheet | 60 F | -20%, +50% | 3 V | 13mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | -40°C ~ 85°C | 1,951 Cart + RFQ |
MAL219690106E3 Phoenix Passive Components / Vishay | 1 $9.4500 | Datasheet | 90 F | -20%, +80% | 1.4 V | 15mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Coin, Stacked Vertical | 0.394" (10.00mm) | 1.378" L x 0.984" W (35.00mm x 25.00mm) | 0.197" (5.00mm) | -20°C ~ 85°C | 8,480 Cart + RFQ |
MAL222051007E3 Phoenix Passive Components / Vishay | 1 $3.8100 | Datasheet | 30 F | -20%, +50% | 2.7 V | 13mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 9,041 Cart + RFQ |
MAL222591004E3 Phoenix Passive Components / Vishay | 1 $3.9300 | Datasheet | 25 F | -20%, +50% | 2.7 V | 15mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | -40°C ~ 85°C | 1,343 Cart + RFQ |
MAL223551006E3 Phoenix Passive Components / Vishay | 1 $4.2600 | Datasheet | 25 F | -20%, +50% | 3 V | 20mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 5,591 Cart + RFQ |
MAL222051006E3 Phoenix Passive Components / Vishay | 1 $4.3700 | Datasheet | 25 F | -20%, +50% | 2.7 V | 16mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 4,927 Cart + RFQ |
MAL223051002E3 Phoenix Passive Components / Vishay | 1 $4.4200 | Datasheet | 35 F | -20%, +50% | 3 V | 18mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 8,049 Cart + RFQ |
MAL222591001E3 Phoenix Passive Components / Vishay | 1 $4.4900 | Datasheet | 40 F | -20%, +50% | 2.7 V | 12mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 1,666 Cart + RFQ |
MAL222551006E3 Phoenix Passive Components / Vishay | 1 $4.5700 | Datasheet | 25 F | -20%, +50% | 2.7 V | 16mOhm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -40°C ~ 85°C | 8,924 Cart + RFQ |
MAL219612224E3 Phoenix Passive Components / Vishay | 1 $4.6800 | Datasheet | 220 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.295" (7.50mm) | -25°C ~ 70°C | 1,563 Cart + RFQ |
