Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
Product List
Total Components: 460
Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCCR12B105PRB KYOCERA AVX | 1 $1.6100 | Datasheet | 1 F | 0%, +100% | 2.7 V | 150mOhm @ 1kHz | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.551" (14.00mm) | -40°C ~ 65°C | 8,681 Cart + RFQ |
SCCQ12E105PRB KYOCERA AVX | 1 $1.8500 | Datasheet | 1 F | 0%, +100% | 3 V | 240mOhm @ 1kHz | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can | 0.091" (2.30mm) | 0.248" Dia (6.30mm) | 0.551" (14.00mm) | -40°C ~ 65°C | 2,140 Cart + RFQ |
SCCU25B256SRB KYOCERA AVX | 1 $2.4700 | Datasheet | 25 F | -10%, +30% | 2.7 V | 27mOhm @ 1kHz | 1000 Hrs @ 60°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | -40°C ~ 65°C | 1,768 Cart + RFQ |

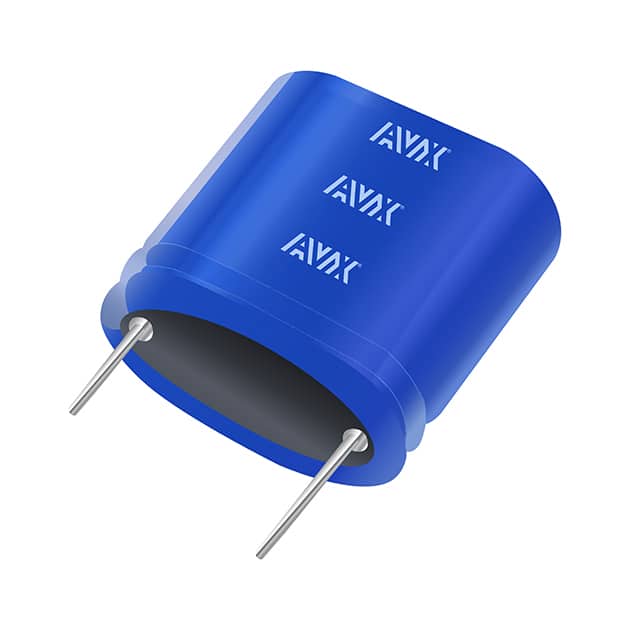

SCMQ14D474PRBB0 KYOCERA AVX | 1 $3.0900 | Datasheet | 470 mF | 0%, +100% | 5.4 V | 400mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.354" (9.00mm) | 0.535" L x 0.248" W (13.60mm x 6.30mm) | 0.610" (15.50mm) | -40°C ~ 85°C | 2,501 Cart + RFQ |
SCMR14C474PRBA0 KYOCERA AVX | 1 $3.6000 | Datasheet | 470 mF | 0%, +100% | 5 V | 300mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.453" (11.50mm) | 0.630" L x 0.315" W (16.00mm x 8.00mm) | 0.610" (15.50mm) | -40°C ~ 85°C | 4,166 Cart + RFQ |
SCMS22C255PRBA0 KYOCERA AVX | 1 $3.9100 | Datasheet | 2.5 F | 0%, +100% | 5 V | 140mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.610" (15.50mm) | 0.787" L x 0.394" W (20.00mm x 10.00mm) | 0.925" (23.50mm) | -40°C ~ 85°C | 9,910 Cart + RFQ |
SCMR18C105PRBA0 KYOCERA AVX | 1 $3.9100 | Datasheet | 1 F | 0%, +100% | 5 V | 200mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.453" (11.50mm) | 0.630" L x 0.315" W (16.00mm x 8.00mm) | 0.768" (19.50mm) | -40°C ~ 85°C | 4,324 Cart + RFQ |
SCMQ14F474PRBA0 KYOCERA AVX | 1 $4.0700 | Datasheet | 470 mF | 0%, +100% | 5.5 V | 500mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.354" (9.00mm) | 0.535" L x 0.248" W (13.60mm x 6.30mm) | 0.610" (15.50mm) | -40°C ~ 65°C | 2,877 Cart + RFQ |
SCMR22D155PRBB0 KYOCERA AVX | 1 $4.1300 | Datasheet | 1.5 F | 0%, +100% | 5.4 V | 190mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.453" (11.50mm) | 0.630" L x 0.315" W (16.00mm x 8.00mm) | 0.925" (23.50mm) | -40°C ~ 85°C | 7,481 Cart + RFQ |
SCMQ14C474PRBA0 KYOCERA AVX | 1 $4.1300 | Datasheet | 470 mF | 0%, +100% | 5 V | 400mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.354" (9.00mm) | 0.535" L x 0.248" W (13.60mm x 6.30mm) | 0.610" (15.50mm) | -40°C ~ 85°C | 9,776 Cart + RFQ |
SCMT22D505PRBB0 KYOCERA AVX | 1 $4.1900 | Datasheet | 5 F | 0%, +100% | 5.4 V | 100mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.709" (18.00mm) | 0.984" L x 0.492" W (25.00mm x 12.50mm) | 0.925" (23.50mm) | -40°C ~ 85°C | 7,436 Cart + RFQ |
SCMR18F105PRBA0 KYOCERA AVX | 1 $4.2300 | Datasheet | 1 F | 0%, +100% | 5.5 V | 250mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.453" (11.50mm) | 0.630" L x 0.315" W (16.00mm x 8.00mm) | 0.768" (19.50mm) | -40°C ~ 65°C | 1,954 Cart + RFQ |
SCMS22H255PRBB0 KYOCERA AVX | 1 $4.2900 | Datasheet | 2.5 F | 0%, +100% | 6 V | 180mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.610" (15.50mm) | 0.787" L x 0.394" W (20.00mm x 10.00mm) | 0.925" (23.50mm) | -40°C ~ 65°C | 6,216 Cart + RFQ |
SCMR14G334SRBA0 KYOCERA AVX | 1 $4.6700 | Datasheet | 330 mF | -10%, +30% | 7.5 V | 450mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.531" (13.50mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.610" (15.50mm) | -40°C ~ 85°C | 1,284 Cart + RFQ |
SCMT32D755SRBB0 KYOCERA AVX | 1 $5.0500 | Datasheet | 7.5 F | -10%, +30% | 5.4 V | 70mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.709" (18.00mm) | 0.984" L x 0.492" W (25.00mm x 12.50mm) | 1.319" (33.50mm) | -40°C ~ 85°C | 7,312 Cart + RFQ |
SCMT22C505PRBA0 KYOCERA AVX | 1 $5.2800 | Datasheet | 5 F | 0%, +100% | 5 V | 100mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.709" (18.00mm) | 0.984" L x 0.492" W (25.00mm x 12.50mm) | 0.925" (23.50mm) | -40°C ~ 85°C | 3,272 Cart + RFQ |
SCMR22G105SRBA0 KYOCERA AVX | 1 $5.4000 | Datasheet | 1 F | -10%, +30% | 7.5 V | 180mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.531" (13.50mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.925" (23.50mm) | -40°C ~ 85°C | 3,884 Cart + RFQ |
SCMS32H505PRBB0 KYOCERA AVX | 1 $5.6600 | Datasheet | 5 F | 0%, +100% | 6 V | 120mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.610" (15.50mm) | 0.787" L x 0.394" W (20.00mm x 10.00mm) | 1.319" (33.50mm) | -40°C ~ 65°C | 8,604 Cart + RFQ |
SCMR22L105SRBB0 KYOCERA AVX | 1 $5.7700 | Datasheet | 1 F | -10%, +30% | 9 V | 350mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.531" (13.50mm) | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 0.925" (23.50mm) | -40°C ~ 65°C | 8,037 Cart + RFQ |
SCMT32F755SRBA0 KYOCERA AVX | 1 $6.5600 | Datasheet | 7.5 F | -10%, +30% | 5.5 V | 90mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.709" (18.00mm) | 0.984" L x 0.492" W (25.00mm x 12.50mm) | 1.319" (33.50mm) | -40°C ~ 65°C | 7,670 Cart + RFQ |
