Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
Product List
Total Components: 127
Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FYD0H104ZF KEMET | 1 $1.9800 | Datasheet | 100 mF | -20%, +80% | 5.5 V | 100Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.512" Dia (13.00mm) | 0.335" (8.50mm) | -25°C ~ 70°C | 9,037 Cart + RFQ |

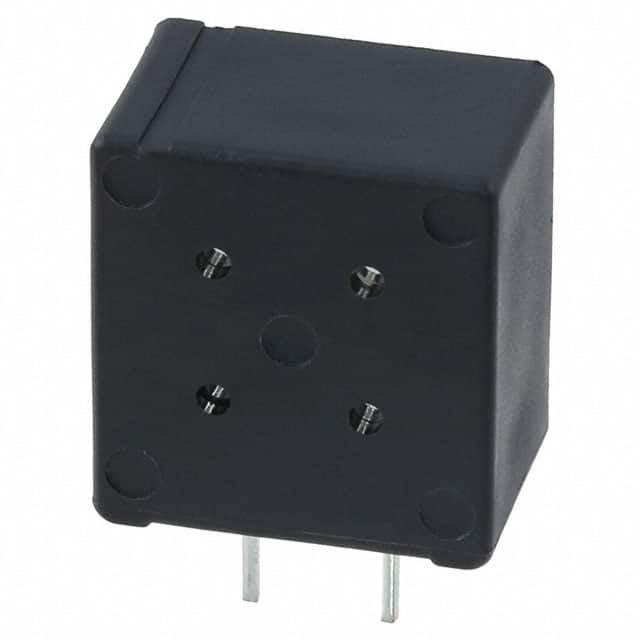

FMR0H104ZF KEMET | 1 $2.9500 | Datasheet | 100 mF | -20%, +80% | 5.5 V | 50Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.453" (11.50mm) | -40°C ~ 85°C | 1,187 Cart + RFQ |

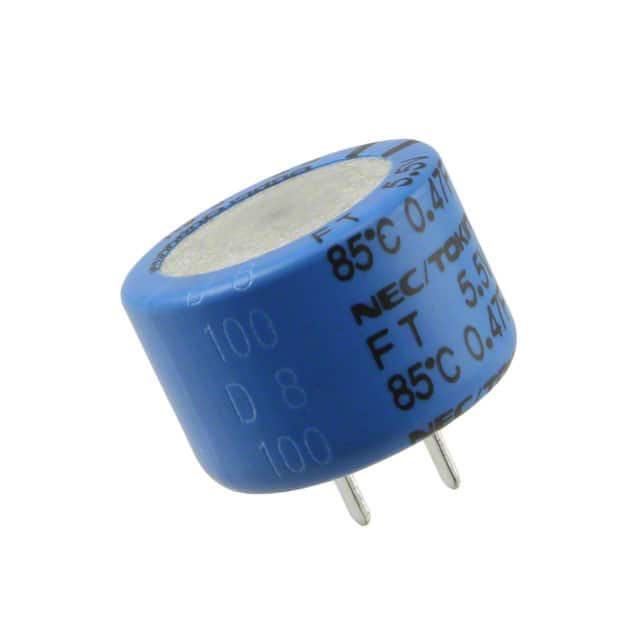

FT0H474ZF KEMET | 1 $4.0200 | Datasheet | 470 mF | -20%, +80% | 5.5 V | 6.5Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.650" Dia (16.50mm) | 0.512" (13.00mm) | -40°C ~ 85°C | 4,988 Cart + RFQ |

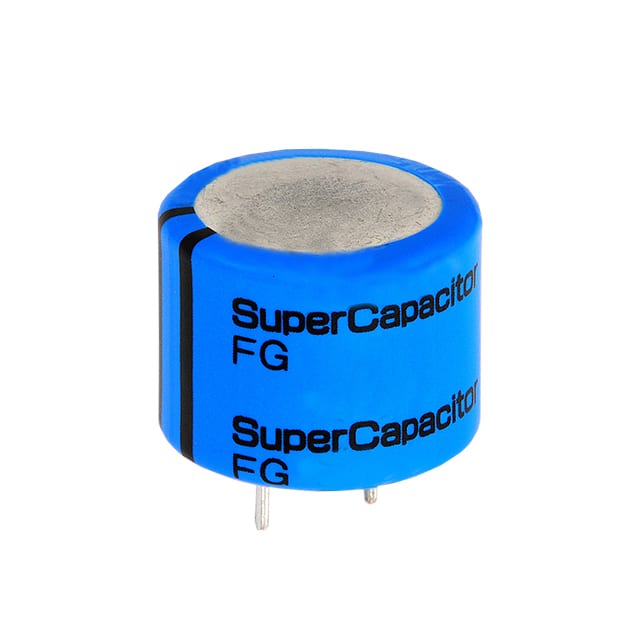

FG0H105ZF KEMET | 1 $4.3400 | Datasheet | 1 F | -20%, +80% | 5.5 V | 65Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.650" Dia (16.50mm) | 0.748" (19.00mm) | -25°C ~ 70°C | 1,514 Cart + RFQ |
FT0H225ZF KEMET | 1 $60.0000 100 $48.0000 500 $40.0000 | Datasheet | 2.2 F | -20%, +80% | 5.5 V | 1.8Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.400" (10.16mm) | 1.122" Dia (28.50mm) | 0.551" (14.00mm) | -40°C ~ 85°C | 3 Cart + RFQ |

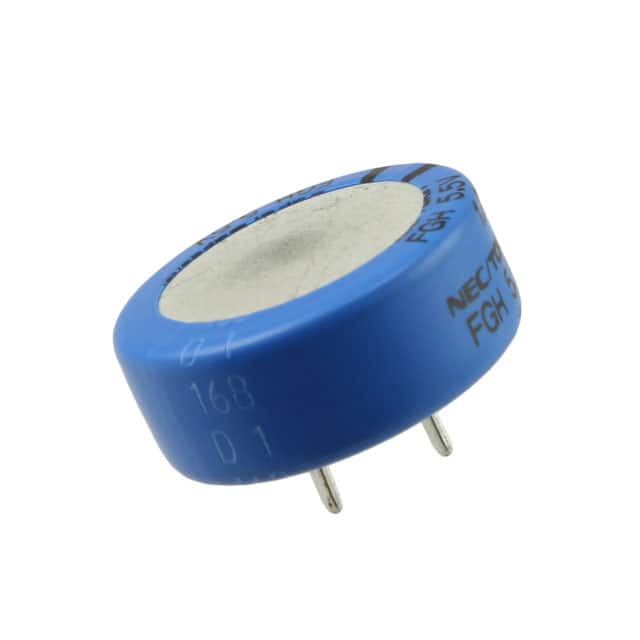

FGR0H225ZF KEMET | 1 $12.0700 | Datasheet | 2.2 F | -20%, +80% | 5.5 V | 35Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.300" (7.62mm) | 0.846" Dia (21.50mm) | 0.748" (19.00mm) | -40°C ~ 85°C | 4,187 Cart + RFQ |

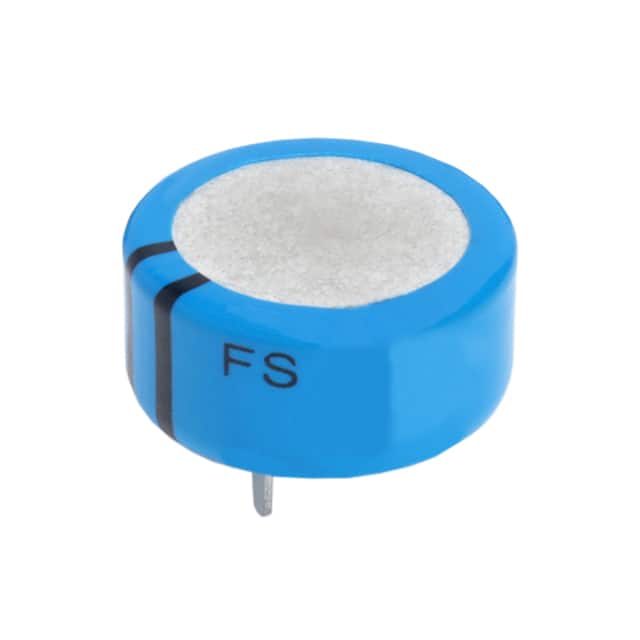

FS1B105ZF KEMET | 1 $24.2400 | Datasheet | 1 F | -20%, +80% | 12 V | 7.5Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.400" (10.16mm) | 1.122" Dia (28.50mm) | 1.496" (38.00mm) | -25°C ~ 70°C | 7,296 Cart + RFQ |
FA0H105ZF KEMET | 1 $17.1100 | Datasheet | 1 F | -20%, +80% | 5.5 V | 2.5Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.787" (20.00mm) | 1.752" Dia (44.50mm) | 0.728" (18.50mm) | -25°C ~ 70°C | 8,223 Cart + RFQ |
FMD0H334ZF KEMET | 1 $3.4100 | Datasheet | 330 mF | -20%, +80% | 5.5 V | 25Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial | 0.197" (5.00mm) | 0.551" L x 0.354" W (14.00mm x 9.00mm) | 0.610" (15.50mm) | -40°C ~ 85°C | 8,681 Cart + RFQ |
A958AL112M800S KEMET | 1 $79.4100 | Datasheet | 1100 µF | ±20% | 800 V | 125mOhm | 90000 Hrs @ 105°C | Screw Terminals | Chassis Mount | Module | - | 5.567" L x 4.331" W (141.40mm x 110.00mm) | 3.803" (96.60mm) | -40°C ~ 105°C | 7,102 Cart + RFQ |
HVZ0E506NF KEMET | 1 $7.0840 | Datasheet | 50 F | ±30% | 2.5 V | 50mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 60°C | 1,938 Cart + RFQ |
USCFA00H473Z00 KEMET | 1 $4.4800 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | 9,944 Cart + RFQ |
S501DC107W2R7A KEMET | Datasheet | 100 F | 0%, +20% | 2.7 V | 3.6mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | -40°C ~ 65°C | 1,138 Cart + RFQ | |
S501LF357V2R7A KEMET | Datasheet | 350 F | -5%, +10% | 2.7 V | 3.1mOhm @ 1kHz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.402" (61.00mm) | -40°C ~ 65°C | 1,165 Cart + RFQ | |
S301RP128R2R7W KEMET | Datasheet | 1200 F | -0% | 2.7 V | 0.25mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 3.169" L (60.70mm x 80.50mm) | - | -40°C ~ 65°C | 1,413 Cart + RFQ | |
S301RS208R2R7W KEMET | Datasheet | 2000 F | -0% | 2.7 V | 0.23mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 4.272" L (60.70mm x 108.50mm) | - | -40°C ~ 65°C | 2,571 Cart + RFQ | |
S301RV308R2R7W KEMET | Datasheet | 3000 F | -0% | 2.7 V | 0.2mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | 0.787" (20.00mm) | 2.390" Dia x 5.669" L (60.70mm x 144.00mm) | - | -40°C ~ 65°C | 7,615 Cart + RFQ | |
S01PM5805K016A KEMET | Datasheet | 58 F | ±10% | 16 V | 23mOhm | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Module | - | 8.873" L x 2.000" W (225.37mm x 50.80mm) | 3.000" (76.20mm) | -40°C ~ 65°C | 2,363 Cart + RFQ | |
S301RE657R2R7W KEMET | Datasheet | 650 F | -0% | 2.7 V | 0.26mOhm @ 1kHz | 1000 Hrs @ 65°C | Screw Terminals | Chassis Mount | Axial, Can - Screw Terminals | - | 2.390" Dia x 2.264" L (60.70mm x 57.50mm) | - | -40°C ~ 65°C | 6,756 Cart + RFQ | |
HVZ0E105NF KEMET | 1 $1.7500 | Datasheet | 1 F | ±30% | 2.7 V | 300mOhm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.551" (14.00mm) | -25°C ~ 70°C | 8,146 Cart + RFQ |
