Pulse Transformers
Pulse Transformers are designed to transfer pulses (signals/voltage with a rapid rise time, a duration of constant signal/voltage, and then a rapid fall time) from one side of a circuit to another. The transformer types are ADSL, data/voice coupling, economical open type, gate drive, general purpose, HDBase-T, HDSL, interface, isolation and data interface, LAN, MIL-STD-1553, PoE, SCR and Triac Trigger, SHDSL, T1/E1, T3/E3, and VDSL.
Product List
Total Components: 31
| Product | Pricing | Datasheet | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
 HM2101NLT Pulse Larsen Antenna | 1 $1.0050 100 $0.8040 500 $0.6700 | Datasheet | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | 11,200 Cart + RFQ |
 H1260FNLT Pulse Larsen Antenna | 1 $5.4900 | Datasheet | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.225" (5.72mm) | 0°C ~ 70°C | 2,372 Cart + RFQ |
 HX1260FNLT Pulse Larsen Antenna | 1 $5.4900 | Datasheet | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | 1,366 Cart + RFQ |
 HX1260NLT Pulse Larsen Antenna | 1 $5.4900 | Datasheet | LAN 10/100 Base-T | 350µH, 400µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | 7,715 Cart + RFQ |
 HX2326NLT Pulse Larsen Antenna | 1 $5.0800 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | 6,476 Cart + RFQ |
 HX2326FNLT Pulse Larsen Antenna | 1 $5.5300 | Datasheet | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | 8,235 Cart + RFQ |
 HM2113ZNLT Pulse Larsen Antenna | 1 $5.5600 | Datasheet | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.354" L x 0.478" W (9.00mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | 2,748 Cart + RFQ |
HM2103NLT Pulse Larsen Antenna | 1 $2.6538 100 $2.1230 500 $1.7692 | Datasheet | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | 211,900 Cart + RFQ |
 23Z467SMNLT Pulse Larsen Antenna | 1 $5.1400 | Datasheet | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | 2,942 Cart + RFQ |
 HX1098NLT Pulse Larsen Antenna | 1 $5.7400 | Datasheet | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.158" (4.01mm) | -40°C ~ 85°C | 4,170 Cart + RFQ |
 HX1198FNLT Pulse Larsen Antenna | 1 $8.0000 | Datasheet | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | 100,000 Cart + RFQ |
 HX1198NLT Pulse Larsen Antenna | 1 $5.7400 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | 7,764 Cart + RFQ |
 H1102NLT Pulse Larsen Antenna | 1 $4.0000 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | 100,000 Cart + RFQ |

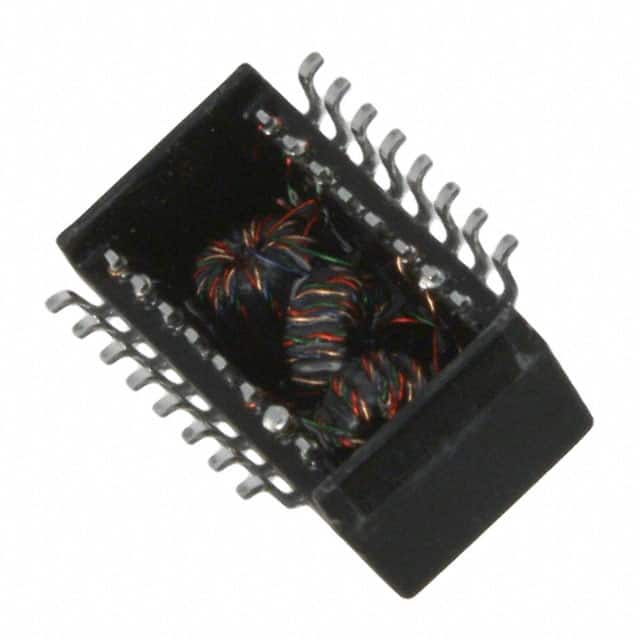

 H5084NLT Pulse Larsen Antenna | 1 $5.6500 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | 6,154 Cart + RFQ |
 HX1188FNLT Pulse Larsen Antenna | 1 $5.6800 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | -40°C ~ 85°C | 9,368 Cart + RFQ |
 H1112NLT Pulse Larsen Antenna | 1 $5.6200 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | 5,801 Cart + RFQ |
 HX1188NLT Pulse Larsen Antenna | 1 $0.7560 100 $0.6048 500 $0.5040 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | 1,020 Cart + RFQ |
 H0013NLT Pulse Larsen Antenna | 1 $1.0385 100 $0.8308 500 $0.6923 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | 500 Cart + RFQ |
 HX2019NLT Pulse Larsen Antenna | 1 $6.6800 | Datasheet | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | 5,888 Cart + RFQ |

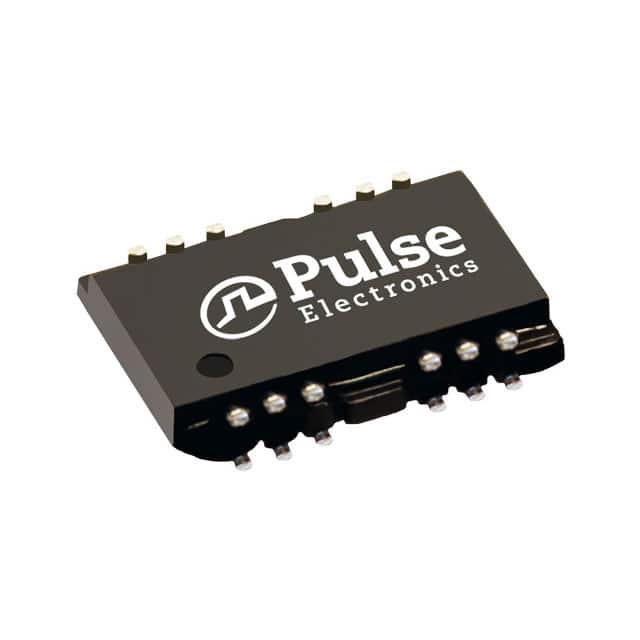

 H0068ANLT Pulse Larsen Antenna | 1 $7.2000 | Datasheet | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | 0°C ~ 70°C | 6,247 Cart + RFQ |
