Power Transformers
Products in the power transformers family include those designed for transformation of AC utility power at nominal frequencies of 400 Hz or less that contain galvanically isolated primary and secondary windings. They are not packaged or equipped with the common connectors used for AC utility powered products, making them unserviceable as an end-use product in an isolation transformer capacity.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 186B24 Hammond Manufacturing | 1 $16.0600 | Datasheet | Laminated Core | 115V, 230V | 24V | 250mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms | 0.45 lb (204.12 g) | 4,784 Cart + RFQ |

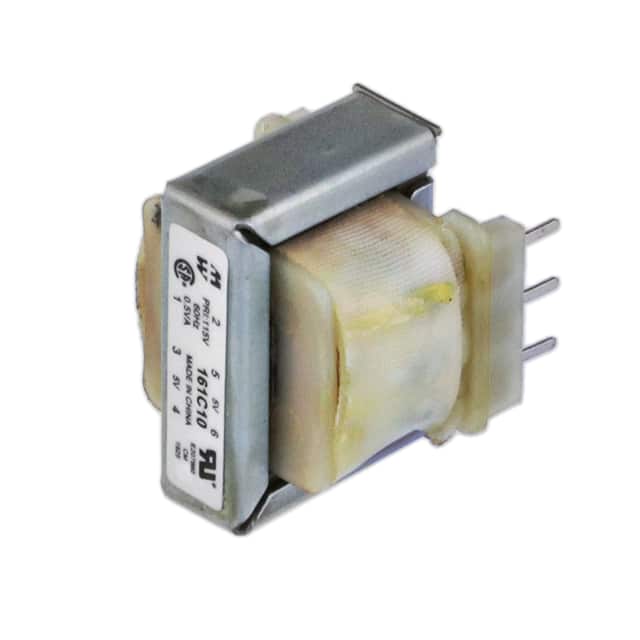

 161C10 Hammond Manufacturing | 1 $11.2900 | Datasheet | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 100mA, Series 50mA | Single | Single, Multiple Taps | No | 0.5VA | Through Hole | PC Pin | 25.40mm L x 23.88mm W | 21.34mm | 2000Vrms | 0.08 lb (36.29 g) | 9,402 Cart + RFQ |

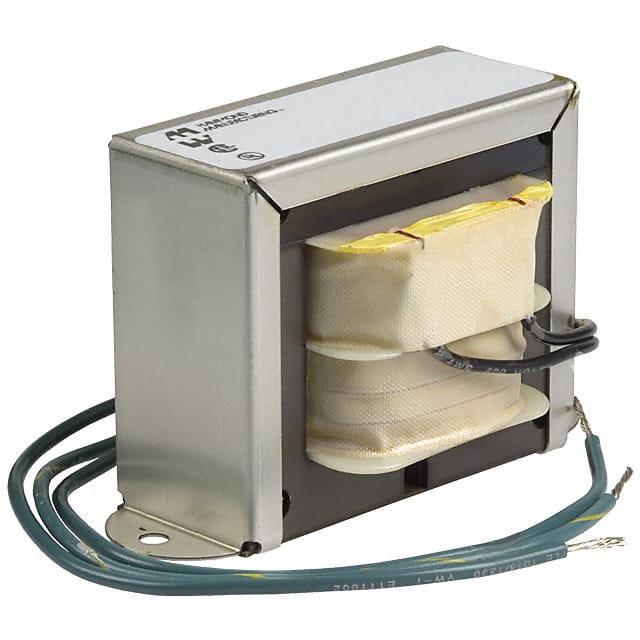

 166JA12 Hammond Manufacturing | 1 $16.3800 | Datasheet | Laminated Core | 115V | 12V | 1A | Single | Single | Yes | 12VA | Chassis Mount | Wire Leads | 71.37mm L x 41.40mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) | 6,545 Cart + RFQ |

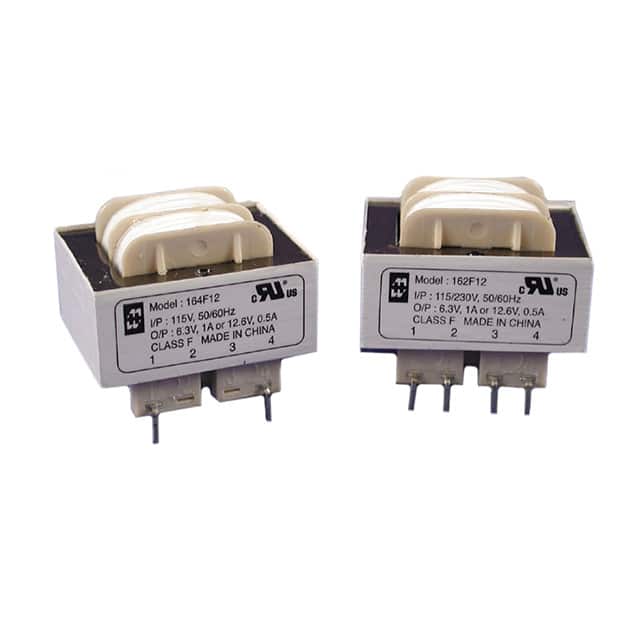

 164G36 Hammond Manufacturing | 1 $16.6300 | Datasheet | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms | 0.7 lb (317.51 g) | 5,778 Cart + RFQ |

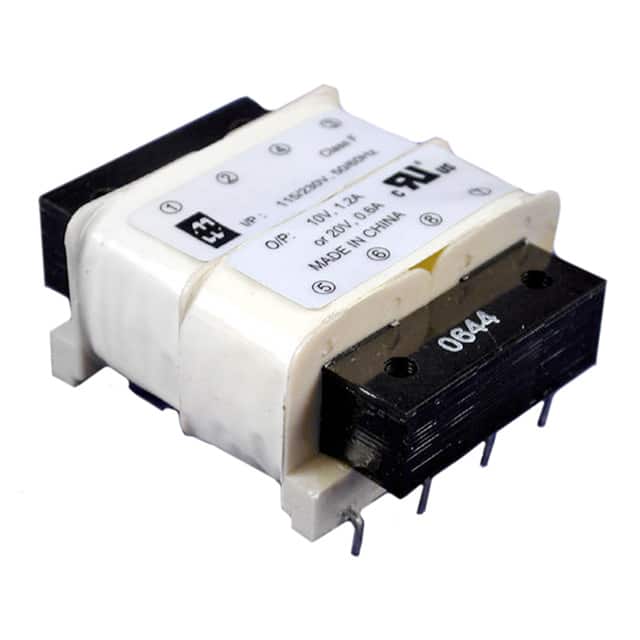

 229A12 Hammond Manufacturing | 1 $17.0100 | Datasheet | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 900mA, Series 450mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 21.59mm | 1750Vrms | 0.28 lb (127.01 g) | 7,939 Cart + RFQ |
166LA12 Hammond Manufacturing | 1 $17.7200 | Datasheet | Laminated Core | 115V | 12V | 2A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms | 1 lb (453.59 g) | 5,873 Cart + RFQ |
166J12 Hammond Manufacturing | 1 $18.7900 | Datasheet | Laminated Core | 115V | 12.6V | 1A | Single | Single | Yes | 12.6VA | Chassis Mount | Wire Leads | 71.37mm L x 41.40mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) | 4,128 Cart + RFQ |
 BE2F Hammond Manufacturing | 1 $21.8700 | Datasheet | Laminated Core | 120V | 16.5V | 2.42A | Single | Single | No | 40VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 66.04mm W | 50.29mm | - | 1.5 lbs (680.4 g) | 6,676 Cart + RFQ |
166P18 Hammond Manufacturing | 1 $42.6800 | Datasheet | Laminated Core | 115V | 18V | 5A | Single | Single | Yes | 90VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms | 3 lbs (1.4 kg) | 5,962 Cart + RFQ |
