Power Transformers
Products in the power transformers family include those designed for transformation of AC utility power at nominal frequencies of 400 Hz or less that contain galvanically isolated primary and secondary windings. They are not packaged or equipped with the common connectors used for AC utility powered products, making them unserviceable as an end-use product in an isolation transformer capacity.
Product List
Total Components: 36
| Product | Pricing | Datasheet | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ST-3-24 Signal Transformer | 1 $10.6500 | Datasheet | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.80mm | 2500Vrms | 0.25 lb (113.4 g) | 6,325 Cart + RFQ |
ST-3-28 Signal Transformer | 1 $10.6500 | Datasheet | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.80mm | 2500Vrms | 0.25 lb (113.4 g) | 6,849 Cart + RFQ |
 ST-4-24 Signal Transformer | 1 $11.6400 | Datasheet | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) | 9,577 Cart + RFQ |
 DST-4-36 Signal Transformer | 1 $13.3200 | Datasheet | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) | 1,762 Cart + RFQ |
DST-4-24 Signal Transformer | 1 $13.3200 | Datasheet | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) | 1,291 Cart + RFQ |
 DPC-12-100 Signal Transformer | 1 $11.5000 | Datasheet | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 200mA, Series 100mA | Dual | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) | 9,171 Cart + RFQ |

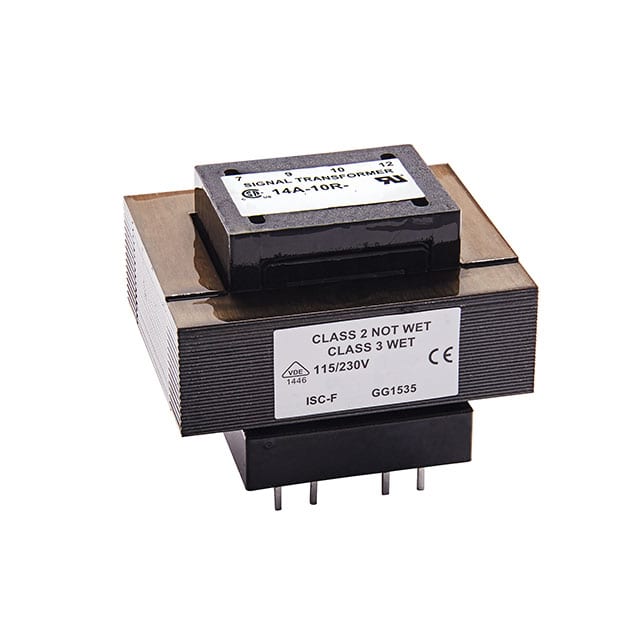

 14A-10R-20 Signal Transformer | 1 $14.0500 | Datasheet | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 34.90mm | 4000Vrms | 0.53 lb (240.4 g) | 5,386 Cart + RFQ |
14A-10R-36 Signal Transformer | 1 $14.0500 | Datasheet | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 560mA, Series 280mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 34.90mm | 4000Vrms | 0.53 lb (240.4 g) | 1,991 Cart + RFQ |
14A-10R-12 Signal Transformer | 1 $14.0500 | Datasheet | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 34.90mm | 4000Vrms | 0.53 lb (240.4 g) | 1,799 Cart + RFQ |
14A-10R-28 Signal Transformer | 1 $14.0500 | Datasheet | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 720mA, Series 360mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 34.90mm | 4000Vrms | 0.53 lb (240.4 g) | 2,024 Cart + RFQ |
DPC-10-90 Signal Transformer | 1 $14.6900 | Datasheet | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1VA | Through Hole | PC Pin | 25.40mm L x 34.92mm W | 21.08mm | 1500Vrms | 0.157 lb (71.21 g) | 3,721 Cart + RFQ |
DST-5-24 Signal Transformer | 1 $15.4200 | Datasheet | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.80mm L x 39.60mm W | 36.90mm | 2500Vrms | 0.7 lb (317.51 g) | 2,954 Cart + RFQ |

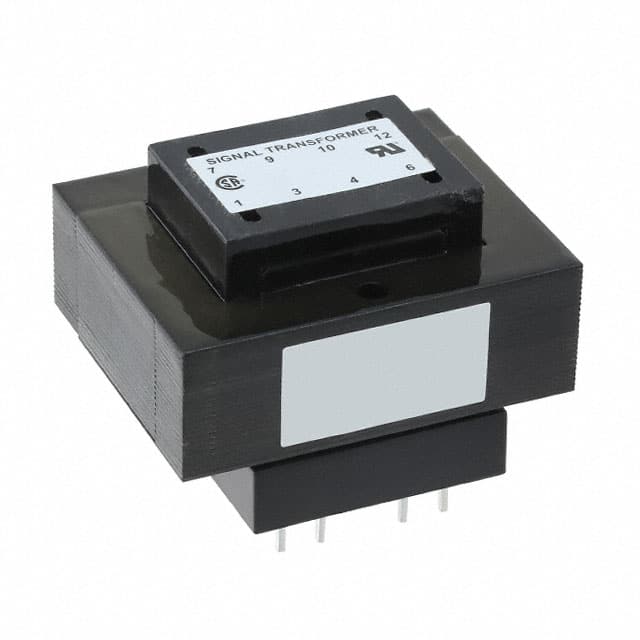

 CL2-10R-24 Signal Transformer | 1 $15.5900 | Datasheet | Laminated Core | 115V, 230V | 24V | 420mA | Dual | Single | No | 10VA | Through Hole | PC Pin | 47.60mm L x 39.70mm W | 34.90mm | 4000Vrms | 0.53 lb (240.4 g) | 6,309 Cart + RFQ |
DST-4-16 Signal Transformer | 1 $13.3200 | Datasheet | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) | 2,842 Cart + RFQ |

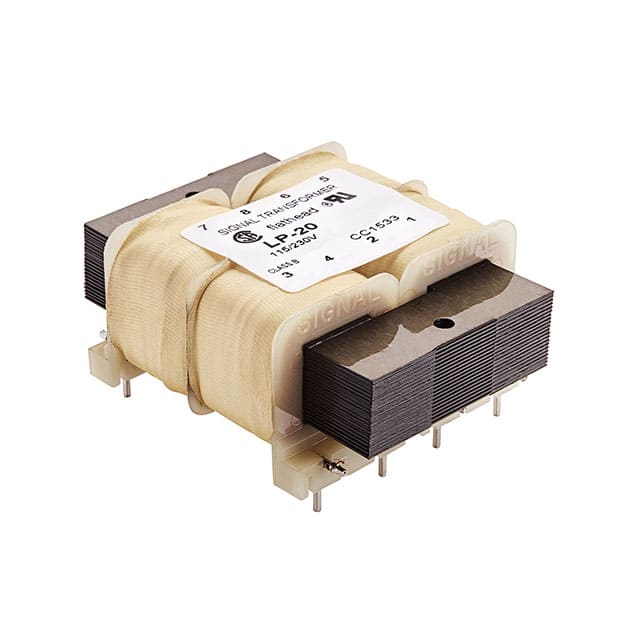

 LP-34-170 Signal Transformer | 1 $16.0600 | Datasheet | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) | 3,285 Cart + RFQ |
LP-20-300 Signal Transformer | 1 $16.0600 | Datasheet | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) | 6,901 Cart + RFQ |
14A-20-28 Signal Transformer | 1 $16.6500 | Datasheet | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.44A, Series 720mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms | 0.9 lb (408.23 g) | 8,255 Cart + RFQ |
LP-24-1000 Signal Transformer | 1 $19.6000 | Datasheet | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) | 7,570 Cart + RFQ |
LP-34-700 Signal Transformer | 1 $19.6000 | Datasheet | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) | 9,881 Cart + RFQ |

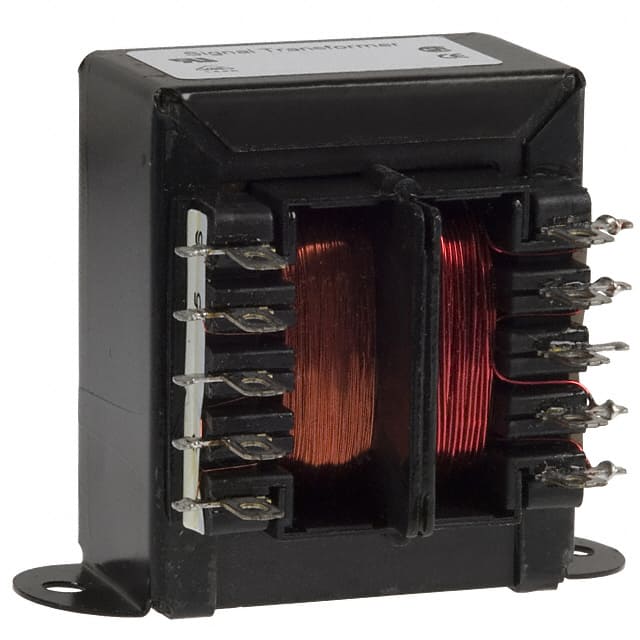

 A41-25-24 Signal Transformer | 1 $19.9900 | Datasheet | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) | 7,695 Cart + RFQ |
