Isolation Transformers and Autotransformers, Step Up, Step Down
Products in this family are used in conjunction with AC utility power, for safety or functional reasons. Isolation transformers are used to transfer electrical power without the use of a galvanic electrical connection, and are commonly used in repair or product development environments to mitigate shock hazards. Autotransformers are used for scaling the voltage of an available source up or down to meet a functional requirement when isolation between input and output is not required.
Product List
Total Components: 26
Product | Pricing | Datasheet | Type | Voltage - Primary | Voltage - Secondary | Power (Watts) | 1st Connector | 2nd Connector | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|

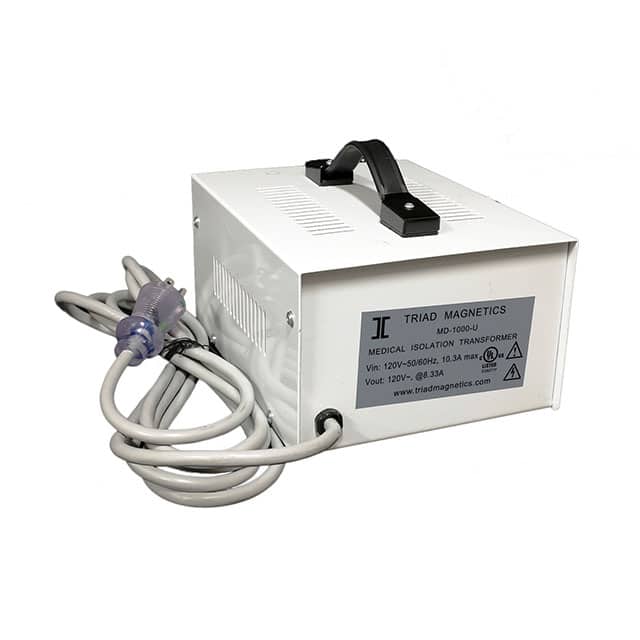

MD-1000-U Triad Magnetics | 1 $251.2100 | Datasheet | Isolation, Medical Grade | 120V | 120V | 1000VA | NEMA 5-15P | NEMA 5-15R (2) | 4,868 Cart + RFQ |

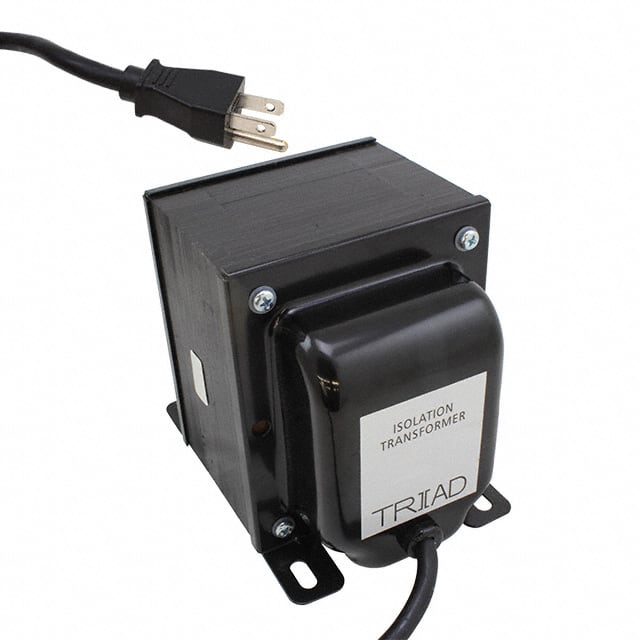

N-59MG Triad Magnetics | 1 $261.5800 | Datasheet | Isolation | 115V | 115V | 1000VA | NEMA 5-15P | NEMA 5-15R | 5,374 Cart + RFQ |

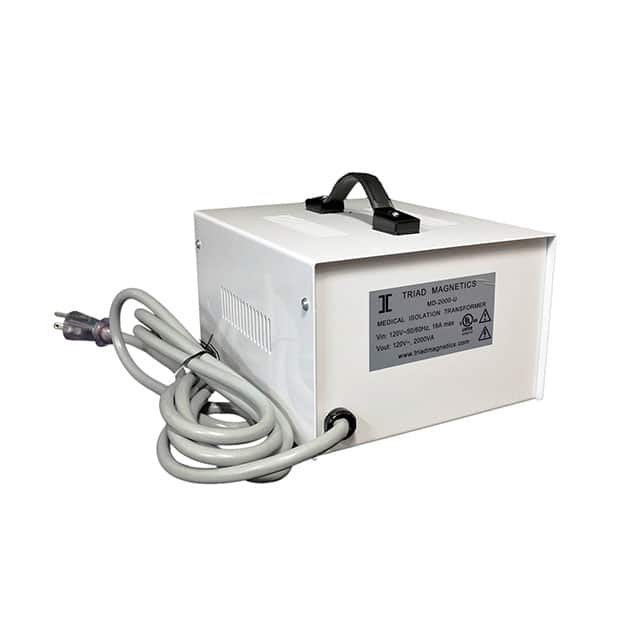

MD-2000-U Triad Magnetics | 1 $453.9400 | Datasheet | Isolation, Medical Grade | 120V | 120V | 2000VA | NEMA 5-20P | NEMA 5-20R (2) | 3,207 Cart + RFQ |

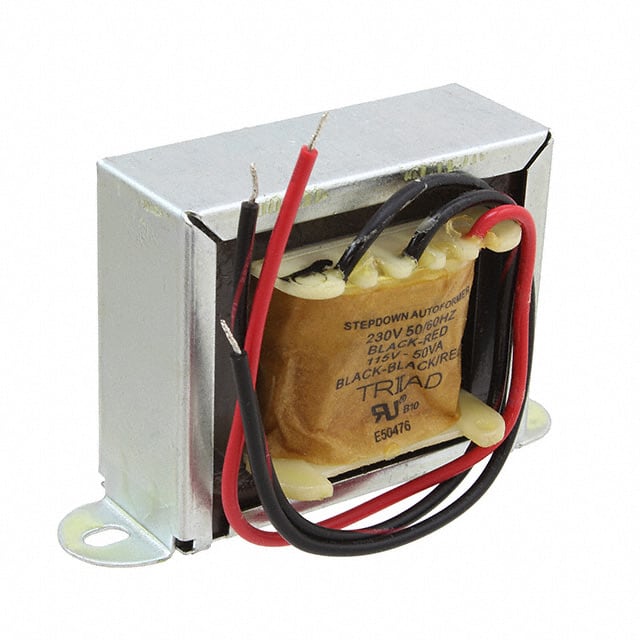

N-1X Triad Magnetics | 1 $18.4100 | Datasheet | Autotransformer (Non-Isolated) | 230V | 115V | 50VA | Wire Leads | Wire Leads | 1,130 Cart + RFQ |

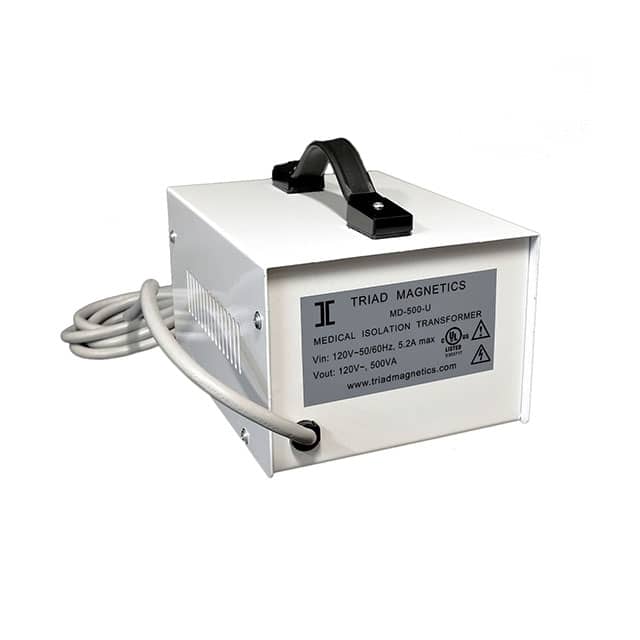

MD-500-U Triad Magnetics | 1 $173.3600 | Datasheet | Isolation, Medical Grade | 120V | 120V | 500VA | NEMA 5-15P | NEMA 5-15R (2) | 1,342 Cart + RFQ |

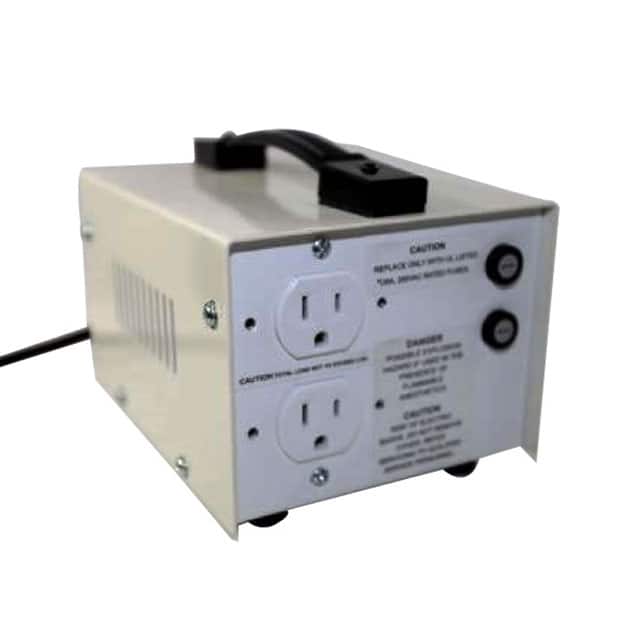

MD-250-U Triad Magnetics | 1 $157.2500 | Datasheet | Isolation, Medical Grade | 120V | 120V | 250VA | NEMA 5-15P | NEMA 5-15R (2) | 6,325 Cart + RFQ |

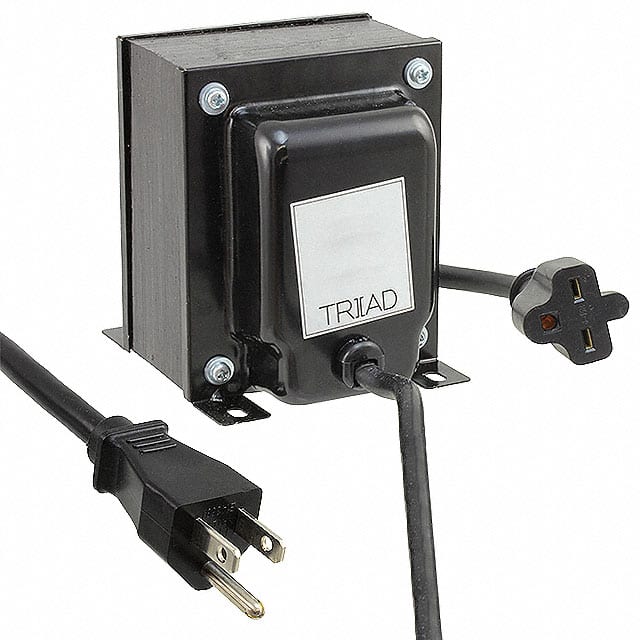

N-500MG Triad Magnetics | 1 $98.2300 | Datasheet | Autotransformer (Non-Isolated) | 115V | 230V | 500VA | NEMA 5-15P | NEMA 6-15P | 4,014 Cart + RFQ |

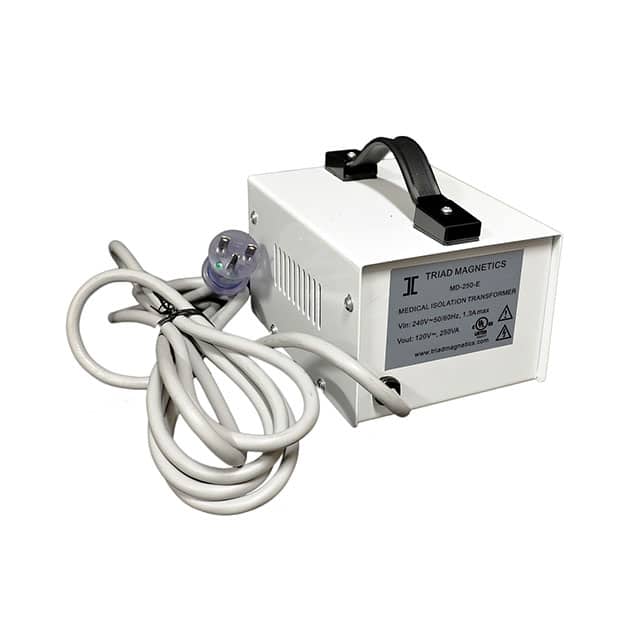

MD-250-E Triad Magnetics | 1 $146.5800 | Datasheet | Isolation, Medical Grade | 240V | 120V | 250VA | NEMA 6-15P | NEMA 5-15R (2) | 9,096 Cart + RFQ |

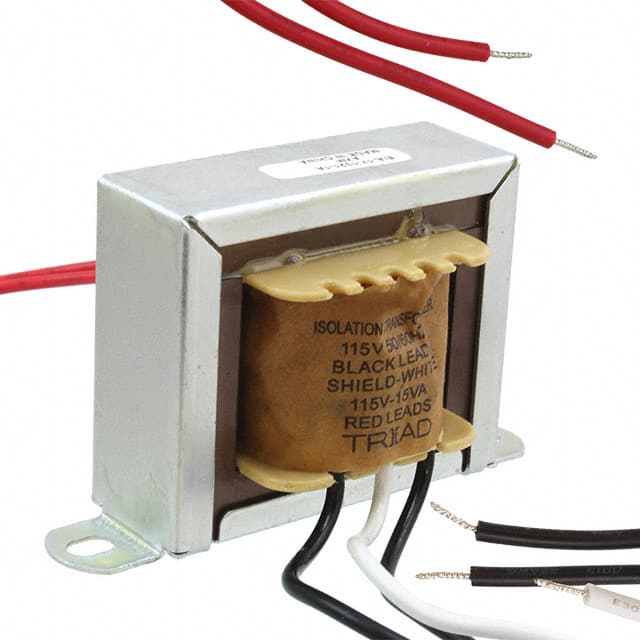

N-48X Triad Magnetics | 1 $16.3300 | Datasheet | Isolation | 115V | 115V | 15VA | Wire Leads | Wire Leads | 1,846 Cart + RFQ |

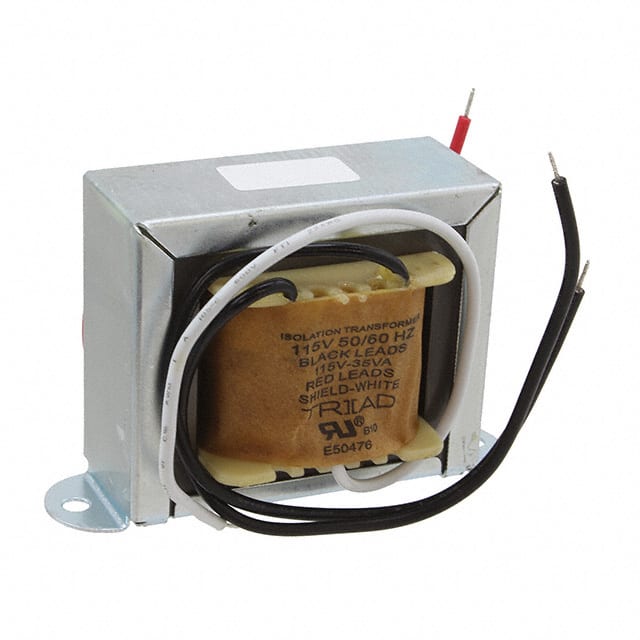

N-51X Triad Magnetics | 1 $18.4100 | Datasheet | Isolation | 115V | 115V | 35VA | Wire Leads | Wire Leads | 8,234 Cart + RFQ |

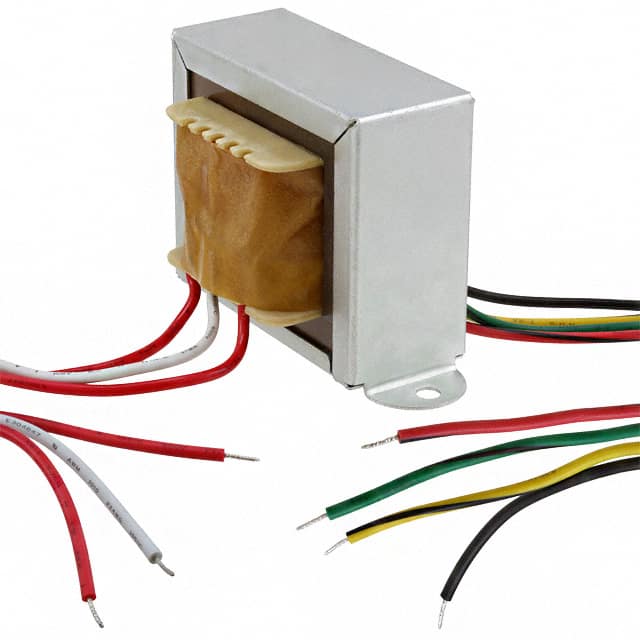

N-68X Triad Magnetics | 1 $19.6200 | Datasheet | Isolation | 115V, 230V | 115V | 50VA | Wire Leads | Wire Leads | 7,632 Cart + RFQ |

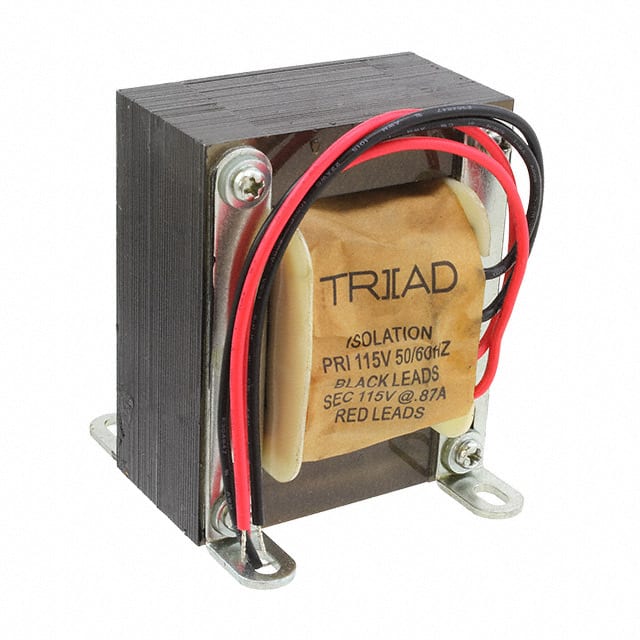

N-76U Triad Magnetics | 1 $40.5400 | Datasheet | Isolation | 115V | 115V | 100VA | Wire Leads | Wire Leads | 2,400 Cart + RFQ |

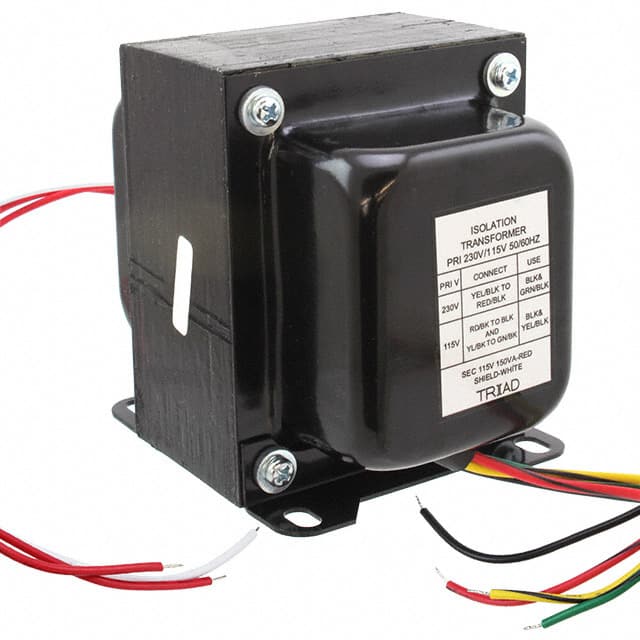

N-67A Triad Magnetics | 1 $55.9600 | Datasheet | Isolation | 115V, 230V | 115V | 150VA | Wire Leads | Wire Leads | 3,921 Cart + RFQ |

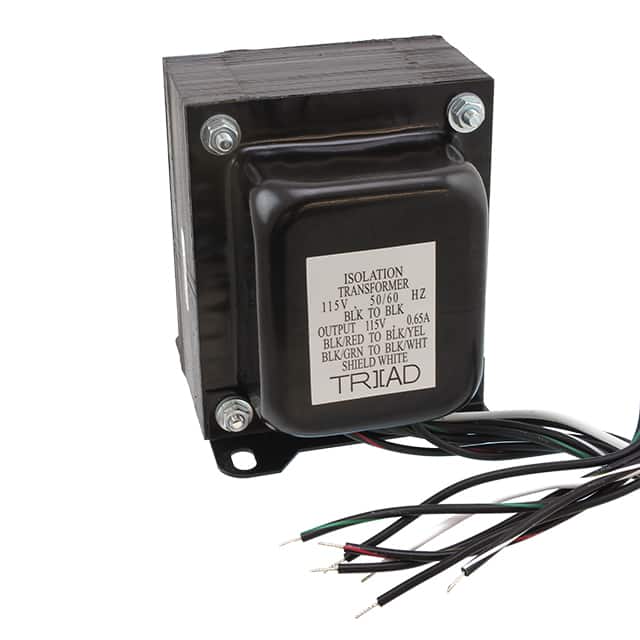

N-73A Triad Magnetics | 1 $55.9600 | Datasheet | Isolation | 115V | 115V, 230V | 150VA | Wire Leads | Wire Leads | 7,734 Cart + RFQ |
N-53MG Triad Magnetics | 1 $64.7700 | Datasheet | Isolation | 115V | 115V | 85VA | NEMA 5-15P | NEMA 5-15R | 6,334 Cart + RFQ |

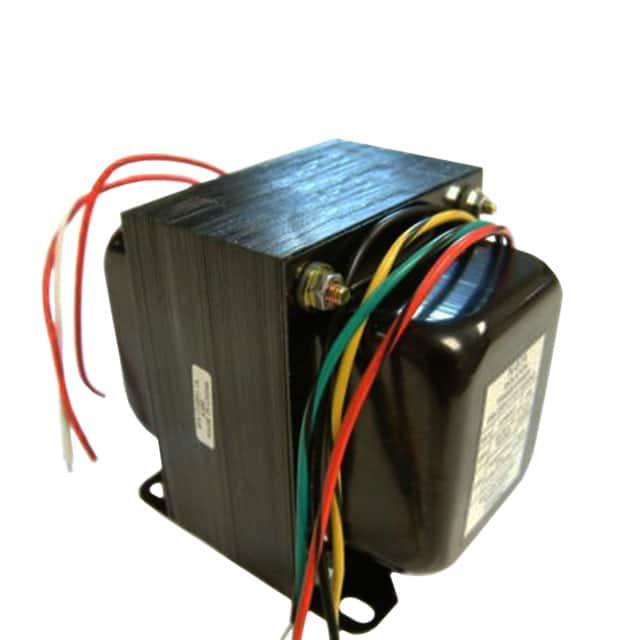

N-66A Triad Magnetics | 1 $77.5200 | Datasheet | Isolation | 115V, 230V | 115V | 250VA | Wire Leads | Wire Leads | 6,882 Cart + RFQ |

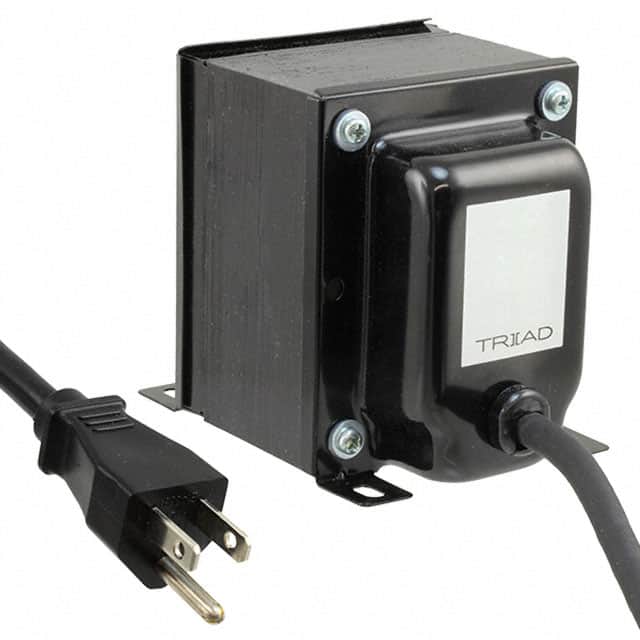

N-54MG Triad Magnetics | 1 $80.0100 | Datasheet | Isolation | 115V | 115V | 150VA | NEMA 5-15P | NEMA 5-15R | 7,173 Cart + RFQ |

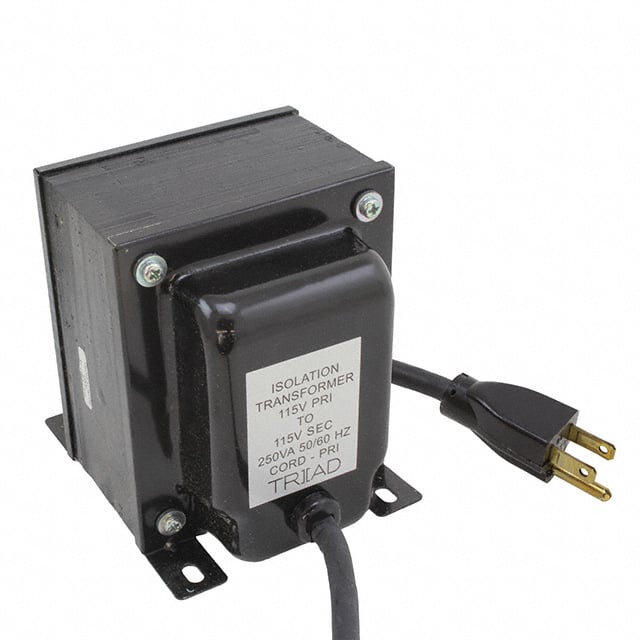

N-55MG Triad Magnetics | 1 $98.2300 | Datasheet | Isolation | 115V | 115V | 250VA | NEMA 5-15P | NEMA 5-15R | 3,524 Cart + RFQ |

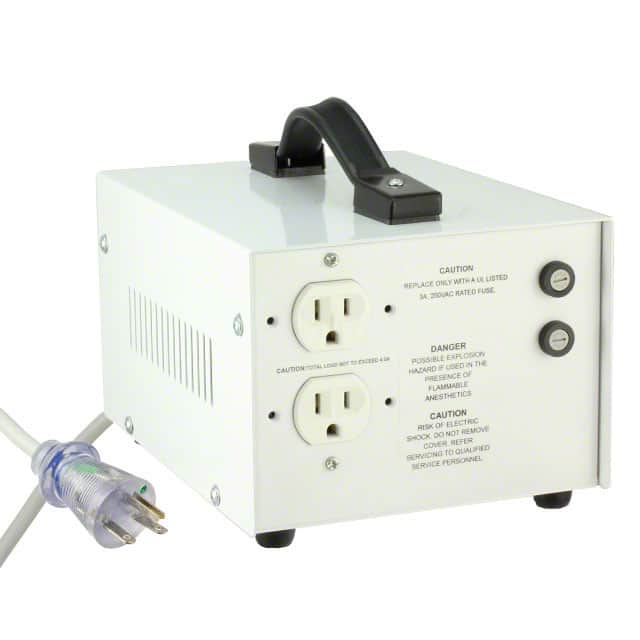

MD-500-E Triad Magnetics | 1 $171.9400 | Datasheet | Isolation, Medical Grade | 240V | 120V | 500VA | NEMA 6-15P | NEMA 5-15R (2) | 3,877 Cart + RFQ |

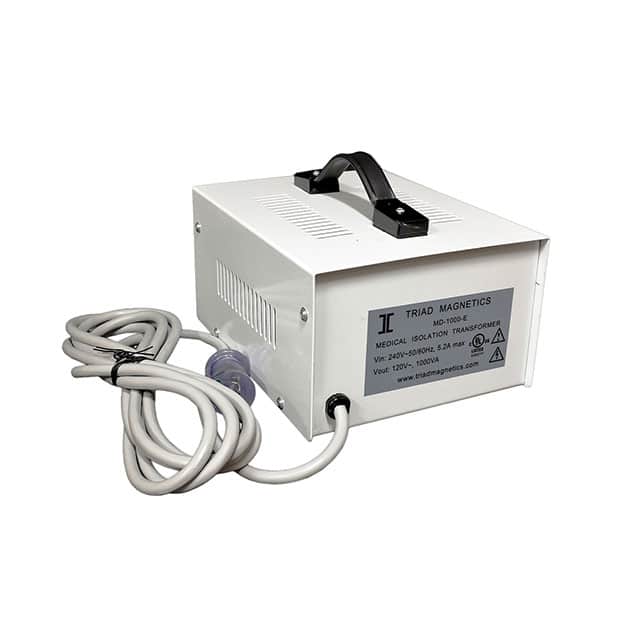

MD-1000-E Triad Magnetics | 1 $247.2700 | Datasheet | Isolation, Medical Grade | 240V | 120V | 1000VA | NEMA 6-15P | NEMA 5-15R (2) | 4,670 Cart + RFQ |
