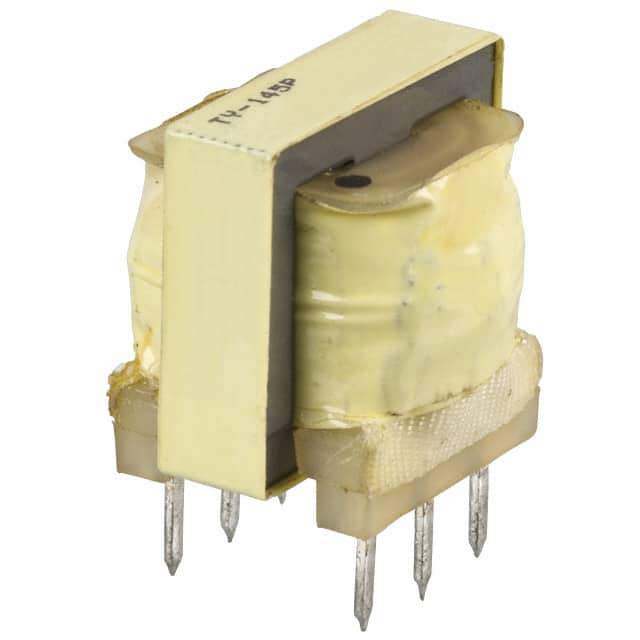

Audio Transformers
Like most other transformer products, audio transformers consist of two or more magnetically coupled coils of wire, usually wound around a magnetic core. They are distinguished from other transformer types by being adapted and characterized for use at frequencies across all or a significant portion of the human audible range spanning roughly 20 Hz to 20 kHz, and are used for isolation and transformation of information in analog format, as contrasted with transformers designed for transmission of information encoded using a digital signaling protocol. Examples include output transformers for vacuum tube amplifiers and voice coupling transformers for traditional telecom applications.
Product List
Total Components: 3
Product | Pricing | Datasheet | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AEI14-4440 Allied Components International | 1 $6.7500 | Datasheet | 1:1 | 10k | 10k | 330Ohm | 420Ohm | Impedance Matching | - | - | 1000V | - | - | - | -40°C ~ 85°C | - | Through Hole | 0.689" L x 0.610" W (17.50mm x 15.50mm) | 0.551" (14.00mm) | PC Pin | 2,189 Cart + RFQ |
AT4412 Allied Components International | 1 $9.8500 | Datasheet | 1:1 | - | - | 44Ohm | 56Ohm | Data/Voice Coupling | - | ±0.5dB | 1500V | 1.4dB | - | - | -40°C ~ 85°C | - | Through Hole | 0.815" L x 0.650" W (20.70mm x 16.50mm) | 0.736" (18.70mm) | PC Pin | 1,455 Cart + RFQ |
AT4547 Allied Components International | 1 $9.9500 | Datasheet | 1.35:1:1 | 600 | - | 56.5Ohm | 40.7Ohm, 40.7Ohm | Data/Voice | - | ±1dB | 1500VAC | 0.8dB Typ | 30dB Typ | - | 0°C ~ 105°C | - | Through Hole | 0.812" L x 0.715" W (20.62mm x 18.16mm) | 0.740" (18.80mm) | PC Pin | 8,708 Cart + RFQ |
