Audio Transformers
Like most other transformer products, audio transformers consist of two or more magnetically coupled coils of wire, usually wound around a magnetic core. They are distinguished from other transformer types by being adapted and characterized for use at frequencies across all or a significant portion of the human audible range spanning roughly 20 Hz to 20 kHz, and are used for isolation and transformation of information in analog format, as contrasted with transformers designed for transmission of information encoded using a digital signaling protocol. Examples include output transformers for vacuum tube amplifiers and voice coupling transformers for traditional telecom applications.
Product List
Total Components: 33
Product | Pricing | Datasheet | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
101F Hammond Manufacturing | 1 $21.2200 | Datasheet | 1:1 | 600CT | 600CT | 44Ohm | 52Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | 100VRMS | - | - | 100mW | -40°C ~ 85°C | - | Through Hole | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.480" (12.19mm) | PC Pin | 4,402 Cart + RFQ |
107B Hammond Manufacturing | 1 $23.8000 | Datasheet | 3.53:1 | 150CT | 12 | 22Ohm | 1.85Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin | 6,070 Cart + RFQ |
149U Hammond Manufacturing | 1 $24.4500 | Datasheet | - | 600, 150/150 | 8 | 53Ohm | 95Ohm | Economical Open Type | 200Hz ~ 15kHz | ±1dB | - | 0.5dB | - | 1000mW | - | - | Through Hole | 1.060" L x 0.820" W (26.92mm x 20.83mm) | 0.820" (20.83mm) | PC Pin | 7,147 Cart + RFQ |
101D Hammond Manufacturing | 1 $21.2200 | Datasheet | - | 300CT | 600CT | 20.4Ohm | 54Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.480" (12.19mm) | PC Pin | 8,321 Cart + RFQ |
107H Hammond Manufacturing | 1 $23.8000 | Datasheet | 1:1 | 600CT | 600CT | 60Ohm | 78Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin | 1,364 Cart + RFQ |
107D Hammond Manufacturing | 1 $23.8000 | Datasheet | 1:1 | 150CT | 150CT | 22Ohm | 27Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin | 7,858 Cart + RFQ |
108E Hammond Manufacturing | 1 $27.3900 | Datasheet | 13.71:1 | 600CT | 3.2 | 54Ohm | 400mOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.75dB | 100VRMS | - | - | 500mW | - | - | Through Hole | 1.030" L x 0.770" W (26.16mm x 19.56mm) | 0.770" (19.56mm) | PC Pin | 7,198 Cart + RFQ |
107X Hammond Manufacturing | 1 $30.7000 | Datasheet | 10:1 | 100kCT | 1kCT | 3.66kOhm | 75Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 500Vrms | - | - | 150mW | - | - | Through Hole | 0.630" L x 0.586" W (16.00mm x 14.88mm) | 0.630" (16.00mm) | PC Pin | 2,417 Cart + RFQ |
125A Hammond Manufacturing | 1 $44.8000 | Datasheet | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 3W | - | - | Chassis Mount | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) | Wire Leads | 5,919 Cart + RFQ |
1620 Hammond Manufacturing | 1 $127.1800 | Datasheet | - | 6.6kCT | 4, 8, 16 | 65.4Ohm, 74.6Ohm | 310mOhm, 500mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | ±1dB | - | 20W | - | - | Chassis Mount | 3.500" L x 2.500" W (88.90mm x 63.50mm) | 3.060" (77.72mm) | Wire Leads | 6,156 Cart + RFQ |

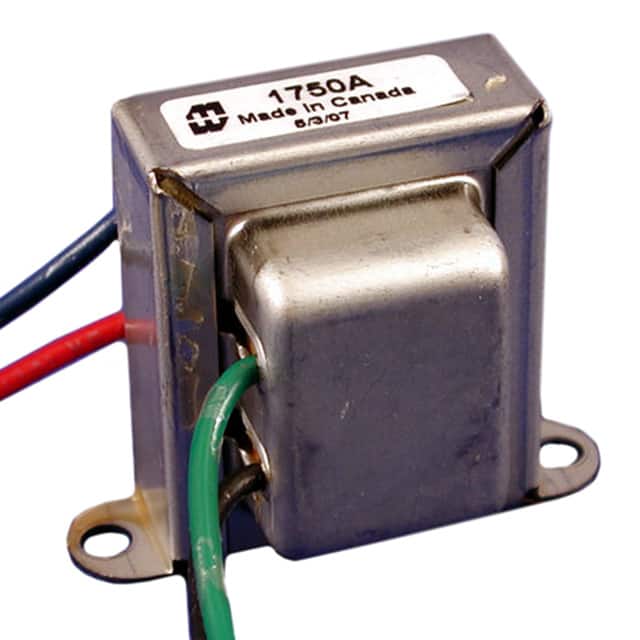

1750A Hammond Manufacturing | 1 $36.3100 | Datasheet | 53.11:1 | 22.8k | 8 | 1.065kOhm | 1.02Ohm | Single Ended Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 3.5W | - | - | Chassis Mount | 2.000" L x 1.440" W (50.80mm x 36.58mm) | 1.773" (45.03mm) | Wire Leads | 2,173 Cart + RFQ |

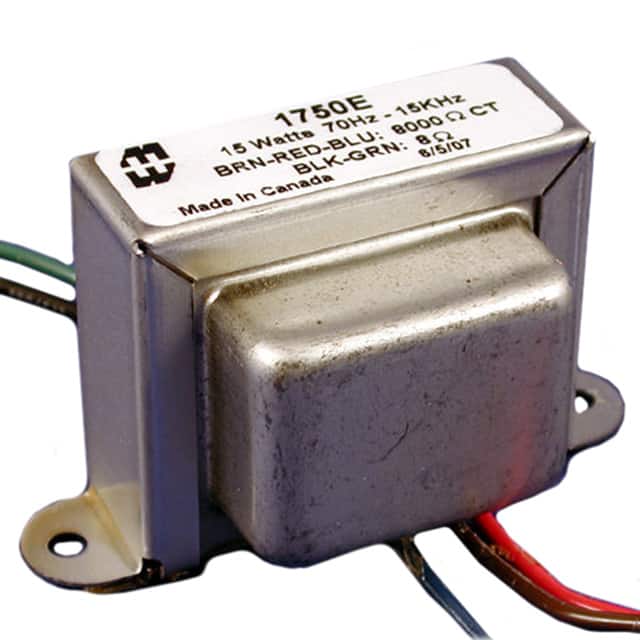

1750E Hammond Manufacturing | 1 $44.4500 | Datasheet | 32.61:1 | 8kCT | 8 | 150Ohm, 300Ohm | 450mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 3.250" L x 2.085" W (82.55mm x 52.96mm) | 2.058" (52.27mm) | Wire Leads | 1,744 Cart + RFQ |

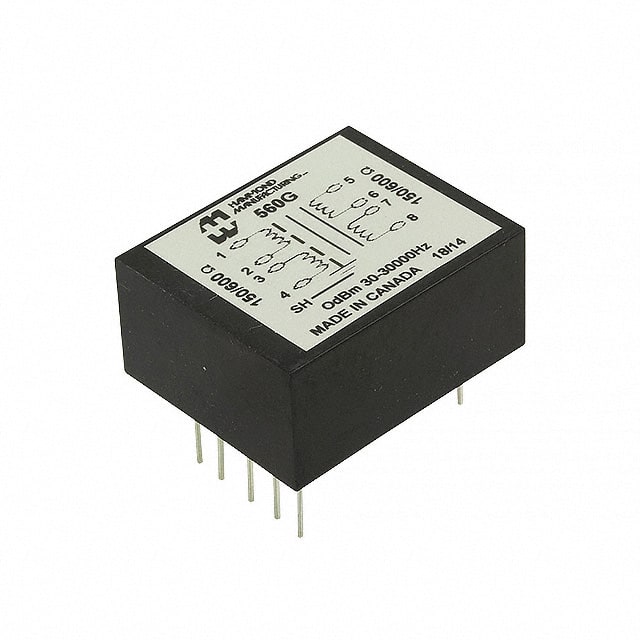

560G Hammond Manufacturing | 1 $66.2200 | Datasheet | - | 600, 150/150 | 600, 150/150 | - | - | Broadcast Quality | 30Hz ~ 30kHz | ±1dB | - | 1dB Max | - | - | - | - | Through Hole | 1.330" L x 1.640" W (33.78mm x 41.66mm) | 0.850" (21.59mm) | PC Pin | 1,200 Cart + RFQ |
1140-LN-B Hammond Manufacturing | 1 $76.0200 | Datasheet | 1:1 | 10k | 10k | - | - | Impedance Matching | 20Hz ~ 20kHz | ±0.35dB | - | - | - | - | - | - | Chassis Mount | - | - | Screw Terminal | 8,770 Cart + RFQ |
140QEX Hammond Manufacturing | 1 $87.0700 | Datasheet | 1:1 | 600CT | 600CT | 72.4Ohm | 72.4Ohm | - | 20Hz ~ 20kHz | ±1dB | 500Vrms | 1.1dB Typ | 20dB Typ | 10dB | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Screw Terminal | 3,249 Cart + RFQ |

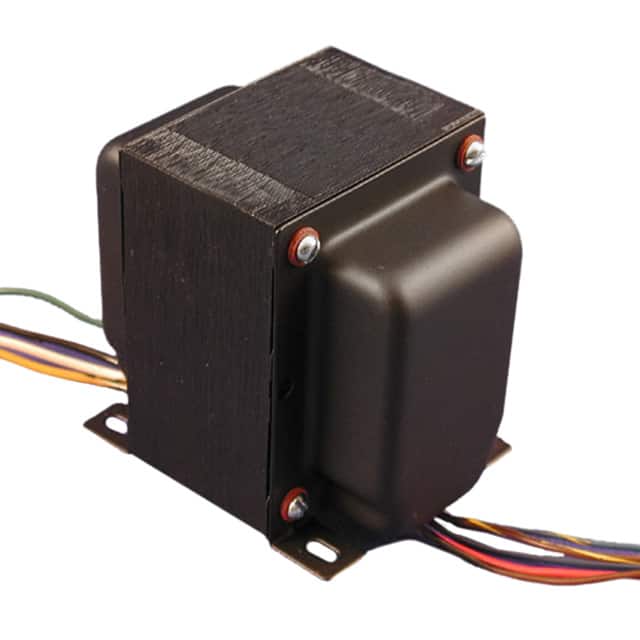

1650PA Hammond Manufacturing | 1 $169.8600 | Datasheet | - | 6.6kCT | 4, 8, 16 | 71.34Ohm, 80.42Ohm | 237mOhm, 364mOhm, 473mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | - | - | 60W | - | - | Chassis Mount | 4.250" L x 3.130" W (107.95mm x 79.50mm) | 3.810" (96.77mm) | Wire Leads | 6,935 Cart + RFQ |

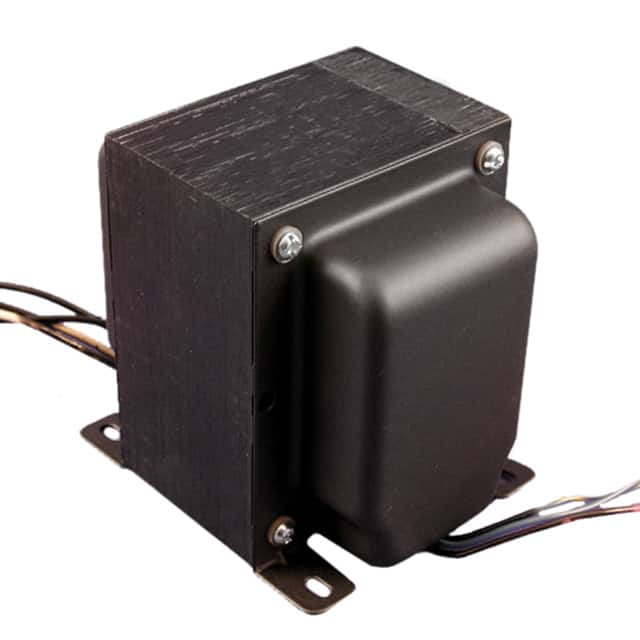

1628SEA Hammond Manufacturing | 1 $180.7900 | Datasheet | - | 5k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2000Vrms | ±1dB | - | 30W | - | - | Chassis Mount | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) | Wire Leads | 5,930 Cart + RFQ |

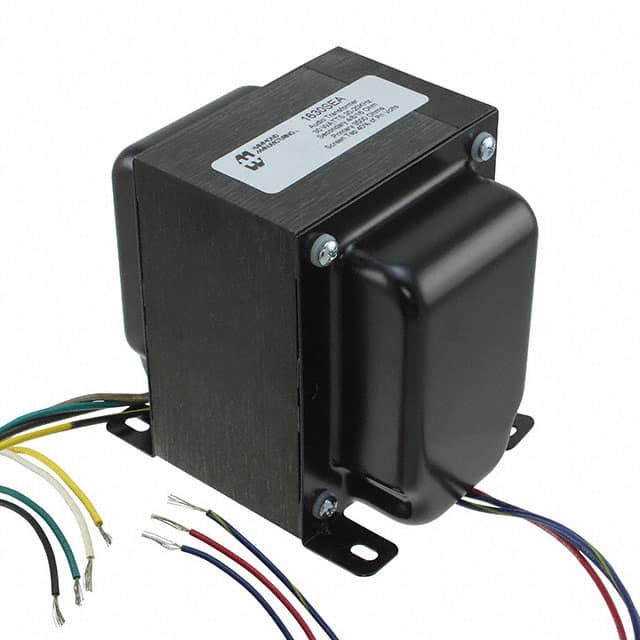

1630SEA Hammond Manufacturing | 1 $180.7900 | Datasheet | - | 3.5k | 4, 8, 16 | 110.1Ohm | 634mOhm | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2828VDC @ 1 Second | ±1dB | - | 30W | - | - | Chassis Mount | 4.980" L x 3.750" W (126.49mm x 95.25mm) | 4.650" (118.11mm) | Wire Leads | 7,843 Cart + RFQ |
1627SEA Hammond Manufacturing | 1 $180.7900 | Datasheet | - | 2.5k | 4, 8, 16 | 30Ohm, 47.44Ohm | 402mOhm, 502mOhm, 700mOhm | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2828VDC @ 1 Second | ±1dB | - | 30W | - | - | Chassis Mount | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) | Wire Leads | 2,428 Cart + RFQ |
1638SEA Hammond Manufacturing | 1 $224.6600 | Datasheet | - | 10k | 4, 8, 16 | - | - | Single Ended Audiophile | 20Hz ~ 20kHz | ±1dB | 2000Vrms | ±1dB | - | 30W | - | - | Chassis Mount | 4.880" L x 3.750" W (123.95mm x 95.25mm) | 4.560" (115.82mm) | Wire Leads | 5,609 Cart + RFQ |
