Aluminum Electrolytic Capacitors
A capacitor is a passive electronic device that stores electric charge. Polarized aluminum electrolytic capacitors have an anode electrode (+) made of pure aluminum foil, electrolyte that acts as the cathode, and a thin insulating layer of aluminum oxide that acts as the dielectric. Electrolytic capacitors have higher capacitance-voltage (CV) product per unit volume than ceramic capacitors or film capacitors. Applications include audio, automotive, bypass, decoupling, and motor starting capacitors.
Product List
Total Components: 11,682
| Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

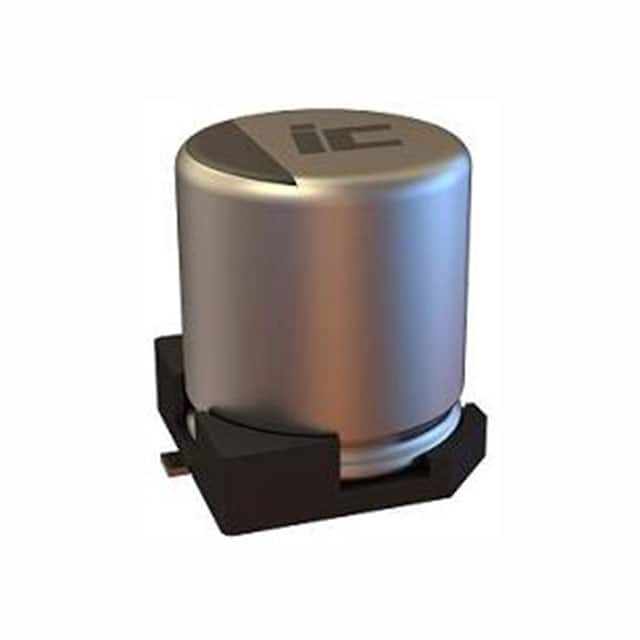

 106AXZ035M CDE (Cornell Dubilier Electronics) | 1 $0.5100 | Datasheet | 10 µF | ±20% | 35 V | 19.89Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD | 9,939 Cart + RFQ |

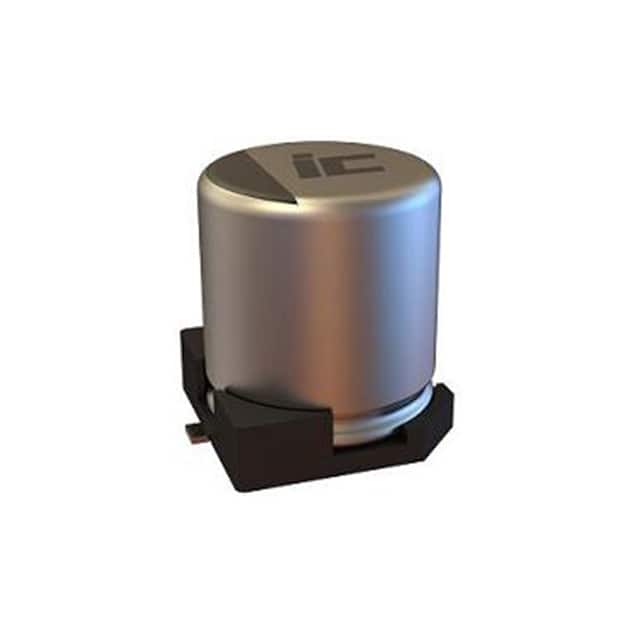

 107AXZ050M CDE (Cornell Dubilier Electronics) | 1 $0.9100 | Datasheet | 100 µF | ±20% | 50 V | 2.321Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.417" (10.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD | 7,928 Cart + RFQ |
227SML035MD10 CDE (Cornell Dubilier Electronics) | 1 $1.1800 | Datasheet | 220 µF | ±20% | 35 V | 900mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 465 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.417" (10.60mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | Radial, Can - SMD | 1,658 Cart + RFQ |

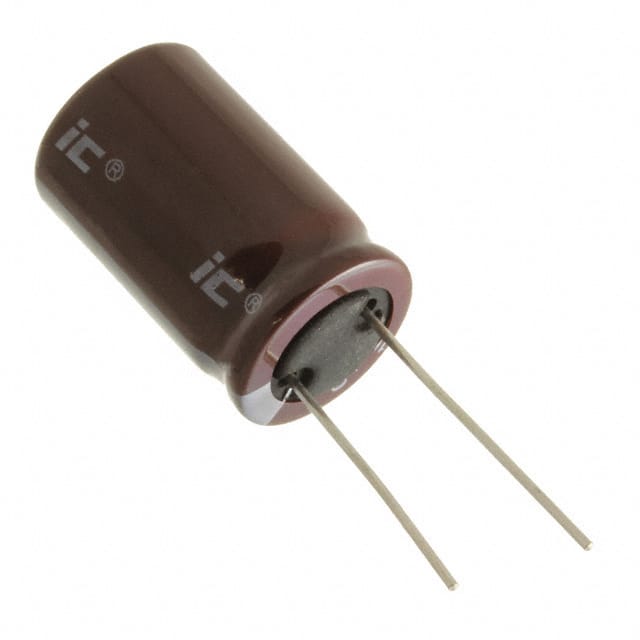

 477CKE035M CDE (Cornell Dubilier Electronics) | 1 $0.7400 | Datasheet | 470 µF | ±20% | 35 V | 423mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 545 mA @ 120 Hz | 899.25 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | Radial, Can | 4,165 Cart + RFQ |

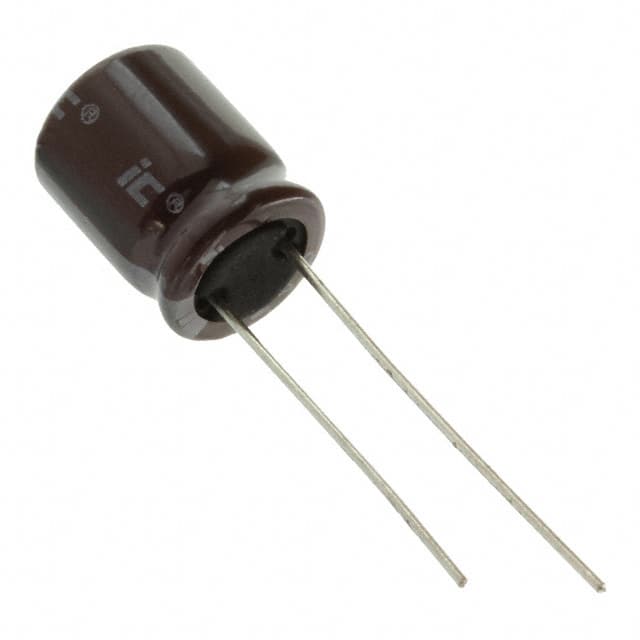

 227CKE050M CDE (Cornell Dubilier Electronics) | 1 $0.7700 | Datasheet | 220 µF | ±20% | 50 V | 754mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can | 7,332 Cart + RFQ |
226SML050M CDE (Cornell Dubilier Electronics) | 1 $0.5100 | Datasheet | 22 µF | ±20% | 50 V | 9.043Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 106.5 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 4,902 Cart + RFQ |
107SML016M CDE (Cornell Dubilier Electronics) | 1 $0.5100 | Datasheet | 100 µF | ±20% | 16 V | 3.316Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 103 mA @ 120 Hz | 154.5 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 9,649 Cart + RFQ |
AVE106M35C12T-F CDE (Cornell Dubilier Electronics) | 1 $0.5100 | Datasheet | 10 µF | ±20% | 35 V | 19.89Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.209" (5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD | 6,100 Cart + RFQ |
AVE106M25C12T-F CDE (Cornell Dubilier Electronics) | 1 $0.5100 | Datasheet | 10 µF | ±20% | 25 V | 23.21Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.209" (5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD | 2,478 Cart + RFQ |
107AXZ016MQ5 CDE (Cornell Dubilier Electronics) | 1 $0.4900 | Datasheet | 100 µF | ±20% | 16 V | 2.65Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 520 mOhms | - | 0.248" Dia (6.30mm) | 0.220" (5.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 3,948 Cart + RFQ |
382LX183M100B082VS CDE (Cornell Dubilier Electronics) | 1 $22.2900 | Datasheet | 18000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.65 A @ 20 kHz | - | - | 1.969" Dia (50.00mm) | 3.228" (82.00mm) | - | Through Hole | Radial, Can - Snap-In - 5 Lead | 5,130 Cart + RFQ |
DCMC432T200BB2B CDE (Cornell Dubilier Electronics) | 1 $23.0700 | Datasheet | 4300 µF | -10%, +50% | 200 V | 46.1mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 8.946 A @ 10 kHz | - | 0.875" (22.22mm) | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 6,989 Cart + RFQ |
CGS502U050R3C CDE (Cornell Dubilier Electronics) | 1 $28.5600 | Datasheet | 5000 µF | -10%, +75% | 50 V | 26mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.1 A @ 120 Hz | 7.93 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 3.125" (79.38mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 7,841 Cart + RFQ |
382LX152M500B102VS CDE (Cornell Dubilier Electronics) | 1 $29.1000 | Datasheet | 1500 µF | ±20% | 500 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.65 A @ 120 Hz | 9.31 A @ 20 kHz | - | - | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | Radial, Can - Snap-In - 5 Lead | 1,189 Cart + RFQ |
500C103T100BJ2B CDE (Cornell Dubilier Electronics) | 1 $47.1100 | Datasheet | 10000 µF | -10%, +50% | 100 V | 23mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.625" (92.08mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 1,360 Cart + RFQ |
CGS203U050V4C CDE (Cornell Dubilier Electronics) | 1 $65.1800 | Datasheet | 20000 µF | -10%, +75% | 50 V | 21mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 120 Hz | 12.35 A @ 10 kHz | - | 0.875" (22.22mm) | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 6,179 Cart + RFQ |
CGS203U050V5L CDE (Cornell Dubilier Electronics) | 1 $66.2200 | Datasheet | 20000 µF | -10%, +75% | 50 V | 14mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | 17.16 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 5,406 Cart + RFQ |
500C183T100CC2B CDE (Cornell Dubilier Electronics) | 1 $79.4100 | Datasheet | 18000 µF | -10%, +50% | 100 V | 13mOhm @ 120Hz | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 3,010 Cart + RFQ |
500C222T450CC2B CDE (Cornell Dubilier Electronics) | 1 $105.8700 | Datasheet | 2200 µF | -10%, +50% | 450 V | 68mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 2,305 Cart + RFQ |
MLP112M100EK0A CDE (Cornell Dubilier Electronics) | 1 $110.3400 | Datasheet | 1100 µF | ±20% | 100 V | 112mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | FlatPack, Tabbed | 2,401 Cart + RFQ |
