Aluminum Electrolytic Capacitors
A capacitor is a passive electronic device that stores electric charge. Polarized aluminum electrolytic capacitors have an anode electrode (+) made of pure aluminum foil, electrolyte that acts as the cathode, and a thin insulating layer of aluminum oxide that acts as the dielectric. Electrolytic capacitors have higher capacitance-voltage (CV) product per unit volume than ceramic capacitors or film capacitors. Applications include audio, automotive, bypass, decoupling, and motor starting capacitors.
Product List
Total Components: 16,446
| Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

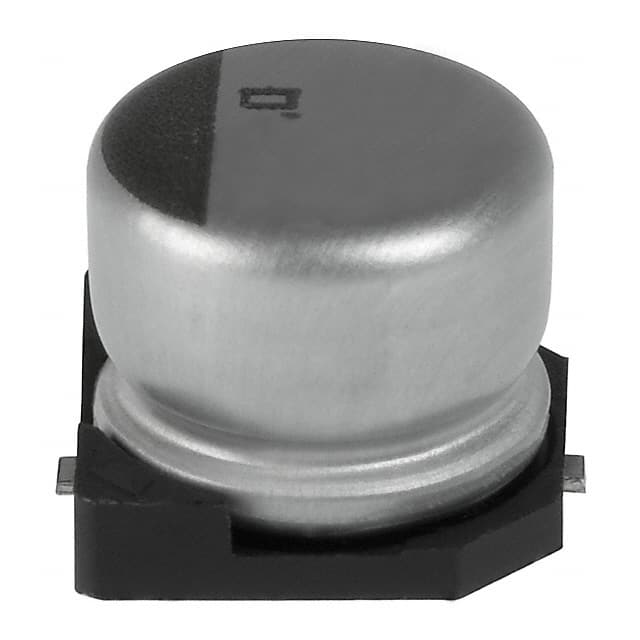

 EMVY350ADA470MF55G United Chemi-Con | 1 $0.4700 | Datasheet | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 9,260 Cart + RFQ |

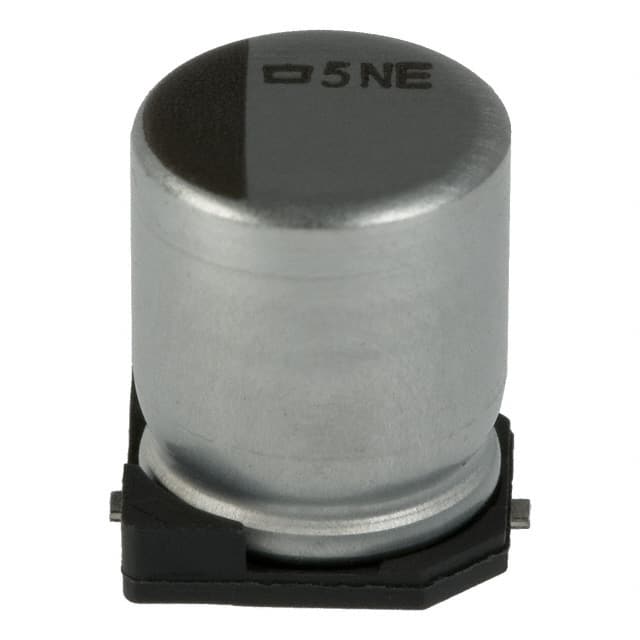

 EMVE250ADA101MF80G United Chemi-Con | 1 $0.5100 | Datasheet | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 5,583 Cart + RFQ |

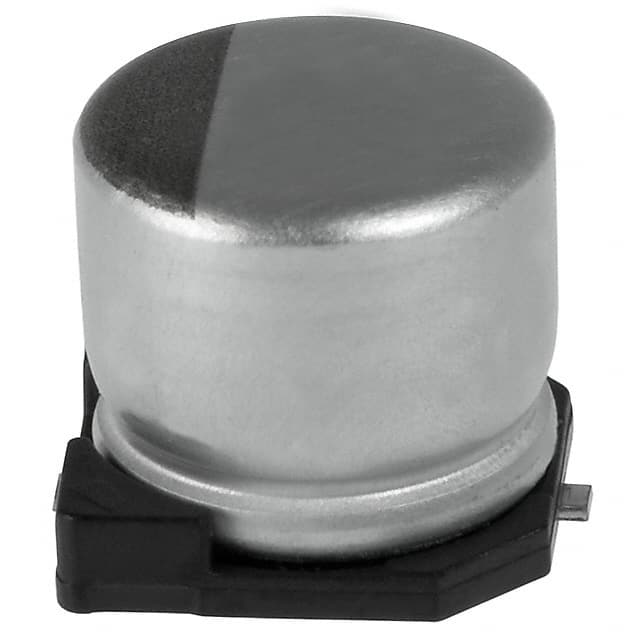

 EMZA250ADA101MF80G United Chemi-Con | 1 $0.6900 | Datasheet | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 112 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 8,064 Cart + RFQ |
EMZA350ADA101MF80G United Chemi-Con | 1 $0.7100 | Datasheet | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 112 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 5,382 Cart + RFQ |
EMZA160ADA220MD61G United Chemi-Con | 1 $0.5000 | Datasheet | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 36 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | Radial, Can - SMD | 9,095 Cart + RFQ |
EMZA250ADA100MD61G United Chemi-Con | 1 $0.5000 | Datasheet | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 36 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | Radial, Can - SMD | 5,380 Cart + RFQ |
EMVY250ADA330MF55G United Chemi-Con | 1 $0.5100 | Datasheet | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 5,539 Cart + RFQ |
EMVA630ADA4R7ME55G United Chemi-Con | 1 $0.5100 | Datasheet | 4.7 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.205" (5.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD | 2,090 Cart + RFQ |
EMVA100ADA470ME55G United Chemi-Con | 1 $0.5100 | Datasheet | 47 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44 mA @ 120 Hz | 47.52 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.205" (5.20mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD | 2,016 Cart + RFQ |
EKZM160ETD221MF11D United Chemi-Con | 1 $0.4900 | Datasheet | 220 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 540 mA @ 100 kHz | 94 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | Radial, Can | 7,158 Cart + RFQ |
EMVY160ADA101MF55G United Chemi-Con | 1 $0.4700 | Datasheet | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 3,753 Cart + RFQ |
EMVA160ADA101MF55G United Chemi-Con | 1 $0.5400 | Datasheet | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 75.6 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 8,505 Cart + RFQ |
EMVA250ADA470MF55G United Chemi-Con | 1 $0.5400 | Datasheet | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 64.8 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 7,571 Cart + RFQ |
EMVA100ADA101MF55G United Chemi-Con | 1 $0.5400 | Datasheet | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 75.6 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 2,341 Cart + RFQ |
EMVA6R3ADA221MF55G United Chemi-Con | 1 $0.5400 | Datasheet | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 88 mA @ 120 Hz | 95.04 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 5,994 Cart + RFQ |
E37L451CPN472MEB7U United Chemi-Con | 1 $65.1500 | Datasheet | 4700 µF | ±20% | 450 V | 22mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 120 Hz | 21.291 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.646" (118.00mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 8,163 Cart + RFQ |
EMVE250ADA220MF55G United Chemi-Con | 1 $0.3600 | Datasheet | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 44 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 1,219 Cart + RFQ |
EMVE350ADA330MF60G United Chemi-Con | 1 $0.4100 | Datasheet | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 6,843 Cart + RFQ |
EMVY6R3ADA331MF80G United Chemi-Con | 1 $0.5100 | Datasheet | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 9,488 Cart + RFQ |
EKMH800VNN472MR50W United Chemi-Con | Datasheet | 4700 µF | ±20% | 80 V | 53mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.39 A @ 120 Hz | 4.068 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | Radial, Can - Snap-In | 2,356 Cart + RFQ |
