Aluminum Electrolytic Capacitors
A capacitor is a passive electronic device that stores electric charge. Polarized aluminum electrolytic capacitors have an anode electrode (+) made of pure aluminum foil, electrolyte that acts as the cathode, and a thin insulating layer of aluminum oxide that acts as the dielectric. Electrolytic capacitors have higher capacitance-voltage (CV) product per unit volume than ceramic capacitors or film capacitors. Applications include audio, automotive, bypass, decoupling, and motor starting capacitors.
Product List
Total Components: 11,633
| Product | Pricing | Datasheet | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

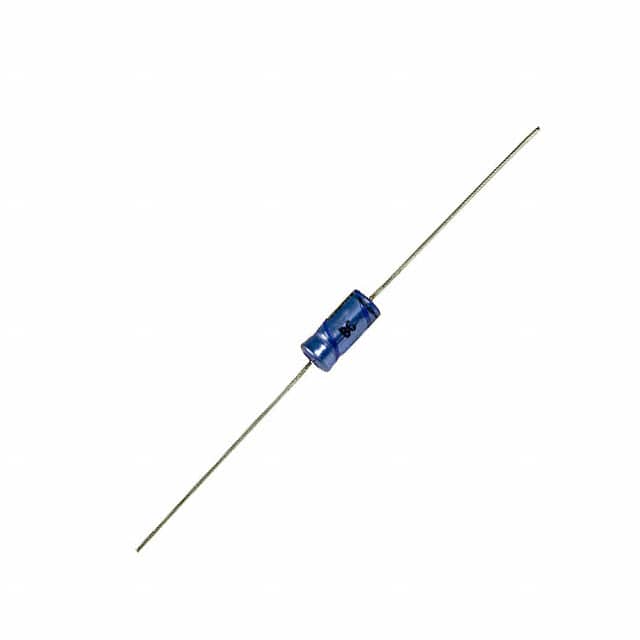

 MAL202136101E3 Phoenix Passive Components / Vishay | 1 $1.9800 | Datasheet | 100 µF | ±20% | 25 V | 2.3Ohm | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 195 mA @ 10 kHz | 1.2 Ohms | - | 0.236" Dia x 0.394" L (6.00mm x 10.00mm) | - | - | Through Hole | Axial, Can | 6,241 Cart + RFQ |
MAL203836101E3 Phoenix Passive Components / Vishay | 1 $0.4900 | Datasheet | 100 µF | ±20% | 25 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 256.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | Radial, Can | 6,008 Cart + RFQ |
MAL210619472E3 Phoenix Passive Components / Vishay | 1 $51.6500 | Datasheet | 4700 µF | -10%, +30% | 100 V | 22mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.1 A @ 100 Hz | - | 12 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.535" (89.80mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 6,317 Cart + RFQ |
MAL210119103E3 Phoenix Passive Components / Vishay | 1 $51.9200 | Datasheet | 10000 µF | ±20% | 100 V | 21mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 13.65 A @ 10 kHz | 15 mOhms | 0.874" (22.20mm) | 1.969" Dia (50.00mm) | 3.299" (83.80mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 2,654 Cart + RFQ |
MAL210117104E3 Phoenix Passive Components / Vishay | 1 $75.0500 | Datasheet | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 24.96 A @ 10 kHz | 6 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.134" (105.00mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 2,079 Cart + RFQ |
MAL210437152E3 Phoenix Passive Components / Vishay | 1 $89.0000 | Datasheet | 1500 µF | ±20% | 450 V | 77mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 10.95 A @ 10 kHz | 44 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.339" (110.20mm) | - | Chassis Mount | Radial, Can - Screw Terminals | 4,531 Cart + RFQ |
MAL215959121E3 Phoenix Passive Components / Vishay | Datasheet | 120 µF | ±20% | 500 V | 700mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | - | 490 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | Radial, Can - Snap-In | 5,344 Cart + RFQ | |
MAL215959181E3 Phoenix Passive Components / Vishay | Datasheet | 180 µF | ±20% | 500 V | 480mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | - | 350 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | Radial, Can - Snap-In | 6,309 Cart + RFQ | |
MAL215959221E3 Phoenix Passive Components / Vishay | Datasheet | 220 µF | ±20% | 500 V | 400mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | - | 280 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | Radial, Can - Snap-In | 5,513 Cart + RFQ | |
MAL215949331E3 Phoenix Passive Components / Vishay | Datasheet | 330 µF | ±20% | 500 V | 290mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | - | 210 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | Radial, Can - Snap-In | 7,637 Cart + RFQ | |
MAL215959391E3 Phoenix Passive Components / Vishay | Datasheet | 390 µF | ±20% | 500 V | 230mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | - | 170 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | Radial, Can - Snap-In | 2,649 Cart + RFQ | |
MAL215959471E3 Phoenix Passive Components / Vishay | Datasheet | 470 µF | ±20% | 500 V | 200mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | - | 150 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | Radial, Can - Snap-In | 7,334 Cart + RFQ | |
MAL215959689E3 Phoenix Passive Components / Vishay | Datasheet | 68 µF | ±20% | 500 V | 1.22Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | - | 850 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | Radial, Can - Snap-In | 9,722 Cart + RFQ | |
MAL209010472E3 Phoenix Passive Components / Vishay | Datasheet | 4700 µF | ±20% | 35 V | 78mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.8 A @ 100 Hz | - | 53 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | Radial, Can - Snap-In | 6,127 Cart + RFQ | |
MAL209011332E3 Phoenix Passive Components / Vishay | Datasheet | 3300 µF | ±20% | 50 V | 101mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.6 A @ 100 Hz | - | 73 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | Radial, Can - Snap-In | 6,439 Cart + RFQ | |
MAL209020682E3 Phoenix Passive Components / Vishay | Datasheet | 6800 µF | ±20% | 35 V | 70mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 3 A @ 100 Hz | - | 50 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | Radial, Can - Snap-In | 3,814 Cart + RFQ | |
MALIEYH07AA412L02K Phoenix Passive Components / Vishay | Datasheet | 1200 µF | ±20% | 100 V | 225mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | Radial, Can - Snap-In | 6,391 Cart + RFQ | |
MALIEYH07AA439H02K Phoenix Passive Components / Vishay | Datasheet | 3900 µF | ±20% | 50 V | 89mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.62 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | Radial, Can - Snap-In | 5,593 Cart + RFQ | |
MALIEYH07AA468F02K Phoenix Passive Components / Vishay | Datasheet | 6800 µF | ±20% | 35 V | 75mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.71 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | Radial, Can - Snap-In | 7,793 Cart + RFQ | |
MALIEYH07AA510E02K Phoenix Passive Components / Vishay | Datasheet | 10000 µF | ±20% | 25 V | 53mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | Radial, Can - Snap-In | 3,187 Cart + RFQ |
