Aluminum - Polymer Capacitors
Aluminum polymer capacitors, like their standard electrolytic counterparts, are a polarized capacitor type based on an aluminum electrode material with an aluminum oxide dielectric, but distinguished from them by their use of a conductive polymer material instead of traditional fluid electrolytes. Relative to standard aluminum electrolytic capacitors, polymer types tend to exhibit improved electrical performance in exchange for higher cost and greater sensitivity to the operating environment.
Product List
Total Components: 609
Product | Pricing | Datasheet | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type | Package / Case | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A765EB107M1CLAE025 KEMET | 1 $0.7800 | Datasheet | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 5,991 Cart + RFQ |

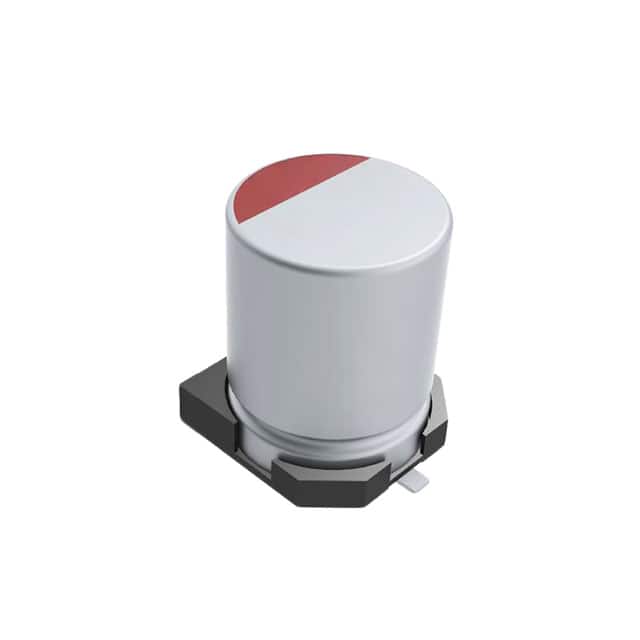

A767KN476M1HLAE029 KEMET | 1 $2.1400 | Datasheet | Polymer | 47 µF | ±20% | 50 V | 29mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD | 3,608 Cart + RFQ |

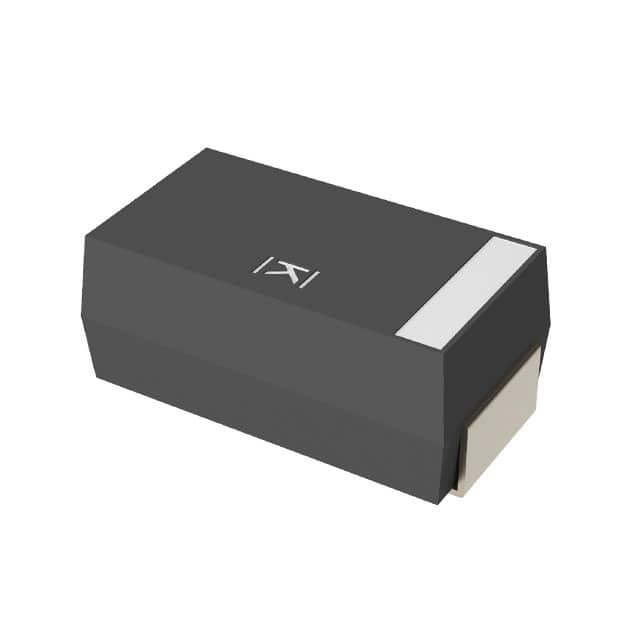

A700V336M010ATE028 KEMET | 1 $2.3400 | Datasheet | Polymer | 33 µF | ±20% | 10 V | 28mOhm | - | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) | 4,254 Cart + RFQ |
A767KN336M1JLAE042 KEMET | 1 $2.1000 | Datasheet | Polymer | 33 µF | ±20% | 63 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 97.5 mA @ 120 Hz | 1.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD | 8,171 Cart + RFQ |
A759MS477M1CAAE015 KEMET | 1 $1.0900 | Datasheet | Polymer | 470 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 268.15 mA @ 120 Hz | 5.363 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can | 2,616 Cart + RFQ |
A768MS687M1DLAS015 KEMET | 1 $1.1700 | Datasheet | Polymer | 680 µF | ±20% | 20 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD | 3,347 Cart + RFQ |
A750MV187M1HAAE022 KEMET | 1 $1.1700 | Datasheet | Polymer | 180 µF | ±20% | 50 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | Radial, Can | 7,886 Cart + RFQ |
A759MS567M1CAAE015 KEMET | 1 $1.1700 | Datasheet | Polymer | 560 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 302.75 mA @ 120 Hz | 6.055 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can | 1,390 Cart + RFQ |
A750MW188M1CAAE010 KEMET | 1 $1.1900 | Datasheet | Polymer | 1800 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 350 mA @ 120 Hz | 7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | Radial, Can | 9,294 Cart + RFQ |
A750MV157M1JAAE022 KEMET | 1 $1.2000 | Datasheet | Polymer | 150 µF | ±20% | 63 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | Radial, Can | 7,197 Cart + RFQ |
A768MS687M1CLAV015 KEMET | 1 $2.4500 | Datasheet | Polymer | 680 µF | ±20% | 20 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount | Radial, Can - SMD | 8,573 Cart + RFQ |
A750MW128M1EAAE014 KEMET | 1 $1.4200 | Datasheet | Polymer | 1200 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 295.5 mA @ 120 Hz | 5.91 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | Radial, Can | 7,593 Cart + RFQ |
A700X127M010ATE010 KEMET | 1 $4.1000 | Datasheet | Polymer | 120 µF | ±20% | 10 V | 10mOhm | - | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) | 1,534 Cart + RFQ |
PHA225MKP3370QE4 KEMET | 1 $5.5800 | Datasheet | Hybrid | 370 µF | -10%, +30% | 63 V | 145mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 7.9 A @ 100 Hz | 39.5 A @ 100 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | Axial, Can | 6,035 Cart + RFQ |
PHA225KLP4110QE4 KEMET | 1 $5.6200 | Datasheet | Hybrid | 1100 µF | -10%, +30% | 40 V | 80mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | 8.18 A @ 100 Hz | 40.9 A @ 100 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | Axial, Can | 4,518 Cart + RFQ |
PHA226MKP3370QE4 KEMET | 1 $10.9500 | Datasheet | Hybrid | 370 µF | -10%, +30% | 63 V | 6.1mOhm | 2000 Hrs @ 150°C | -40°C ~ 150°C | AEC-Q200 | Automotive | - | 8.4 A @ 100 Hz | 42 A @ 100 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | Axial, Can | 3,486 Cart + RFQ |
A765EB686M1CLAE025 KEMET | 1 $0.5000 | Datasheet | Polymer | 68 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 122 mA @ 120 Hz | 2.44 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 7,184 Cart + RFQ |
A766EB157M0GLAE022 KEMET | 1 $0.5400 | Datasheet | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 9,416 Cart + RFQ |
A765EB337M0ELAE014 KEMET | 1 $0.5700 | Datasheet | Polymer | 330 µF | ±20% | 2.5 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD | 2,873 Cart + RFQ |
A766KE277M0GLAE022 KEMET | 1 $0.5900 | Datasheet | Polymer | 270 µF | ±20% | 4 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD | 6,940 Cart + RFQ |
