Test Probe Tips
Test Probe Tips are used to connect test equipment to the circuit/chip/design being tested. Often the device consists of a cylindrical rod with a head that is concave, convex, a crown, a clamp, a point or blade, or a hooked end. The other end is usually a wire lead. The characteristics are tip type, connection type, tip length, overall length, voltage rating, and cable rating (CAT I, CAT II, CAT III, CAT IV, IEC).
Product List
Total Components: 7
| Product | Pricing | Datasheet | Tip Type | Connection Type | Length - Tip | Length - Overall | Color | Voltage Rating | Ratings | Quantity | Current Rating (Amps) | Material - Body | Material - Tip | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

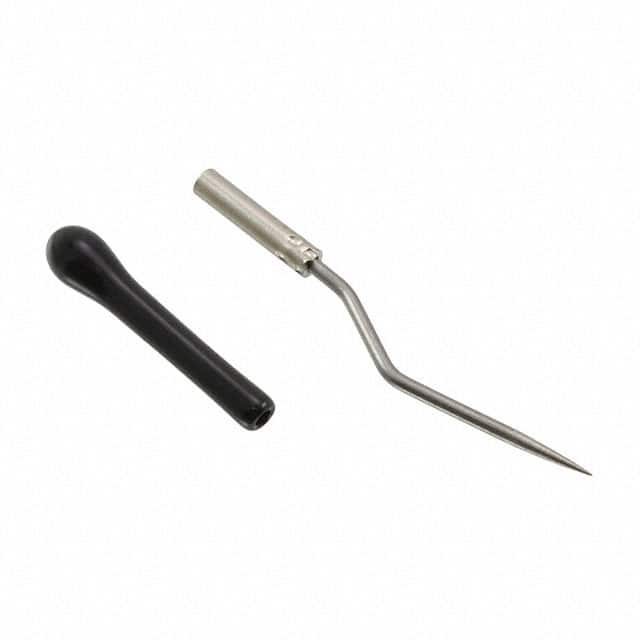

 5133 Pomona Electronics | 1 $2.5400 | Datasheet | Sharp Tip, 0.040" (1.02mm) Dia | 0.080" (2.00mm) Probe Tips | 0.920" (23.37mm) | 1.261" (32.03mm) | - | 600VRMS | - | 1 Piece | 5 A | - | Steel, Stainless | - | 1,392 Cart + RFQ |

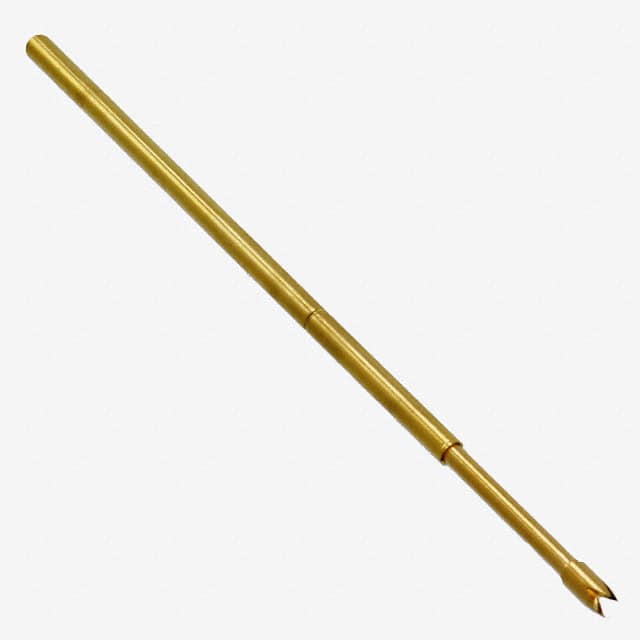

 6212 Pomona Electronics | 1 $4.3100 | Datasheet | Quad Point Piston Pin Tip, Spring Mounted, 0.040" (1.02mm) Dia | 0.040" (1.02mm) Test Probe Tips | - | - | - | - | - | 1 Piece | 3 A | - | Beryllium Copper, Gold Plated | - | 8,562 Cart + RFQ |
 5906A Pomona Electronics | 1 $17.7900 | Datasheet | Lantern Tip, 0.157" (4.00mm) Dia | Banana, Female Socket (Jack) | 0.728" (18.49mm) | 4.810" (122.17mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Brass, Nickel Plated | - | 3,597 Cart + RFQ |

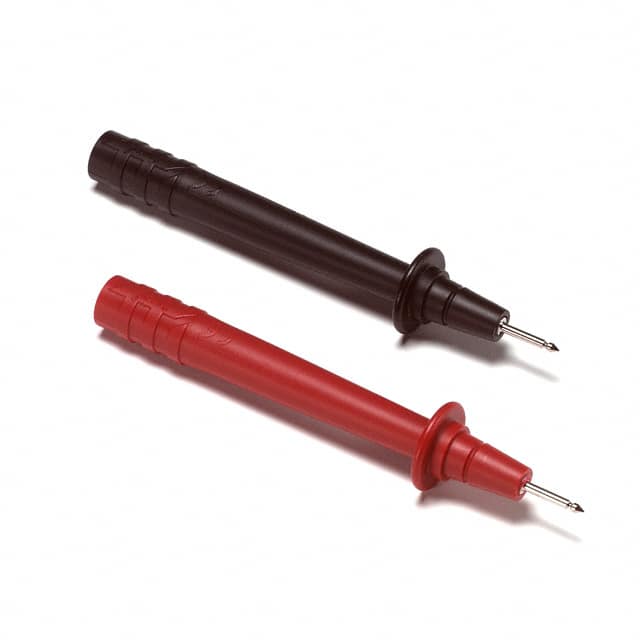

 6232A Pomona Electronics | 1 $24.7900 | Datasheet | Notched Tip, 0.080" (2.03mm) Dia | Banana, Female Socket (Jack) | - | 4.550" (115.57mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Brass, Nickel Plated | - | 4,497 Cart + RFQ |

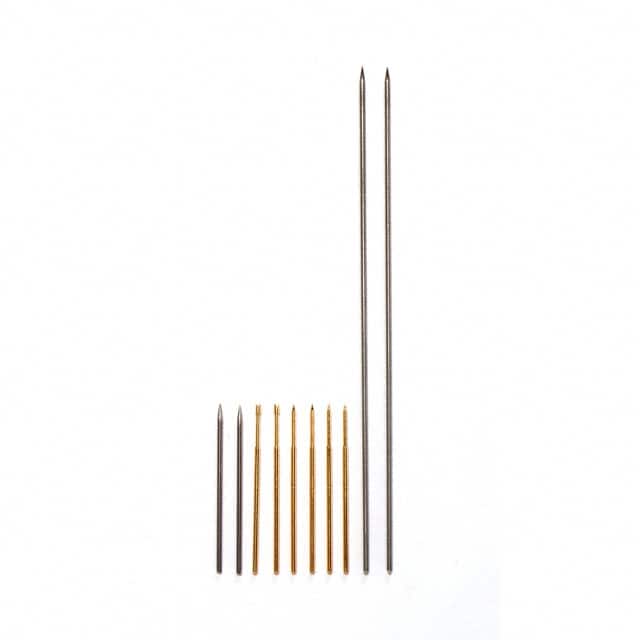

 6354 Pomona Electronics | 1 $26.9900 | Datasheet | Set - Quad Point, Sharp Tips, Triple Point, 0.040" (1.02mm) Dia | 0.040" (1.02mm) Test Probe Tips | - | - | - | 1000V | CAT II 1000V | 10 Pieces | 3 A | - | Beryllium Copper, Stainless Steel | - | 5,991 Cart + RFQ |

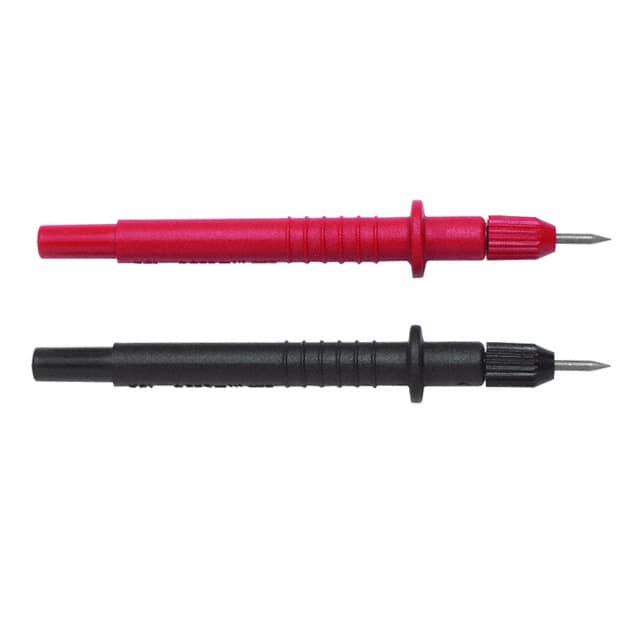

 5689A Pomona Electronics | 1 $30.1900 | Datasheet | Sharp Tip | Banana, Female Socket (Jack) | 0.510" (12.95mm) | 4.370" (111.00mm) | Black and Red | 600V | CAT III 600V | 2 Pieces | 10 A | Nylon | Steel, Stainless | - | 4,761 Cart + RFQ |

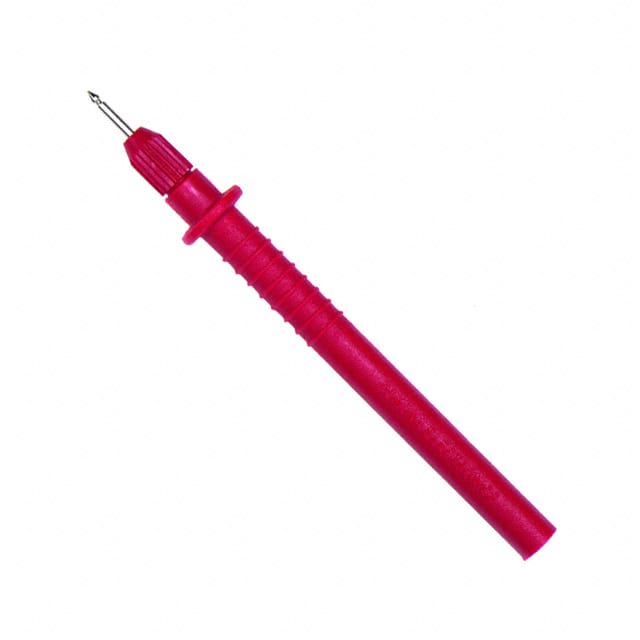

 5432-2 Pomona Electronics | 1 $8.4900 | Datasheet | Standard Tip, 0.080" (2.03mm) Dia | 18-22 AWG Test Lead | 0.500" (12.70mm) | 4.920" (124.97mm) | Red | 1500VAC/DC | - | 1 Piece | 10 A | Nylon | Brass, Nickel Plated | 176°F (80°C) | 8,866 Cart + RFQ |
