Flat Ribbon Cables

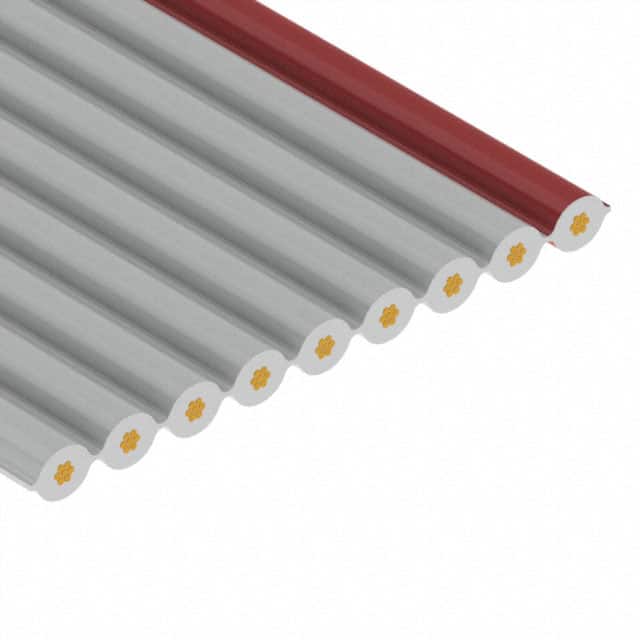

Flat Ribbon Cables are a series of single conductor wires placed parallel to each other and molded together. Most ribbon cables are color coded for pin one usually red in color. The cable types are Flat cable, Flat Jacket, Ground Plane, Round Jacket, Split Conductor, Flat Twin Axial, and Flat Twisted Pair with the number of conductors ranging from 2 to 154 and pitch ranging from 0.017” (0.43mm) to 0.394” (10.00mm).
Product List
Total Components: 13
| Product | Pricing | Datasheet | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

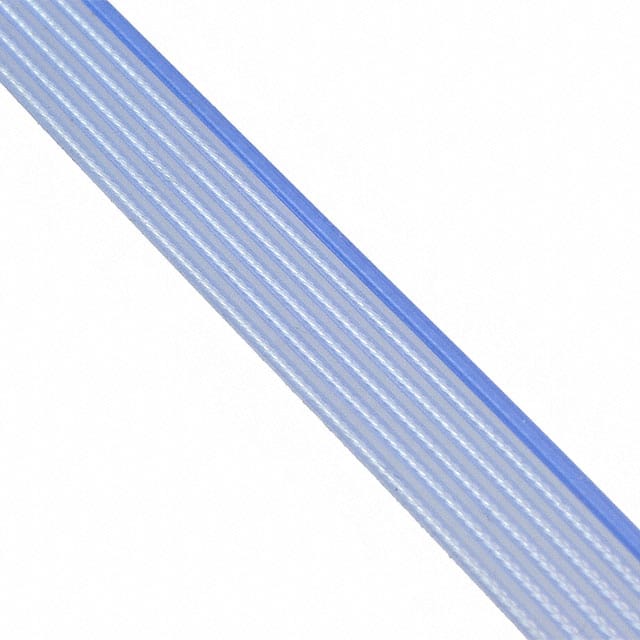

 1000570030 Affinity Medical Technologies - Molex | 1 $2.4400 | Datasheet | Flat Cable | 6 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.300" (7.62mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 8,186 Cart + RFQ |

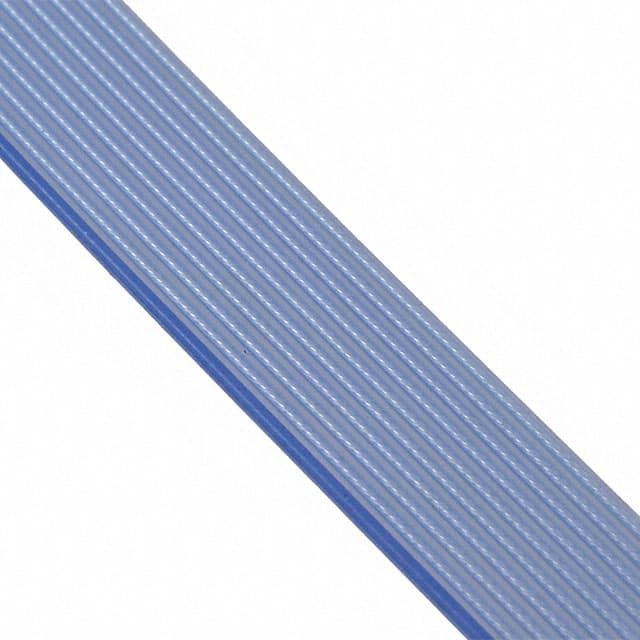

 1000570031 Affinity Medical Technologies - Molex | 1 $2.9100 | Datasheet | Flat Cable | 10 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 7,292 Cart + RFQ |

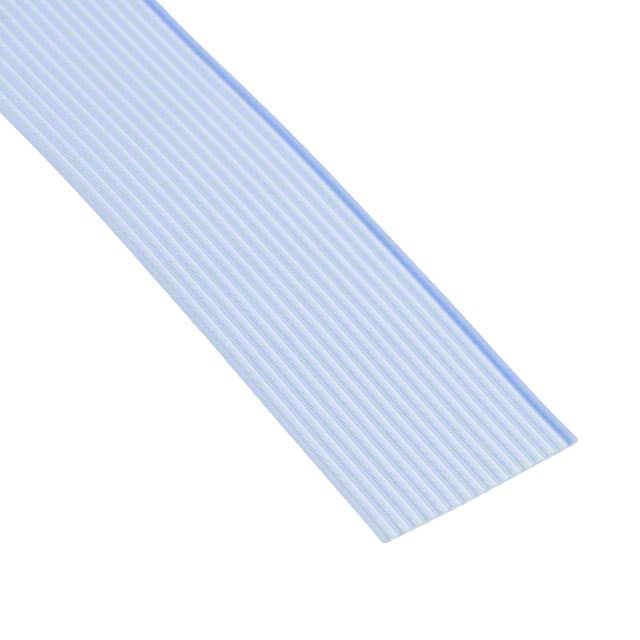

 1000570033 Affinity Medical Technologies - Molex | 1 $4.5600 | Datasheet | Flat Cable | 16 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.800" (20.32mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 1,902 Cart + RFQ |

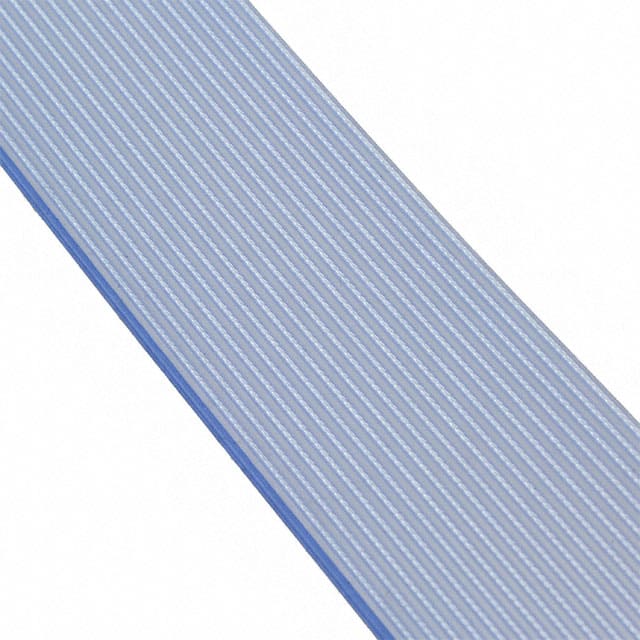

 1000570034 Affinity Medical Technologies - Molex | 1 $5.5800 | Datasheet | Flat Cable | 20 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 4,633 Cart + RFQ |

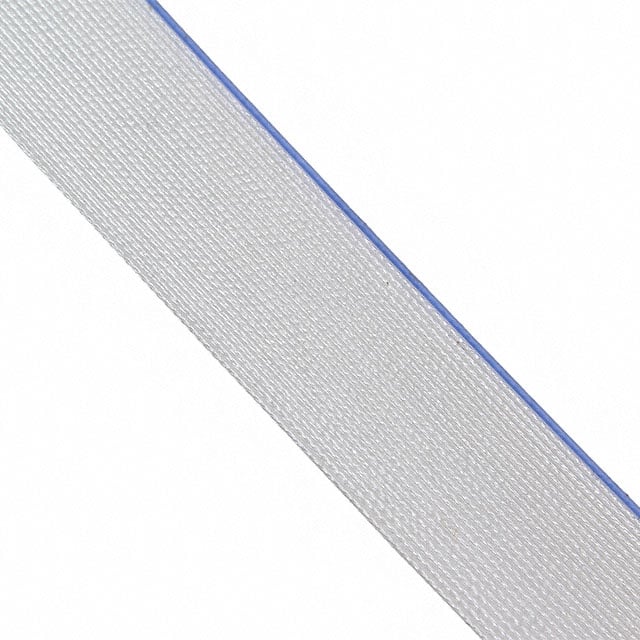

 1000570022 Affinity Medical Technologies - Molex | 1 $5.6900 | Datasheet | Flat Cable | 26 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.650" (16.51mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | -55°C ~ 200°C | UL Style 20726 | - | 7,462 Cart + RFQ |

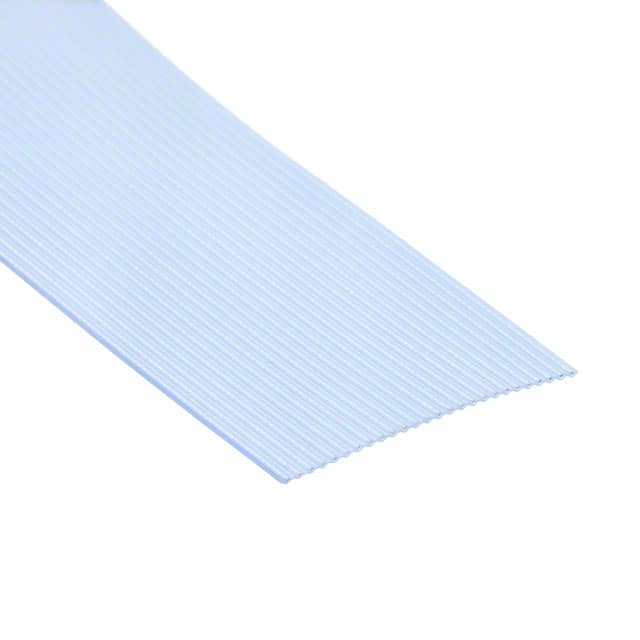

 1000570036 Affinity Medical Technologies - Molex | 1 $7.2500 | Datasheet | Flat Cable | 26 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 4,409 Cart + RFQ |

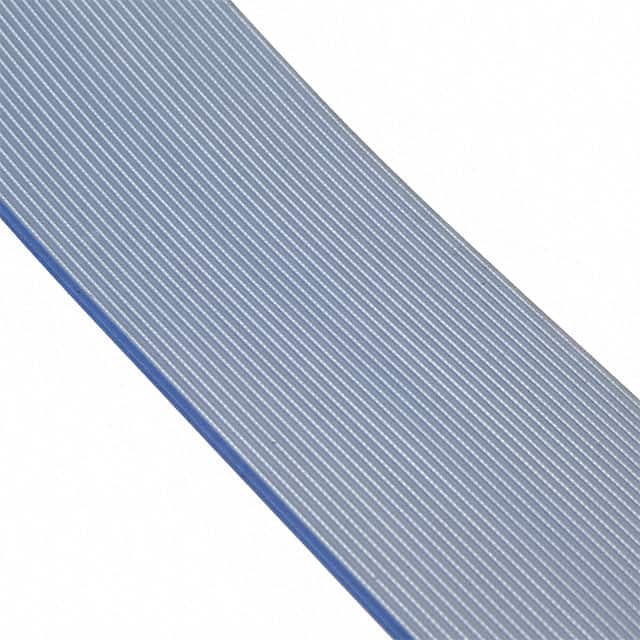

 1000570037 Affinity Medical Technologies - Molex | 1 $9.0700 | Datasheet | Flat Cable | 34 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 7,661 Cart + RFQ |

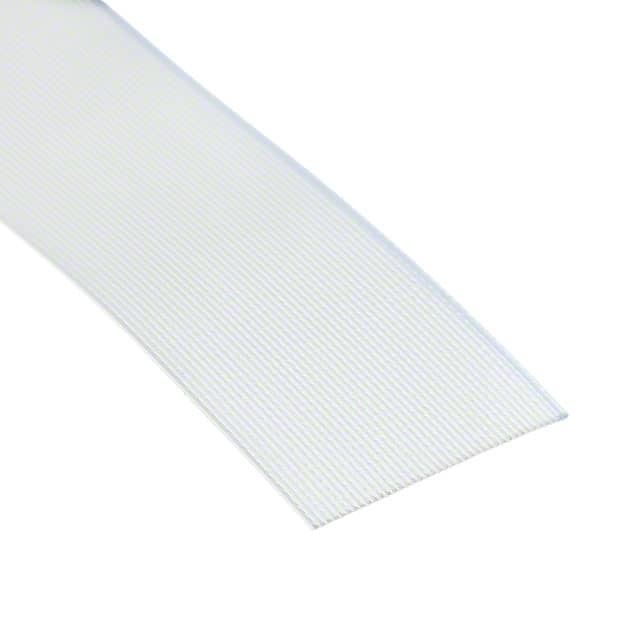

 1000570024 Affinity Medical Technologies - Molex | 1 $8.3900 | Datasheet | Flat Cable | 40 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | -55°C ~ 200°C | UL Style 20726 | - | 6,080 Cart + RFQ |

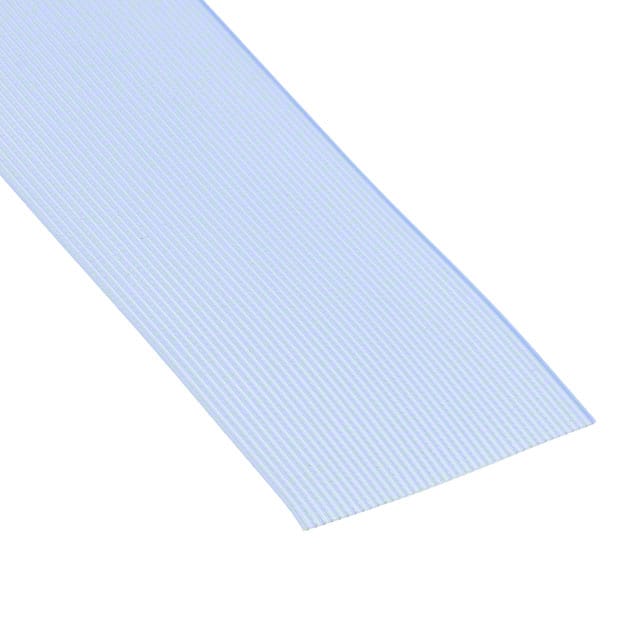

 1000570038 Affinity Medical Technologies - Molex | 1 $10.6700 | Datasheet | Flat Cable | 40 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 6,415 Cart + RFQ |
 1000570025 Affinity Medical Technologies - Molex | 1 $10.4800 | Datasheet | Flat Cable | 50 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | 150°C | UL Style 20726 | - | 3,835 Cart + RFQ |

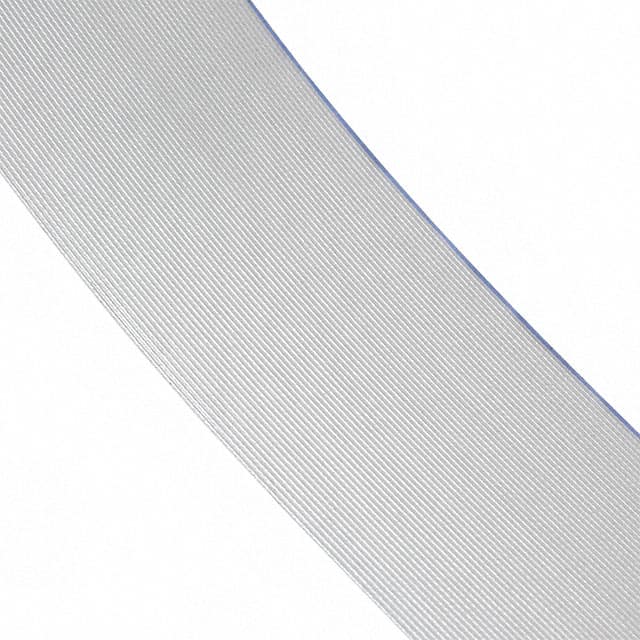

 1000570026 Affinity Medical Technologies - Molex | 1 $12.5800 | Datasheet | Flat Cable | 60 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.500" (38.10mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | -55°C ~ 200°C | UL Style 20726 | - | 7,933 Cart + RFQ |

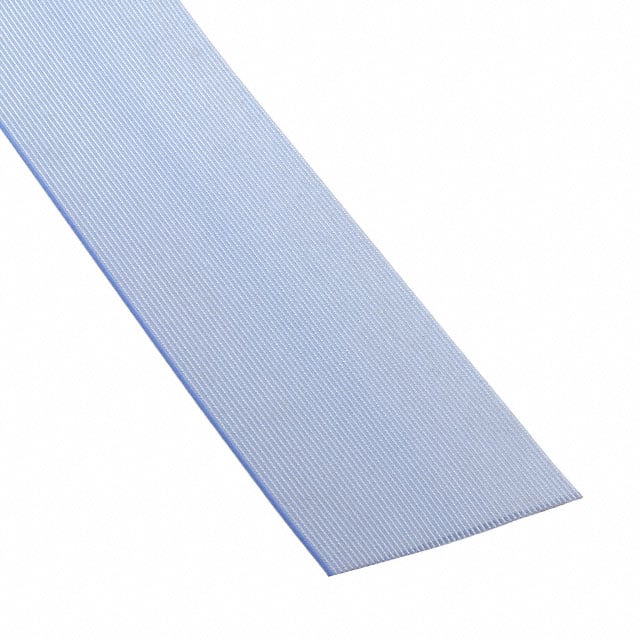

 1000570039 Affinity Medical Technologies - Molex | 1 $13.3400 | Datasheet | Flat Cable | 50 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | -55°C ~ 200°C | UL Style 20424 | - | 9,158 Cart + RFQ |

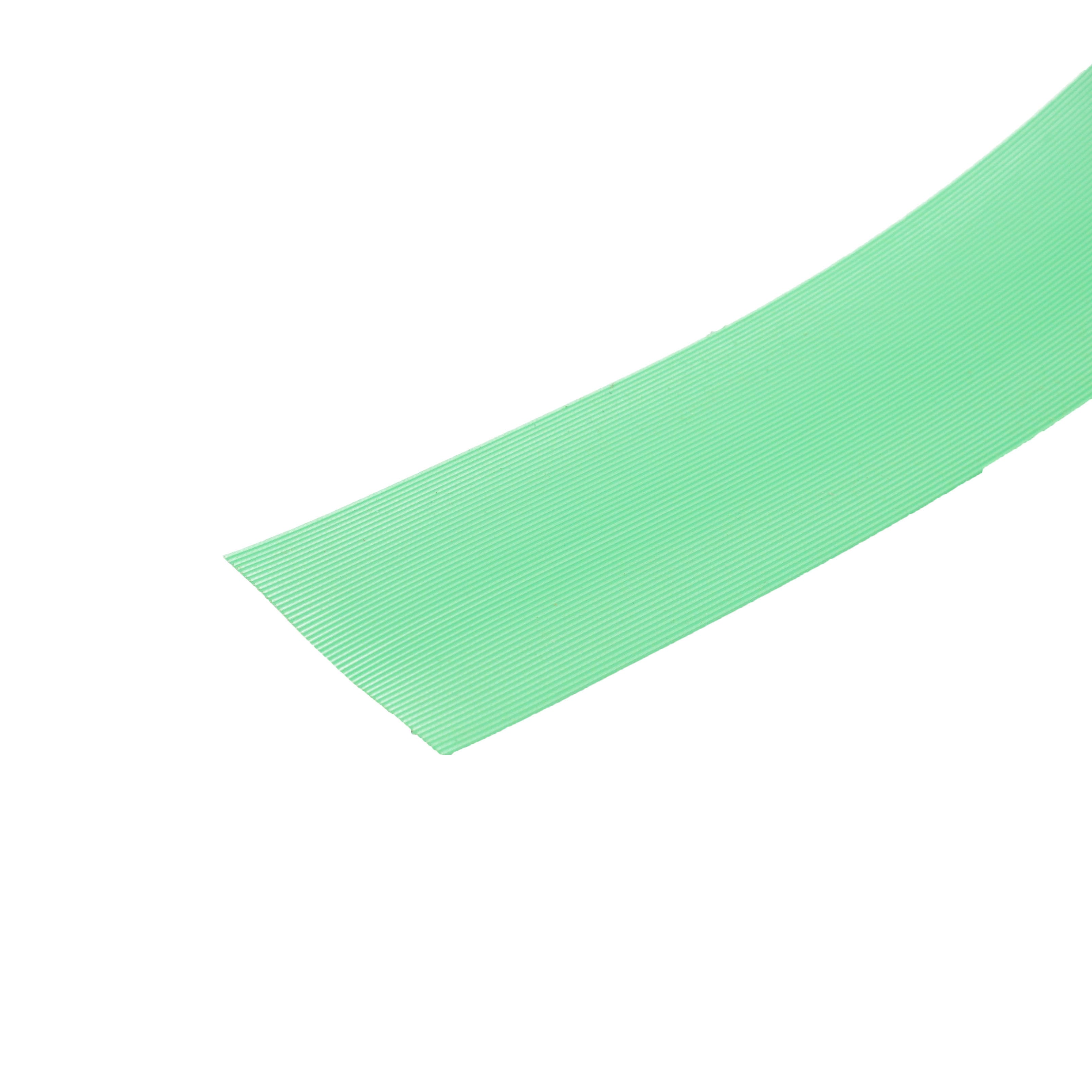

 1000570115 Affinity Medical Technologies - Molex | 1 $13.3400 | Datasheet | Flat Cable | 50 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 26 AWG | 7 Strands / 34 AWG | Unshielded | Green | 0.032" (0.81mm) | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | 200°C | - | - | 2,993 Cart + RFQ |
