Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Product List
Total Components: 63
| Product | Pricing | Datasheet | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

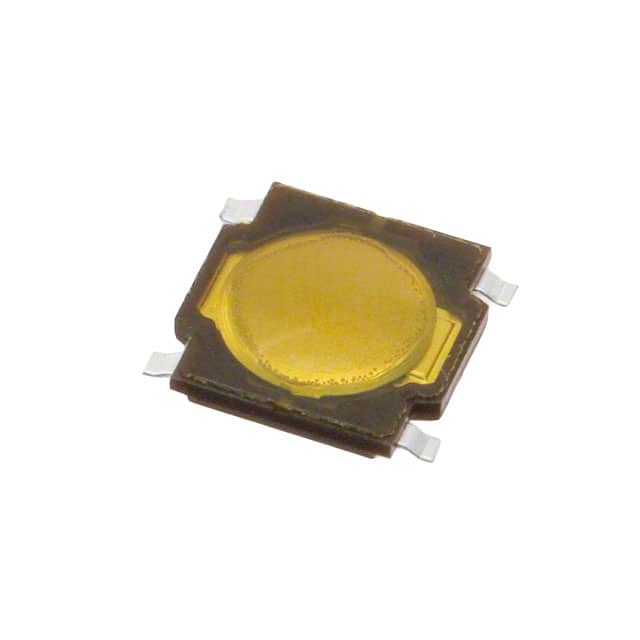

 TL3315NF100Q E-Switch | 1 $0.1209 100 $0.0967 500 $0.0806 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 15VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C | 180,000 Cart + RFQ |
TL3315NF160Q E-Switch | 1 $0.1500 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 15VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 5,996 Cart + RFQ |
TL3315NF250Q E-Switch | 1 $0.1500 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 15VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C | 1,930 Cart + RFQ |

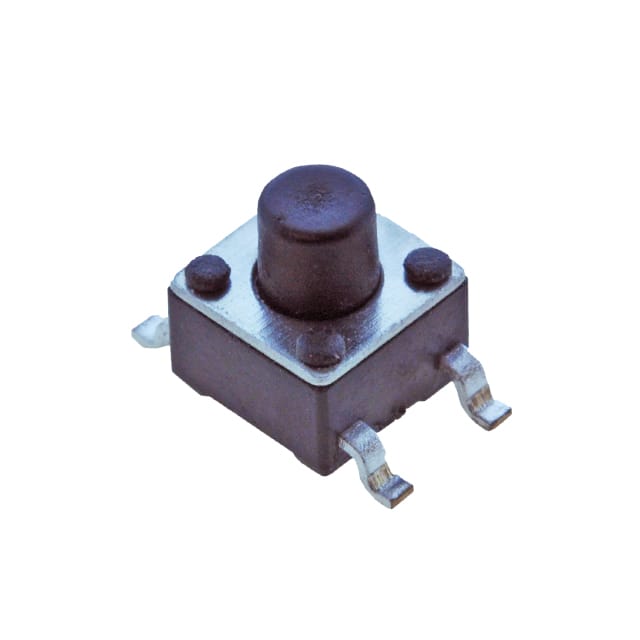

 TL3305AF160QG E-Switch | 1 $0.6045 100 $0.4836 500 $0.4030 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.80mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 60 Cart + RFQ |

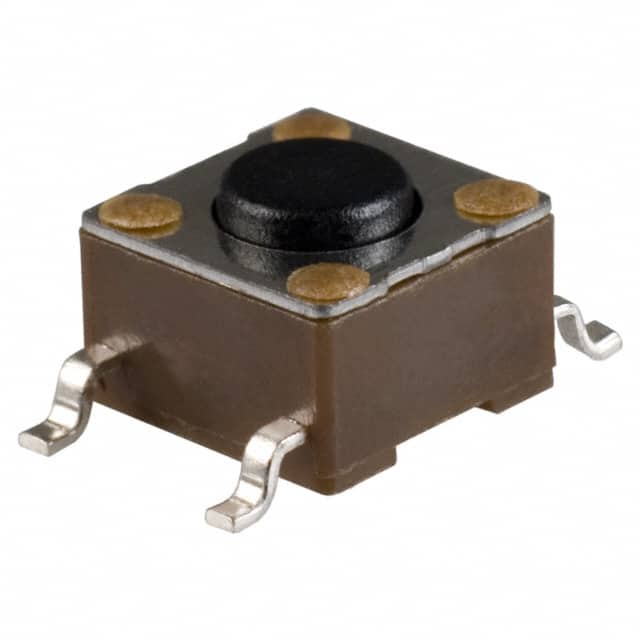

 TL3301NF160QG-KR E-Switch | 1 $0.2500 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 9,532 Cart + RFQ |

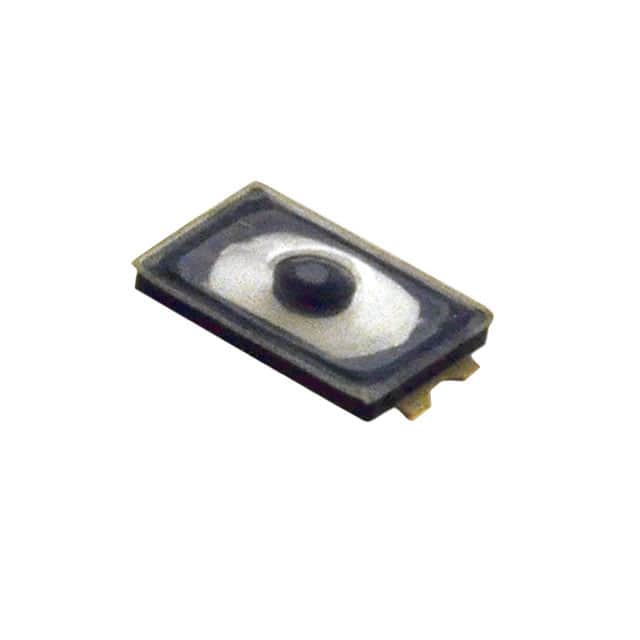

 TL3780AF240QG E-Switch | 1 $0.3100 | Datasheet | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | Gull Wing | 3.00mm x 2.00mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C | 2,665 Cart + RFQ |

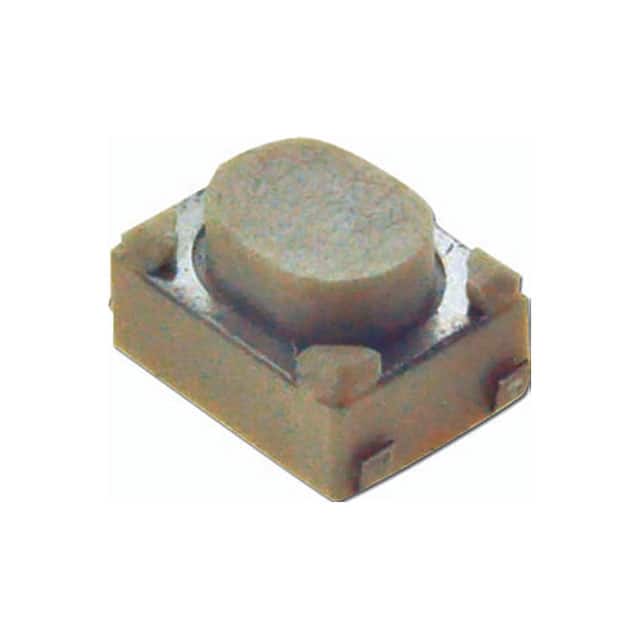

 TL3365AF180QG E-Switch | 1 $0.3400 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 4.20mm x 3.20mm | Non-Illuminated | - | - | 180gf | - | - | -20°C ~ 70°C | 1,730 Cart + RFQ |

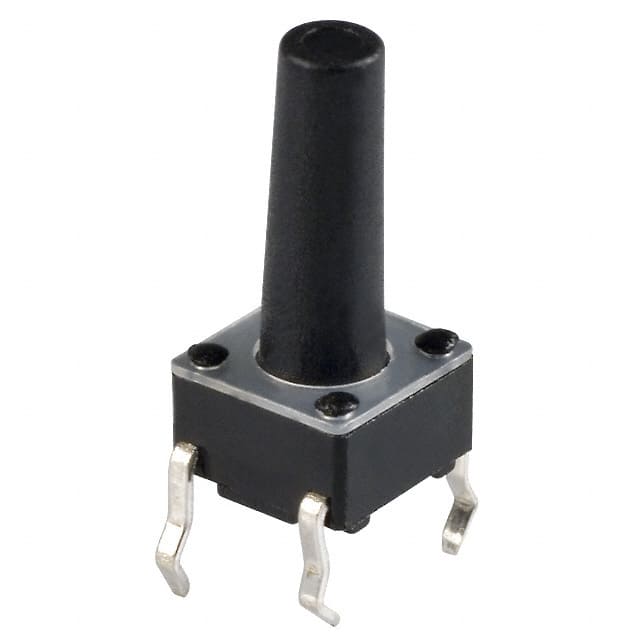

 TL1105DF160Q E-Switch | 1 $0.2000 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 8,657 Cart + RFQ |

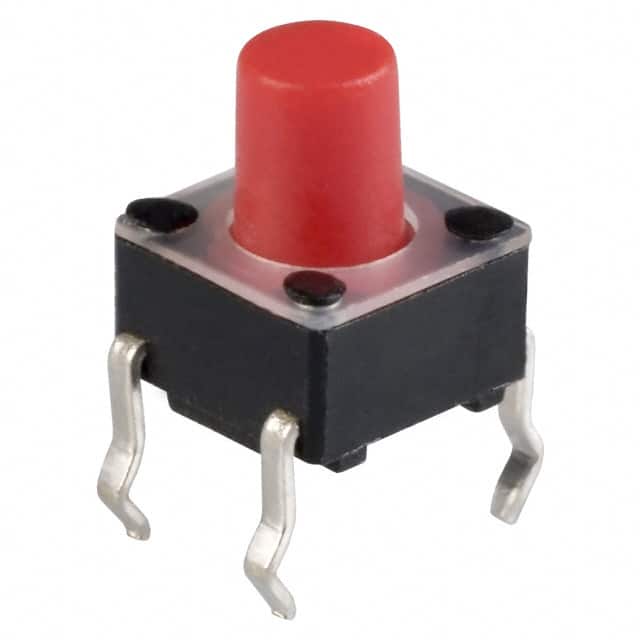

 TL1105EF250Q7.3RED E-Switch | 1 $0.2300 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C | 1,094 Cart + RFQ |

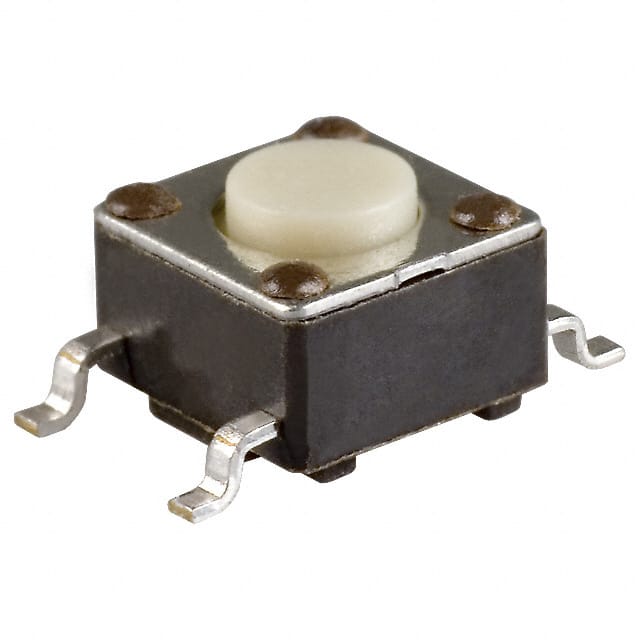

 TL3301NF260QG E-Switch | 1 $0.4200 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C | 5,498 Cart + RFQ |

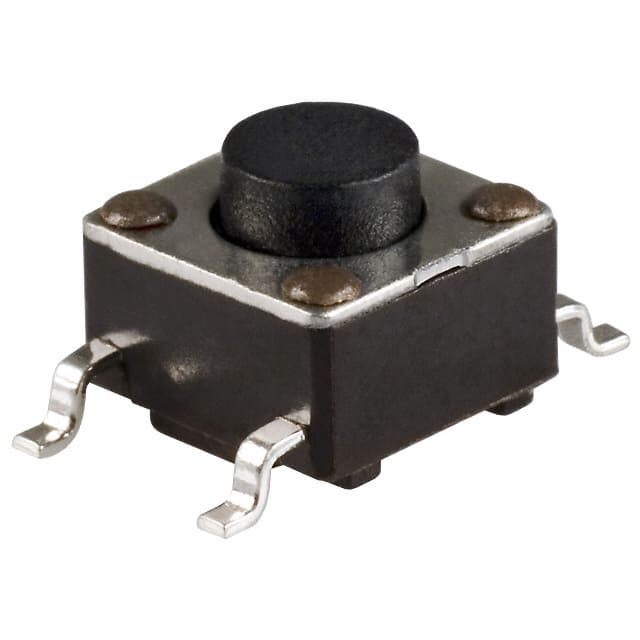

 TL3301AF160QG E-Switch | 1 $0.3960 100 $0.3168 500 $0.2640 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 2,000 Cart + RFQ |

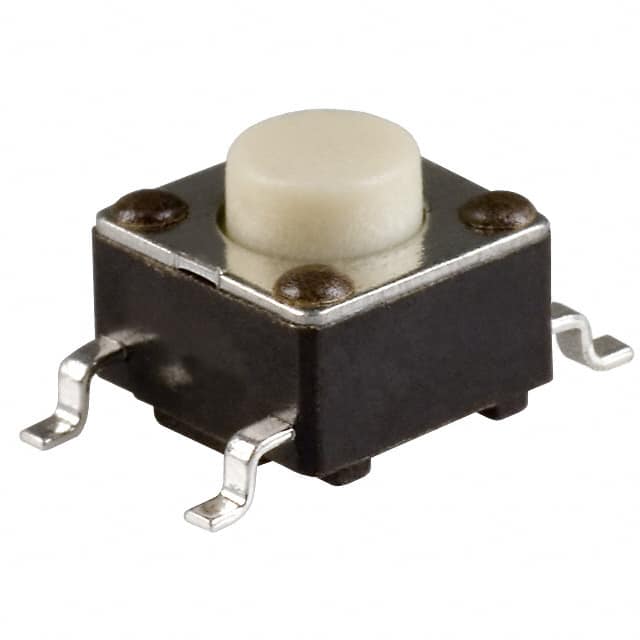

 TL3301AF260QG E-Switch | 1 $0.4200 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C | 8,561 Cart + RFQ |

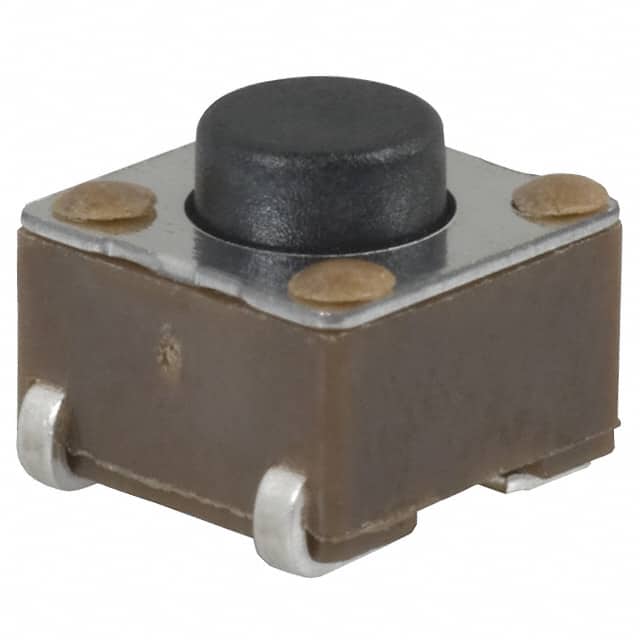

 TL3301AF160QJ E-Switch | 1 $0.4600 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 8,174 Cart + RFQ |

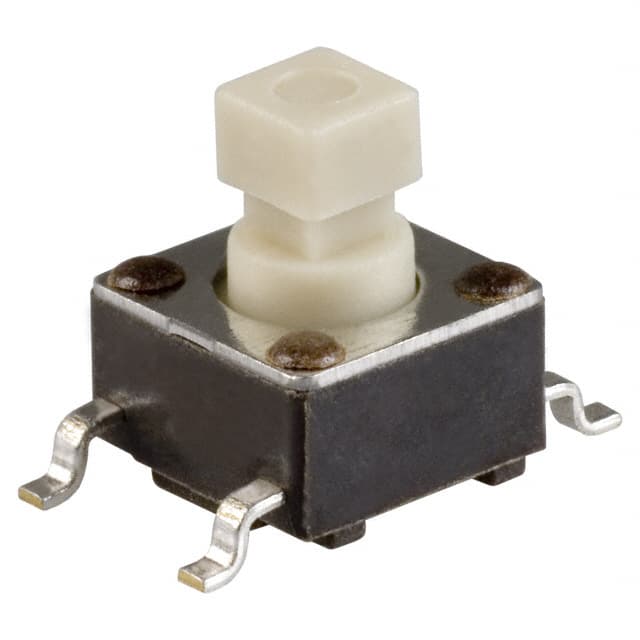

 TL3301SPF260QG E-Switch | 1 $0.4300 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C | 5,188 Cart + RFQ |

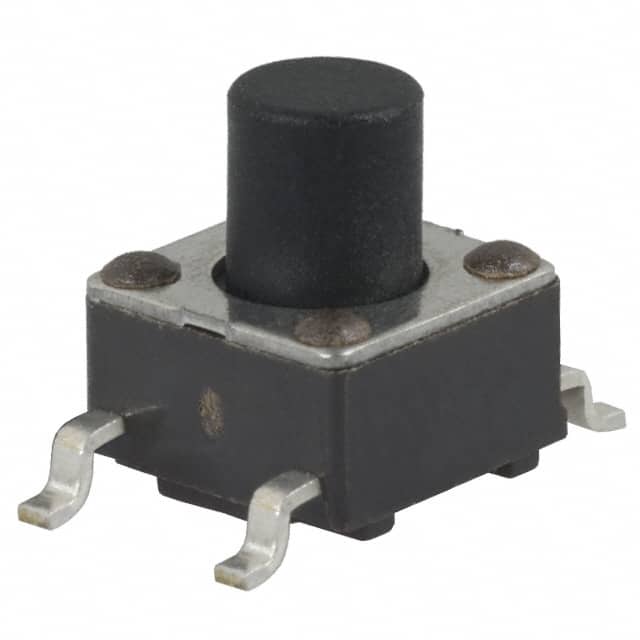

 TL3301FF160QG E-Switch | 1 $0.4300 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 9,418 Cart + RFQ |

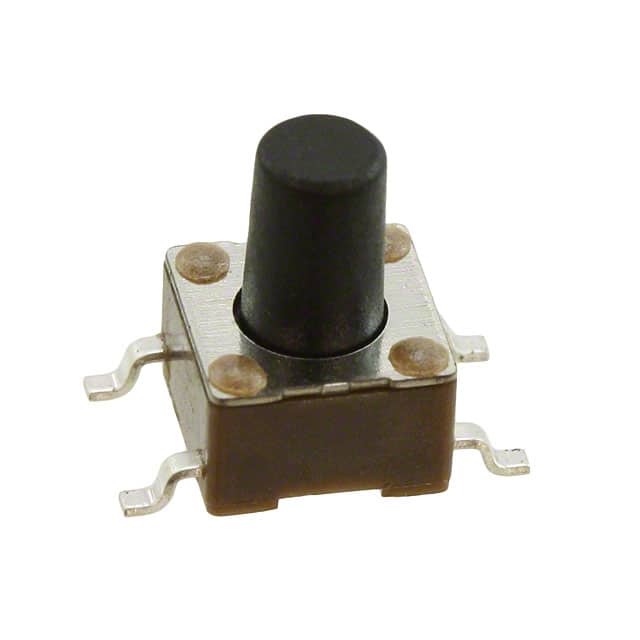

 TL3301PF160QG E-Switch | 1 $0.4300 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 3,528 Cart + RFQ |

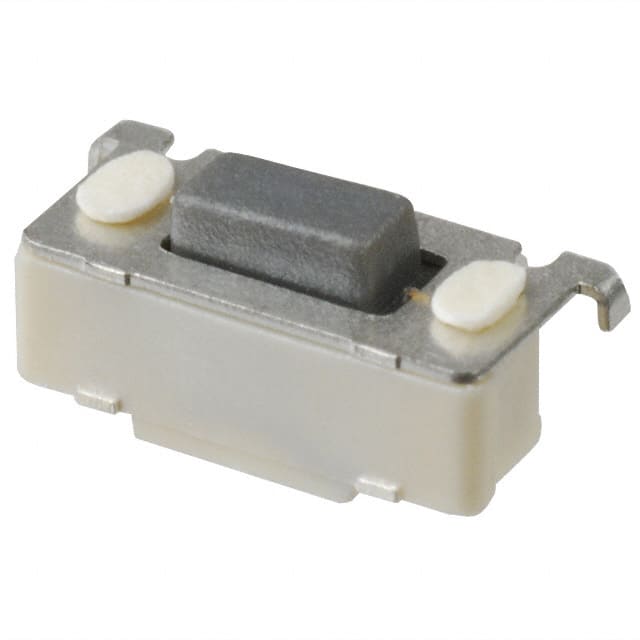

 TL3330AF130QG E-Switch | 1 $0.5100 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.50mm | Side Actuated | Gull Wing | 7.80mm x 2.50mm | Non-Illuminated | - | - | 130gf | - | - | -30°C ~ 70°C | 6,383 Cart + RFQ |

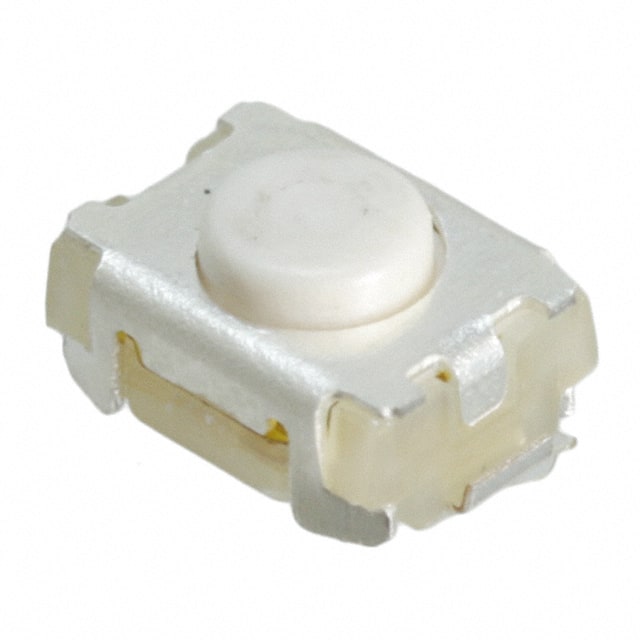

 TL1015AF160QG E-Switch | 1 $0.5400 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | Gull Wing | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 2,335 Cart + RFQ |

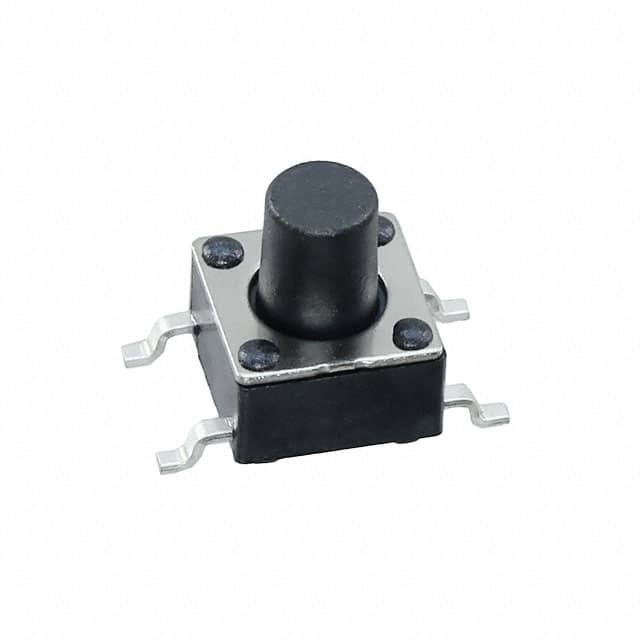

 TL3301EF100QG E-Switch | 1 $0.4600 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C | 9,524 Cart + RFQ |

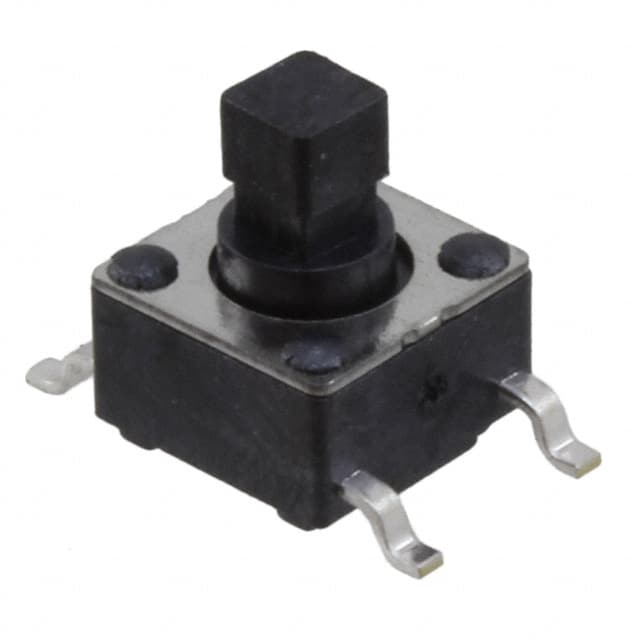

 TL3301TF160QGTR E-Switch | 1 $0.4600 | Datasheet | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C | 3,616 Cart + RFQ |
